Frustrated by Heavy Lifting? The Katool KT-4H850 4-Post Lift Turns Maintenance into a Simple, Safe Process.

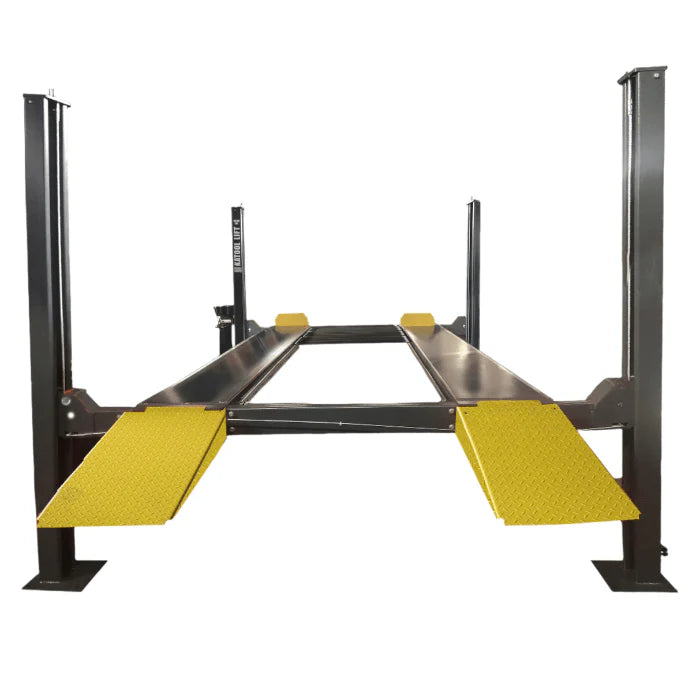

When it comes to routine vehicle service or optimizing garage space, finding a lift that delivers the right balance of strength, safety, and convenience can be a challenge—especially when working with heavier vehicles. The Katool KT-4H850 8,500 lb 4-Post Car Lift solves that problem, offering a durable, high-capacity solution engineered for both professional shops and dedicated home garages.

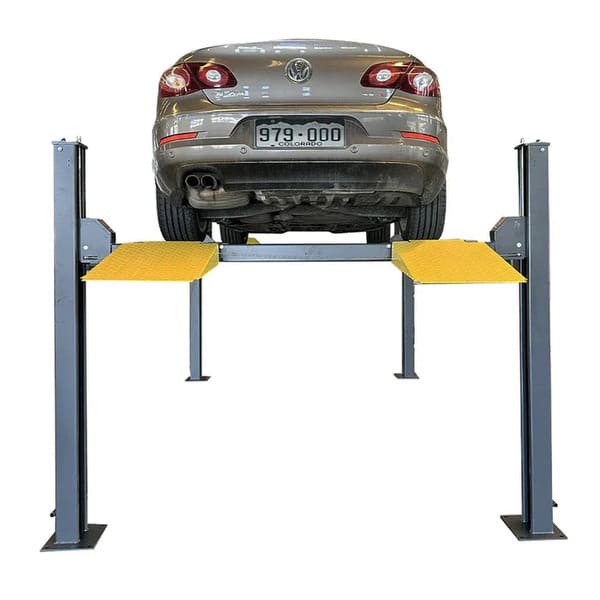

With a lifting capacity of 8,500 lbs, this model easily handles cars, SUVs, and light-duty trucks. Its maximum lift height of 70.87 inches provides ample undercarriage clearance for maintenance, detailing, or inspection tasks. Designed for efficiency, it lifts in approximately 75 seconds and lowers in 40 seconds, helping you save time without sacrificing safety.

The KT-4H850 meets CE-certified safety standards, featuring a single-point manual safety release and four mechanical locking systems—each equipped with primary and secondary locks for maximum stability. The diamond-plate, non-slip runways ensure secure vehicle positioning, while adjustable lock ladders let you fine-tune height for different vehicle types.

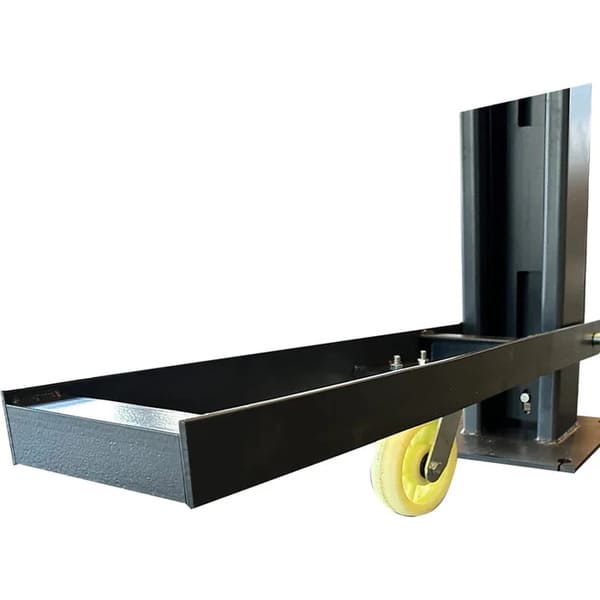

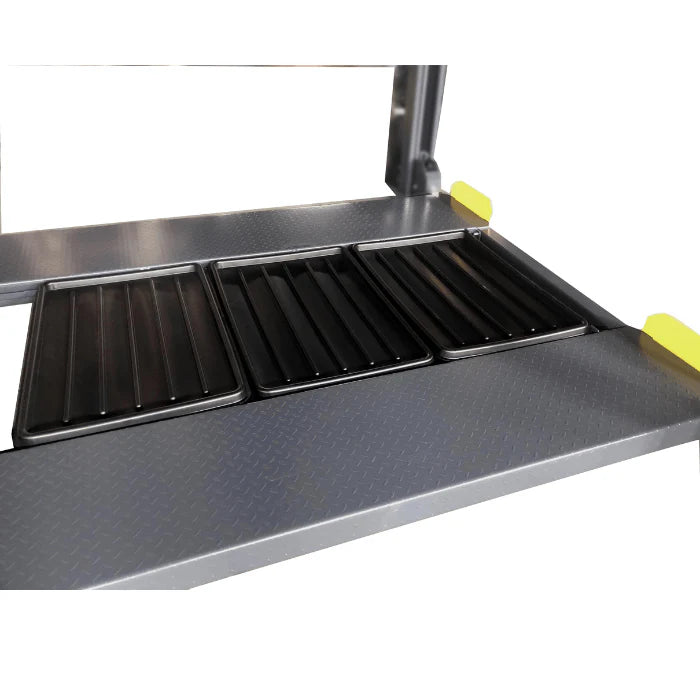

Built with durability and practicality in mind, this lift includes a caster kit for mobility, drip trays to keep your workspace clean, and a jack tray for added functionality. Whether your goal is to increase service efficiency or create a vertical parking solution, the KT-4H850 delivers reliability, safety, and long-term value.

This lift can be installed free-standing without anchors. However, if you choose to bolt it down, the concrete must be at least 3.93" (100 mm) thick and rated at 3,000 PSI minimum. Failure to meet these requirements may cause serious injury or damage. Please verify your floor’s specifications before installation.

Benefits of the Katool 4H850 Vehicle Lift

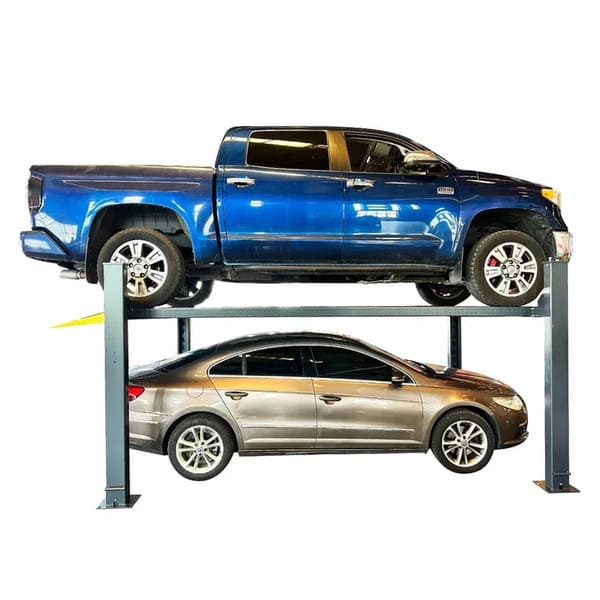

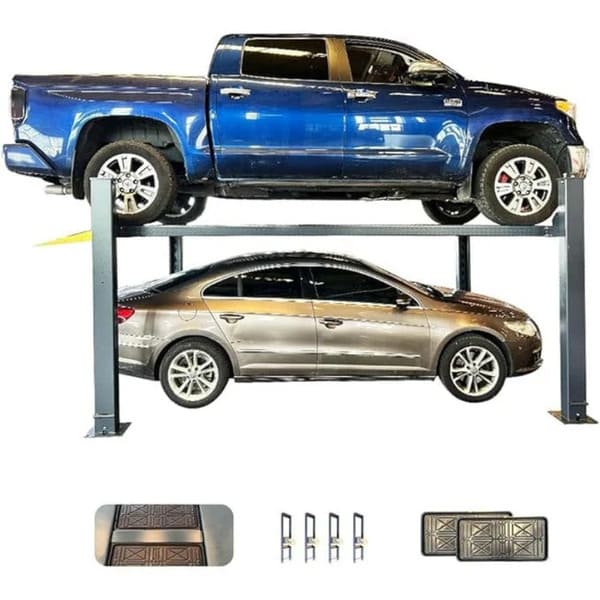

Space-Saving Design | Efficiently utilize your garage by storing vehicles vertically and freeing up valuable floor area.

Advanced Safety System | Equipped with multiple safety locks and mechanisms to ensure complete stability and operator protection.

Multi-Purpose Functionality | Perfect for routine maintenance, long-term storage, or light commercial applications.

Rugged Build Quality | Constructed from premium-grade materials engineered for lasting durability and performance.

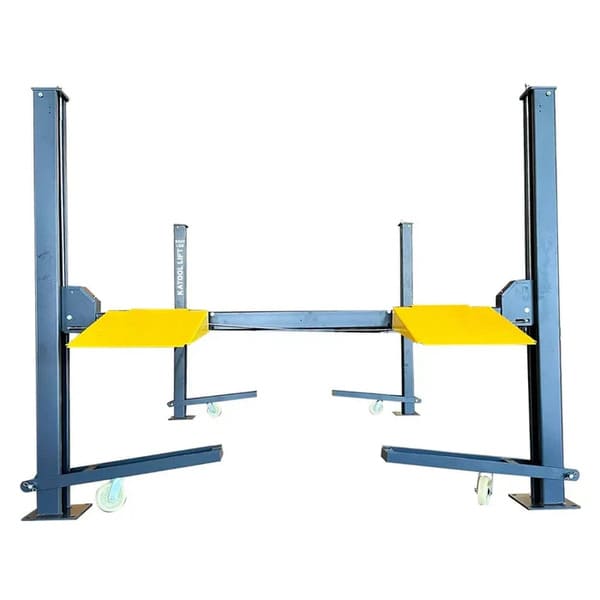

Effortless Portability | Integrated caster kit allows easy movement and repositioning as needed.

Reliable Warranty Coverage | Backed by a 1-year limited parts warranty and 3-year structural warranty for peace of mind.

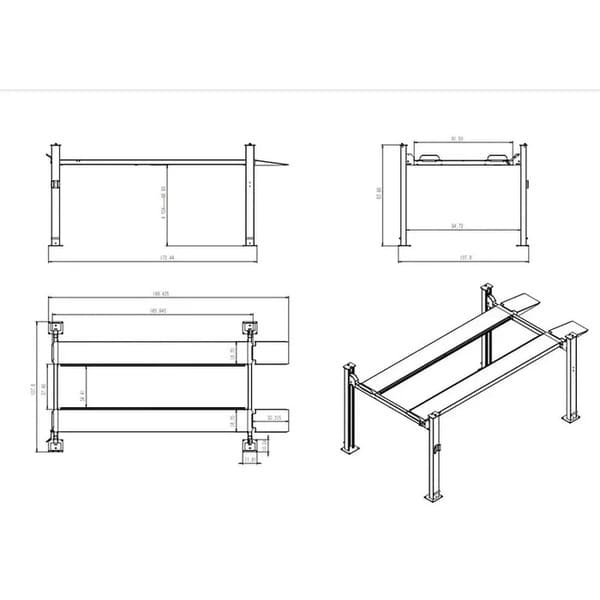

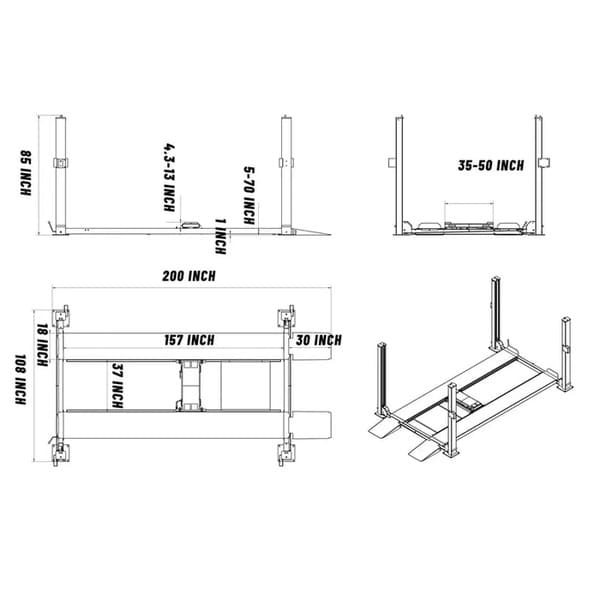

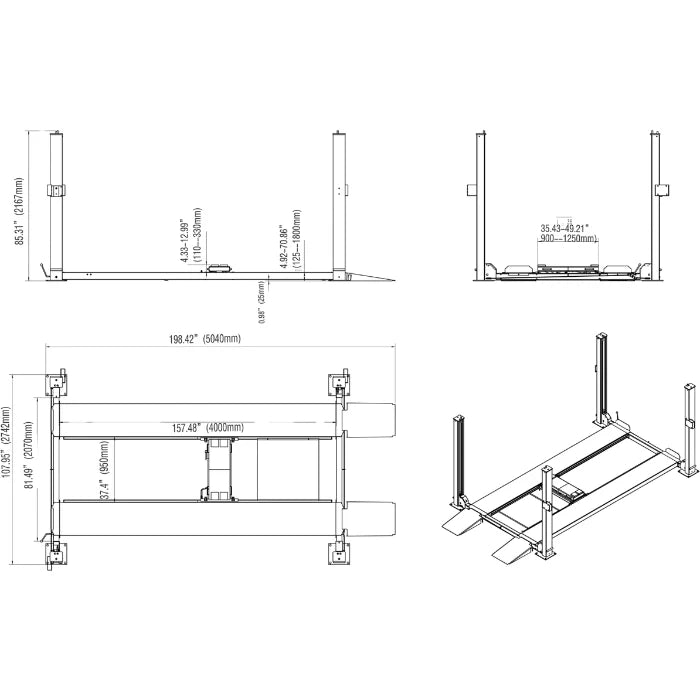

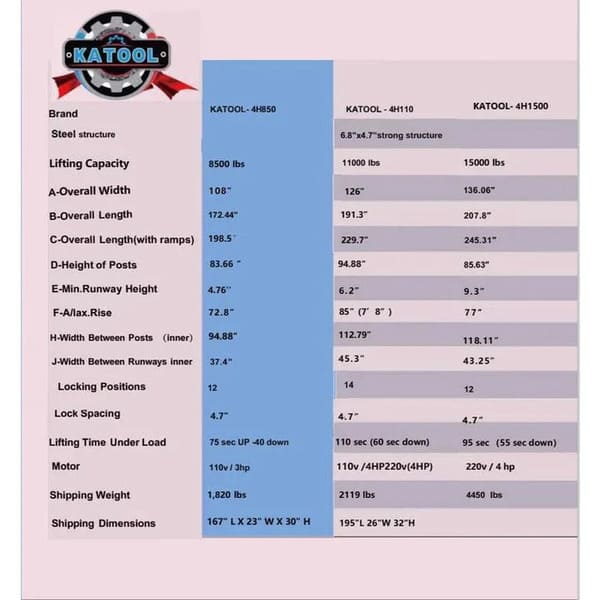

4 Post Car Lift Specifications:

• Lifting Capacity: 8,500 lbs (3,850 kg)
• Max. Lifting Height: 70.87" (1,800 mm)
• Lifting Time: 75 sec up / 40 sec down
• Height of Posts: 83.66" (2,125 mm)
• Width Overall: 107.95" (2,742 mm)
• Length Overall (with ramps): 198.43" (5,040 mm)
• Inside Columns Width: 94.72" (2,406 mm)
• Minimum Runway Height: 4.76" (121 mm)
• Motor: 110VAC / 60Hz / 1PH
• Net Weight: 1,820 lbs (826 kg)
• Shipping Dimensions: 167" L × 23" W × 30" H

Key Features of the Katool 4H850 8,500lb Four-Post Auto Lift

Powerful Lifting Performance | Capable of raising vehicles up to 8,500 lbs, the KT-4H850 offers dependable lifting strength for compact cars, SUVs, and full-size trucks, making it an excellent choice for both home garages and professional shops.

Certified for Safety & Reliability | CE-approved and rigorously tested, this lift exceeds industry standards with 115% dynamic load capacity and 150% static load certification, ensuring consistent, trustworthy performance.

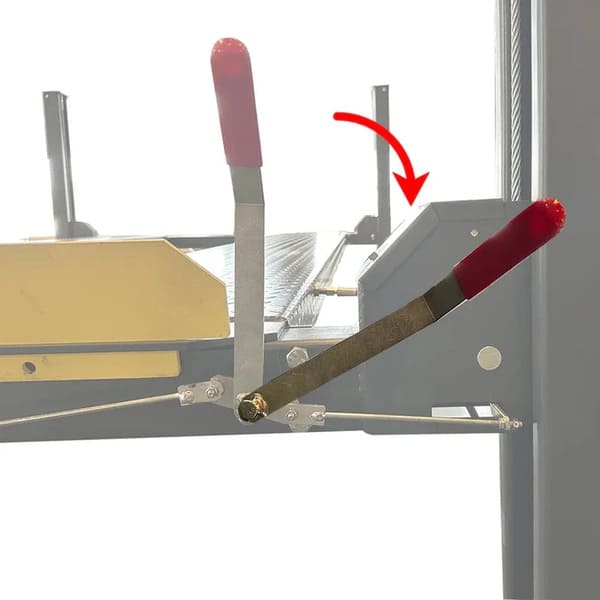

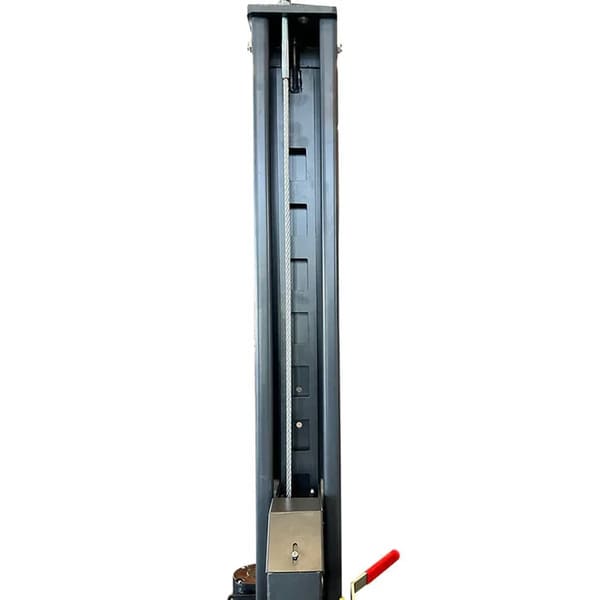

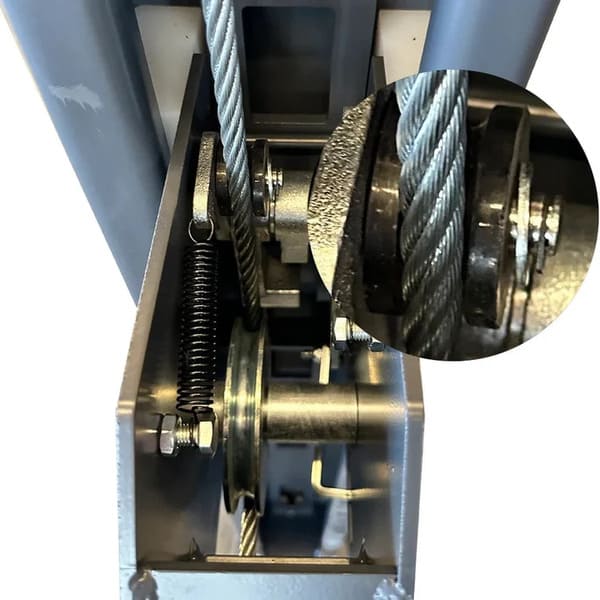

Comprehensive Safety Features | Designed with a single-point manual lock release and four mechanical locking posts, each with primary and secondary safeguards to prevent movement or slippage even in the event of cable failure.

Adaptable Installation Layout | The power column can be positioned **on any side—front, rear, left, or right—**giving you full flexibility to fit the lift into your existing workspace.

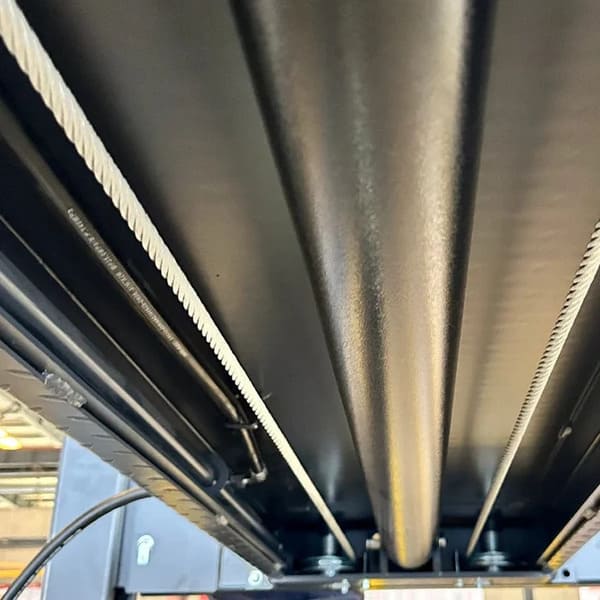

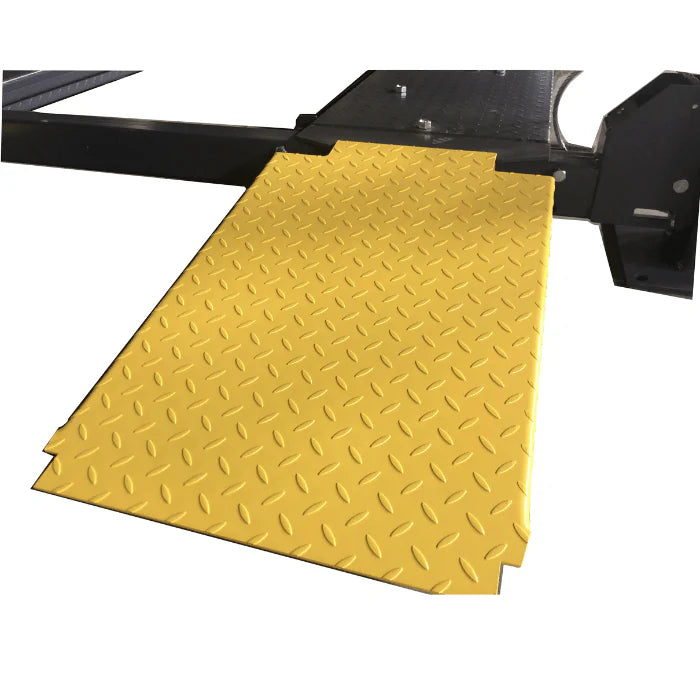

Non-Slip Diamond Platforms | The textured, diamond-plate surfaces provide superior traction, preventing tire movement and enhancing overall operational safety.

Adjustable Height Locking System | The multi-position lock ladders make it easy to set customized lifting heights for various vehicle sizes, maintenance tasks, and storage needs.

Warranty:

1-Year Limited Warranty:
Katool covers all parts and product defects for 12 months, ensuring confidence in your purchase.

3-Year Warranty on Structural Components:
Vehicle lifts are additionally covered for 36 months against structural failures.

Optional 2-Year Extended Warranty:
Extended coverage available for even greater peace of mind.

Warranty Includes:

• Coverage for cylinders, power units, motors, electronics, and structural parts.

Warranty Conditions:

• Claims must be made within the warranty period and are non-transferable.

• Replacement parts are provided free of charge, including shipping.

• Labor costs are not included.

• Disassembling equipment before warranty approval voids the claim.

• Photo or video documentation may be required for warranty review.

Resources:

• Download Katool KT-4H850 User Manual (PDF)

Warranty

• 1-Year Limited Warranty: Covers all parts and product defects.
• 3-Year Structural Warranty: For vehicle lift structural components.
• Optional 2-Year Extended Warranty: Available for additional purchase.

Warranty Conditions:

• Claims must be made within the warranty period.
• Warranties are non-transferable.

Frequently Asked Questions:

1. How do I schedule pickup?

How to Order:
Choose your preferred warehouse location directly on the product page, then complete your purchase. Once your order is placed, our team will verify availability and issue a pickup invoice when your lift is ready for collection.

Operating Hours:
Warehouses are open Monday through Friday, generally between 9 AM–4 PM or 10 AM–4 PM, depending on the location.

Scheduling:
Appointments aren’t required, but if you’d like to reserve a specific pickup day or time, simply reply to your order confirmation email and we’ll accommodate your request.

2. Is this lift suitable for both residential and commercial use?

Yes, this lift works perfectly for both small commercial shops and serious home garage setups. Just double-check that you’ve got the right power supply and enough overhead clearance before installing.

3. Will I need a forklift to unload the lift?
Yes. If you’re planning to pick up the lift from one of our U.S. warehouses, you’ll need suitable equipment, such as a forklift, to load it safely. If that’s not available, we can ship your lift to a local freight terminal, where the staff will handle unloading and store it for your pickup.

4. Are the ramps removable?
Yes. The ramps on the Katool 4H850 are bolted in during installation but can be manually detached whenever necessary for relocation or maintenance.

5. What kind of vehicle or trailer is required?
An open trailer or flatbed is recommended for transport. Before pickup, verify your vehicle’s payload capacity against the crated weight listed on the product page. Also, review the overall crate length and height to ensure it fits safely on your trailer. If you’re uncertain, contact us in advance, and our team will confirm the exact dimensions to help you prepare for your trip.
