Compare our four-post lifts
All three ship from US warehouses. Warehouse pickup saves you the freight.
| |
KT-4H8508,500 lb
|
KT-4H9509,500 lbTHIS LIFT
|
KT-4H11011,000 lb
|
| Lifting capacity |
8,500 lb |
9,500 lb |
11,000 lb |
| Best for |
Cars, small SUVs, garage storage |
Full-size SUVs and half-ton trucks |
Heavy trucks, working shops, daily use |
| Max lift height |
70.87 in |
84.5 in |
84.25 in |
| Warehouse pickup |
$2,699110v |
$2,999110v |
$3,299110v |
| Delivered to you |
$3,399 |
$3,799 |
$4,199 |
| In stock now |
118 units |
87 units |
377 units |
| 220v option |
Yes, +$300 |
Yes |
Yes, +$300 |
| Warranty |
1 yr parts · 3 yr structural |
1 yr parts · 3 yr structural |
1 yr parts · 3 yr structural |
| Price match |
Yes |
Yes |
Yes |
| |
View KT-4H850 |
You are here |
View KT-4H110 |
Not sure which one? Match the lift to the heaviest vehicle you will put on it, then add a margin. A half-ton truck runs 5,000 to 6,500 lb. A three-quarter-ton runs 7,000 to 8,500 lb. Call (866) 412-1837 and we will size it with you.
Picking up at our Brookshire, TX warehouse? Special pricing is available. Contact our team for a discounted local-pickup quote.

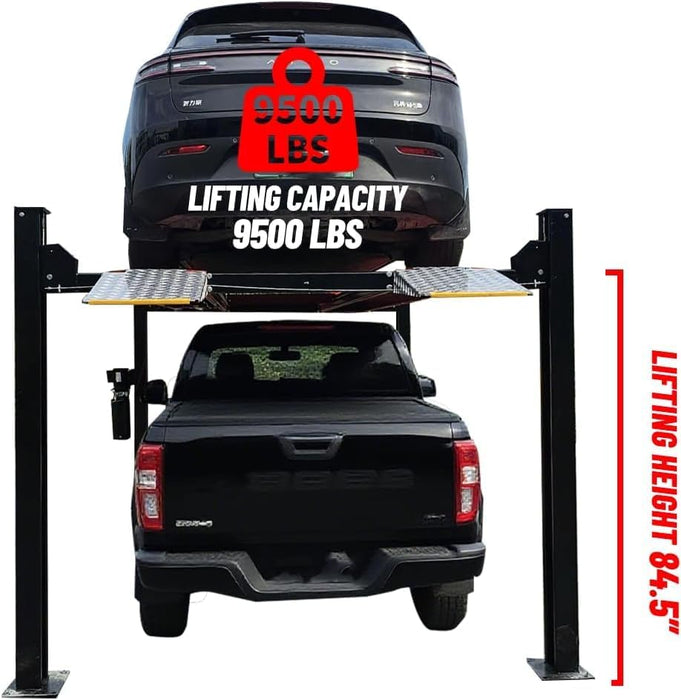

Katool KT-4H950 Four Post Car Lift – 9,500 lb Capacity Storage & Parking Lift
The Katool KT-4H950 Four Post Car Lift is a professional-grade 9,500 lb capacity 4 post car lift designed for vehicle storage, parking, and light service work. Built for home garages, automotive shops, dealerships, and fleet facilities, this drive-on car hoist delivers stable lifting performance without requiring permanent anchoring.
Constructed from heavy-duty Q235 and Q245 steel, the KT-4H950 provides excellent structural rigidity through its four-column design and multi-level mechanical safety lock system. Its smooth hydraulic lifting system ensures consistent operation, making it ideal for stacking vehicles, performing inspections, and maximizing vertical garage space.
If you need a reliable 4 post car hoist for garage storage or service use, the KT-4H950 offers professional durability with flexible installation options.
Why Choose the Katool KT-4H950 Four Post Lift
- 9,500 lb lifting capacity for cars, SUVs, trucks, and performance vehicles
- 4 post car lift design for superior stability and weight distribution
- Ideal vehicle storage lift for stacking cars in home garages
- Mechanical multi-position lock system for secure parking and service
- Drive-on runways for simple vehicle positioning
- Operates on standard 110V power (220V pump optional)
- Includes caster kit for repositioning when unloaded
- Designed for professional automotive shops and serious enthusiasts
Key Features
-
9,500 lb Rated Capacity
Safely lifts a wide range of passenger vehicles and light-duty trucks.
-
Four-Post Drive-On Configuration
Provides structural stability without complex arm positioning.
-
Mechanical Safety Lock System
Multiple locking positions ensure secure long-term vehicle storage.
-
Diamond-Plate Runways
Non-slip steel platforms designed for daily use.
-
Smooth Hydraulic Operation
Consistent lifting and controlled lowering for predictable performance.
-
Caster Kit Included
Allows repositioning of the lift when unloaded for garage flexibility.
-
Optional 220V Pump Upgrade
Available for shops preferring 220V power configuration.
Specifications
| Specification |
Details |
| Model |
KT-4H950 |
| Lift Type |
4-Post Storage / Parking Lift |
| Lifting Capacity |
9,500 lbs (4.3T) |
| Maximum Lift Height |
84.5 in (79 in clearance) |
| Lifting Time |
50 seconds |
| Overall Length |
189 in |
| Overall Width |
113 in |
| Width Between Columns |
99 in |
| Overall Height |
97 in |
| Motor (Standard) |
110V, 3.0 HP (30A breaker) |
| Optional Motor |
220V Pump Upgrade Available |
| Runway Surface |
Diamond-plate non-skid |
| Safety System |
Multi-level mechanical locks |
| Included Accessories |
Casters, aluminum ramps, jack tray, drip trays |
| Recommended Concrete |
Minimum 4 in thickness, 3,000 PSI |
Installation Requirements (Important)
- Concrete floor recommended: minimum 4 inches thick at 3,000 PSI
- Forklift required for unloading
- Customer responsible for freight unloading
- Confirm ceiling height (overall lift height 97 in)
- Verify electrical requirements (110V standard, 220V optional)
Always confirm site conditions prior to purchase and installation.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on frame components
- Free shipping on approved warranty replacement parts
- Labor is not included
- Warranty is non-transferable and requires proof of purchase
Optional extended warranty coverage may be available.
Bottom Line
If you are looking for a dependable 4 post car lift for garage storage, vehicle stacking, or light-duty service work, the Katool KT-4H950 delivers stable lifting performance, smooth hydraulic operation, and professional-grade durability in a space-efficient design.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details
