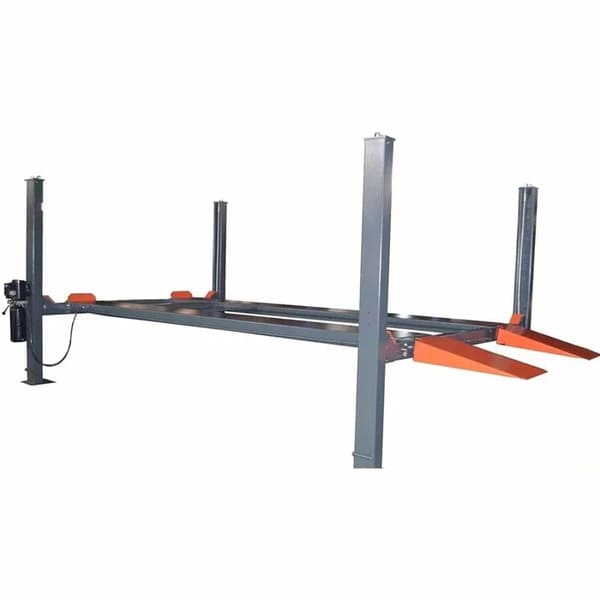

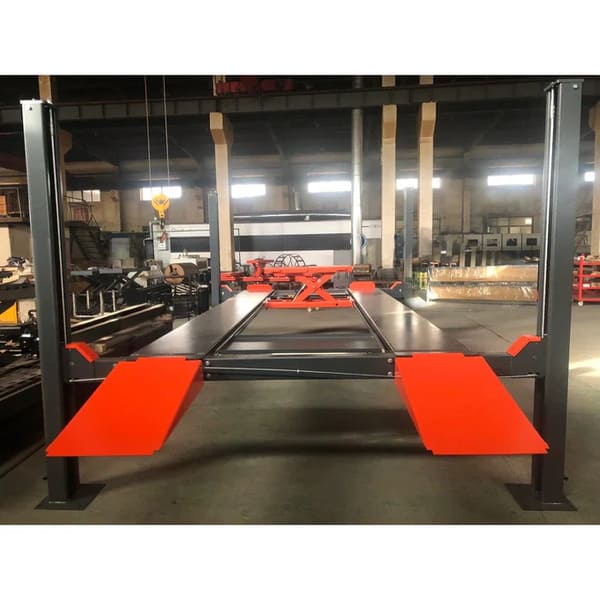

Katool KT-4H110 11,000 LB Four Post Car Lift

The Katool KT-4H110 Four Post Car Lift is a heavy-duty vehicle lift engineered for auto shops, service garages, and serious home garages that need strength, stability, and long-term reliability. Built to safely lift cars, trucks, and SUVs, this Katool four post lift delivers dependable performance for maintenance, inspection, and vehicle storage.

With an 11,000 lb lifting capacity, the KT-4H110 is CE-certified and tested to 115% dynamic load and 150% static load, ensuring consistent, secure operation under demanding conditions. The lift features a single-point manual safety release, four independent mechanical locking posts, and dual-layer safety locks on every column for maximum protection.

The diamond-plate, non-slip runways and adjustable lock ladders provide stable vehicle positioning and flexible height adjustment. Installation is adaptable, allowing the power column to be mounted on either side, front, or rear, making this lift suitable for a wide range of garage layouts.

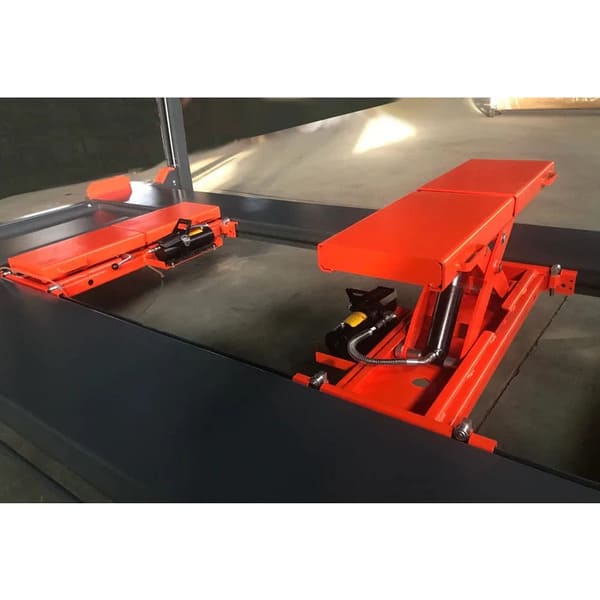

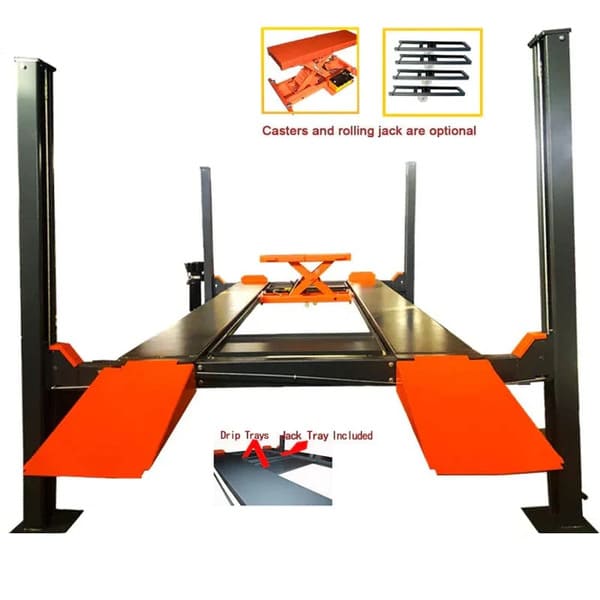

Designed for efficient workflow, the KT-4H110 offers a smooth 83-second lift time and 40-second descent, helping reduce downtime. Optional accessories such as rolling jacks and caster kits increase versatility for service, storage, and repair applications.

This four post car lift can be installed freestanding without anchors, though anchoring is optional for added stability. If anchoring is used, concrete must meet minimum requirements.

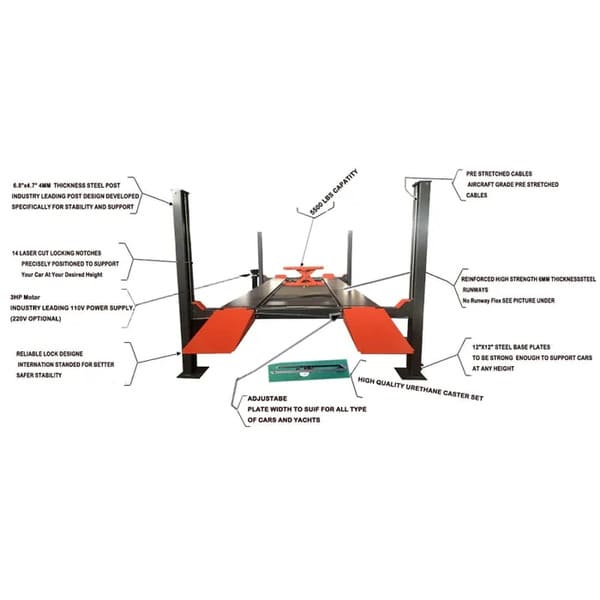

Key Features

• 11,000 lb lifting capacity for SUVs, trucks, and heavy vehicles

• Four post car lift design for maximum stability

• CE-certified with 115% dynamic and 150% static load testing

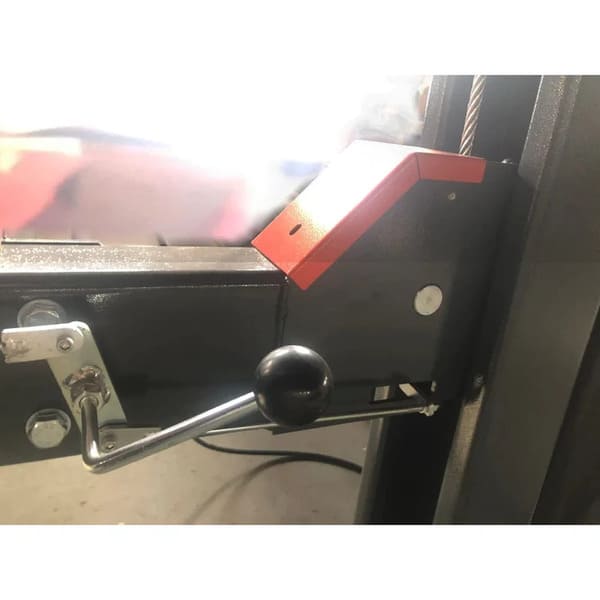

• Single-point manual safety release

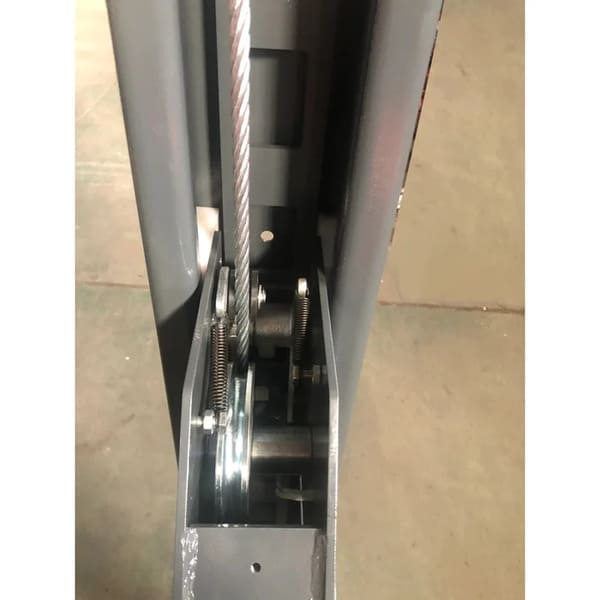

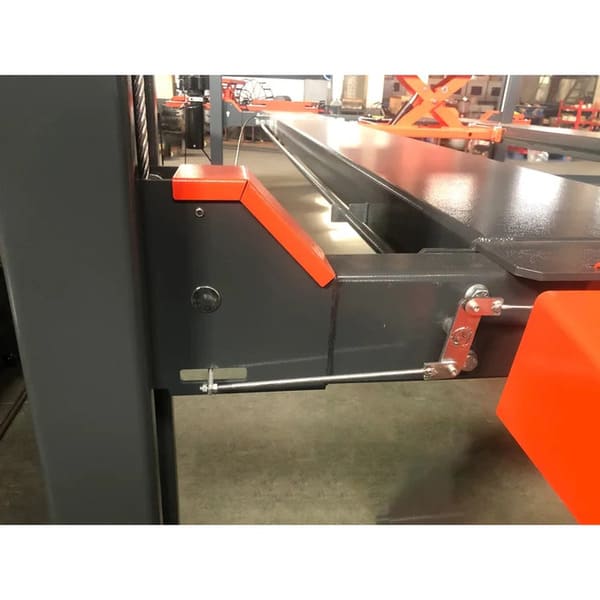

• Four mechanical locking posts with dual-layer safety locks

• Non-slip diamond-plate runways

• Adjustable lock ladders for precise height control

• Flexible power column placement (left, right, front, or rear)

• Ideal for vehicle storage, inspection, and service

Installation Requirements (IMPORTANT)

Concrete must meet the following minimum requirements:

• Thickness: At least 3.93 inches (100 mm)

• Strength: Minimum 3,000 PSI

⚠️ Failure to meet these requirements may result in serious injury or equipment damage.
It is the customer’s responsibility to verify concrete conditions before purchase and installation.

Advantages of the Katool KT-4H110 Four Post Lift

• Improved productivity with smooth lift and descent cycles

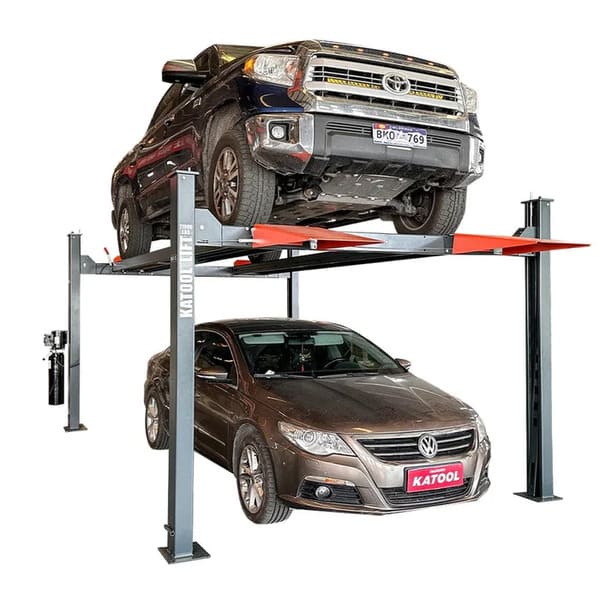

• Space optimization for vehicle storage and parking

• Enhanced safety through redundant locking systems

• Broad vehicle compatibility, from sedans to trucks

• Long-term reliability using heavy-duty components

• Adaptable installation for various garage layouts

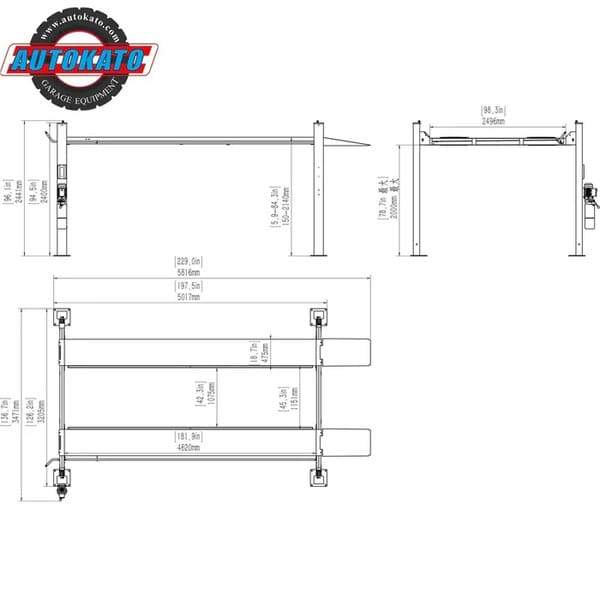

Four Post Lift Specifications

• Lifting Capacity: 11,000 lbs (4,990 kg)
• Max. Lifting Height: 84.25" (2,140 mm)
• Lifting Time: 83s Up / 40s Down
• Height of Posts: 94.88" (2,410 mm)
• Width Overall: 126" (3,200 mm)
• Length Overall: 229.73" (5,835 mm, with ramps)
• Inside Columns: 112.81" (2,865 mm)
• Min. Runway Height: 6.2" (157 mm)
• Motor: 110VAC / 60Hz / 1PH
• Net Weight: 2,116 lbs (960 kg)

Specifications

• Lifting Capacity: 11,000 lbs (4,990 kg)

• Max Lifting Height: 84.25" (2,140 mm)

• Max Under-Runway Clearance: 78.7" (2,000 mm)

• Lifting Time: 83 sec up / 40 sec down

• Lock Positions: Every 4.7" (14 positions)

• Post Height: 94.88" (2,410 mm)

• Overall Width: 126" (3,200 mm)

• Inside Columns Width: 112.81" (2,865 mm)

• Runway Width: 45" (1,143 mm)

• Overall Length (with ramps): 229.73" (5,835 mm)

• Min Runway Height: 6.2" (157 mm)

• Motor: 110V / 60Hz / 1PH or 220V / 60Hz / 1PH

• Net Weight: 2,116 lbs (960 kg)

Warranty

• 1-Year Limited Warranty on all parts and defects

• 3-Year Structural Warranty on vehicle lift components

• Optional 2-Year Extended Warranty available

Labor is not included.

User Manual

For full installation instructions, safety guidelines, and operation procedures, please refer to the
[Katool KT-4H110 User Manual]

Installation Requirements

• Concrete Thickness: At least 3.93 inches (100 mm).
• Concrete Strength: Minimum 3,000 PSI rating.

⚠️ Important: Failure to meet these requirements could result in equipment failure or serious injury.

Frequently Asked Questions:

1. How do I schedule pickup?

How to Order:
Choose your preferred warehouse location directly on the product page, then complete your purchase. Once your order is placed, our team will verify availability and issue a pickup invoice when your lift is ready for collection.

Operating Hours:
Warehouses are open Monday through Friday, generally between 9 AM–4 PM or 10 AM–4 PM, depending on the location.

Scheduling:
Appointments aren’t required, but if you’d like to reserve a specific pickup day or time, simply reply to your order confirmation email and we’ll accommodate your request.

2. Is this lift suitable for both residential and commercial use?
Absolutely. The 4H110 is built for light commercial environments and serious home garages alike. Just confirm that your workspace has the necessary electrical supply and enough ceiling clearance to support safe and efficient operation.

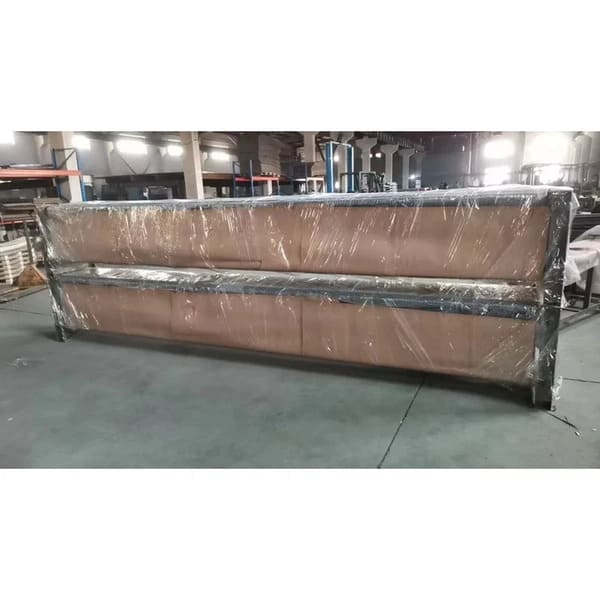

3. Will I need a forklift to unload the lift?
Yes. If you’re planning to pick up the lift from one of our U.S. warehouses, you’ll need suitable equipment, such as a forklift, to load it safely. If that’s not available, we can ship your lift to a local freight terminal, where the staff will handle unloading and store it for your pickup.

4. Are the ramps removable?
Yes. The ramps on the Katool 4H110 are bolted in during installation but can be manually detached whenever necessary for relocation or maintenance.

5. How long has Katool been in business?
Katool has been serving the U.S. automotive equipment market for several years, earning a strong reputation among buyers who value dependable, high-performance lifts without the inflated price tag.
