MRCOOL DIY 12,000 BTU Ductless Mini-Split Air Conditioner and Heat Pump, DIY-12-HP-115B25 - PrimeFair

MRCOOL DIY 12,000 BTU Ductless Mini-Split Air Conditioner and Heat Pump, DIY-12-HP-115B25

Mrcool  | Authorized Dealer  |  SKU: DIY-12-HP-115B25
$1,999.99

Save $372.99 Save $0.00
$1,999.99 - $1,999.99
$1,999.99
$1,627.00
$1,627.00 - $1,627.00
$1,627.00
+ FREE SHIPPING
Availability:
In stock

Get A Quote

✓ Free Shipping - on most Mrcool products
✓ Manufacturer Warranty Included - on all Mrcool
✓ 0% Financing Available - Mrcool + 0% APR, Applicable at Checkout
✓ In Stock - most orders leave the warehouse in 3-5 business days
✓ Questions? - Call ‪(866) 412-1837

Want today's Mrcool prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

MRCOOL DIY 12,000 BTU Ductless Mini-Split Air Conditioner and Heat Pump, DIY-12-HP-115B25

Introducing the MRCOOL E Star DIY 3rd Gen 12k BTU 22 SEER Ductless Mini-Split Heat Pump. These are ductless mini-split heat pumps with enhanced WIFI engineered to make setup not only quick and easy, but the MRCOOL DIY E Star Series is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

The 12,000 BTU unit is 22 SEER and designed to heat and cool up to 500 square feet both efficiently and effectively. Our SmartHVAC app is compatible with Amazon Alexa and Google assistant. You can also control your DIY anywhere with your Apple or Android smart device with an Internet connection. Doing it yourself has never been easier with the new MRCOOL E Star DIY. This unit is shipped in two boxes.


FEATURES:

  • Our Easy DIY installation: pre-charged quick connect line doesn't require special tools, equipment, or training

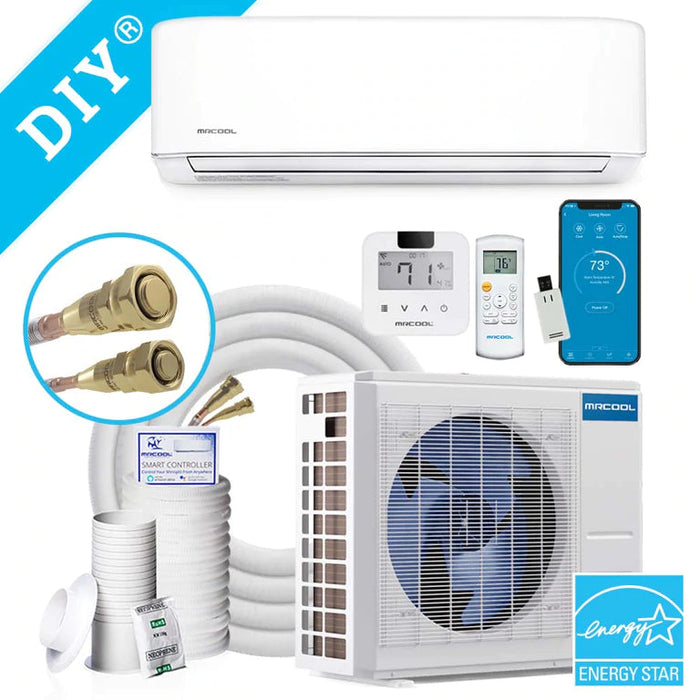

  • This bundle includes all the parts you'll need to install the unit and includes a 25 ft. line set
  • This bundle can heat or cool to one Air Handler for 1 Zone
  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Variable-speed DC inverter compressor technology cuts operating costs
  • Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
  • The unit is 22 SEER and designed to heat and cool a single 500 square foot space
  • 7-Year compressor warranty and 5-year parts warranty
  • Auto-restart: - power outage? No worries, the MRCOOL DIY E star Series auto-restart has the unit running again immediately
  • Gold Fin condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Louver position memory remembers so you don't need to - horizontal louver automatically moves to the same position you set the last time the unit was turned on
  • Automatic leakage detection technology to alert you should a problem arise

SPECIFICATIONS:

Product Dimensions 63.07"W x 20.55"D x 33.5"H
Product Weight 98.32 lbs
Condenser Dimensions 31.50"W x 13.11"D x 21.81"H
Condenser Weight 78.7
Air Handler Dimensions 31.57"W x 7.44"D x 11.69"H
Air Handler Weight 19.62 lbs
Freight Class 250
Mount Type Wall
Unit Type Mini-Split
SEER 22
EER 12.7
HSPF 10
CFM 305/211/147
Tonnage 1
Cooling Capacity 12,000 BTU
Heating Capacity 12,000 BTU
Color White
Decibel 23.5/31.5/38 dBA
Phase 1
Max Fuse Breaker 20 A
Min Circuit Ampacity 15 A
Max Coverage Area 500 sq ft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 38.8 oz
Air Flow Direction 4-Way
Speed 4
Min Ambient Heat 5 Degrees F
Electrical Requirements 110-115 V / 60H / 15A
Line Set Length 16ft or 25ft
Max Lineset Length 82ft Max
Liquid Line Fitting 3/8 Inches
Liquid Line Size 1/4 Inches
Suction Line Fitting 5/8 Inches
Suction Line Size 1/2 Inches
Control Type LED
Condense Fan Motor RPM 650/700/80
Blower Motor RPM 700/850/11
Filter Type Washable
Oscillation Yes
Inverter Yes
Overload Protection Yes
Adjustable Thermometer Yes
Modes Quiet Mode
Fan Only
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with: iOS
Android
Includes Remote Control
Batteries
Certifications CSA
Energy Star
AHRI
Registered Warranty 5-year Parts/7-year Compressor/1-year Remote
Contains Electronics Yes
Contains Chemicals Yes
Contains Aerosol Yes
Contains Compressed Gas Yes
Restricted States GU, PR, VI



PRODUCT MANUALS:

Installation Manual

Specifications Sheet

Technical Manual

Remote Control Manual

Product Brochure

Warranty Document

Accessory Manual

Energy Guide
