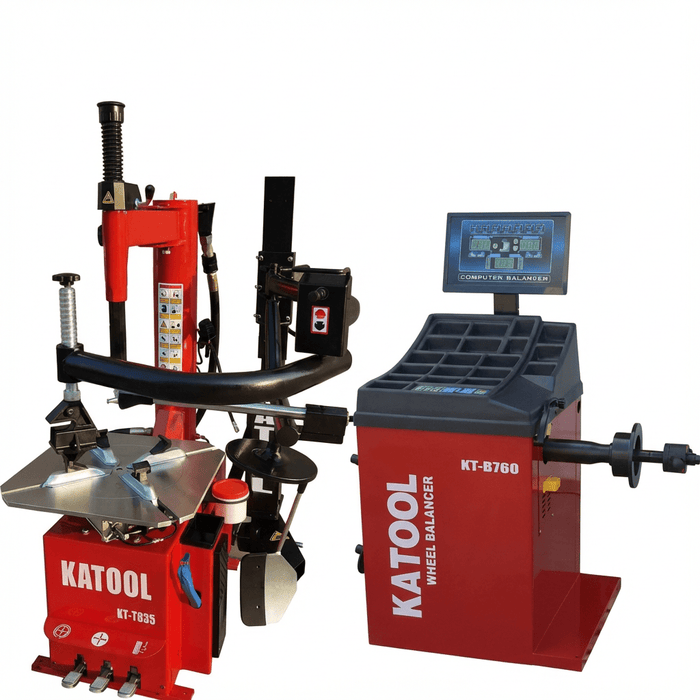

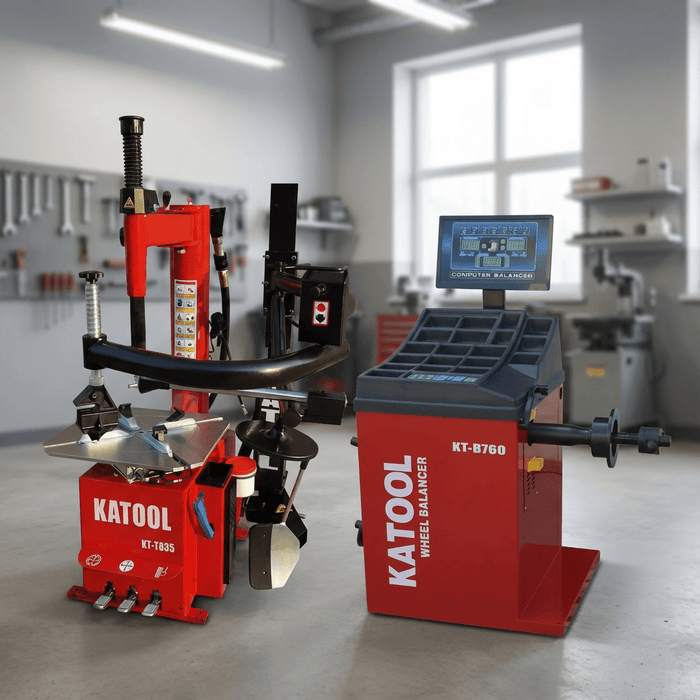

Katool KT-T835 Tire Changer & KT-B760 Wheel Balancer Combo – Heavy-Duty Tire Service Solution
The Katool KT-T835 Tire Changer and KT-B760 Wheel Balancer Combo is a professional-grade tire service package engineered for speed, accuracy, and durability in high-volume automotive shops and serious home garages. Designed to service passenger vehicles and light trucks, this combo delivers reliable tire mounting, assisted handling, and precise wheel balancing while protecting modern alloy and painted rims.
The KT-T835 tire changer features extended clamping capacity, dual assist arms, a bead blast seater, and a powerful 2.0HP motor operating on standard 110V power. Paired with the KT-B760 wheel balancer, this system provides automatic measurement, multiple balance modes, and ±1g accuracy for smooth, vibration-free results.
Built with heavy-duty steel construction and technician-friendly controls, this Katool tire changer and balancer combo is ideal for daily shop operations that demand consistency and performance.
Why Choose the Katool KT-T835 & KT-B760 Combo
-
Complete tire changer and wheel balancer package
-
Extended clamp range for larger wheels
-
Dual assist arms for stiff and low-profile tires
-
Rim-safe operation for alloy and painted wheels
-
Accurate balancing with ±1g precision
-
Standard 110V power—no special wiring required
-
Built for cars, SUVs, and light trucks
Key Features
-
KT-T835 Wheel Clamp Tire Changer with extended clamping capacity
-
Double-Side Assist Arms for easier tire mounting
-
Bead Blast Seater with Post Tank for fast bead seating
-
Pedal-Controlled Inflation & Pull-Type Pedals
-
KT-B760 Digital Wheel Balancer with automatic measurement
-
Multiple Balance Modes for different rim profiles
-
Stainless Steel Mounting Head with rim-protective cover
-
Q235 & Q245 Steel Construction for long-term durability
Specifications
Tire Changer – KT-T835
| Specification |
Details |
| Max Wheel Diameter |
41" / 1040 mm |
| Max Wheel Width |
15" / 350 mm |
| Outside Clamp Range |
13" – 26" |
| Inside Clamp Range |
14" – 28" |
| Power Supply |
110V / 1PH / 60Hz |
| Motor Power |
2.0 HP / 1.5 kW |
| Rotation Speed |
6.1 RPM |
| Air Pressure |
0.8 – 1.0 MPa (116–145 PSI) |
| Net Weight |
582 lbs |
Wheel Balancer – KT-B760
| Specification |
Details |
| Rim Diameter |
≤ 30" |
| Wheel Width |
3" – 12" |
| Max Wheel Diameter |
≤ 880 mm / 34.64" |
| Rim Center Hole Diameter |
≤ 135 mm |
| Max Wheel Weight |
≤ 65 kg |
| Balancing Accuracy |
±1 g |
| Balancing Speed |
180 RPM |
| Measuring Time |
7 seconds |
| Power Supply |
110V / 1PH |
| Motor Power |
0.25 kW |
Installation Requirements (Important)
-
Level concrete surface required
-
Compressed air supply required
-
Standard single-phase electrical power
-
Buyer is responsible for unloading at delivery
Please confirm electrical, air, and space requirements before ordering.
Warranty
-
1-Year Limited Warranty on all parts and manufacturing defects
-
3-Year Structural Warranty on equipment frames
-
Optional extended warranty available
-
Free shipping on warranty replacement parts
-
Labor not included
Warranty approval may require photo or video documentation.
Bottom Line
The Katool KT-T835 Tire Changer & KT-B760 Wheel Balancer Combo is ideal for shops that need larger clamping capacity, assisted tire handling, and precision balancing in one reliable package. Built for daily use, this combo improves workflow efficiency while delivering consistent, professional-grade results.
