Katool Tire Changer KT-T800 & Wheel Balancer KT-B760 Combo

Katool Tire Changer KT-T800 & Wheel Balancer KT-B760 Combo

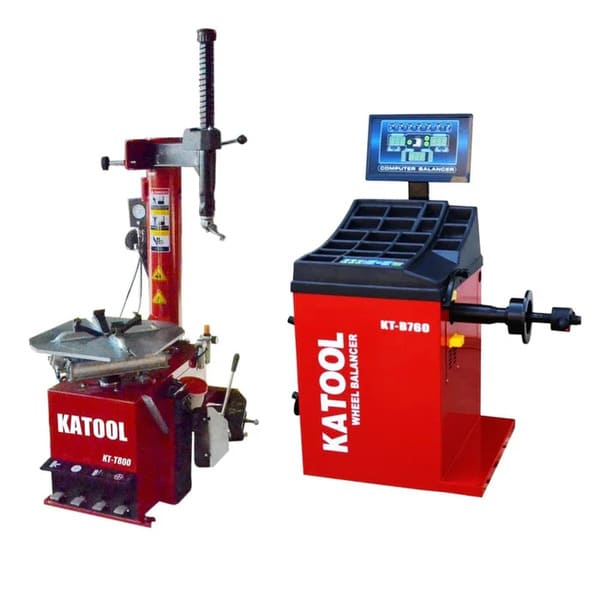

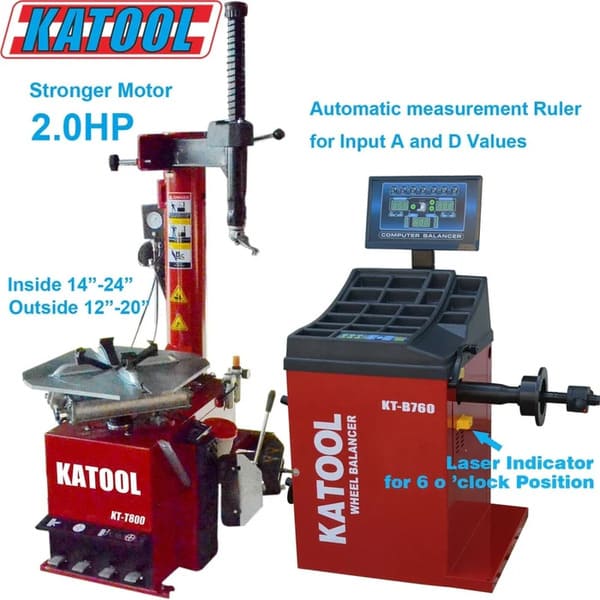

The Katool Tire Changer KT-T800 and Wheel Balancer KT-B760 combo provides a high-performance, reliable solution for tire maintenance. Built for efficiency and durability, this duo ensures smooth, precise tire changing and balancing for your service needs.

The KT-T800 Wheel Clamp Tire Changer is equipped with an alloy steel jaw, treated for maximum durability and rim protection. Its stainless steel mounting head, pedal-controlled inflation gauge, and pull-type pedal system make tire changes effortless. The top-level motor with pure copper winding provides exceptional power, while the high-quality lubricator extends the life of the pneumatic system.

The KT-B760 Wheel Balancer is designed with advanced features, including an automatic measurement ruler, a strong 3mm-thick steel body, and a stable pressure sensor for precise balancing. With various balance modes, fault diagnosis, and self-calibration, it ensures accuracy for all rim types.

Together, this combo offers unbeatable performance, reliability, and ease of use for your tire service operations.

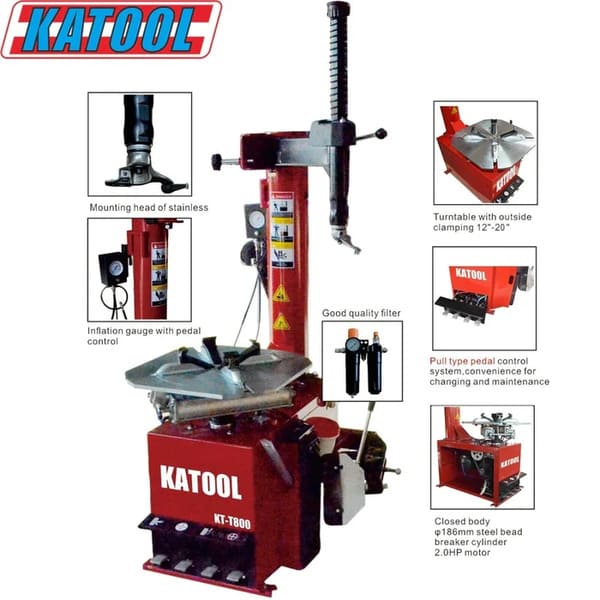

KT-T800 Tire Changer Features

• Alloy Steel Jaw: Features alloy steel jaws with carburization treatment (0.8-1.1mm deep) for enhanced durability and rim protection.
• Stainless Steel Mounting Head: Polished stainless steel head with plastic cover for safe and smooth mounting.

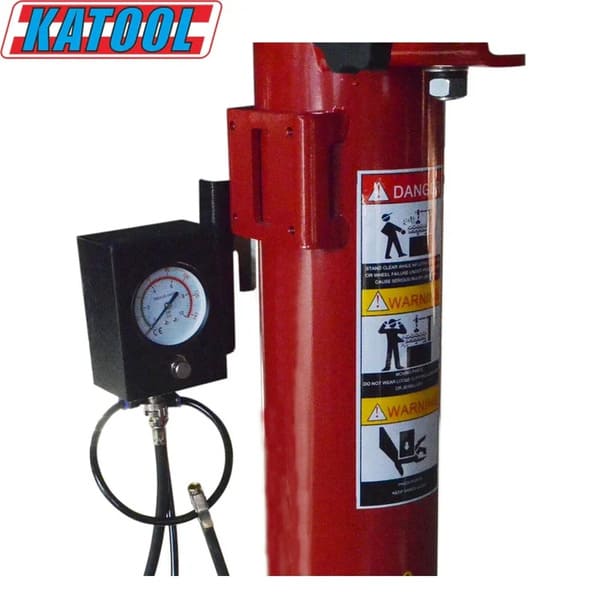

• Pedal-Control Inflation Gauge: Convenient pedal control for precise inflation regulation.

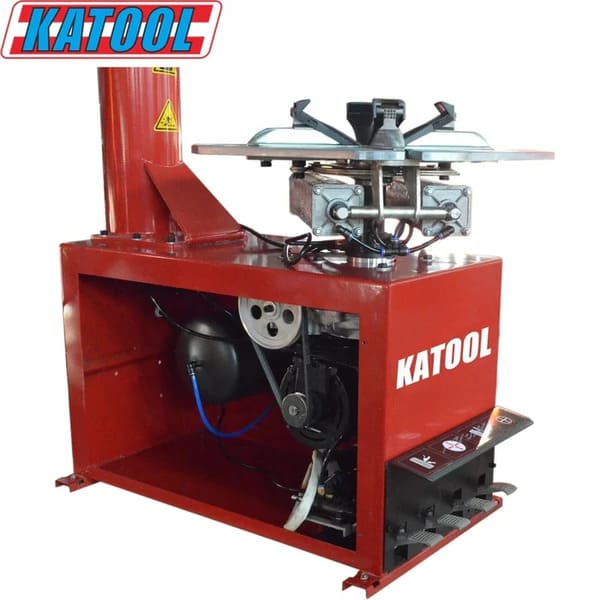

• Top-Level Motor: 2.0HP motor with pure copper winding for efficient power, fast heat dissipation, and extended life.
• High-Quality Lubricator: Optimizes pneumatic system performance to extend service life.
• North American Compatibility: 110V/1PH motor for optimal power efficiency in the North American region.

KT-B760 Wheel Balancer Features

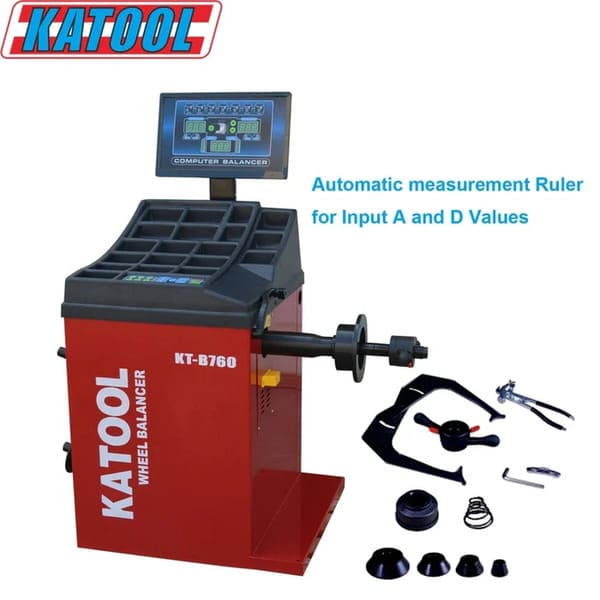

• Automatic Measurement Ruler: Automatically inputs A and D values for easy, accurate measurements.
• Strong Steel Body: Constructed with 3mm-thick steel for durability, low vibration, and solid welding.
• Advanced Pressure Sensor: 8mm-thick sensor support ensures stability and high precision.
• Self-Calibration & Fault Diagnosis: Built-in self-calibration and fault diagnosis for simple operation.
• Versatile Balance Modes: Supports different rim types for precise balancing.
• Longer Shaft Compatibility: Compatible with wider wheels for versatile service.

KT-T800 Tire Changer Specifications

• Max Wheel Diameter – 41" / 1040 mm
• Max Wheel Width – 15" / 380 mm
• Outside Clamp – 12" – 20"
• Inside Clamp – 14" – 24"
• Power Supply – 110V, 1 Phase
• Motor Power – 2.0 HP / 1.5 KW
• Rotation Speed – 6.8 r/min
• Air Pressure – 0.8 – 1.0 Mpa (116 – 145 psi)
• Net Weight – 186 KG / 410 lbs

KT-B760 Wheel Balancer Specifications

• Rim Diameter – ≤ 30"
• Wheel Width – 3" – 12"
• Wheel Diameter – ≤ 880 mm / 34.64"
• Balancing Speed – 180 rpm
• Power Supply – 110V, 1 Phase
• Motor Power – 0.25 KW
• Rim Center Hole Diameter – ≤ 135 mm / 5.31"
• Wheel Weight – ≤ 65 KG / 143 lbs
• Balancing Accuracy – ±1 g
• Measuring Time – 7 seconds

Warranty Information

Katool offers a 1-year limited warranty on all parts and product defects, free of charge. A 2-year extended warranty plan is available for Katool and M&E automotive equipment.

Warranty Includes:

• Cylinders, power units, motors, displays, electronics, etc.
• Vehicle lifts include a 3-year (36 months) warranty on structural components.

Warranty Conditions:

• Claims must be within the warranty period.
• Warranty is non-transferable and requires the original order number and purchase from an authorized vendor.
• Replacement parts will be provided at no cost (including shipping).

Notes:

• All claims must be approved by the warranty/service department.
• Photos/videos of defects may be required for processing claims.
• Equipment outside the warranty policy will not be covered.
