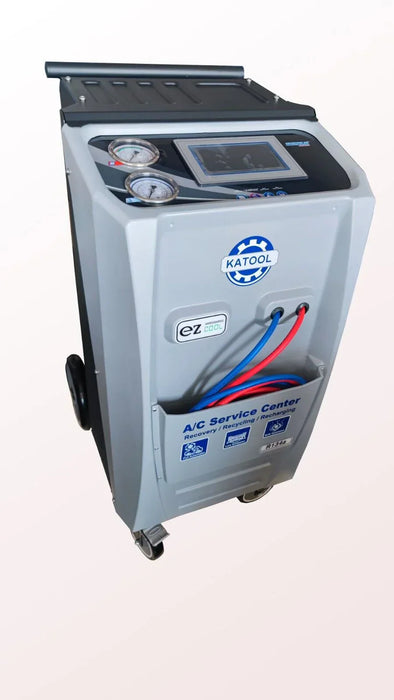

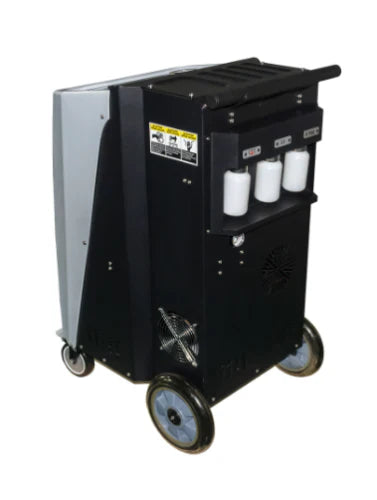

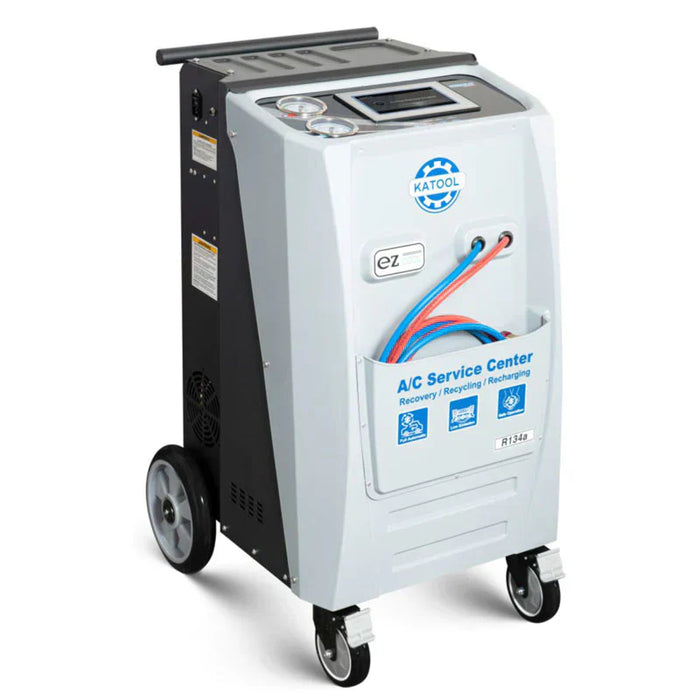

Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine

Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine

Description

The Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine is the ultimate solution for efficient refrigerant handling. With an impressive 95% recovery rate in under 30 minutes, it minimizes downtime and enhances overall performance.
Designed for versatility, it supports a wide range of vehicles, including domestic, foreign, electric, and hybrid models, making it ideal for diverse automotive HVAC systems.

The machine ensures precision with an accuracy of 0.5 oz (15 g) for charging, supported by advanced load cell technology for precise gas and oil measurements.

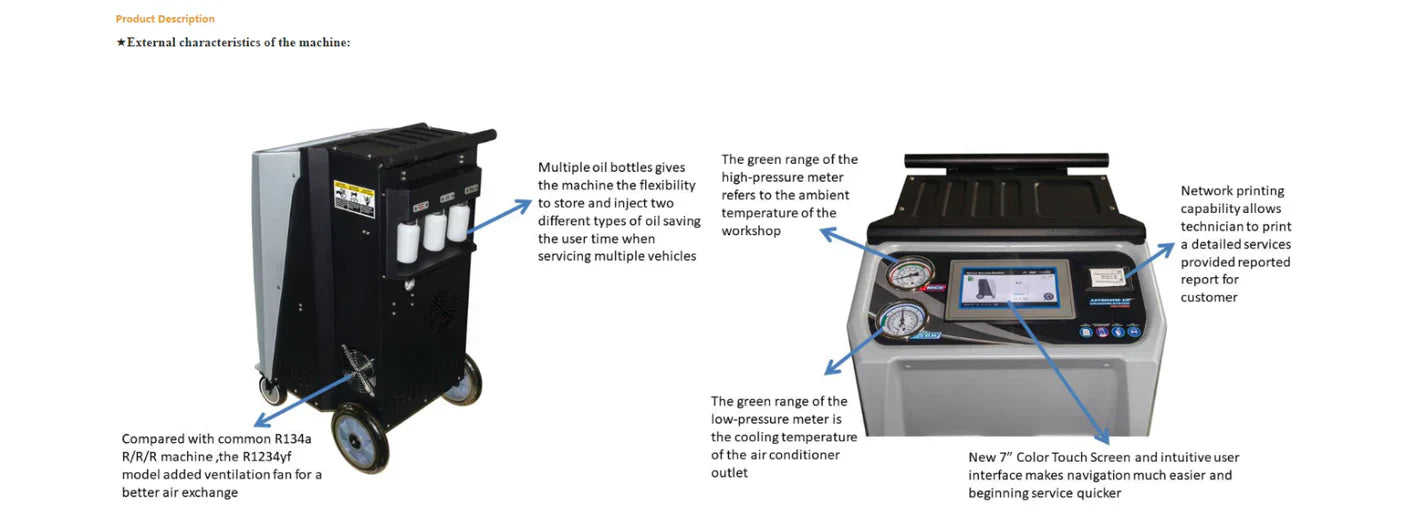

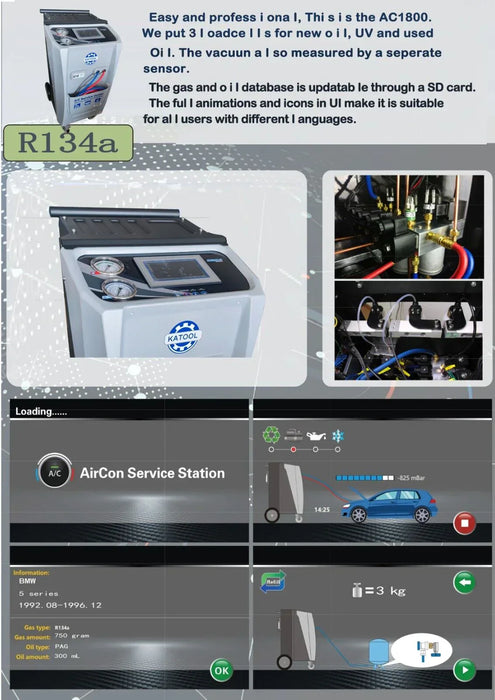

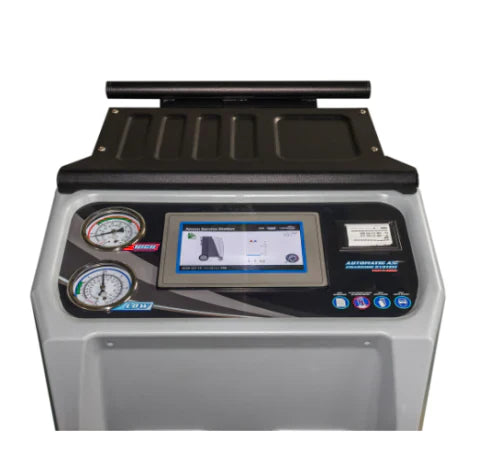

The 7-inch touchscreen HQ display makes operation seamless, while the addition of a built-in printer, optional heating belt, SD database support, vacuum testing, and a powerful fan and condenser system improve service efficiency.

Features

• Quick Refrigerant Handling: Achieve a 95% recovery rate in under 30 minutes, minimizing downtime.

• Versatile Compatibility: Service a broad range of vehicles, including electric and hybrid models, with comprehensive support for various automotive HVAC systems.

• Precision Charging: Achieve 0.5 oz (15 g) accuracy in refrigerant charging using advanced load cell technology for precise gas and oil measurements.

• User-Friendly Touchscreen: Effortlessly navigate operations using a 7-inch HQ touchscreen for an intuitive experience.

• Comprehensive Functionality: Features include a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system for thorough service.

Specifications

• Applicable Refrigerant Type: R134a

• Voltage: 110V AC, 60 Hz

• Recovery Performance (70-75°F): Minimum 95% in under 30 minutes

• Charge Performance (70-75°F): 0.5 oz (15 g)

• Operating Temperature Range: 41–122°F (5–50°C)

• Max Pressure: 18 bar

• Filter-Drier Capacity: 175 lbs (80 kg), spin-on type

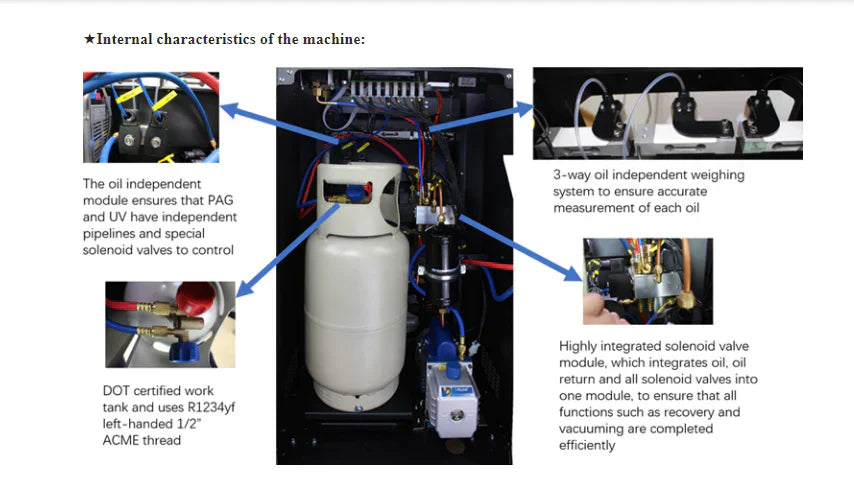

• Gas Load Cell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)

• Oil Load Cell Accuracy: 0.04 oz/66 lbs (1 g/30 kg)

• Vacuum Transducer Accuracy: 1 mBar/1000 mBar

• Recovering Speed: 39.7 lbs/h (18 kg/h)

• Charge Speed: 2.2 lbs/min (1 kg/min)

• Hose Length: 9.8 ft (3 m), SAE J2788

• Compressor: 1/3 hp (246 W), thermal protected, oiled, hermetically sealed

• Vacuum Pump: 3.6 CFM (120 L/min), dual-stage

• Display: 7-inch HQ touchscreen

• Tank Capacity: 0.5 cubic feet (14.3 L)

• Oil Bottle Capacity: 15 cubic inches (250 mL)

• Packing Size: 22" × 28" × 41" (550 × 700 × 1050 mm)

• Gross Weight: 240 lbs (110 kg)

Warranty

Katool offers a 1-year limited warranty (12 months) covering parts and product defects at no additional charge.
For extended coverage, a 2-year warranty plan is available for all Katool and M&E automotive equipment.

Warranty Includes:

• Cylinders, power units, motors, displays, electronics, etc.

• Vehicle lifts come with an additional three-year (36 months) warranty on structural components

Warranty Conditions:

• Claims must fall within the warranty period

• Warranty is non-transferable and requires proof of purchase

• Free replacement parts and free shipping for approved claims

• Labor is not covered under warranty

• Warranty claims may require photos or videos of defects

• Do not disassemble equipment before a warranty evaluation

Resources

For additional setup and operational details:
👉 [Download Manual (PDF)]
