Katool KT-308 Automatic Tire Changer Machine

Katool KT-308 Tire Changer Overview

The Katool KT-308 Tire Changer is built for professional automotive shops, providing fast, safe, and efficient tire changing. With a strong clamping range, durable construction, and user-friendly design, this machine ensures smooth operation for passenger cars and light trucks.

Automatic Tire Changer Features

• Heavy-duty construction for durability

• Side-mounted bead breaker for convenience

• Adjustable clamping range for different rims

• Foot pedal controls for hands-free operation

• Safe and reliable performance in busy shops

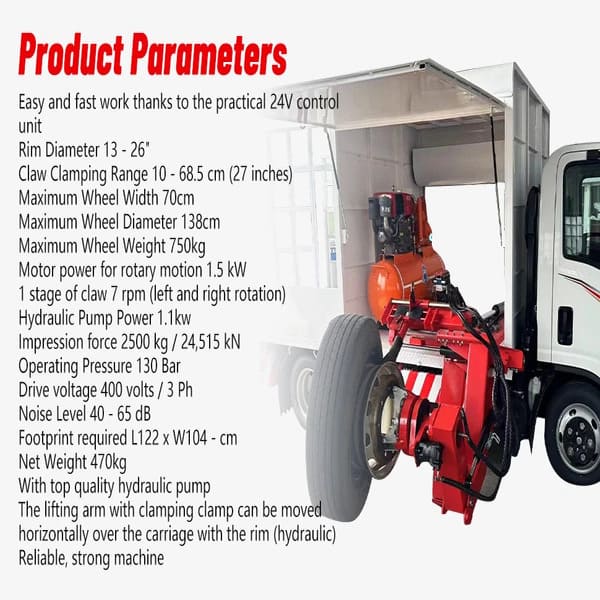

Katool KT-308 Product Parameters

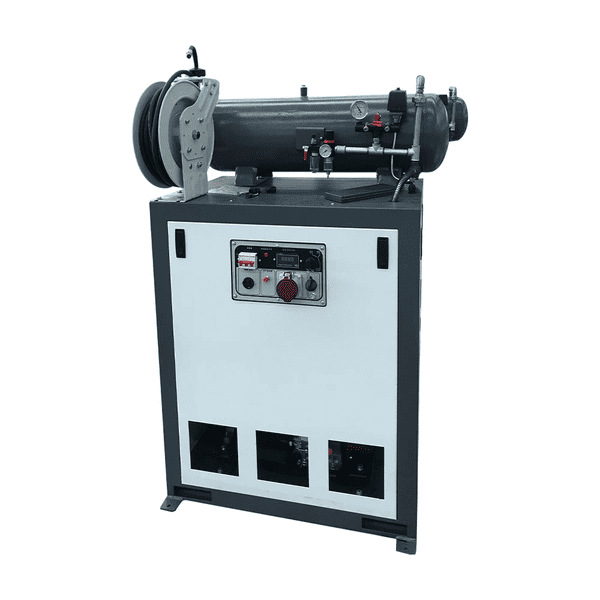

• Easy and fast work thanks to the practical 24V control unit

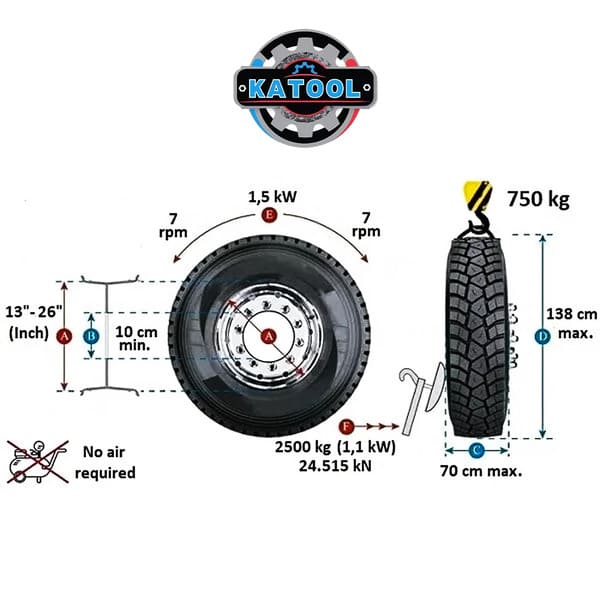

• Rim Diameter 13 - 26"
• Claw Clamping Range 10 - 68.5 cm (27 inches)
• Maximum Wheel Width 70cm

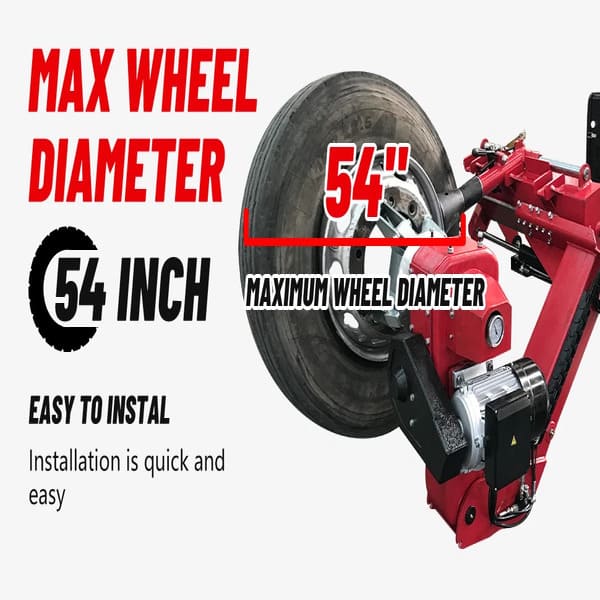

• Maximum Wheel Diameter 138cm (54 inches)
• Maximum Wheel Weight 750kg

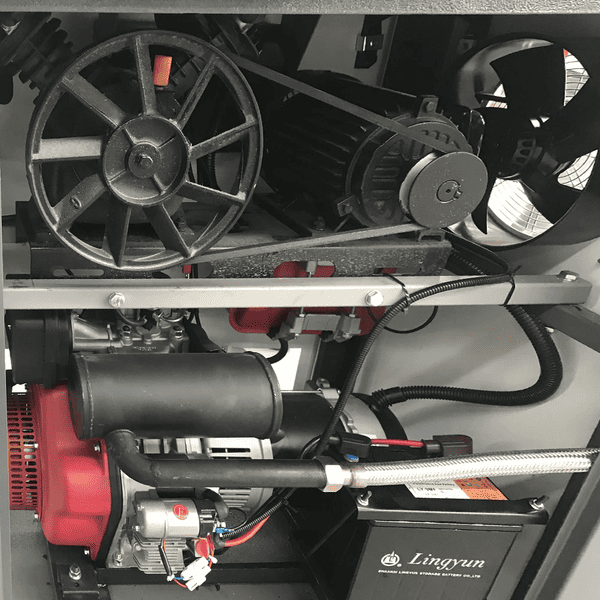

• Motor power for rotary motion 1.5 kW
• 1 stage of claw 7 rpm (left and right rotation) Hydraulic Pump Power 1.1kw
• Impression force 2500 kg / 24,515 KN
• Operating Pressure 130 Bar
• Drive voltage 400 volts / 3 Ph
• Noise Level 40 - 65 dB

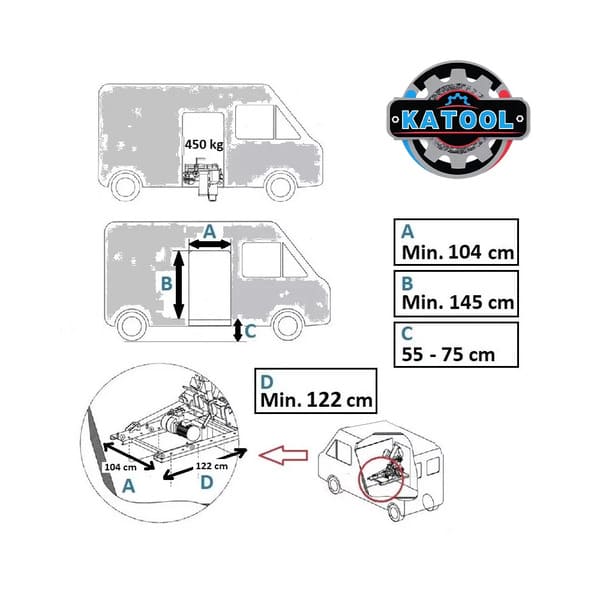

• Footprint required L122 x W104 - cm Net Weight 470kg
• With top top-quality hydraulic pump

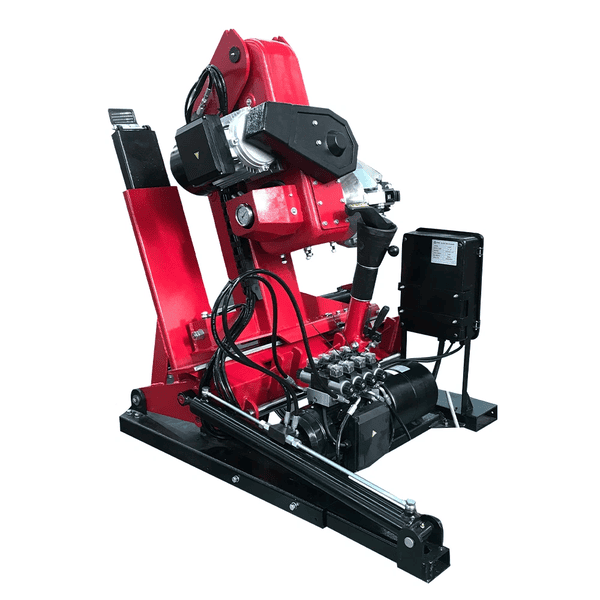

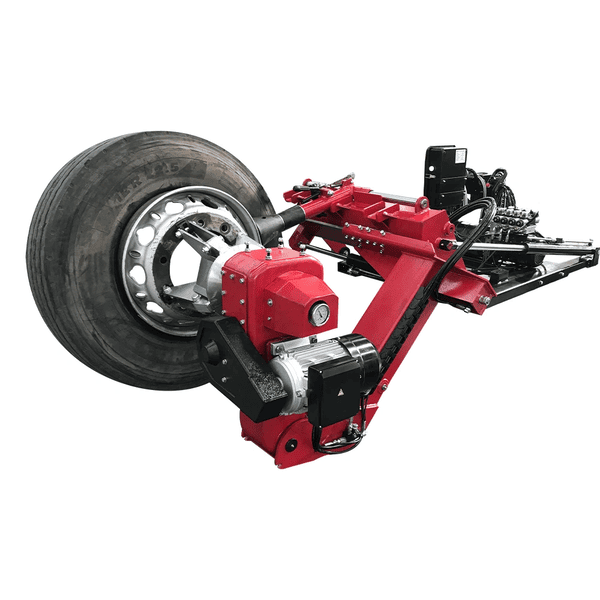

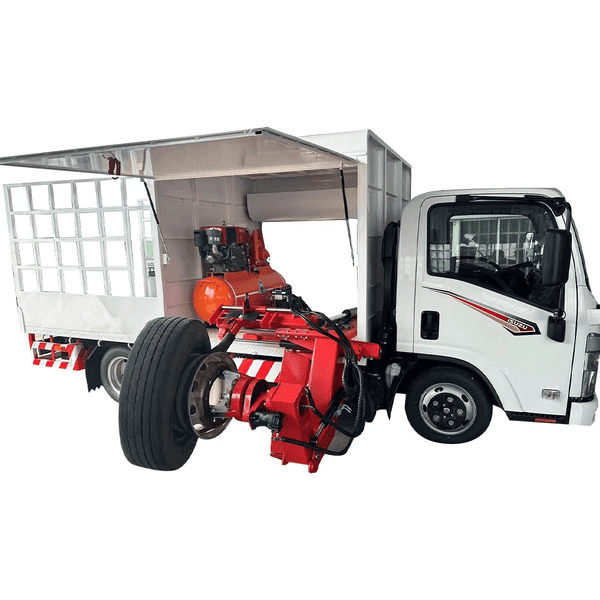

• The lifting arm with a clamping clamp can be moved horizontally over the carriage with the rim (hydraulic)
• Reliable, strong machine
