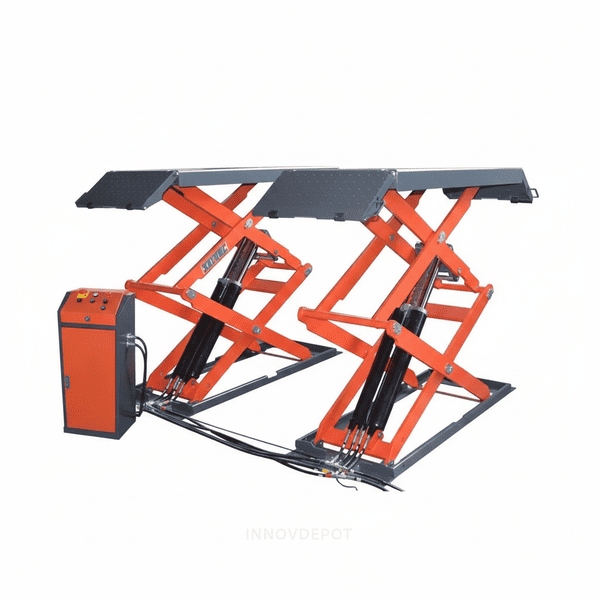

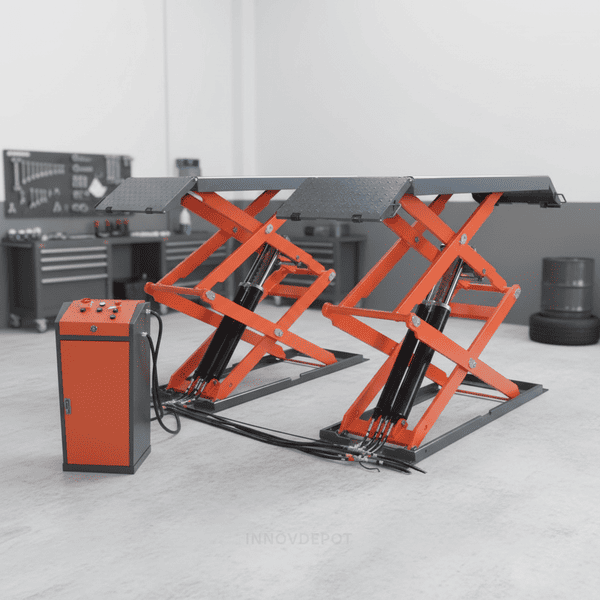

Katool KT-X95 Full Rise Scissor Lift

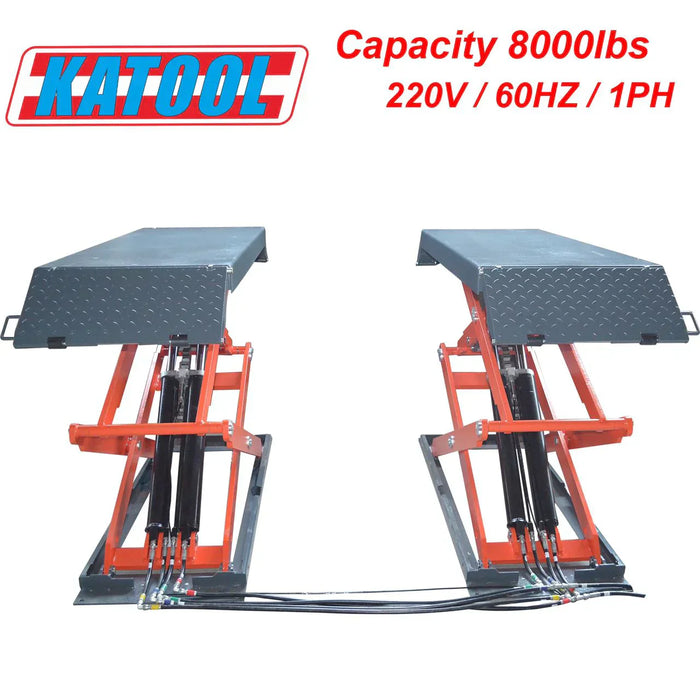

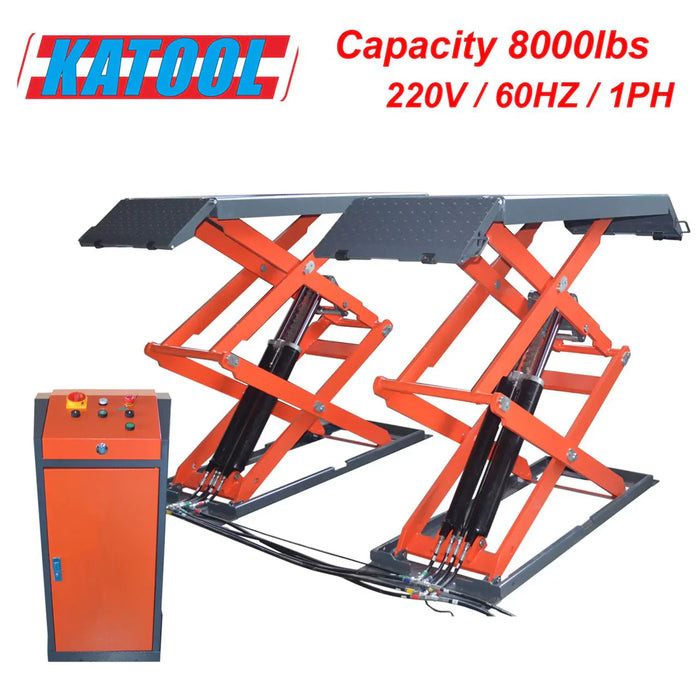

Katool KT-X95 8000 lbs Full Rise Flush Mount Scissor Lift

Description

The Katool KT-X95 Full Rise Scissor Lift is a powerhouse engineered for high performance with an 8000 lbs lifting capacity.
Backed by CE Approval and Certification, it exceeds industry standards with a 115% dynamic and 150% static loading capacity test.
Featuring a flush mount design, pneumatic safety release, and an innovative starting-up system, this lift ensures safety, efficiency, and reliability for professional garages.
The 24V safe control system, height limit switch, and composite rubber lifting blocks put user safety at the forefront.
Designed with a drive-up ramps lock system for extended platform length and a top-level hydraulic system paired with a cooling fan aluminum motor, it guarantees peak performance during prolonged use.

Important:
This model requires a compressed air connection and must be anchored to concrete with at least 5.9" thickness (150mm) and 3000 PSI strength before operation.
Failure to install correctly can result in serious injury or death. Customers must verify concrete specifications before purchase and installation.

Features

• 8000 lbs (3500 kg) Lifting Capacity

• CE Approved and Certified: Meets 115% dynamic and 150% static load standards

• Flush Mount Design: Sleek, space-efficient setup

• Starting-Up System Design

• Pneumatic Safety Release for secure operation

• 24V Safe Control System

• Height Limit Switch to prevent overextension

• Composite Rubber Lifting Blocks included

• Self-Lubricated Bushings and Bearings for longevity

• Drive-up Ramps Lock Design: Extends platform for longer vehicles

• Top-Level Hydraulic System and Aluminum Motor with Cooling Fan to prevent overheating

• Compressed Air Source Required for pneumatic system

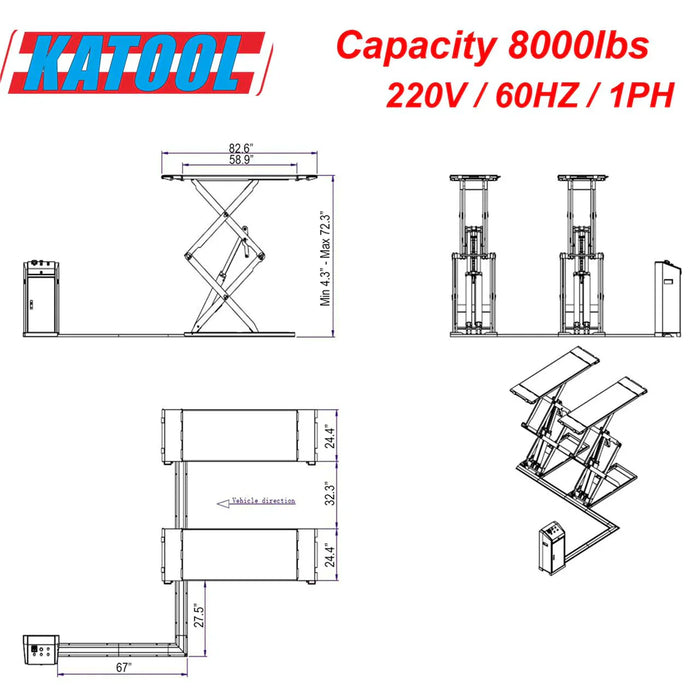

Specifications

• Lifting Capacity: 8000 lbs (3500 kg)

• Max Lifting Height: 72.3" (1835 mm)

• Lifting Time: Approx. 50 seconds

• Platform Length: 58.9" (1495 mm)

• Platform Width: 24.4" (620 mm)

• Motor Power: 2.2 kW

• Rated Oil Pressure: 20 MPa

• Air Pressure Requirement: 6–8 kgf/cm² (approx. 85–113 PSI)

Warranty

Katool offers a limited one-year (12 months) warranty covering all parts and defects at no cost.
A 2-year extended warranty plan is also available for Katool and M&E automotive equipment.

Warranty Coverage:

• Cylinders, power units, motors, displays, electronics

• An additional three-year (36 months) warranty on structural components for vehicle lifts

Conditions:

• Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.

• Replacement parts will be shipped free of charge.

• Labor is not included.

• All warranty claims require approval, and photos/videos may be requested.

Resources

For more detailed installation and operation guidance:
👉 [Download Manual (PDF)]
