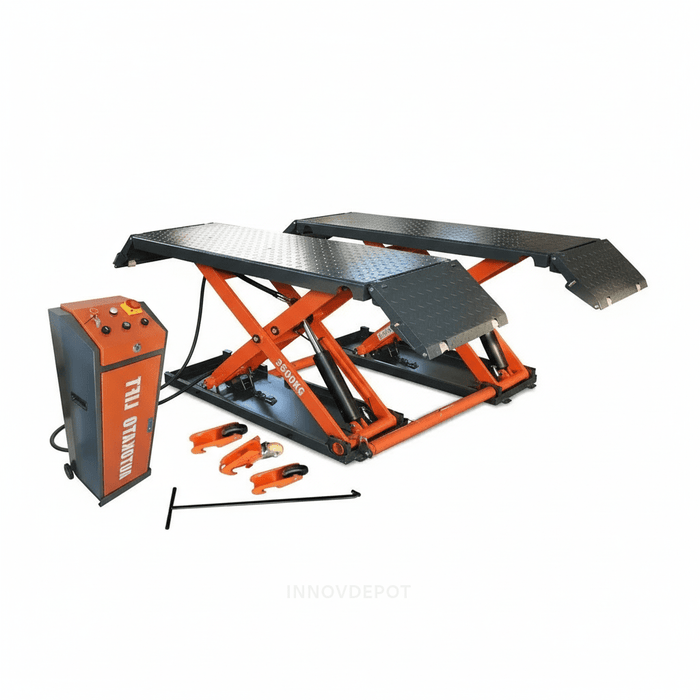

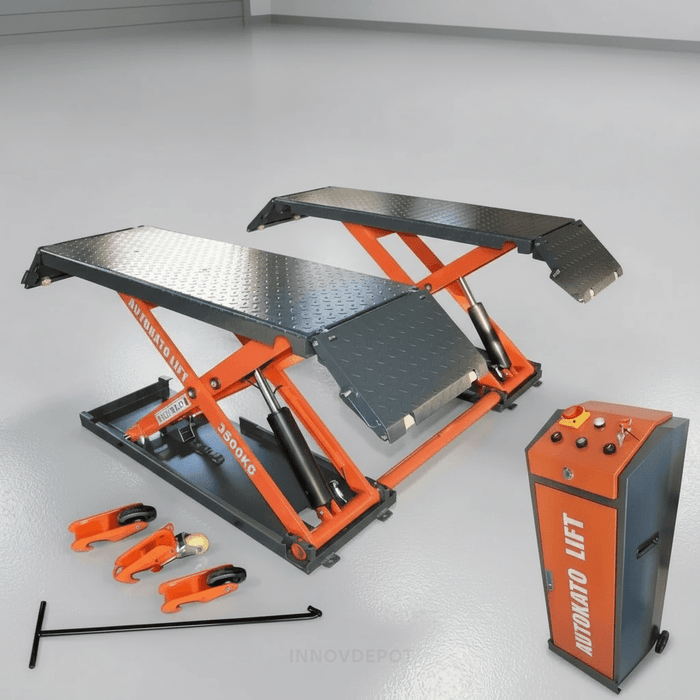

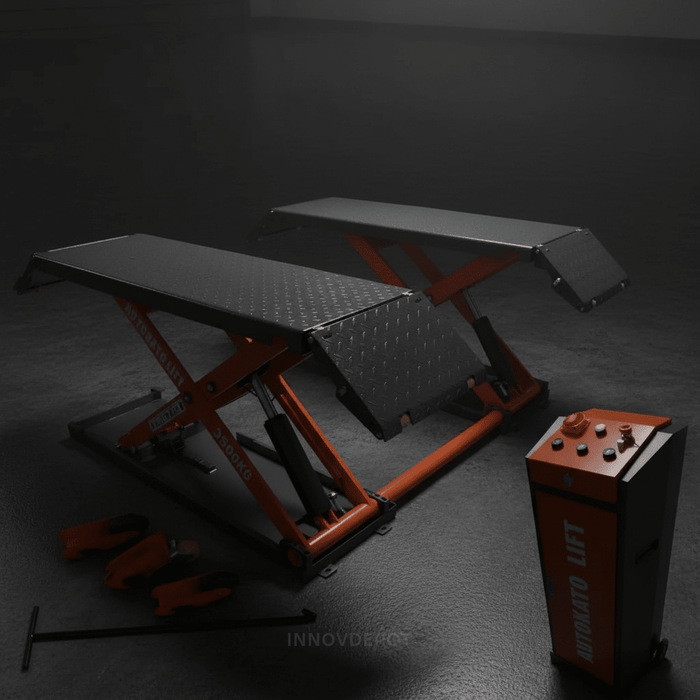

KATOOL KT-X85 Electric Mid-Rise Scissor Lift – 8,000 lb Capacity

The KATOOL KT-X85 is a professional-grade mid rise scissor car lift designed for home garages, commercial shops, and mobile service setups. If you’re searching for a scissor lift for home garage use that delivers real shop-level performance, the KT-X85 provides the strength, safety, and versatility serious vehicle owners demand.

With an 8,000 lb (3,500 kg) lifting capacity, CE certification, and a compact footprint, this car lift for garage applications offers full under-vehicle access without permanent installation—making it one of the most practical car garage lift solutions available today.

Whether you’re a DIY enthusiast or a professional technician, the katool mid rise scissor lift gives you the confidence of commercial car lifts without the space, cost, or structural requirements of two-post systems.

Key Features & Benefits

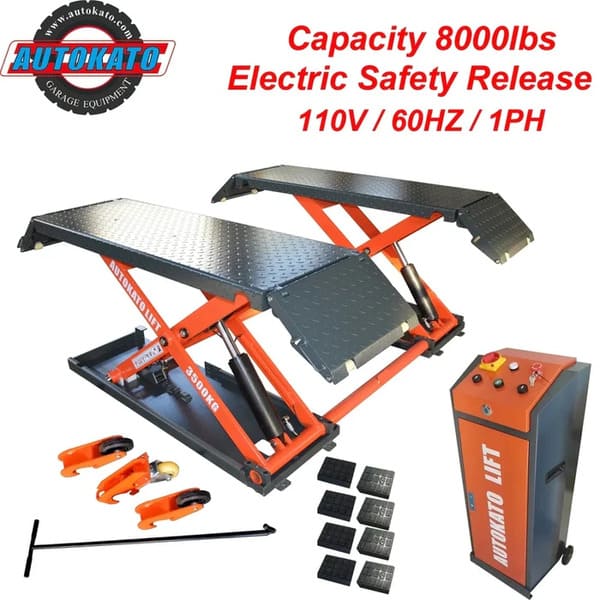

8,000 lb Scissor Car Lift Capacity

Safely lifts sedans, SUVs, light trucks, and performance vehicles—ideal for homeowners and professional shops needing a reliable car lift.

CE Approved & Safety Certified

• 115% dynamic load tested

• 150% static load tested
  Exceeds industry standards for structural strength and operational safety.

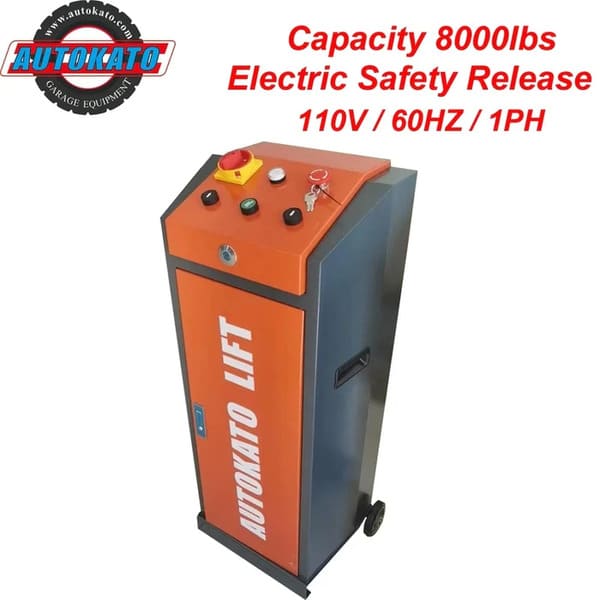

Electric Safety Release & 24V Control System

Low-voltage operation ensures safe, controlled lifting and lowering—essential for any car lift for home garage use.

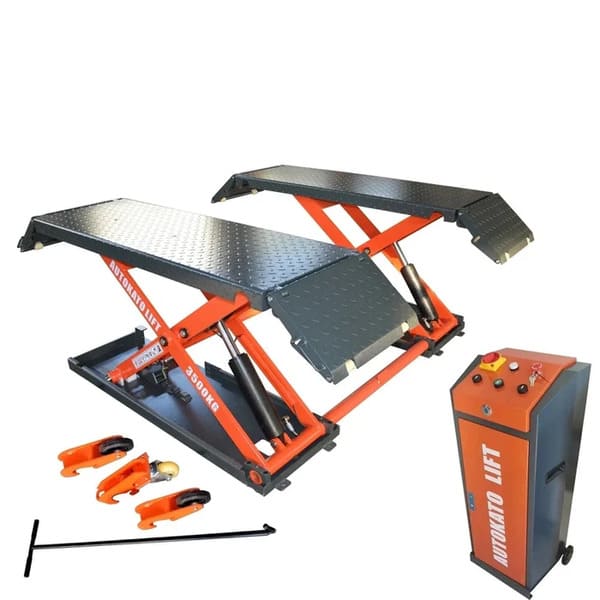

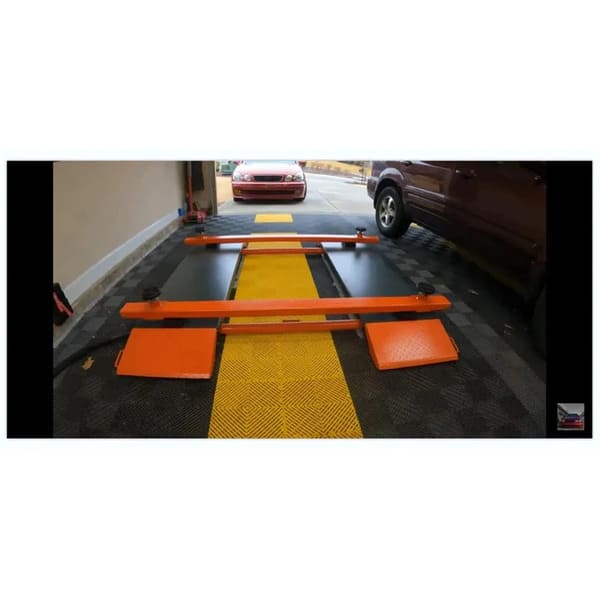

Mobile or Fixed Garage Installation

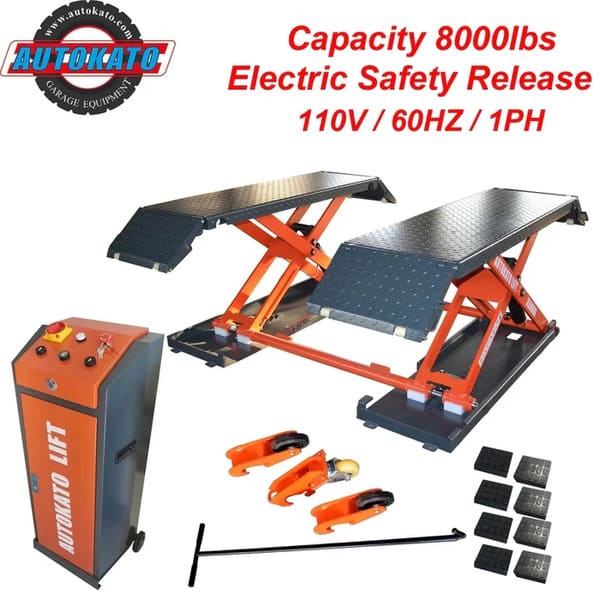

Includes a portable mobility kit, allowing the lift to be repositioned easily. Can also be installed as a fixed garage car lift.

Extended Drive-Up Ramp Platform

Drive-up ramps lock securely and extend platform length from 57" to 80", accommodating longer vehicles without compromising stability.

Ultra-Low Profile for Low-Clearance Vehicles

Minimum height of 4.25" (110 mm) allows easy access for lowered vehicles—no additional ramps required.

Commercial-Grade Hydraulic System

Top-level hydraulics paired with an aluminum motor and integrated cooling fan prevent overheating during extended operation.

Low-Maintenance Design

Self-lubricated bushings and bearings reduce wear and eliminate frequent greasing.

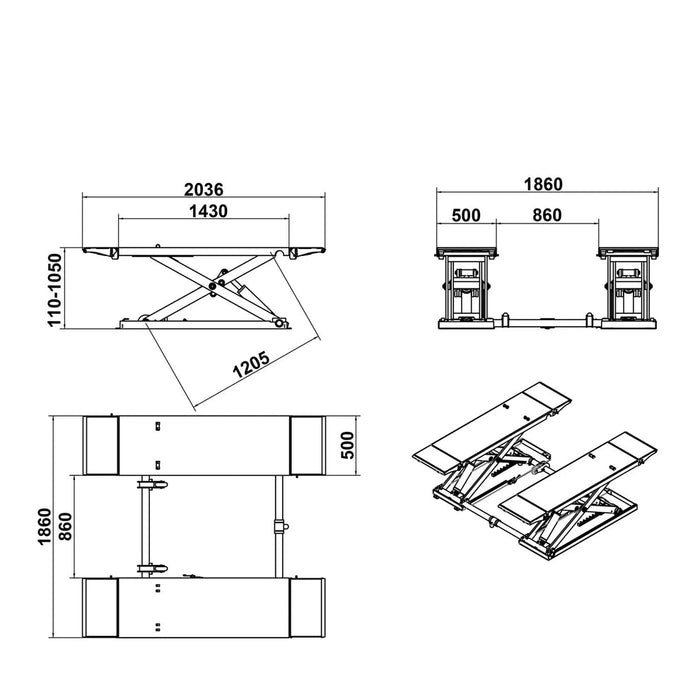

Mid Rise Lift Specifications

• Lifting Capacity: 8,000 lbs (3,500 kg)
• Max. Lifting Height: 40.15" (1,020 mm)
• Minimum Height: 4.25" (110 mm)
• Platform Length: 57" (1,450 mm)
• Length Overall: 83.5" (2,120 mm)
• Platform Width: 20.5" (520 mm)
• Width Overall: 76.75" (1,950 mm)
• Motor: 110V/220V AC, 60Hz, 1PH
• Net Weight: 1,213 lbs (550 kg)

Technical Specifications – KATOOL KT-X85

• Lift Type: Electric Mid-Rise Scissor Lift

• Lifting Capacity: 8,000 lbs (3,500 kg)

• Max Lift Height: 40.15" (1,020 mm)

• Min Height: 4.25" (110 mm)

• Platform Length: 57" (1,450 mm) – extends to 80" (2,036 mm)

• Overall Width: 73.22" (1,860 mm)

• Motor: 110V or 220V AC, 60Hz, Single Phase

• Net Weight: 1,213 lbs (550 kg)

• Material: Q235 / Q245 Structural Steel

• Certification: CE Approved

Ideal Applications

• Home garages needing a scissor lift for home garage use

• Professional automotive repair shops

• Mobile mechanics

• Performance, restoration, and maintenance projects

The KATOOL KT-X85 is a compact, powerful alternative to bulky car lifts, offering professional results in residential and commercial garages alike.

Warranty Coverage

• 1-Year Limited Parts Warranty (power units, motors, electronics, cylinders)

• 3-Year Structural Warranty on frame components

• Optional extended warranty available

• Free replacement parts shipping

• Labor not included

Warranty claims may require photos or videos. Equipment must not be disassembled before approval.

Shipping Information (Important)

• Freight shipping within the lower 48 states

• Commercial address delivery recommended

• Buyer is responsible for unloading

• Residential delivery and liftgate fees may apply

• Inspect shipment before signing delivery receipt

Why Choose the KATOOL KT-X85?

If you’re tired of unsafe jack stands, limited clearance, and time-consuming setups, the KATOOL KT-X85 Electric Mid-Rise Scissor Lift upgrades your garage to professional standards. Faster jobs, safer lifts, better access—without sacrificing space.

Add the KT-X85 to your cart today and work smarter, safer, and more efficiently.
