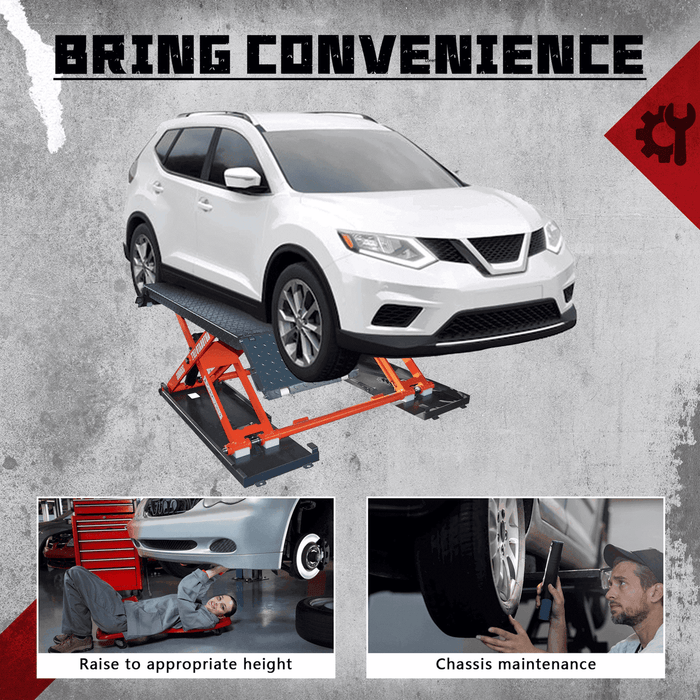

Katool KT-X85 Electric Mid-Rise Scissor Lift – 8,000 lb Capacity
The Katool KT-X85 is a professional-grade 8,000 lb (3,500 kg) electric mid-rise scissor lift built for automotive shops, performance garages, and serious home setups. With CE certification, electric safety release, and a compact footprint, it delivers dependable lifting power without the space demands of full-size two-post lifts.
Designed for brake work, suspension service, tire access, and undercar inspections, the KT-X85 offers practical working height, stable vehicle support, and mobile flexibility.
Why Choose the Katool KT-X85
-
8,000 lb lifting capacity for cars, SUVs, and light trucks
-
Electric safety release (no compressed air required)
-
CE approved – 115% dynamic / 150% static tested
-
Low-profile 4.25" minimum height for lowered vehicles
-
Mobile kit included for flexible positioning
-
Compact footprint for space-limited garages

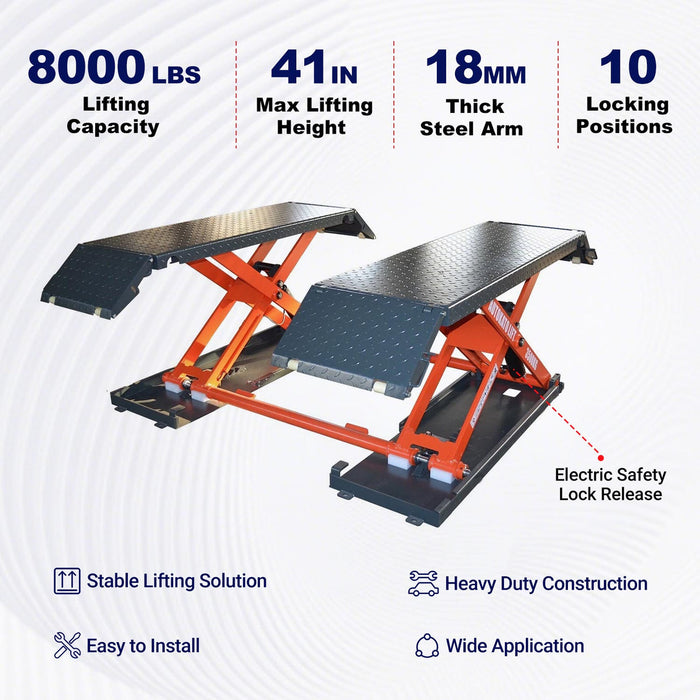

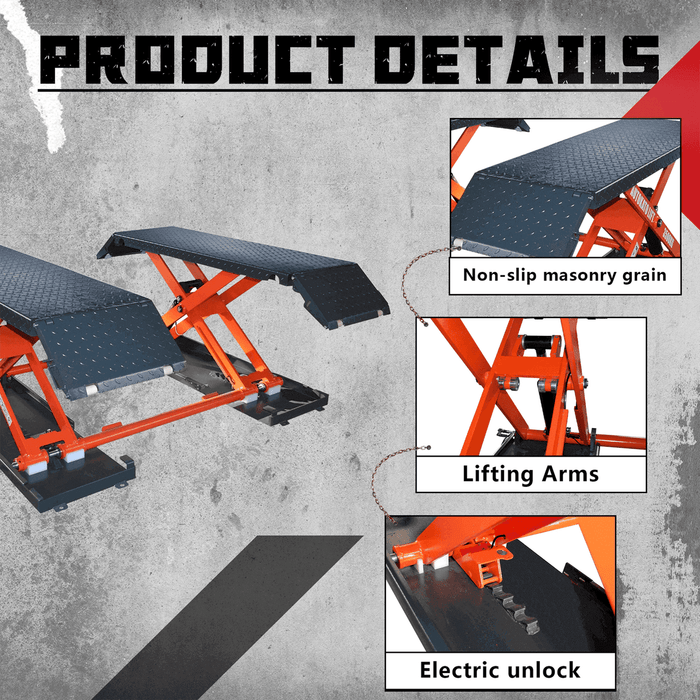

Key Features
8,000 lb Mid-Rise Capacity
Ideal for daily service tasks including brakes, suspension, exhaust, and inspections.
Electric Safety Release + 24V Control System
Low-voltage control enhances safety and ensures controlled lifting and lowering.
CE Approved & Certified
Tested beyond standard load requirements for long-term durability.
Low-Profile Drive-On Platforms
4.25" lowered height allows access for performance and lowered vehicles.
Drive-Up Ramp Lock System
Extends usable platform length for longer vehicles.
Hydraulic Drive System
Smooth, controlled lifting and lowering cycles.
Mechanical Multi-Position Safety Locks
Automatically engages at working height for secure service.
Durable Construction
Reinforced Q235 / Q245 steel structure built for repeat daily use.
Portable Mobility Kit Included
Allows lift repositioning when needed.

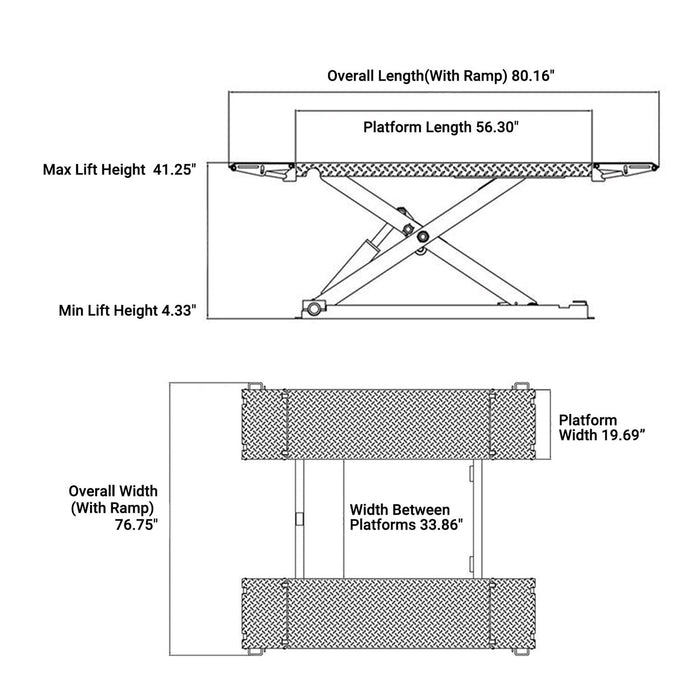

Technical Specifications
| Specification |
Details |
| Model |
KT-X85 |
| Rated Capacity |
8,000 lb / 3,500 kg |
| Max Lift Height |
40.15" / 1,020 mm |
| Min Height |
4.25" / 110 mm |
| Platform Length |
57" / 1,450 mm |
| Overall Length |
83.5" / 2,120 mm |
| Platform Width |
20.5" / 520 mm |
| Overall Width |
76.75" / 1,950 mm |
| Motor |
110V or 220V AC, 60Hz, 1PH |
| Control System |
24V Safe Lock Control |
| Safety Release |
Electric |
| Certification |
CE Approved |
| Net Weight |
Approx. 1,213 lb / 550 kg |
| Material |
Q235 / Q245 Steel |
Ideal Applications
-
Brake and wheel service
-
Suspension and steering repair
-
Exhaust and drivetrain access
-
Oil changes and inspections
-
Performance and tuning bays
-
Home garages needing compact lifting power
Shipping Information
-
Freight shipping within the lower 48 states
-
Free shipping to commercial addresses or carrier terminals
-
Forklift recommended for unloading
-
Residential delivery and liftgate service may incur additional fees
-
Alaska & Hawaii shipping available (contact for quote)
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on lift frame
-
Optional extended warranty available
-
Free shipping on approved replacement parts
-
Labor not included
Bottom Line
The Katool KT-X85 Electric Mid-Rise Scissor Lift delivers professional shop performance in a compact, space-efficient design. With 8,000 lb capacity, electric safety release, and CE-certified construction, it’s an ideal solution for garages that need dependable lifting without permanent installation requirements.
For compatibility, warehouse availability, or installation questions, contact Live Chat or call (866) 412-1837.
