Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift

Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift

Description

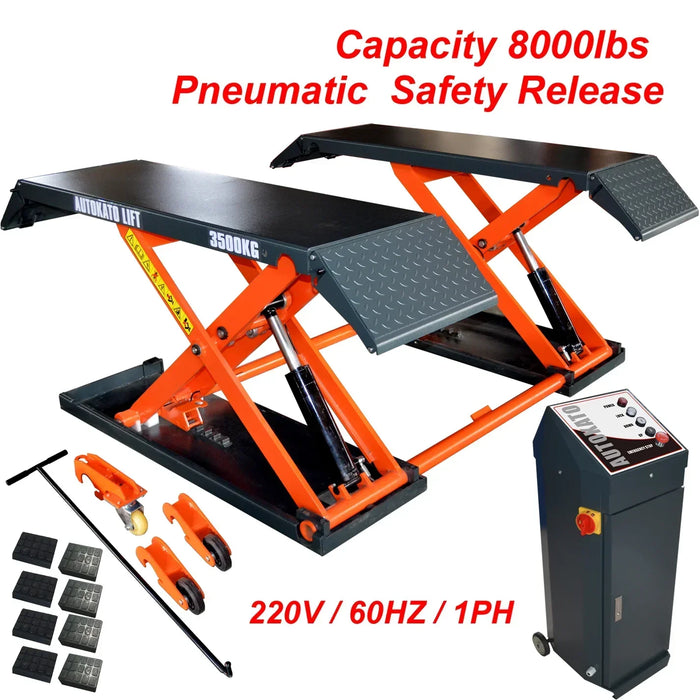

The Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift delivers powerful performance with an 8,000 lbs (3,500 kg) lifting capacity.
CE Approved and Certified, this lift exceeds 115% dynamic and 150% static load capacity standards, ensuring exceptional safety and reliability.
Designed for maximum flexibility, it features both mobile and fixed mount options, a starting-up system, and pneumatic safety release for seamless operation.

A 24V safe control system, height limit switch, and composite rubber lifting blocks prioritize user safety, while the drive-up ramps lock design extends the platform length for longer vehicles.
The included portable kit allows easy mobility within your garage.
Powered by a top-level hydraulic system and an aluminum motor with cooling fan, the KT-X80-PNEUMATIC ensures optimal performance even during extended use.
Note: Connection to a compressed air source is required. For users without air supply, an electric model is recommended.

Features

• 8,000 lbs (3,500 kg) Lifting Capacity: Suitable for cars, SUVs, and light trucks.

• CE Approved and Certified: Meets 115% dynamic and 150% static load standards.

• Mobile or Fixed Mount Design: Flexible setup to fit your workspace.

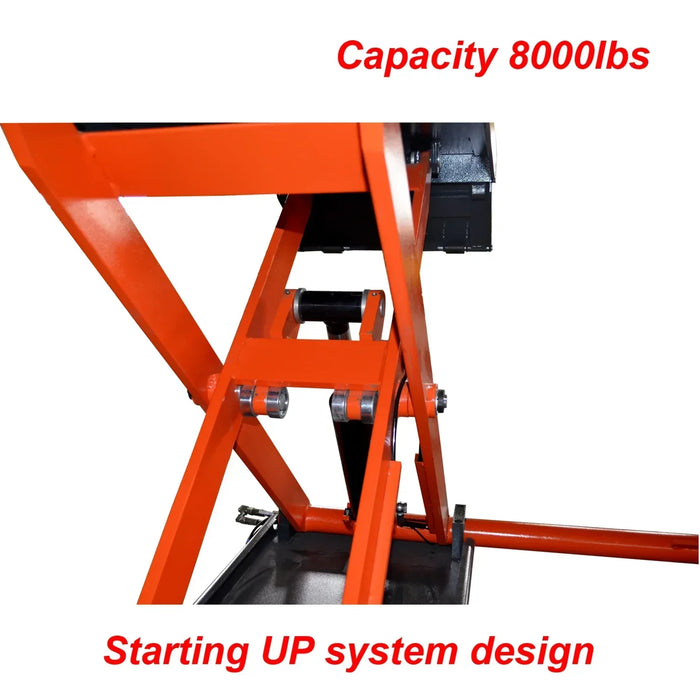

• Starting-Up System: Simplified operation from the initial use.

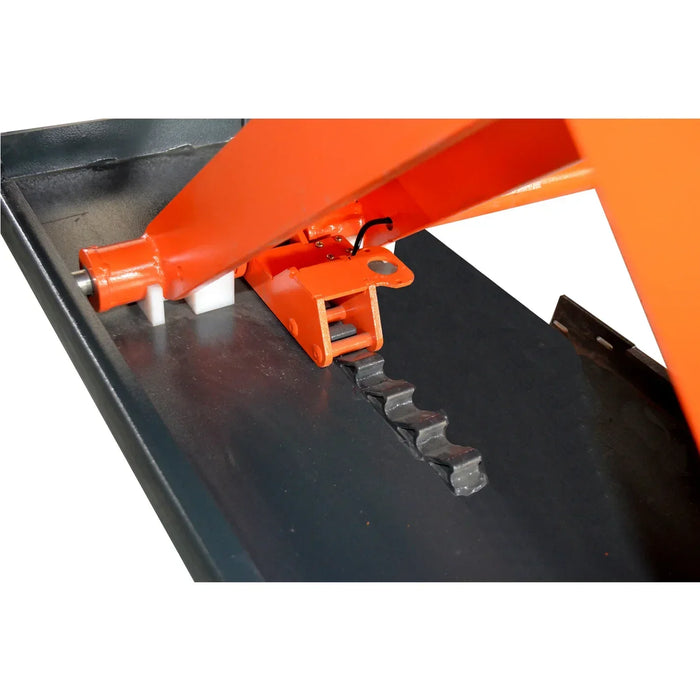

• Pneumatic Safety Release: Easy and reliable lock disengagement.

• 24V Safe Control System: Adds an extra layer of user protection.

• Height Limit Switch: Protects vehicles from over-lifting.

• Composite Rubber Lifting Blocks: Included for added support and protection.

• Self-Lubricated Bushings and Bearings: Reduce maintenance needs.

• Drive-Up Ramps Lock Design: Extends platform for longer vehicles.

• Portable Kit Included: Move the lift around your garage effortlessly.

• Top-Level Hydraulic System: Featuring an aluminum motor with fan to prevent overheating.

• Motor Configurations: Operates on 110V or 220V / 60HZ / 1PH.

Specifications

Warranty

• 1-Year Limited Parts Warranty: Covers defects in parts at no cost.

• Optional 2-Year Extended Warranty: Available for additional peace of mind.

Warranty Includes:

• Cylinders, power units, motors, displays, electronics, etc.

• Vehicle lifts include an additional 3-year structural warranty (for lifts only).

Warranty Conditions:

• Warranty claims must be made within the warranty period.

• Warranty is non-transferable and requires proof of original purchase.

• Replacement parts are provided free of charge, including shipping.

• Labor is not included.

• Do not disassemble equipment before warranty approval.

• Supporting photos and/or videos may be requested for claims.

Resources

For detailed installation instructions, operating procedures, and safety information:
👉 [Download Manual (PDF)]
