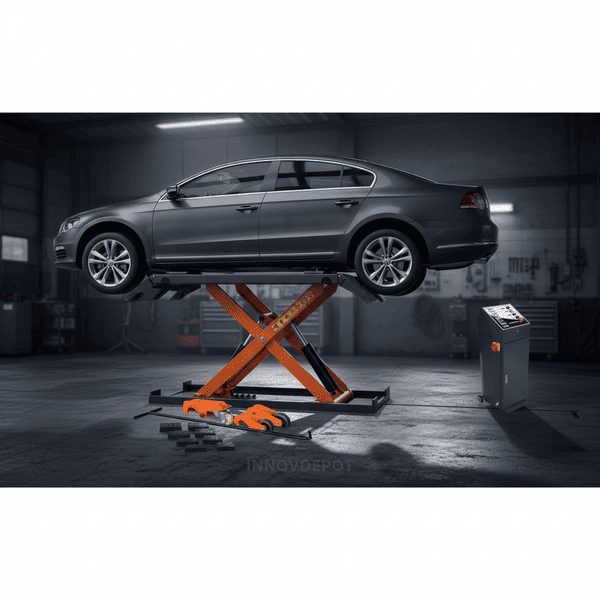

Katool KT-X80 Electric 8,000 LB Mid Rise Scissor Lift
The Katool KT-X80 Electric Mid Rise Scissor Lift is a professional-grade 8,000 lb (3,500 kg) electric scissor car lift designed for automotive shops and home garages that need reliable lifting power without compressed air. CE approved and certified, the KT-X80 exceeds 115% dynamic and 150% static load testing standards, delivering long-term durability and safe daily operation.
This electric mid rise scissor lift features a fully electric safety release system, making it ideal for garages without an air compressor. The lift supports both mobile and fixed-mount installation, allowing flexible use for brake work, tire service, detailing, and undercar maintenance.
A 24V safe control system, height limit switch, and starting-up system design ensure smooth, controlled lifting and lowering. Composite rubber lifting blocks protect vehicle contact points, while self-lubricated bushings and bearings reduce maintenance and extend service life.
The drive-up ramp locking design extends platform length to accommodate longer vehicles, and the included portable mobility kit allows easy repositioning around the shop. Powered by a top-level hydraulic system and an aluminum electric motor with integrated cooling fan, the KT-X80 is built for consistent performance during extended use.
Operating on 110V or 220V / 60Hz / single phase, the Katool KT-X80 Electric is a compact, dependable solution for anyone needing a mid rise scissor lift for garage use without sacrificing professional performance.
Why Choose the Katool KT-X80 Electric Scissor Lift
-
8,000 lb electric scissor lift for cars, SUVs, and light trucks
-
No air compressor required
-
Compact mid rise scissor lift for garages
-
CE-certified automotive lift
-
Mobile or fixed-mount installation
Key Features
-
8,000 lbs (3,500 kg) Lifting Capacity
-
Electric Safety Release (No Air Required)
-
CE Approved & Certified (115% dynamic / 150% static tested)
-
Mobile or Fixed-Mount Design
-
24V Safe Control System
-
Height Limit Switch for over-lift protection
-
Composite Rubber Lifting Blocks Included
-
Self-Lubricated Bushings & Bearings
-
Drive-Up Ramp Lock Design for longer vehicles
-
Portable Mobility Kit Included
-
High-Quality Hydraulic System
-
Aluminum Electric Motor with Cooling Fan
-
110V / 220V, 60Hz, Single Phase Operation
Specifications
| Specification |
Details |
| Lifting Capacity |
8,000 lbs (3,500 kg) |
| Max. Lifting Height |
41.25" (1,050 mm) |
| Minimum Height |
4.25" (110 mm) |
| Platform Length |
56.25" (1,430 mm) |
| Length Overall |
80" (2,036 mm) |
| Platform Width |
19.5" (500 mm) |
| Width Overall |
73.25" (1,860 mm) |
| Motor |
110V/220V AC, 60HZ, 1PH |
| Net Weight |
1,213 lbs (550 kg) |
Specifications
-
Lifting Capacity: 8,000 lbs (3,500 kg)
-
Max Lifting Height: 41.25" (1,050 mm)
-
Min Height: 4.25" (110 mm)
-
Platform Length: 56.25" (1,430 mm)
-
Overall Length: 80" (2,036 mm)
-
Platform Width: 19.5" (500 mm)
-
Overall Width: 73.25" (1,860 mm)
-
Motor: 110V / 220V AC, 60Hz, 1PH
-
Net Weight: 1,213 lbs (550 kg)
Warranty
-
1-Year Limited Warranty on all parts and defects
-
3-Year Structural Warranty on lift frame components
-
Optional 2-Year Extended Warranty available
Replacement parts ship free.
Labor is not included.
