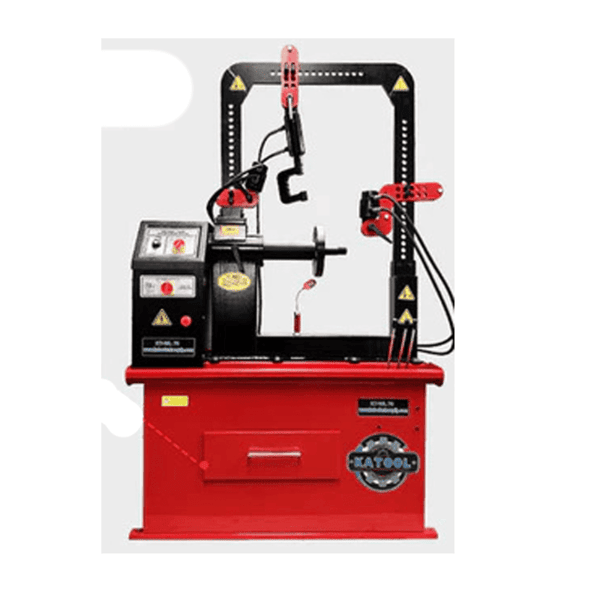

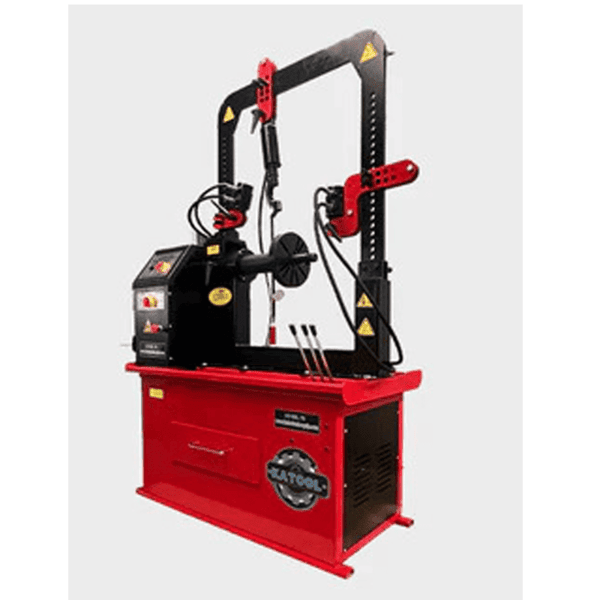

Katool KT-WL70 Rim Straightening Machine – Heavy-Duty Hydraulic Wheel Repair System

The Katool KT-WL70 Rim Straightening Machine is a professional-grade hydraulic wheel repair system engineered for high-volume automotive shops. Designed specifically for aluminum wheel restoration, the WL70 handles wheels up to 30″ in diameter and 21.6″ in width, making it suitable for passenger vehicles, SUVs, and performance wheels.

Powered by a 15KW motor and supported by a hydraulic drive system, the KT-WL70 delivers controlled, high-pressure correction for bent or damaged rims. Its reinforced steel construction, compact footprint, and integrated cabinet storage make it an efficient and durable solution for busy service bays.

This machine is intended for professional aluminum rim straightening applications.

Why Choose the Katool KT-WL70

• Designed for aluminum wheel straightening and rim repair

• Handles wheels up to 30″ diameter

• 15KW high-output motor for consistent performance

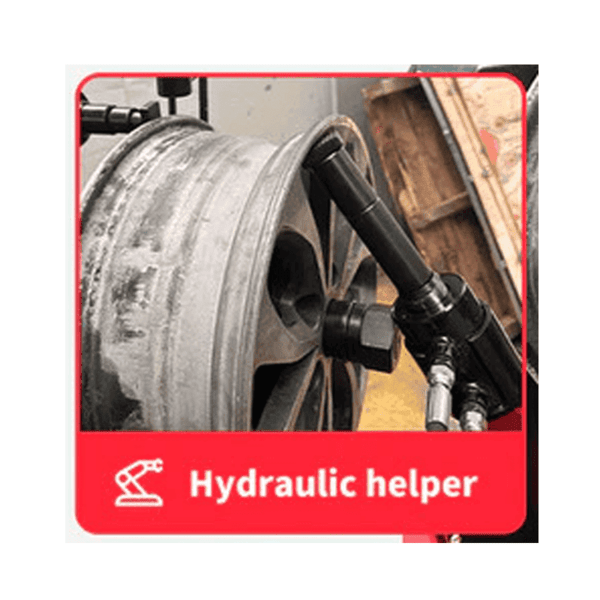

• Hydraulic drive system with helper control

• Heavy-duty reinforced steel construction

• Compact design with integrated storage cabinet

• Quiet operation under 79 dB

• Built for professional automotive repair facilities

Key Features

Heavy-Duty Wheel Capacity

• Maximum wheel diameter: 30″

• Maximum wheel width: 21.6″

• Working limit diameter: 26″

High-Power Performance

• 15KW motor for strong, reliable correction force

• Hydraulic operating pressure: 15 MPa

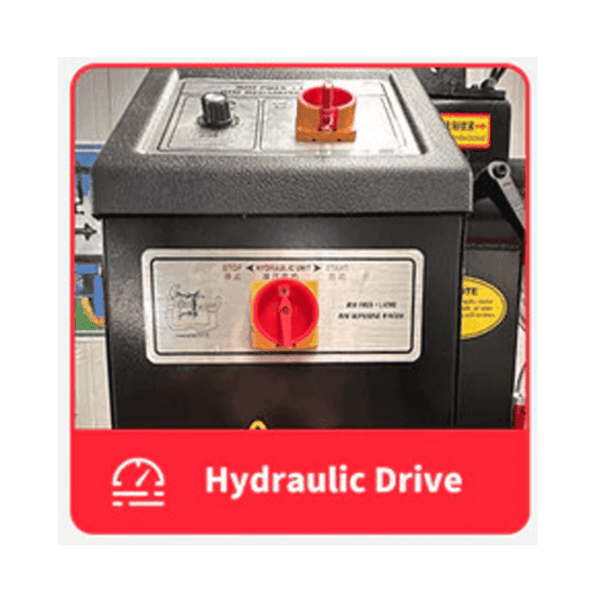

• Smooth, controlled hydraulic drive system

Professional Build Quality

• Reinforced Q235 & Q245 steel construction

• Upgraded structural materials for durability

• Heavy 260 kg (573 lbs) machine weight for stability

Operator-Focused Design

• Noise level below 79 dB

• User-friendly control layout

• Free adjustment system for flexible operation

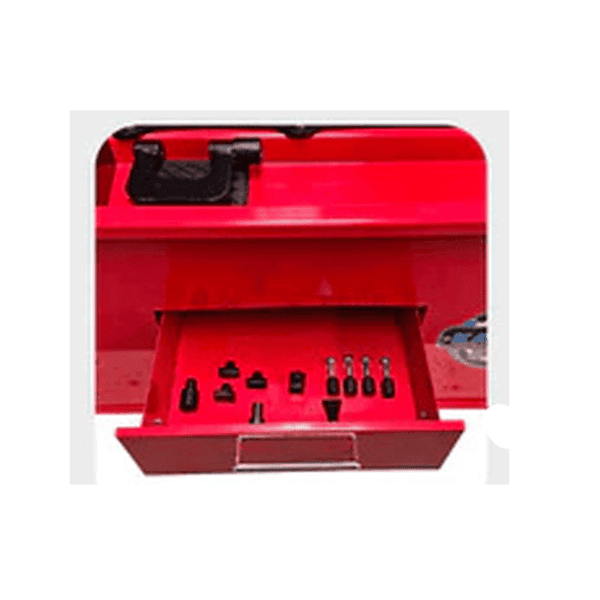

• Spacious built-in cabinet for tool storage

Specifications

Installation & Delivery Notes

• Freight shipping within lower 48 states

• Free shipping to commercial addresses or carrier terminal

• Forklift or unloading dock recommended

• Buyer responsible for unloading

• Inspect shipment before signing delivery receipt

Seasonal delays may apply.

Warranty

• 1-Year Limited Parts Warranty

• 3-Year Structural Warranty on frame components

• Free shipping on approved warranty parts

• Labor not included

• Warranty claims require approval and proof of purchase

Bottom Line

The Katool KT-WL70 is a high-output hydraulic rim straightening machine built for professional shops that demand precision, power, and durability. With 30″ capacity, 15KW motor strength, and reinforced construction, it provides reliable aluminum wheel repair performance for daily commercial use.
