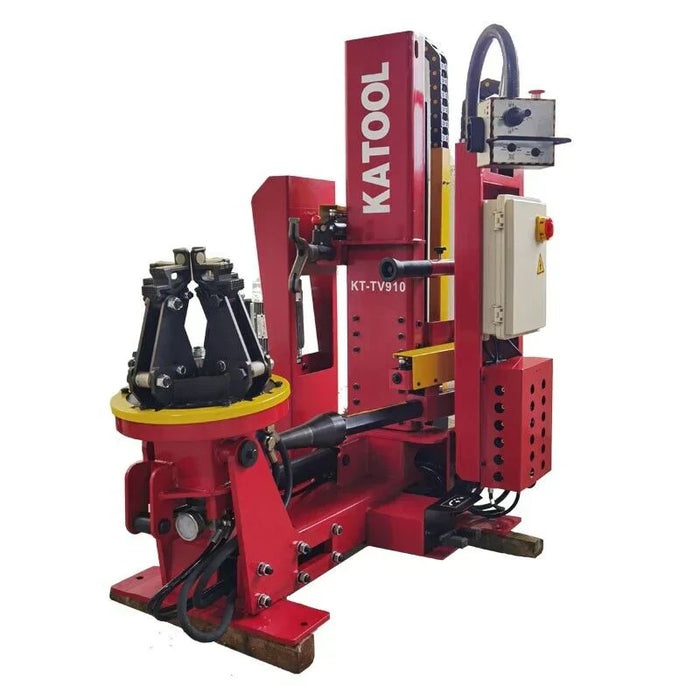

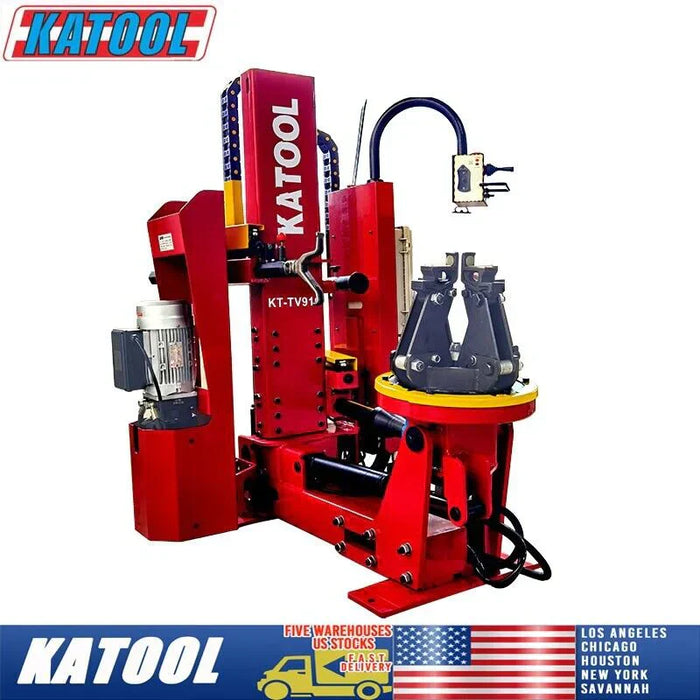

Katool KT-TV910 Hydraulic Truck Tire Changer Machine – 14"–42"
The Katool KT-TV910 Hydraulic Truck Tire Changer is engineered for commercial tire shops, fleet service centers, and industrial operations that service large truck, bus, tractor, and earth-moving vehicle tires. Built with a powerful electro-hydraulic system, this machine delivers the control, safety, and strength required for heavy-duty tire service.
Designed for professional environments, the KT-TV910 features a wide external clamping range and multifunctional controls that allow operators to work safely from multiple positions. Its beak and disk system provides strong, precise bead handling while helping protect rims during mounting and demounting.
With ergonomic foot pedals, helper controls at the point of use, and low-voltage electrical components, the KT-TV910 is a shop-ready solution for high-volume operations that demand efficiency, safety, and consistent performance.
Why Choose the Katool KT-TV910 Hydraulic Truck Tire Changer
-
Heavy-duty truck tire changer designed for commercial and industrial use
-
Wide clamping range supports rims from 14" to 42"
-
Electro-hydraulic system delivers controlled power for large tire assemblies
-
Beak and disk system ensures secure bead handling while protecting rims
-
Multifunctional controls allow safe operation from any position
-
Ergonomic foot pedals reduce operator fatigue and training time
-
Low-voltage electrical system enhances operator safety
-
Ideal tire changer machine for fleet service centers and truck shops
Key Features
-

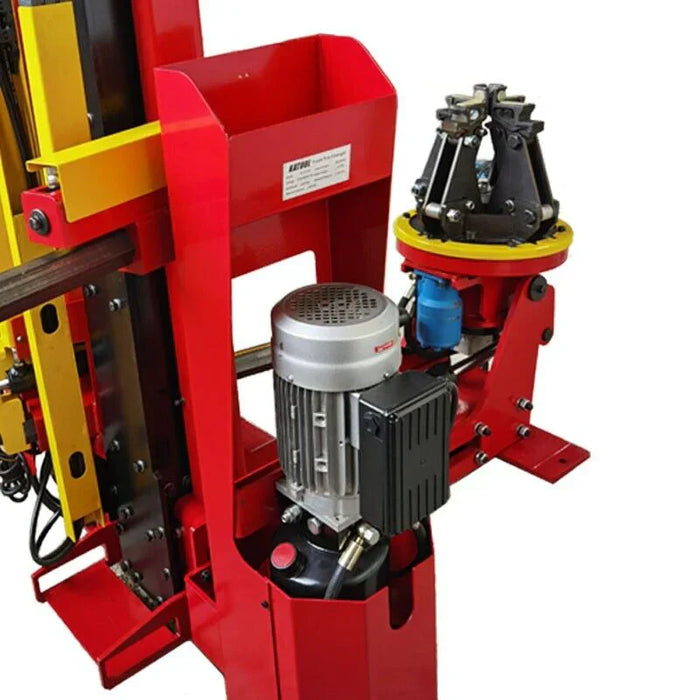

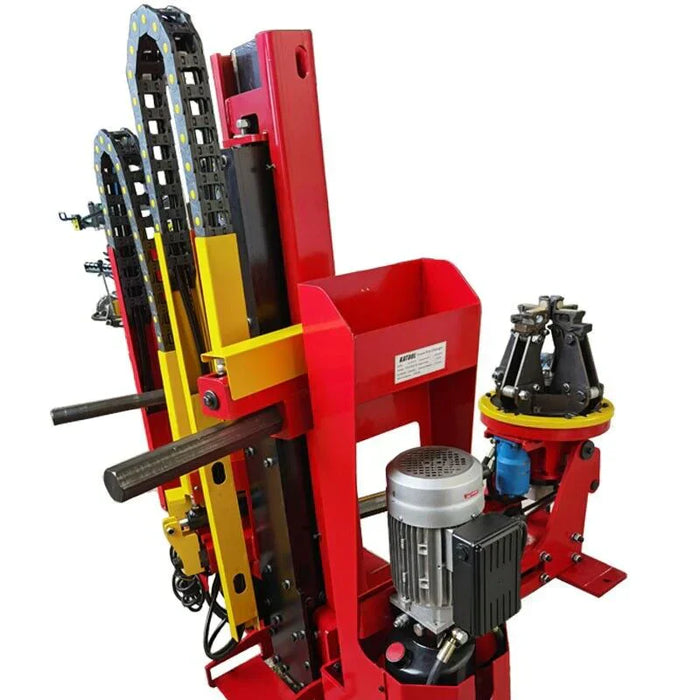

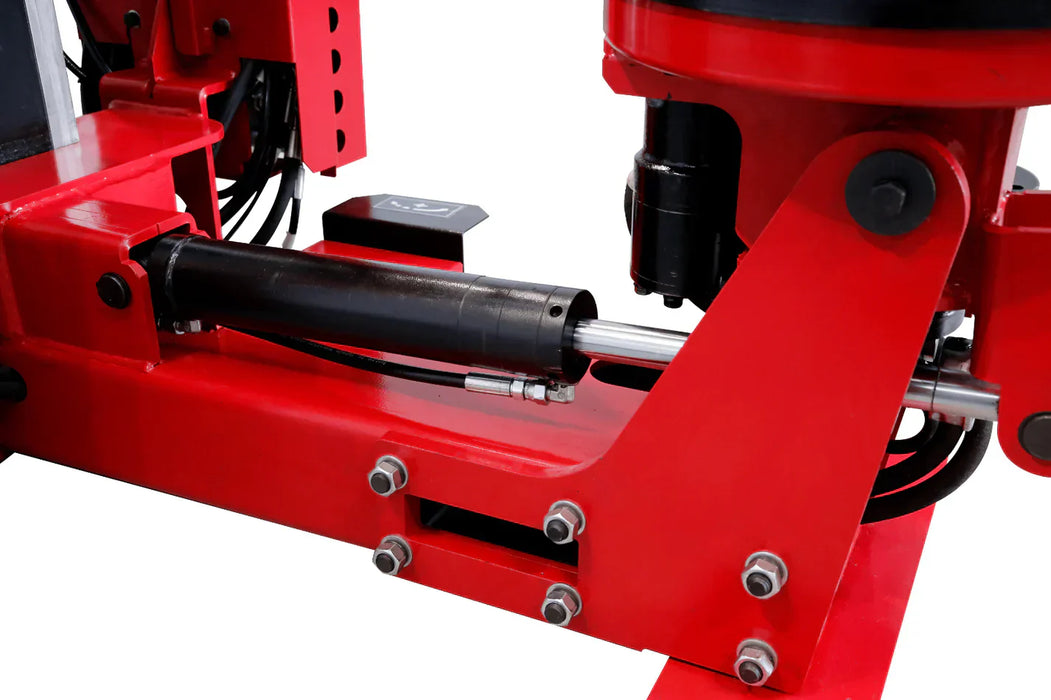

Electro-Hydraulic Drive System – Provides the force and precision required for heavy commercial tires
-
Wide External Clamping Capacity – Accommodates rims from 14" to 42"
-

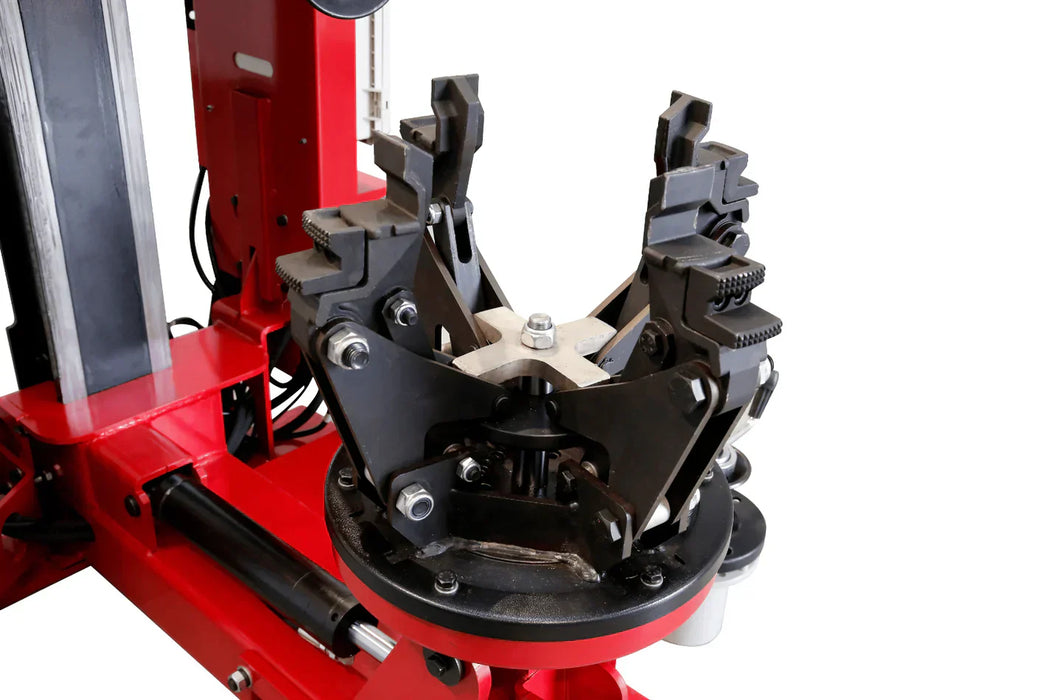

Beak and Disk Bead Control System – Delivers strong, damage-controlled bead handling
-
Multifunctional Control Layout – Enables safe operation from multiple working positions
-
Ergonomic Foot Pedals & Helper Controls – Improves workflow and minimizes operating errors
-
Low-Voltage Electrical Components – Designed for enhanced safety in demanding shop environments
-
Heavy-Duty Steel Construction – Built from Q235 and Q245 steel for long-term durability
Specifications
| Specification |
Details |
| Outer Rim Capacity |
14" – 42" |
| Max Wheel Diameter |
55" |
| Max Wheel Width |
31" (780 mm) |
| Working Pressure |
≤130 bar |
| Power Supply |
220V / 1PH / 60Hz |
| Hydraulic Motor Power |
3.0 kW (4.0 HP) |
| Max Hydraulic Oil Flow |
315 |
| Max Tire Weight |
3,306 lbs (1,500 kg) |
| Net Weight |
1,256 lbs (570 kg) |
| Shipping Weight |
1,388 lbs (630 kg) |
| Shipping Dimensions |
51" × 43" × 72" (1300 × 1100 × 1830 mm) |
| Noise Level |
<70 dB(A) |
| Construction Material |
Q235 / Q245 Steel |
Installation Requirements (Important)
-
Requires a solid, level surface suitable for heavy industrial equipment
-
Electrical supply must meet 220V single-phase requirements
-
Adequate workspace clearance is required for large tire assemblies
-
Buyer is responsible for unloading equipment at delivery
The buyer must verify site conditions, electrical compatibility, and unloading equipment prior to delivery and installation.
Warranty
-
1-Year Limited Parts Warranty
-
3-Year Structural Warranty on Machine Frame
-
Optional Extended Warranty Available
-
Free shipping on warranty replacement parts
-
Labor not included
Warranty claims may require documentation and approval by the service team.
Bottom Line
The Katool KT-TV910 Hydraulic Truck Tire Changer is built for shops that service large, heavy commercial and industrial tires daily. With wide rim compatibility, powerful electro-hydraulic operation, and safety-focused controls, it delivers the reliability and control required for serious heavy-duty tire service.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
