Katool KT-T900 Center Post Tire Changer Machine

Katool KT-T900 Center Post Tire Changer Machine

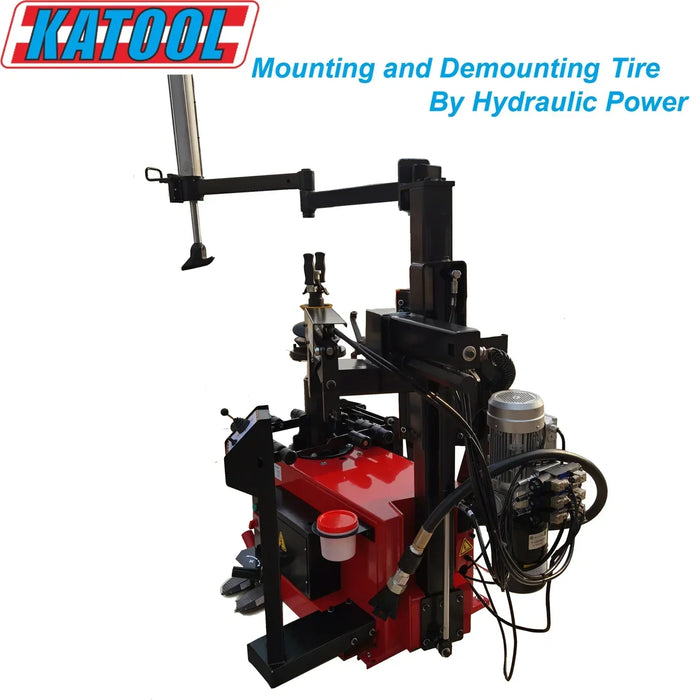

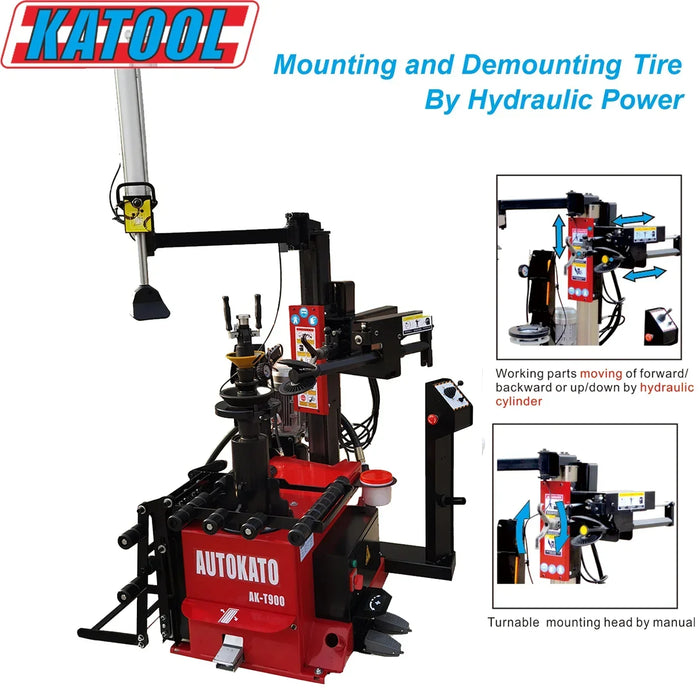

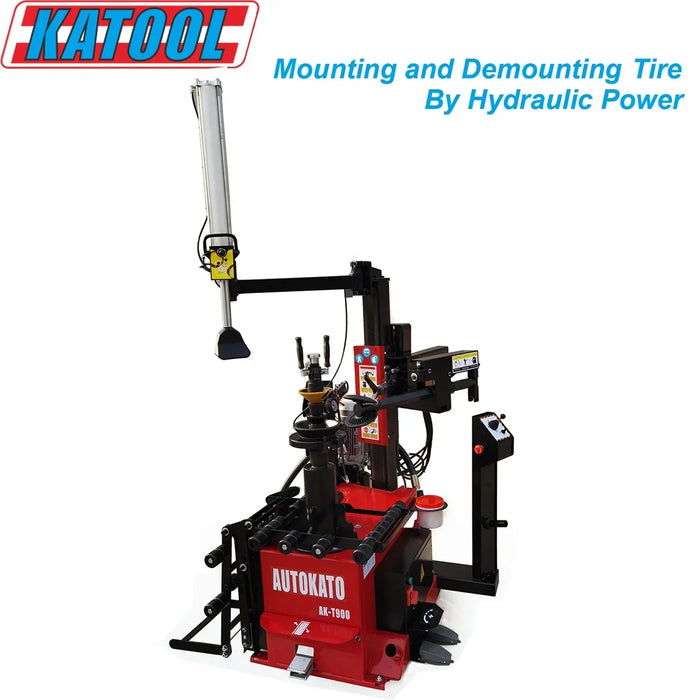

The Katool KT-T900 is a powerhouse center post tire changer, engineered for performance and precision. Designed with a fully hydraulic system, it makes light work of all types of car wheels. A built-in top assist arm easily handles tough run-flat and low-profile tires. With a lever-less stainless steel mounting head and protective plastic cover, it delivers smooth operation without risking rim damage. Key highlights include a wheel lift assist, high-performance copper motor, and premium filter—all working together for durability, efficiency, and long-term reliability.

Key Features

• All-hydraulic system for maximum control and power

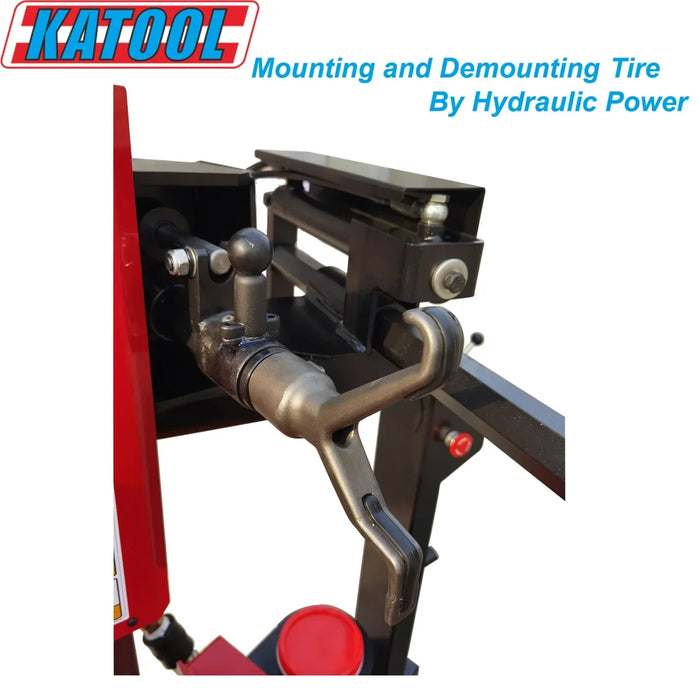

• Built-in top assist arm for run-flat and low-profile tires

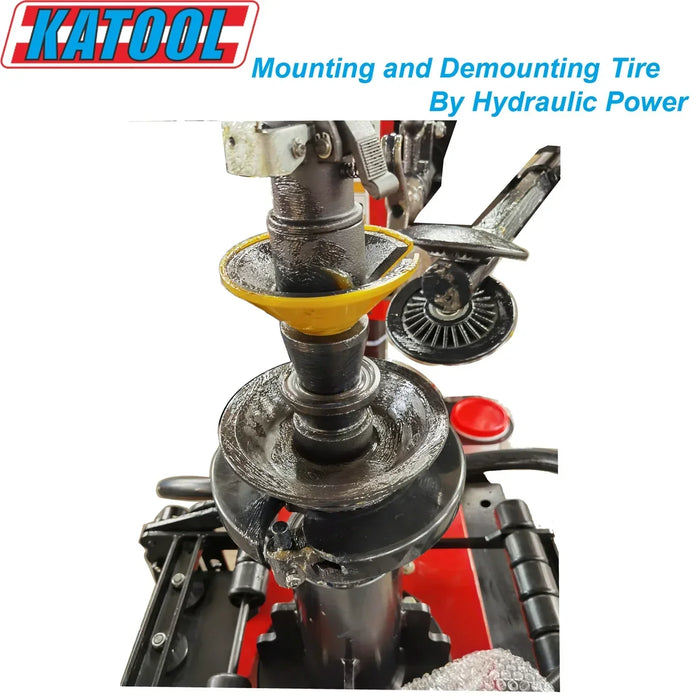

• Lever-less design with stainless steel mounting head + plastic protector

• Wheel lift assistant for easier loading

• High-efficiency motor with pure copper winding

• Advanced filter for cleaner, longer-lasting performance

Specifications

• Max Wheel Diameter: 47" / 1200 mm

• Max Wheel Width: 16" / 406 mm

• Wheel Clamp Range: 12"–30"

• Power Supply: 110V / 1PH / 60Hz

• Gearbox Motor Power: 1.5KW / 2HP

• Hydraulic Power: 1.1KW / 1.5HP

• Rotation Speed: 6.8 r/min

• Air Pressure: 0.8–1.0 MPa (116–145 psi)

• Net Weight: 188 kg / 414 lbs

Warranty

Katool backs the KT-T900 with a limited 1-year warranty covering all parts and product defects—free of charge.

An optional 2-year extended warranty is available for all Katool or M&E automotive equipment.

Coverage Includes:

• Cylinders, power units, motors, electronics, etc.

• Vehicle lifts also carry a 3-year structural component warranty

Terms & Conditions:

• Valid within the warranty period only

• Non-transferable; original order number and purchase from an authorized seller required

• Replacement parts and shipping included at no cost

• Labor not covered

Important Notes:

• All claims require approval from the warranty/service team

• Photos/videos of defects may be required

• Do not disassemble units before review

• Out-of-warranty items are the buyer’s responsibility (parts + shipping)

Resources
Need setup help or more info?
👉 [Download Manual (PDF)]
