Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

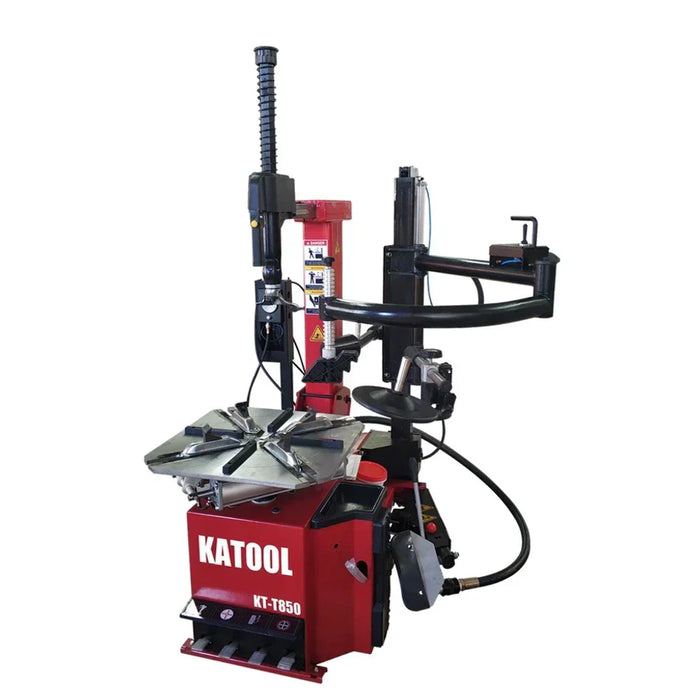

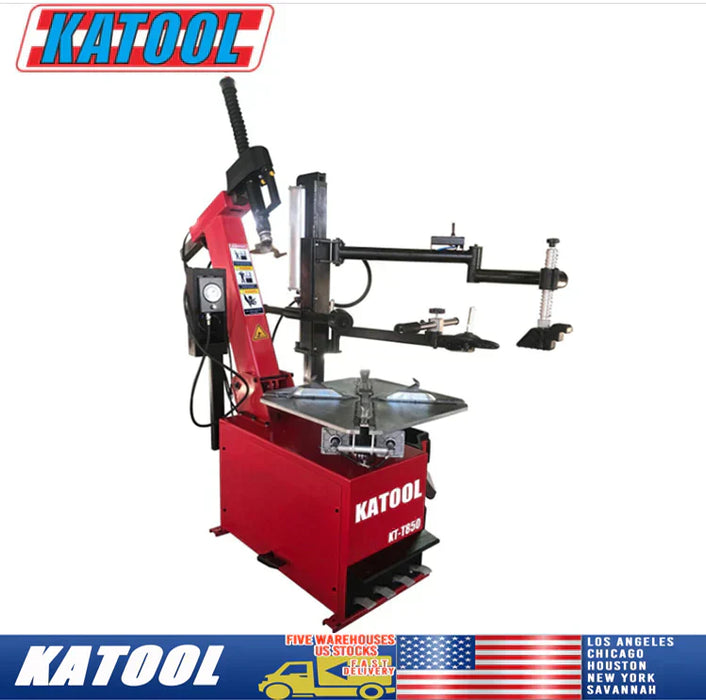

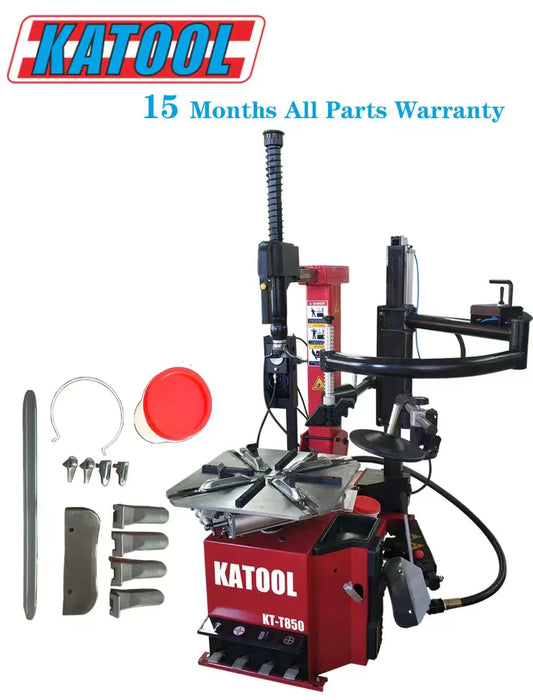

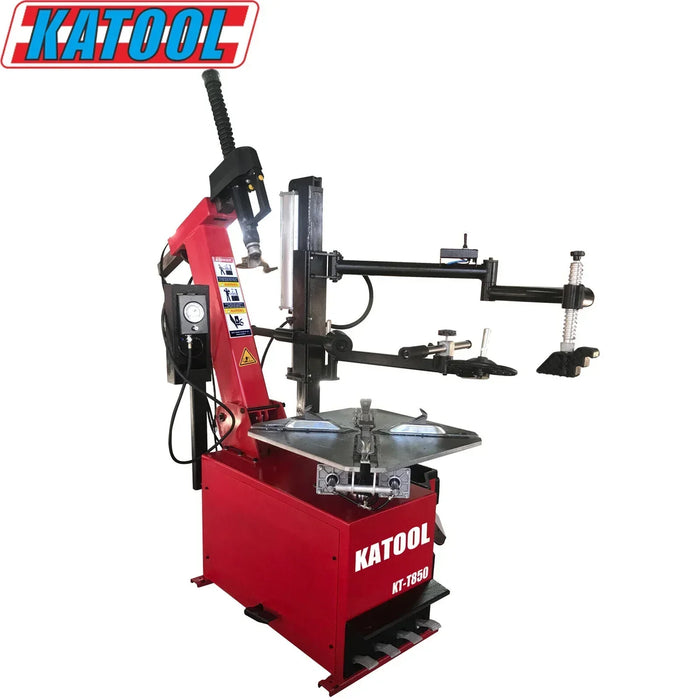

The Katool KT-T850 is engineered for high-performance tire service with efficiency and durability in mind. Featuring a tilt-back arm design for quick setup and operator convenience, this machine is equipped to handle a wide range of wheel sizes with ease. Built with robust components like an alloy steel jaw, stainless steel mounting head, and aluminum bead breaker cylinder, the KT-T850 ensures precise, damage-free operation for today's demanding tire shops.

Key Features

• Alloy Steel Jaw with interface carburization (0.8–1.1mm depth) and full quenching treatment for increased hardness and tenacity. Includes jaw covers to protect rims.

• Stainless Steel Mounting Head with polished, solution-treated finish designed for ergonomic performance and rim protection with included plastic cover.

• High-Quality Spade Cover protects rims during operation.

• Tilt-Back Arm Design improves accessibility and setup speed for various wheel sizes.

• Pedal-Controlled System enables precise, user-friendly tire changing and maintenance.

• Premium Copper-Wound Motor delivers enhanced power, lower defect rate, and longer lifespan.

• Durable Pneumatic System with high-quality lubricator ensures consistent performance and air filtration.

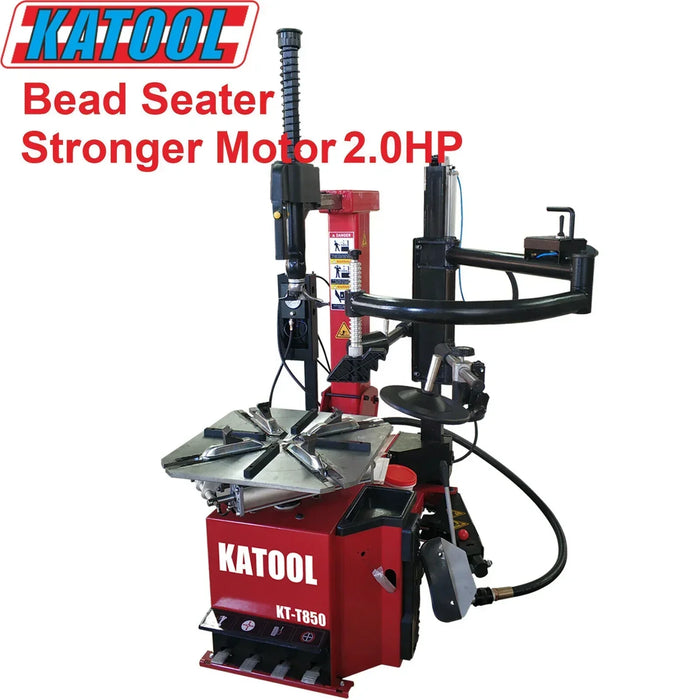

• 110V, 2.0HP Motor optimized for North American use.

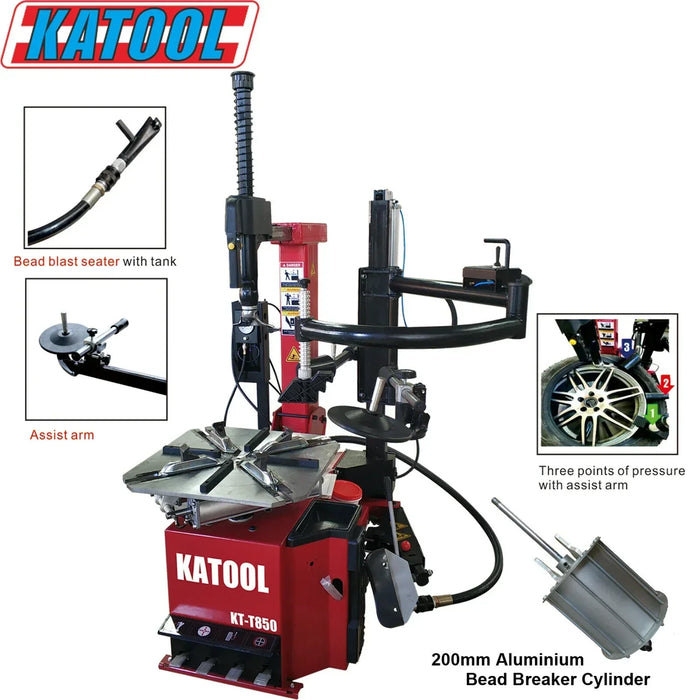

• Double Assist Arms and Bead Blast Seater for tackling stubborn tire beads.

• 200mm Aluminum Bead Breaker Cylinder offers fast, reliable bead separation.

Specifications

• Max Wheel Diameter: 47" / 1200mm

• Max Wheel Width: 15" / 380mm

• Outside Clamp: 14"–26"

• Inside Clamp: 16"–28"

• Power Supply: 110V, 1PH

• Motor Power: 2.0HP / 1.5KW

• Rotation Speed: 6.8 r/min

• Air Pressure: 0.8–1.0 Mpa (116–145 psi)

• Net Weight: 340 KG / 750 lbs

Warranty

Katool provides a limited 1-year (12-month) warranty covering all parts and product defects at no charge.

A 2-year extended warranty is available for all Katool and M&E automotive equipment.

Coverage Includes:

• Cylinders, power units, motors, displays, electronics, and more

• Vehicle lifts also include an additional 3-year (36-month) warranty on structural components

Warranty Conditions:

• Claims must be made within the warranty period

• Non-transferable; original order number and purchase from us or a registered vendor required

• Replacement parts and shipping are free of charge

Important Notes:

• All claims are subject to approval by our warranty/service department

• Photos or videos of defects may be requested

• Do not disassemble equipment before diagnosis

• Warranty does not cover labor

• Out-of-warranty equipment is the buyer’s responsibility (including parts and shipping)

Resources
Need more info?
[Download Manual (PDF)]
