Katool KT-T830 Tire Changer | 120V 2.0HP Wheel Clamp Tire Machine

 | Authorized Dealer  |  SKU: KT-T830 (Warehouse Pick-Up)
SKU KT-T830 (Warehouse Pick-Up)
Original price $2,049.00

Save up to $350.00 Save $0.00
Original price $2,049.00 - Original price $2,049.00
Original price $2,049.00
Current price $1,699.00
$1,699.00 - $2,009.00
Current price $1,699.00

✓ Includes jack stand or wheel chocks —no extra purchase required. (Contact for more details)
✓ No Sales Tax Outside NY
✓ Free Pickup from US Warehouse
✓ Talk to a Lift Specialist - (866) 412-1837
✓ Military Discount for Veterans
✓ Want a Better Price? Pay by Wire - Click here to Request a Discount

Delivery Options: Warehouse Pickup
Want today's Katool prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

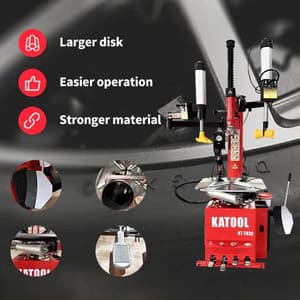

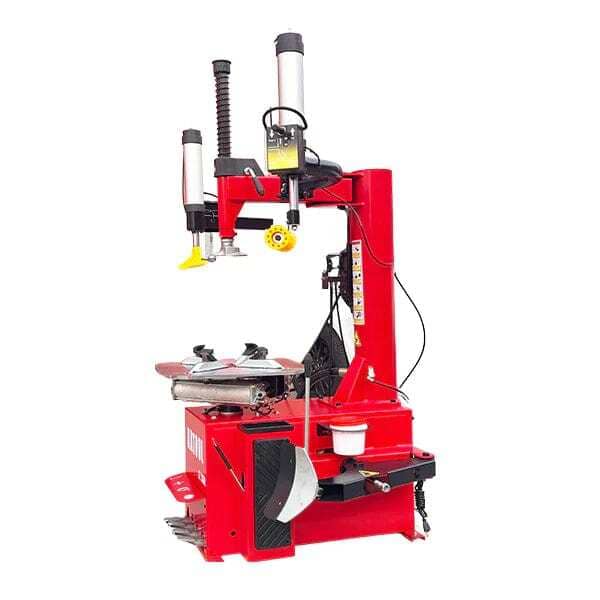

Katool KT-T830 Tire Changer Machine | 120V 2.0HP Wheel Clamp Tire Machine for Shops & Garages

The Katool KT-T830 Tire Changer Machine is a professional-grade wheel clamp tire changer built for automotive repair shops, tire centers, mobile tire services, and serious home garages that demand power, control, and rim-safe operation. Designed for North American use, this Katool tire changer operates on standard 120V single-phase power while delivering the strength needed to handle stiff, low-profile, and performance tires.

At its core, the KT-T830 features hardened alloy steel clamping jaws with deep carburization for long-term durability and secure wheel grip. A stainless steel mounting head with protective inserts helps safeguard modern alloy and painted wheels, while the double-side assist arms and bead blast seater dramatically reduce effort on difficult tire jobs.

With a closed-body cabinet that protects internal components, pedal-controlled operation for hands-free workflow, and a powerful 2.0 HP motor, the KT-T830 is a dependable tire machine built for daily shop use. Whether you’re comparing tire changers for sale or upgrading existing equipment, the KT-T830 delivers consistent performance and long-term reliability.

Note: For Warehouse Pickup, please contact our LIVE CHAT so we can assist you in locating the nearest warehouse to your ZIP code.

Why Choose the Katool KT-T830 Tire Changer

  • Professional tire changer machine for shops and garages

  • Runs on standard 120V power — no special wiring required

  • Heavy-duty wheel clamp system for secure tire mounting

  • Double-side assist arms for low-profile and stiff tires

  • Bead blast seater for fast bead seating

  • Rim-safe design for alloy and painted wheels

  • Closed cabinet protects internal components

  • Ideal for shops searching katool tire changer, tire machine for sale, or upgrading tire equipment

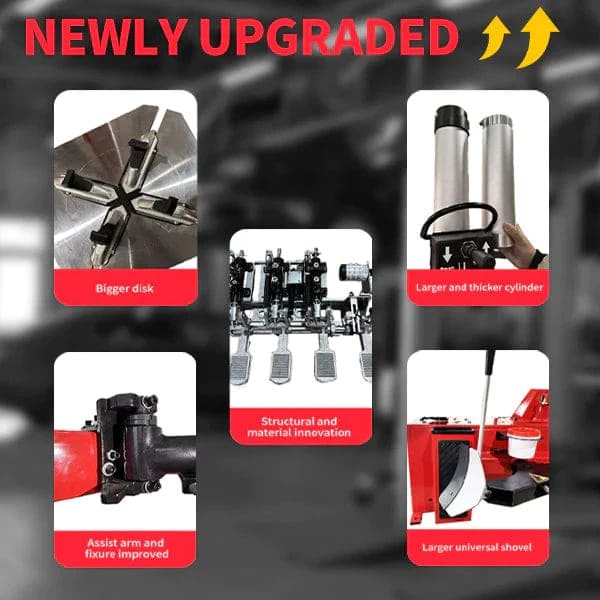

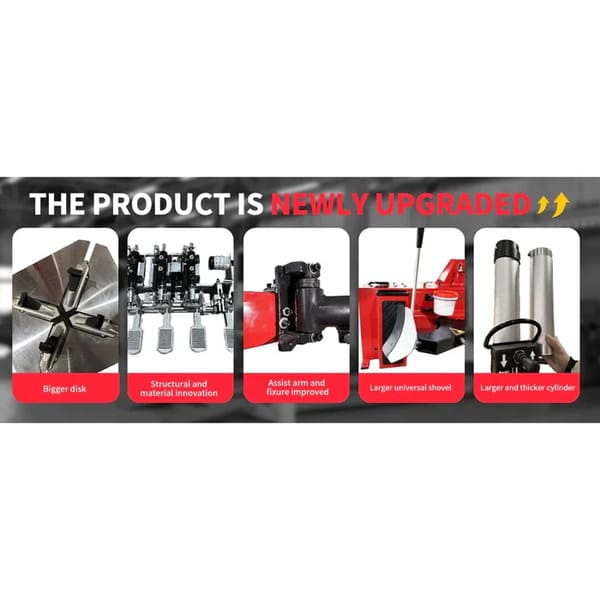

Key Features

  • 2.0 HP Single-Phase Motor
    Delivers smooth, consistent torque optimized for North American electrical systems.

  • Hardened Alloy Steel Clamping Jaws
    Carburized to 0.8–1.1mm and fully quenched for strong grip and long service life.

  • Stainless Steel Mounting Head with Rim Protection
    Polished finish with plastic inserts to reduce wheel damage.

  • Double-Side Assist Arms
    Improves leverage and control on stiff, low-profile, and performance tires.

  • Bead Blast Seater with Post Tank
    Seats difficult beads quickly and securely.

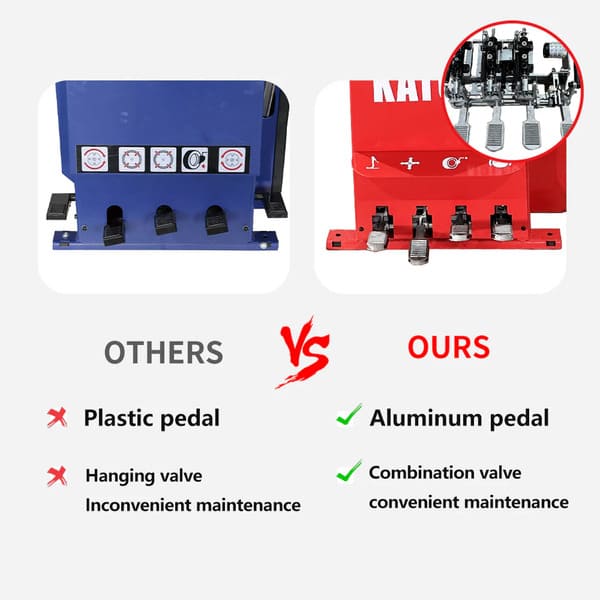

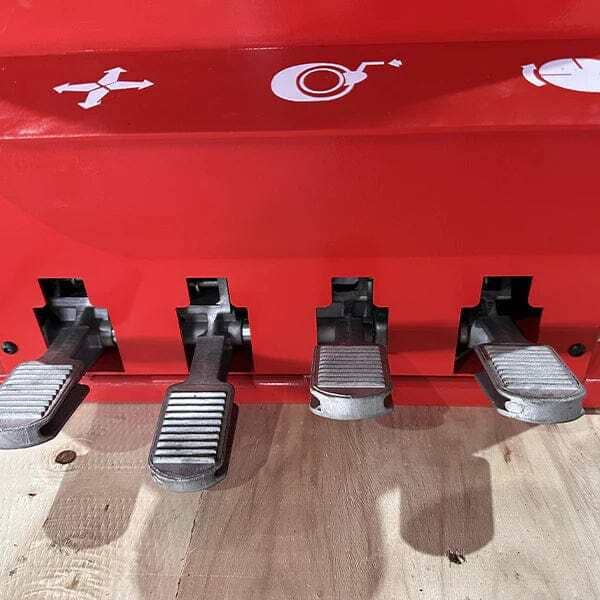

  • Pedal-Controlled Operation
    Hands-free inflation gauge and pull-type pedals increase efficiency.

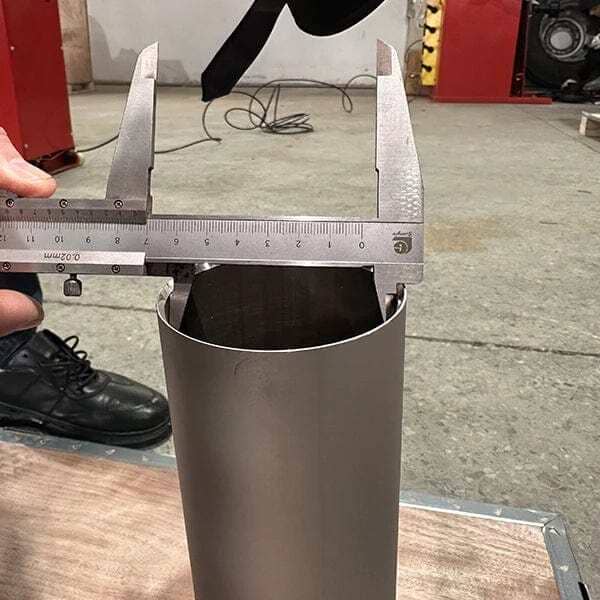

  • 186mm Stainless Steel Bead Breaker Cylinder
    High-force bead breaking with smooth, controlled motion.

  • Fully Enclosed Cabinet Design
    Protects internal pneumatic and mechanical components from dust and debris.

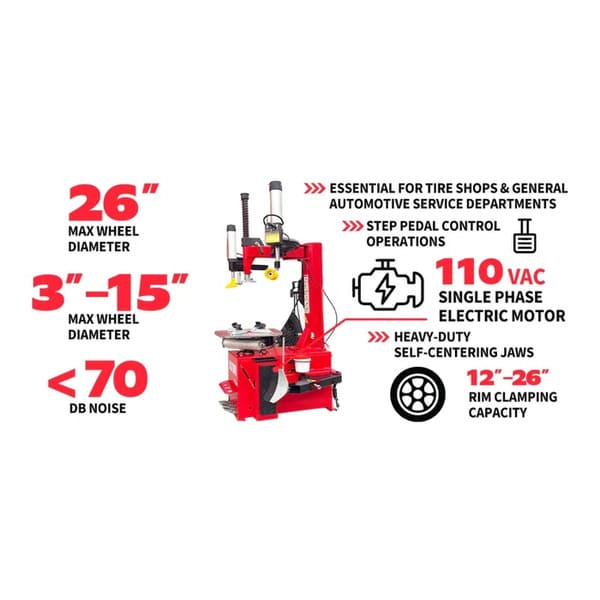

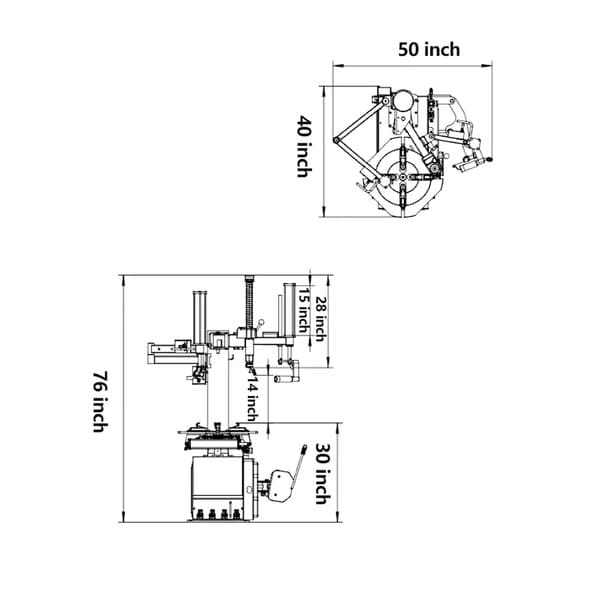

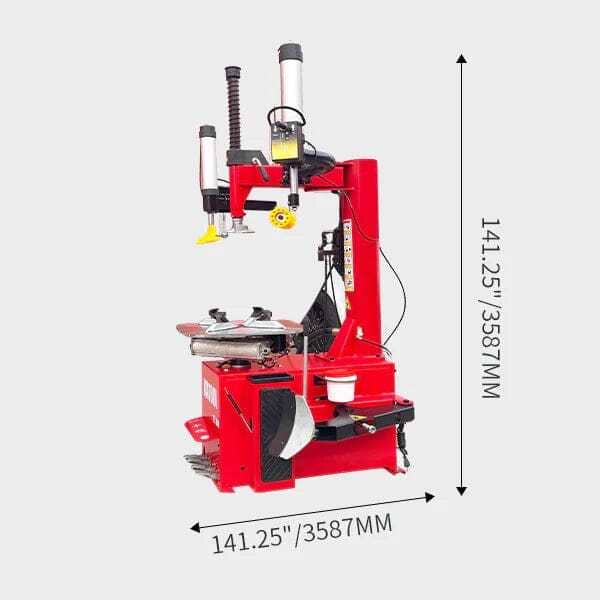

Wheel Clamp Tire Changer Machine Specification

  • Max Wheel Diameter: 41" / 1040mm
  • Max Wheel Width: 15" / 380mm

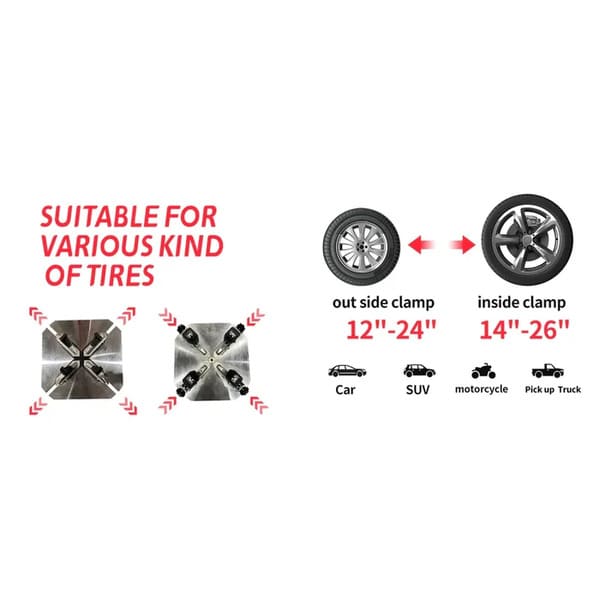

  • Outside Clamp Range: 12" – 24"
  • Inside Clamp Range: 14" – 26"
  • Power Supply: 120V, 1-phase
  • Motor Power: 2.0HP / 1.5KW
  • Rotation Speed: 6.8 rpm
  • Air Pressure: 0.8 – 1.0 MPa (116–145 psi)
  • Net Weight: 240 kg / 529 lbs
  • Bead Breaker Cylinder: 186mm / 7.32", stainless steel

Installation Requirements (Important)

  • Stable, level surface suitable for shop equipment

  • Compressed air supply meeting required operating pressure

  • Proper electrical grounding required

Buyer is responsible for verifying electrical and air compatibility prior to installation.

Warranty

  • 1-Year Limited Parts Warranty

  • Optional 2-Year Extended Warranty available

  • Free shipping on warranty replacement parts

  • Labor not included

Warranty claims may require photos or video documentation and approval.


Bottom Line

The Katool KT-T830 Tire Changer is a powerful, shop-ready tire machine built for technicians who need reliable performance, assist-arm support, and rim protection on standard 120V power. It’s an excellent choice for anyone comparing katool tire changers, tire machines for sale, or upgrading a professional tire service setup.

Live Chat with us or call (866) 412-1837 to confirm fitment, warehouse pickup availability, or shipping details.
