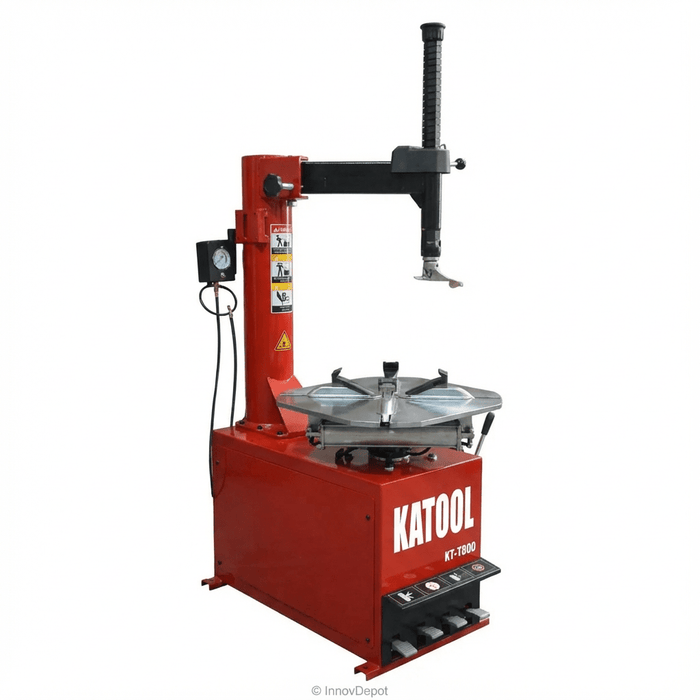

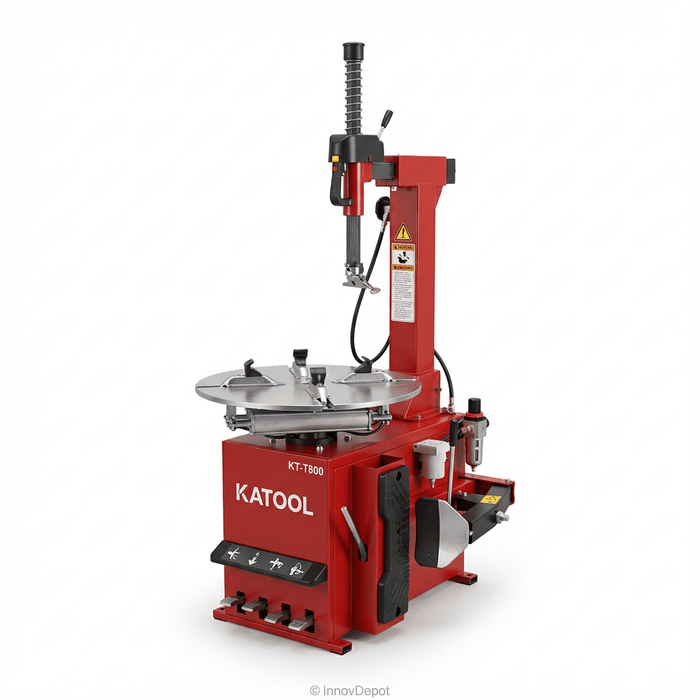

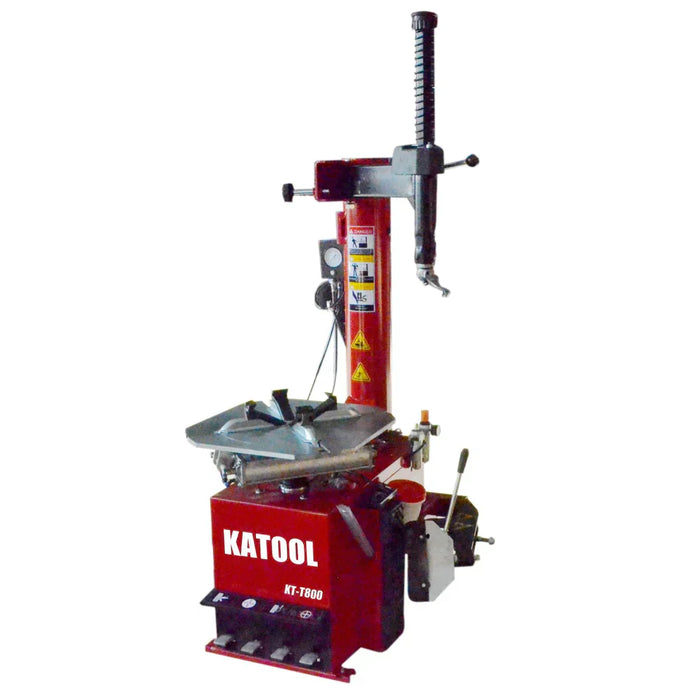

Katool KT-T800 Wheel Clamp Tire Changer – 2.0HP, 110V
The Katool KT-T800 Wheel Clamp Tire Changer is a professional-grade tire mounting machine designed for auto shops, tire service centers, and serious home garages. Powered by a 2.0HP motor with pure copper windings, the KT-T800 delivers consistent torque, efficient heat dissipation, and long-term reliability for daily tire service.
Built with a closed-body steel frame, hardened alloy steel jaws, and rim-protecting components throughout, this machine is engineered to handle a wide range of passenger and light truck wheels while minimizing wheel damage and downtime.
With pedal-controlled inflation, pull-type foot controls, and smooth rotation speed, the KT-T800 offers a straightforward, technician-friendly workflow for mounting and demounting tires efficiently.

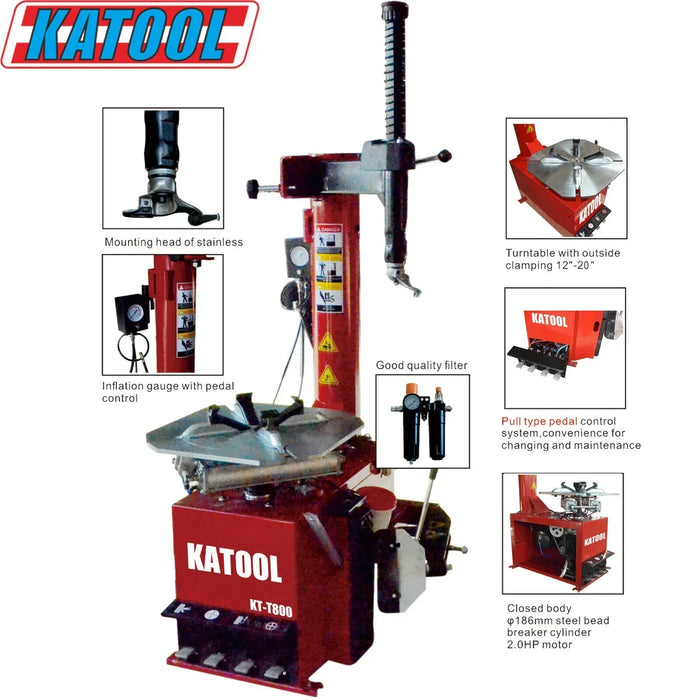

Key Features

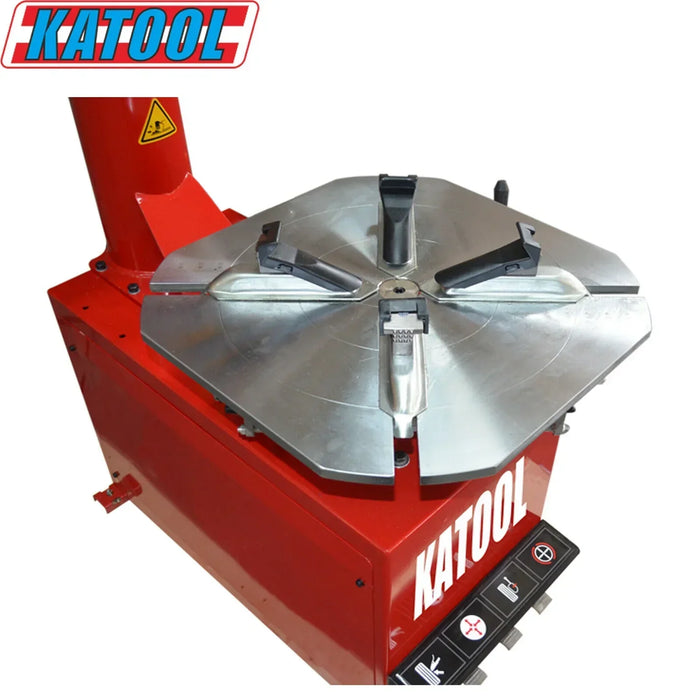

Hardened Alloy Steel Clamping Jaws
• Alloy steel jaws with 0.8–1.1mm carburized surface treatment
• Full quenching process for enhanced strength and durability
• Tough interior with hardened exterior for long service life
• Protective jaw covers help prevent rim damage
Stainless Steel Mounting Head
• Stainless steel construction with solution treatment
• Polished contact surface designed for proper mechanical force distribution
• Plastic protective cover safeguards alloy and painted wheels
Powerful 2.0HP Motor (110V)
• Pure copper motor windings for stronger power output
• Faster heat dissipation and reduced failure rate
• Optimized for North American 110V / single-phase power

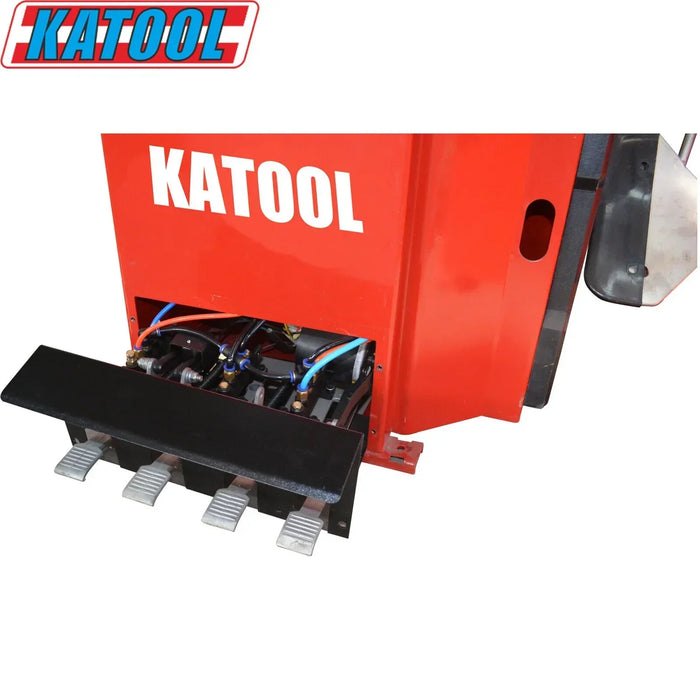

Pedal-Controlled Operation
• Pull-type pedal control system for intuitive operation

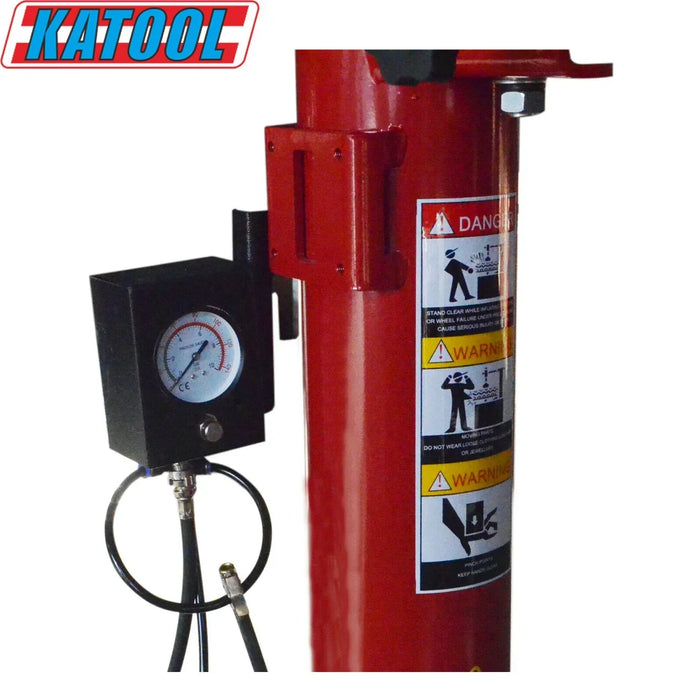

• Pedal-controlled inflation gauge for precise air control
• Designed for easy maintenance and smooth tire changes

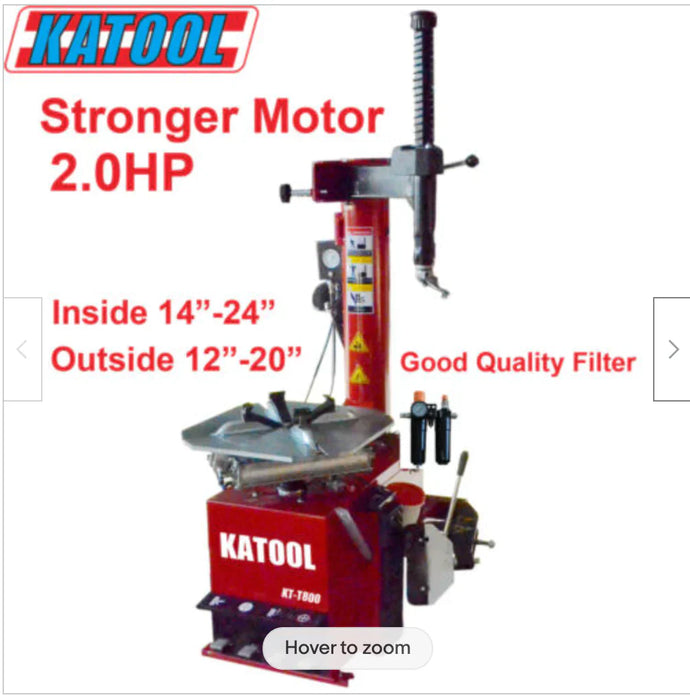

Pneumatic System Protection
• High-quality lubricator ensures proper oil delivery
• Effectively filters compressed air
• Extends the service life of pneumatic components

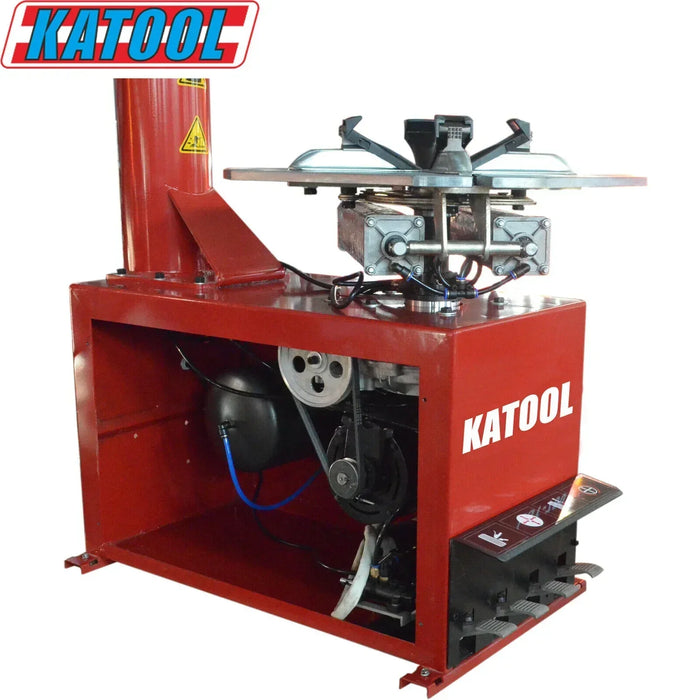

Fully Enclosed Body Design
• Closed steel cabinet protects internal components
• Reduces exposure to dust, debris, and shop impacts

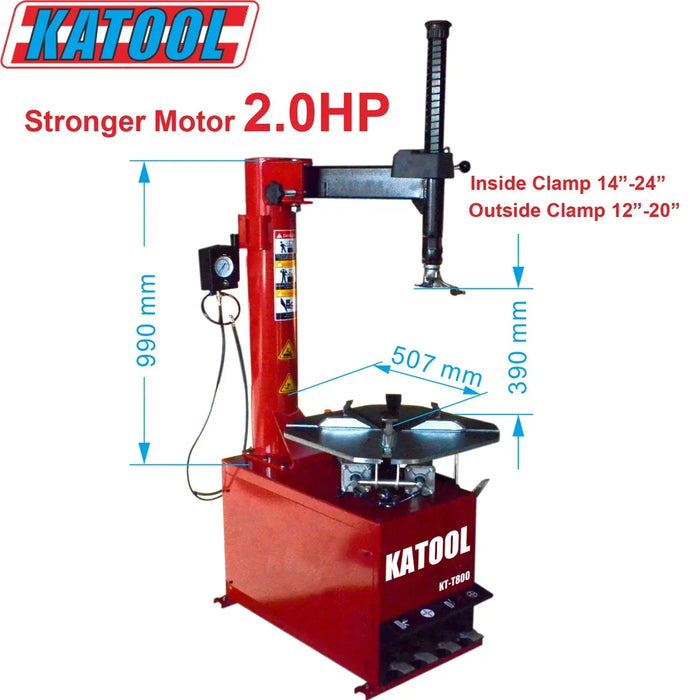

Wheel & Tire Capacity
• Max Wheel Diameter: 41" (1040 mm)
• Max Wheel Width: 15" (380 mm)
• Outside Clamping Range: 12" – 22"
• Inside Clamping Range: 14" – 24"
Technical Specifications
| Specification |
Details |
| Power Supply |
110V / 1 Phase |
| Motor Power |
2.0 HP (1.5 kW) |
| Rotation Speed |
6.8 RPM |
| Operating Air Pressure |
0.8–1.0 MPa (116–145 PSI) |
| Net Weight |
186 kg / 410 lbs |
| Construction Materials |
Q235 & Q245 Steel |
Specifications:
| Max Wheel Diameter |
41"/1040mm |
| Max Wheel Width |
15"/380mm |
| Outside Clamp |
12"-20" |
| Inside Clamp |
14"-24" |
| Power Supply |
110V 1PH |
| Motor Power |
2.0HP/1.5KW |
| Rotation Speed |
6.8r/min |
| Air Pressure |
0.8-1.0Mpa (116-145psi) |
| Net Weight |
186KG/410lbs |
Warranty
| Standard Warranty |
12-month limited warranty |
| Extended Warranty |
2-year extended warranty plan |
| Coverage |
Cylinders, power units, motors, electronics, etc. |
| Additional Warranty for Lifts |
3-year warranty on structural components only |
| Claim Process |
Claims must be within warranty period and approved by warranty/service department |
| Parts Replacement |
Free parts replacement and shipping within warranty terms (labor not included) |
For more details, download the Manual Here.
Why Choose the Katool KT-T800
• Built for daily shop use
• Strong clamping force with rim protection
• Reliable 110V power—no special electrical required
• Durable steel construction
• Designed for passenger and light truck tires
• Ideal balance of power, protection, and ease of use
Shipping Information (Important)
• Freight shipping only within the lower 48 states
• Free shipping to commercial addresses or nearby carrier terminals
• Residential delivery: $90 surcharge
• Liftgate service: $90 (not available for lifts)
• Buyer is responsible for unloading (forklift or dock recommended)
• Inspect shipment before signing delivery receipt
Note: Seasonal delays may occur due to holidays, weather, or high order volume. Please allow up to 3 weeks for delivery.
Pickup Orders:
• Fulfillment time: 6–10 business days
Alaska & Hawaii:
• Shipping available — contact us for a quote
Warranty
• 1-Year Warranty on All Parts
• 3-Year Warranty on Structural Components
• Free shipping on warranty parts
• Labor not included
