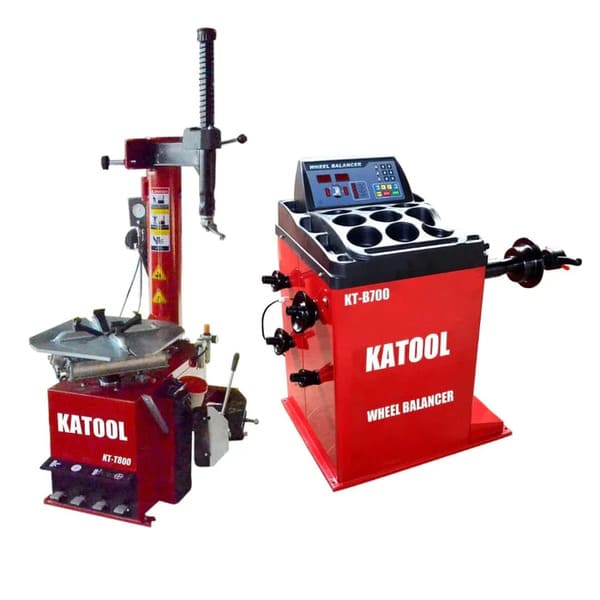

Katool KT-T800 & KT-B700 Tire Changer and Balancer Combo

The Katool KT-T800 Tire Changer and KT-B700 Wheel Balancer Combo is a complete professional tire service solution built for auto repair shops, tire shops, and high-volume automotive workshops. This Katool tire changer and balancer combo delivers efficient tire mounting, demounting, and precise wheel balancing in one streamlined package.

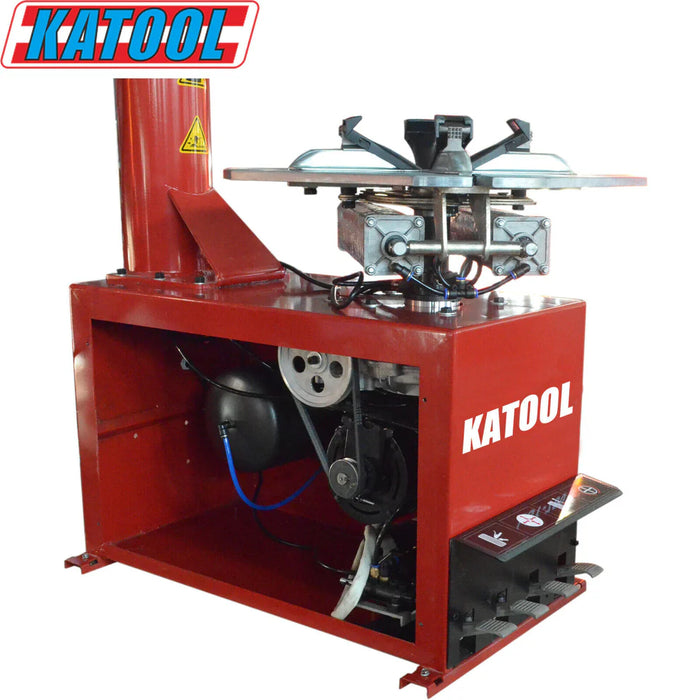

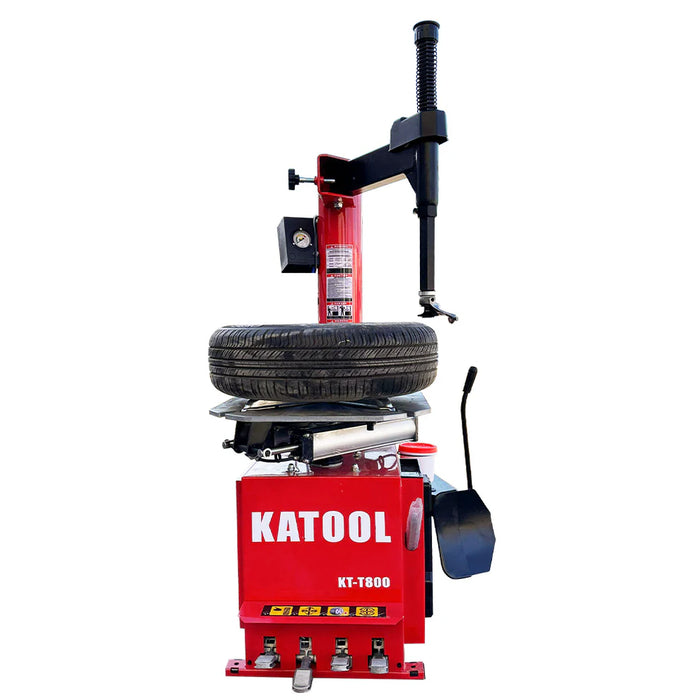

The KT-T800 wheel clamp tire changer is engineered for durability and rim protection, featuring advanced alloy steel jaws with carburization treatment and a stainless steel mounting head. Powered by a 2.0HP motor with pure copper windings, it delivers smooth operation, fast heat dissipation, and long-term reliability. A high-quality lubricator enhances pneumatic system performance for consistent tire changes.

Paired with it, the KT-B700 wheel balancer is built with a 3mm thick steel body and an advanced pressure sensor support design for stable, accurate balancing. With multiple balance modes, self-calibration, and built-in fault diagnosis, this tire balancer machine provides fast, repeatable results across a wide range of rim types.

Together, this Katool tire changer and wheel balancer package is engineered for power, precision, and ease of use—making it an ideal setup for daily shop operations.

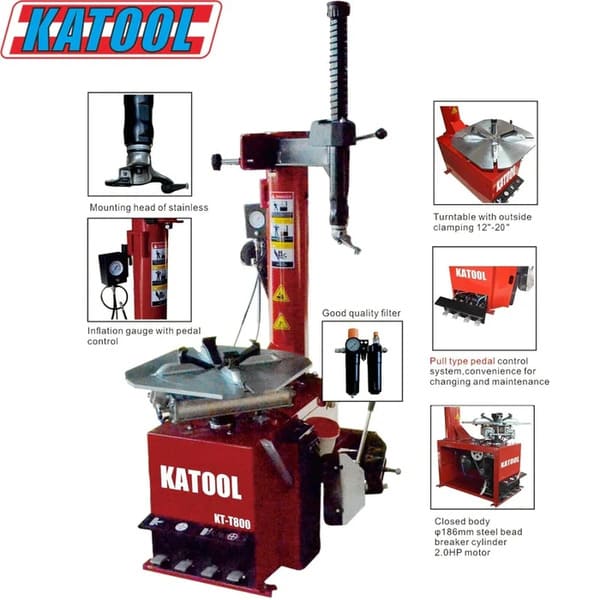

KT-T800 Tire Changer Features

• Alloy steel jaws with 0.8–1.1mm carburization treatment for durability and rim protection

• Stainless steel mounting head for smooth mounting and wheel safety

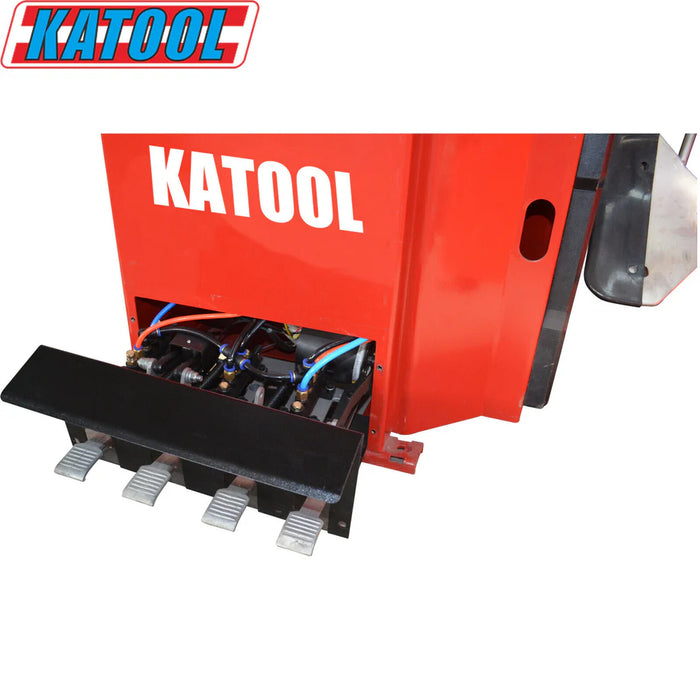

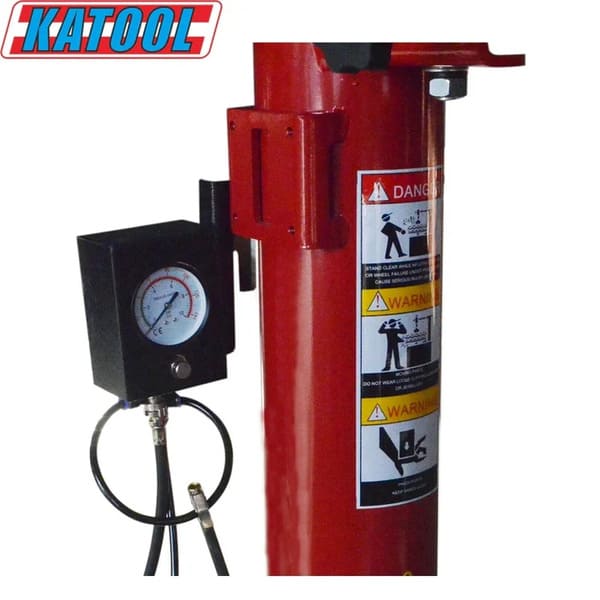

• Pedal-controlled inflation gauge for efficient air control

• 2.0HP (1.5KW) motor with pure copper windings for strong, reliable performance

• High-quality lubricator and pneumatic system for smooth tire changes

• Supports 110V / 1PH, optimized for North American power standards

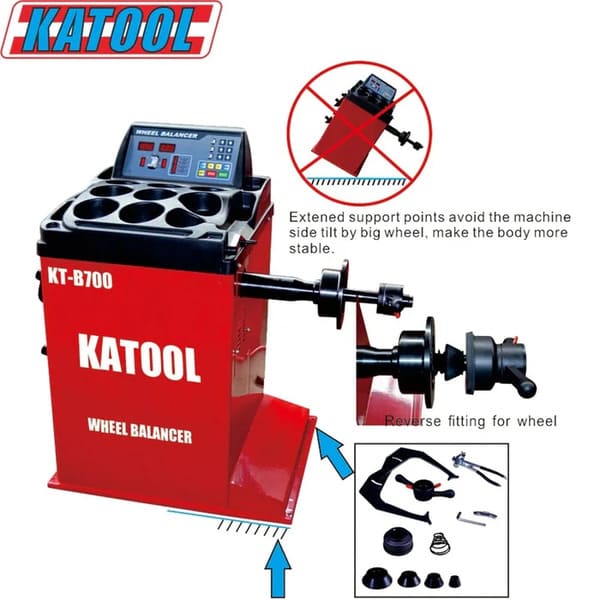

KT-B700 Wheel Balancer Features

• 3mm thick steel body for strength, durability, and low vibration

• Advanced pressure sensor design with 8mm thick bottom and side boards

• Self-calibration and fault diagnosis for simple, technician-friendly operation

• Multiple balance modes for different rim types

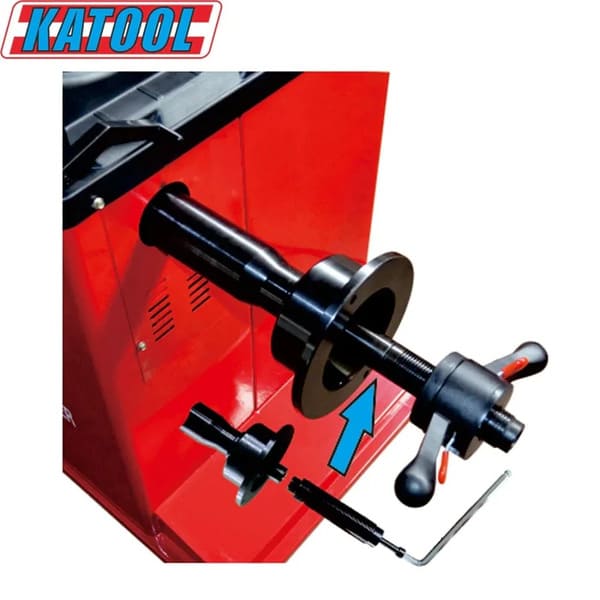

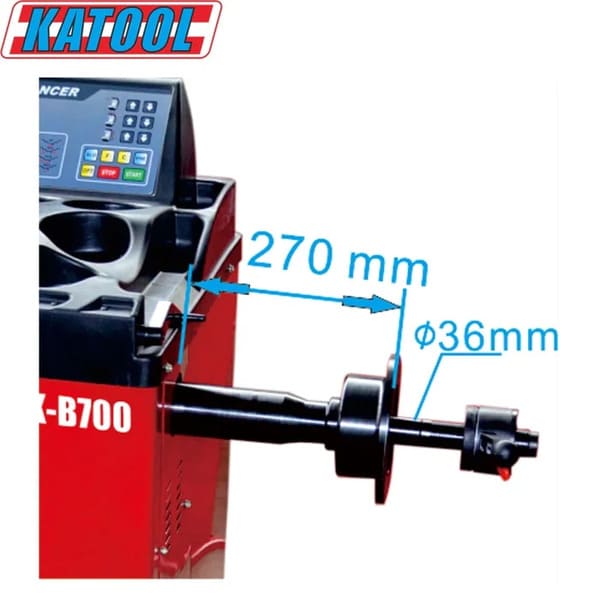

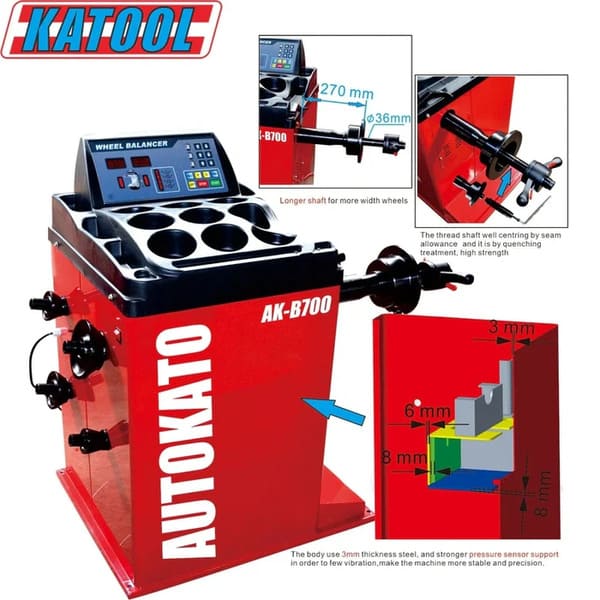

• Longer shaft design for compatibility with wider wheels

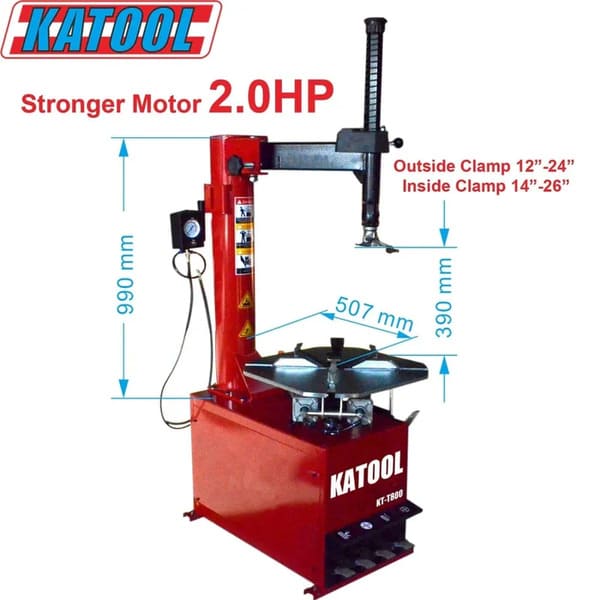

KT-T800 Tire Changer Specifications

• Max Wheel Diameter: 41" / 1040 mm

• Max Wheel Width: 15" / 380 mm

• Outside Clamp Range: 12" – 20"

• Inside Clamp Range: 14" – 24"

• Power Supply: 110V / 1 Phase

• Motor Power: 2.0 HP / 1.5 KW

• Rotation Speed: 6.8 r/min

• Air Pressure: 0.8 – 1.0 MPa (116–145 PSI)

• Net Weight: 186 kg / 410 lbs

KT-B700 Wheel Balancer Specifications

• Rim Diameter: ≤ 30"

• Wheel Width: 3" – 12"

• Wheel Diameter: ≤ 880 mm / 34.64"

• Balancing Speed: 180 RPM

• Power Supply: 120V / 1 Phase

• Motor Power: 0.25 KW

• Rim Center Hole Diameter: ≤ 135 mm / 5.31"

• Max Wheel Weight: ≤ 65 kg / 143 lbs

• Balancing Accuracy: ±1g

• Measuring Time: 7 seconds

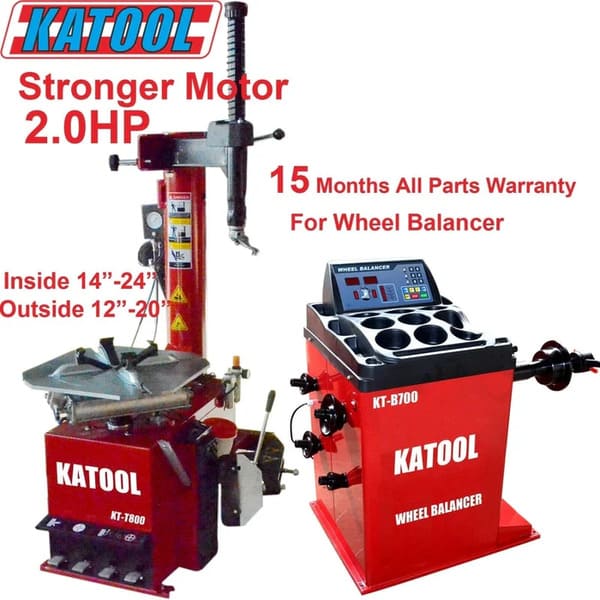

Warranty Information

• 1-Year Limited Warranty on all parts and product defects

• 2-Year Extended Warranty available for Katool & M&E automotive equipment

Warranty Includes:

• Motors, displays, electronics, power units, and related components

• Free replacement parts with free shipping

• Labor not included
