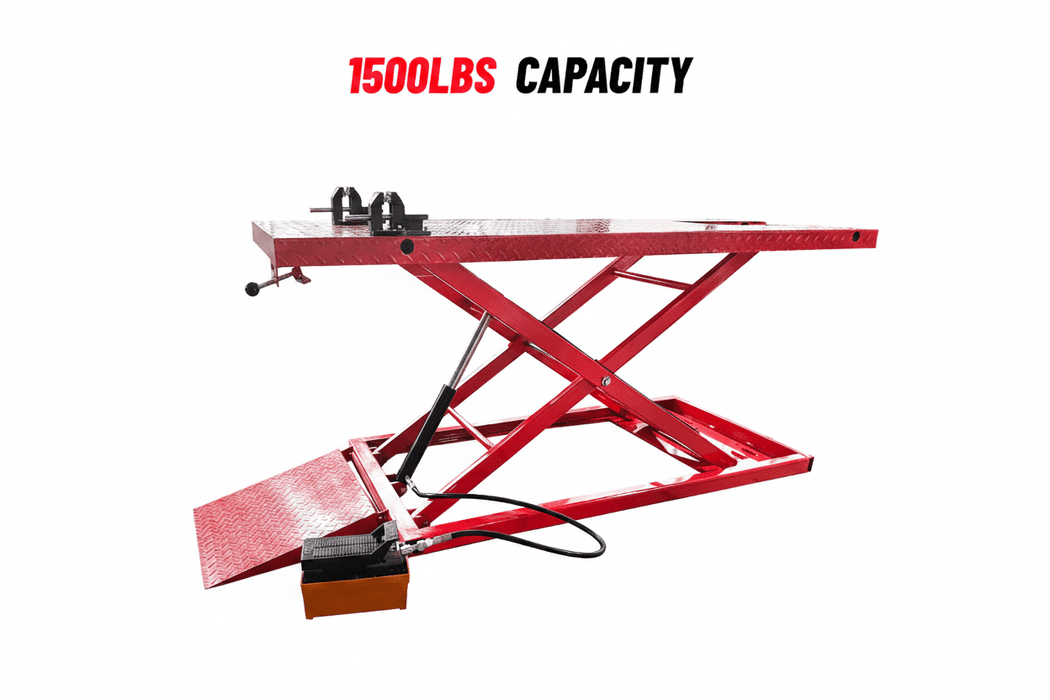

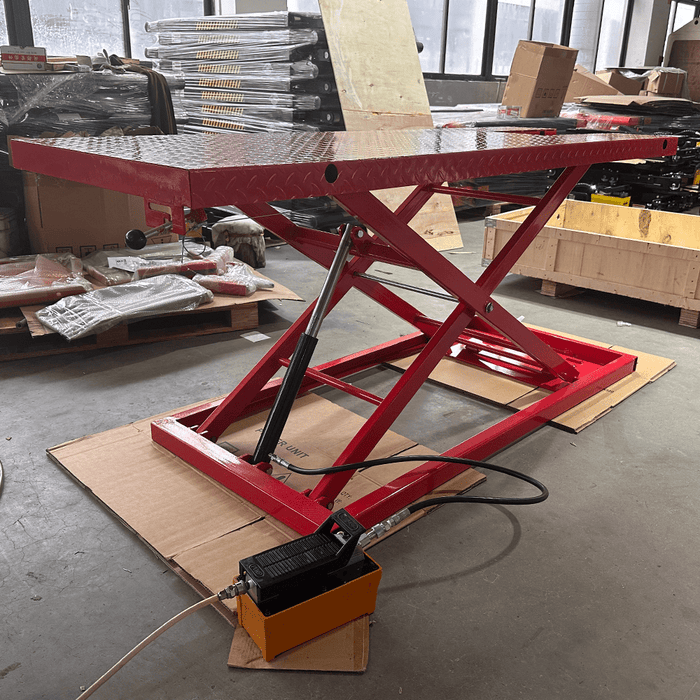

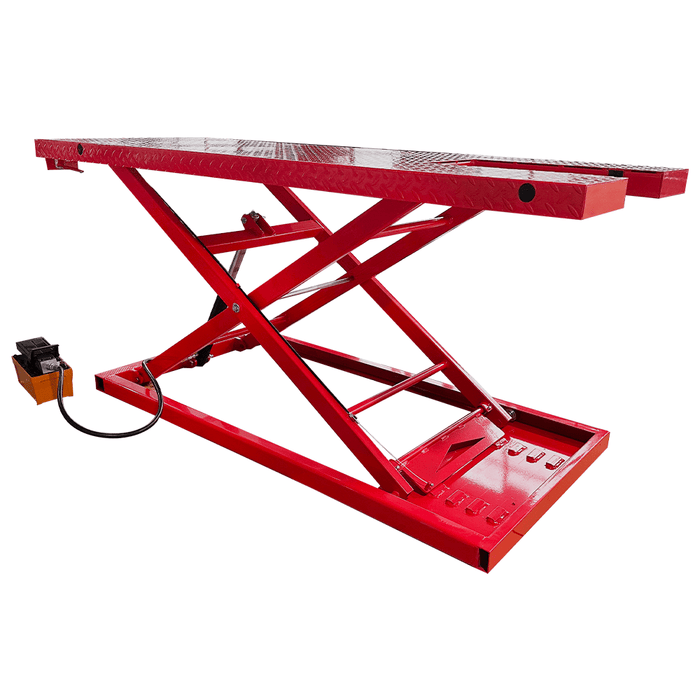

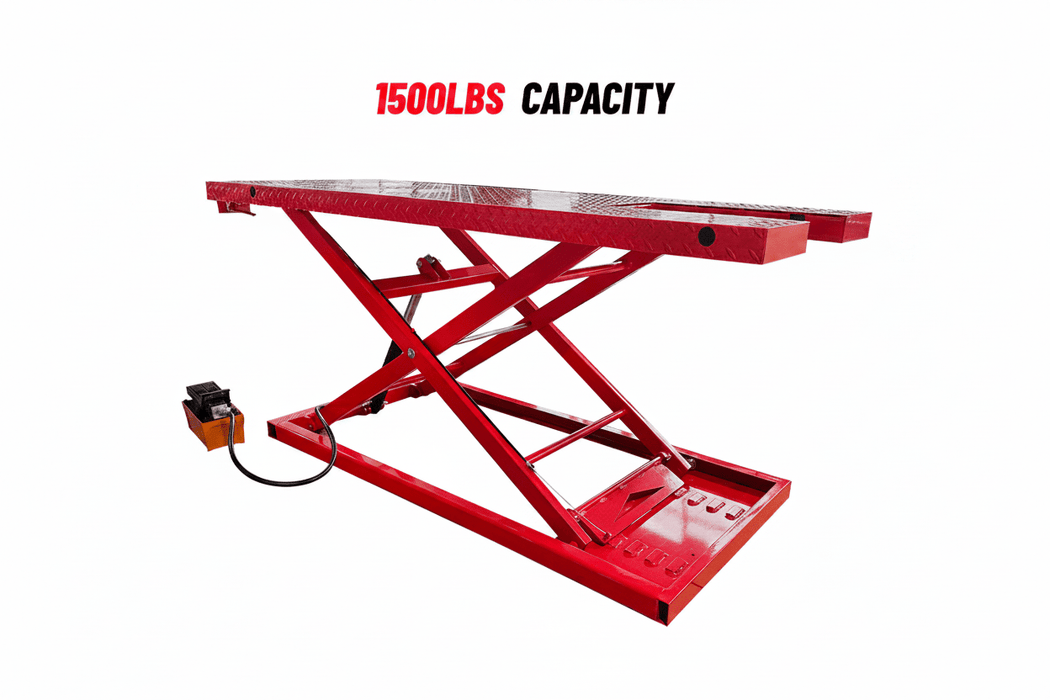

Katool KT-MOTO150LT Hydraulic Motorcycle Lift – 1,500 lb Capacity
The Katool KT-MOTO150LT Hydraulic Motorcycle Lift is a heavy-duty service platform built for professional motorcycle repair shops, dealerships, and serious home mechanics who need higher lifting capacity and long-term durability. With a 1,500 lb rated capacity, this lift confidently supports cruisers, touring bikes, choppers, and ATVs.
Designed with a wide steel table, removable side extensions, and a smooth hydraulic pump system, the KT-MOTO150LT allows safe roll-on loading and stable positioning during maintenance, detailing, and repairs. Its low loading height reduces effort when positioning heavier motorcycles, while the elevated working height improves technician comfort and efficiency.
Built from reinforced steel and engineered for repeated daily use, this lift delivers reliable performance in demanding shop environments where safety, capacity, and workflow matter.
Note: For Warehouse Pickup, please contact our LIVE CHAT so we can assist you in locating the nearest warehouse to your ZIP code.
Why Choose the Katool KT-MOTO150LT
-
1,500 lb hydraulic motorcycle lift for professional service use
-
Heavy-duty steel platform supports large touring bikes and ATVs
-
Wide table with removable side extensions for added versatility
-
Low-profile loading height for easier roll-on access
-
Smooth hydraulic pump system with controlled lifting
-
Designed for motorcycle shops and serious home garages
-
CE-approved construction for safety and reliability
-
Built for long-term, high-cycle operation
Key Features
-
1,500 lb Lifting Capacity
Supports cruisers, touring motorcycles, choppers, and ATVs.
-
Low Minimum Lift Height (190 mm)
Makes loading heavy motorcycles safer and easier.
-
850 mm Maximum Lift Height
Raises bikes to a comfortable working level for service and detailing.
-
Large Steel Work Table (2000 × 710 mm)
Provides excellent stability and workspace during repairs.
-
Removable Side Extensions
Expands working width for wider motorcycles and ATVs.
-

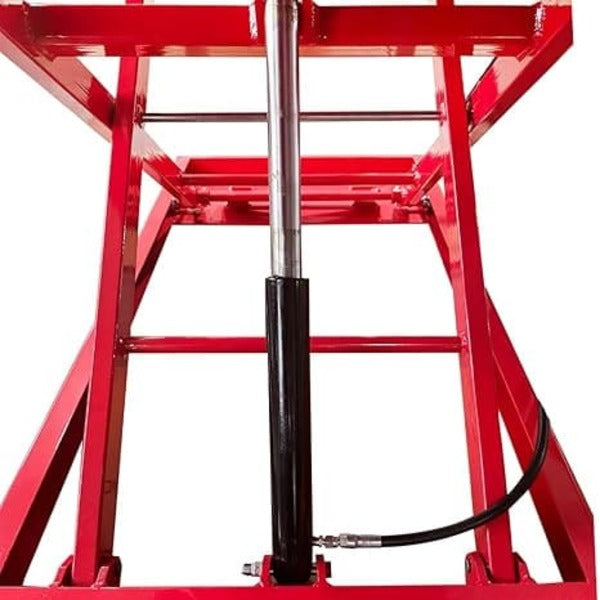

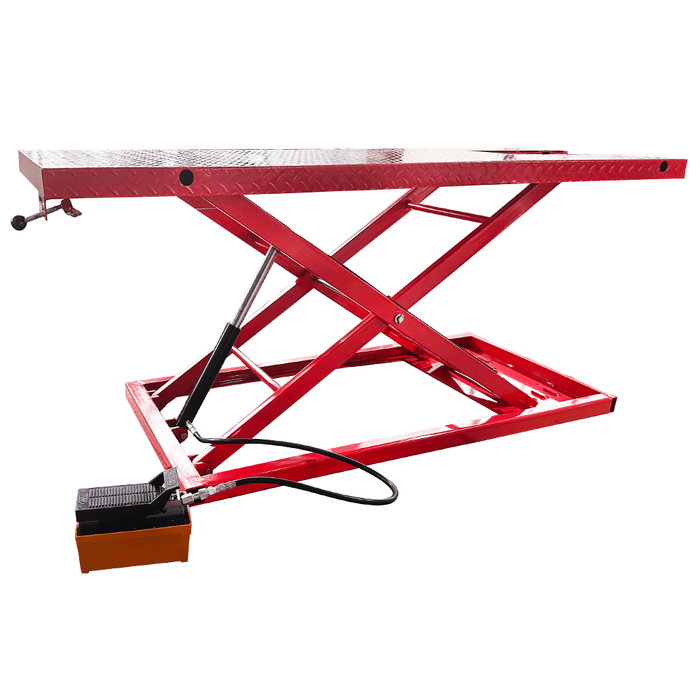

Hydraulic Pump System
Delivers smooth, consistent lifting with controlled pressure.
-

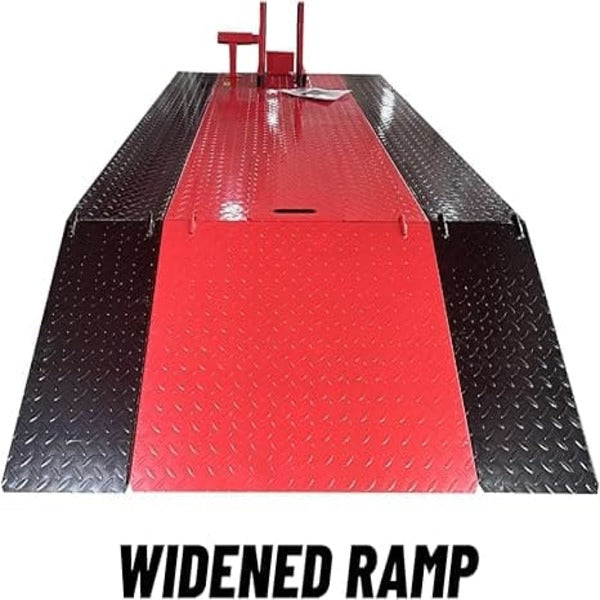

Integrated Loading Ramp
Simplifies roll-on access and positioning.
-
Heavy-Duty Steel Construction
Designed for durability in busy workshop environments.
Specifications
| Specification |
Details |
| Model |
Katool KT-MOTO150LT |
| Lift Type |
Hydraulic Motorcycle Lift |
| Lifting Capacity |
1,500 lbs (680 kg) |
| Minimum Lift Height |
190 mm |
| Maximum Lift Height |
850 mm |
| Table Size |
2000 × 710 mm |
| Ramp Size |
710 × 550 mm |
| Side Extensions |
Removable |
| Hydraulic Working Pressure |
4640 PSI |
| Hydraulic Oil Capacity |
1.6 L |
| Net Weight |
210 kg (463 lbs) |
| Gross Weight |
255 kg (562 lbs) |
| Overall Dimensions |
81″ × 34″ × 16″ |
| Construction Material |
Heavy-duty steel |
Installation Requirements (Important)
-
Lift must be placed on a flat, stable surface
-
Ensure adequate clearance for ramp loading and unloading
-
Buyer is responsible for unloading at delivery
-
Professional setup recommended for commercial shop use
Warranty
-
1-Year Parts Warranty covering manufacturing defects
-
Free shipping on warranty replacement parts
-
Labor is not included
-
Proof of purchase required for warranty claims
Bottom Line
If you need a higher-capacity motorcycle lift with a wide, reinforced platform and smooth hydraulic operation, the Katool KT-MOTO150LT is a proven solution for professional motorcycle service, detailing, and repair in both commercial shops and serious home garages.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
