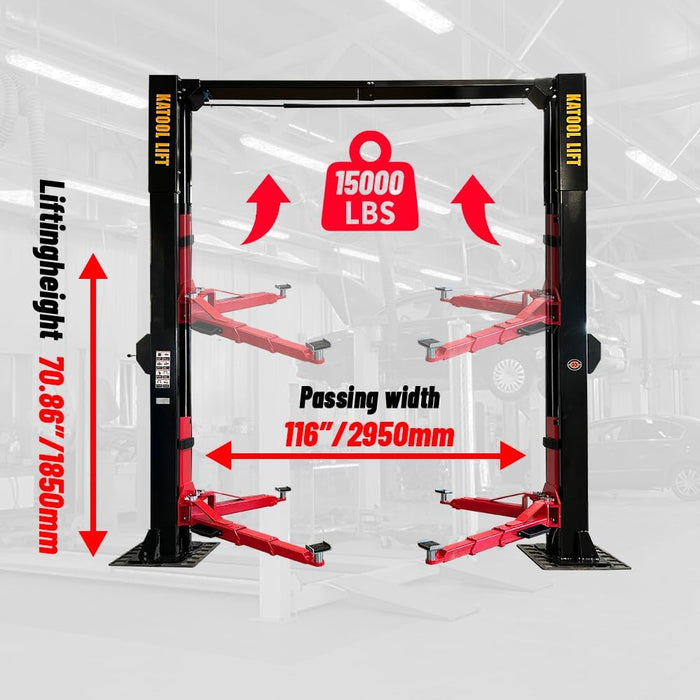

Katool KT-M150D Two Post Lift – 15,000 lb Heavy-Duty Capacity

The Katool KT-M150D is a commercial-grade 2 post car lift built for heavy-duty automotive shops, fleet service facilities, and professional garages that require higher lifting capacity and structural strength. With a 15,000 lb lifting capacity, this car hoist for garage and industrial use is engineered to handle larger trucks, vans, and commercial vehicles with confidence.

Constructed from Q235 and Q245 structural steel and powered by a 220V / 60Hz / 3KW (4HP) motor, the KT-M150D features a direct-drive lifting system that delivers smoother operation and reduced maintenance compared to traditional chain systems. Its symmetric arm design ensures balanced lifting, while the single-point lock release provides safe, controlled lowering.

Designed for demanding environments, this heavy-duty two post lift offers long-term reliability for high-volume service operations.

Why Choose the Katool KT-M150D

• 15,000 lb 2 post car lift for heavy-duty vehicles

• Direct-drive system for smooth, consistent lifting

• Symmetric arm configuration for balanced vehicle positioning

• Single-point safety lock release for simple operation

• High lift height for improved undercar access

• Built from heavy-duty Q235 / Q245 structural steel

• Designed for commercial automotive shop use

Key Features

• 15,000 lb Lifting Capacity – Ideal for trucks, vans, and commercial vehicles

• Direct Drive Cylinders – Fewer moving parts and smoother lift cycles

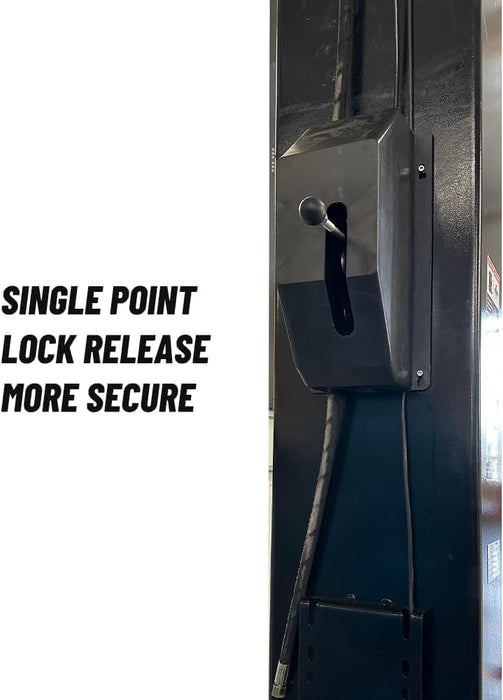

• Single-Point Lock Release – Centralized, secure lowering control

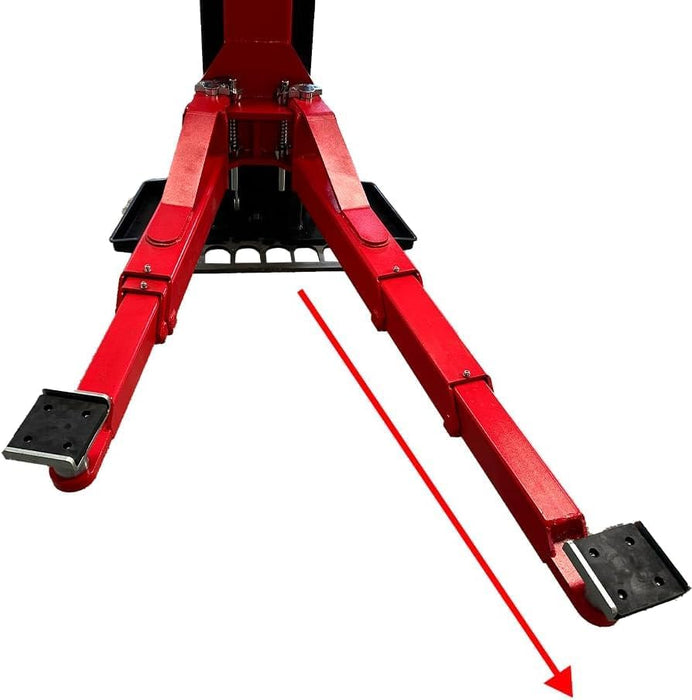

• Symmetric Two-Post Design – Balanced load distribution

• 72.83" Max Lifting Height – Improved access for underbody service

• 4HP / 3KW Motor – Commercial-grade hydraulic power

Specifications

Installation Requirements (Critical)

• Minimum concrete thickness: 5.9 inches (150 mm)

• Minimum concrete strength: 3,000 PSI

• Buyer must verify slab thickness and PSI before installation

• Improper installation may result in serious injury or equipment failure

• Professional installation strongly recommended

• Forklift required for unloading

Freight shipping available within the lower 48 states. Free delivery to commercial addresses or carrier terminals. Residential delivery may incur additional fees.

Weight Capacity Guidance

While the KT-M150D is rated at 15,000 lbs, best practice recommends operating lifts at no more than approximately 75% of rated capacity when possible. Always account for:

• Vehicle weight distribution

• Modifications or added equipment

• Proper arm positioning and balancing

Selecting a higher-capacity lift like the KT-M150D provides additional safety margin for heavier vehicles and uneven load distribution.

Warranty

• 1-Year Limited Warranty on all parts

• 3-Year Structural Warranty on lift columns and frame

• Free shipping on approved replacement parts

• Labor not included

Bottom Line

The Katool KT-M150D 15,000 lb two post lift is engineered for shops that service heavier vehicles and require commercial-level strength. With direct-drive performance, high lifting clearance, and industrial construction, it delivers dependable power for demanding daily use.

Live Chat with us or call (866) 412-1837 to confirm installation requirements, warehouse pickup availability, or shipping details.
