Katool KT-M150D 15,000 LB 2 Post Car Lift – Heavy Duty Commercial Lift

Katool KT-M150D 15,000 LB 2 Post Car Lift – Heavy Duty Commercial Car Lift for Garage

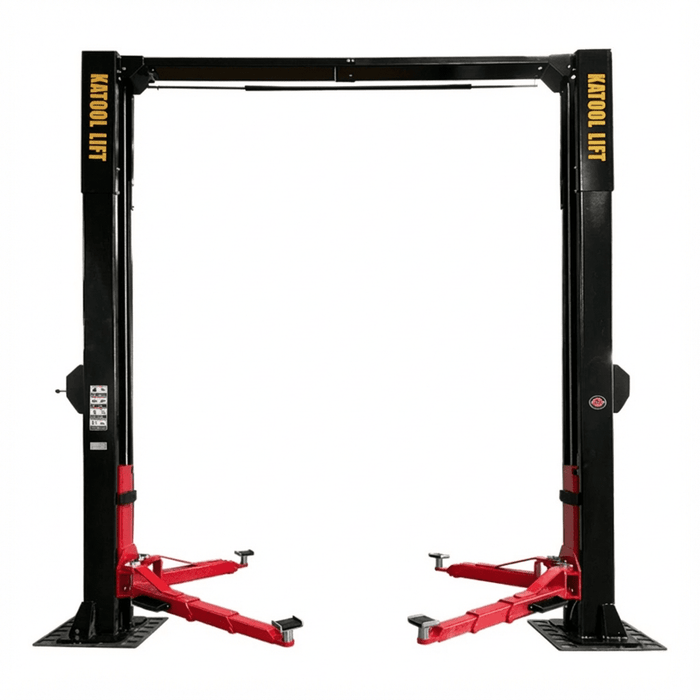

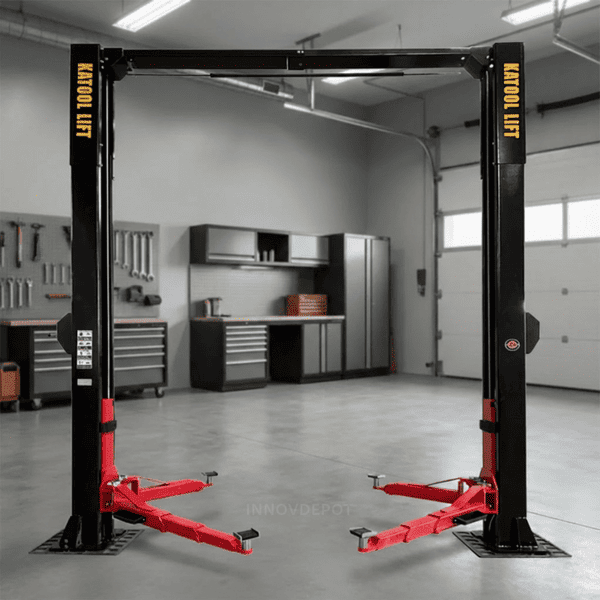

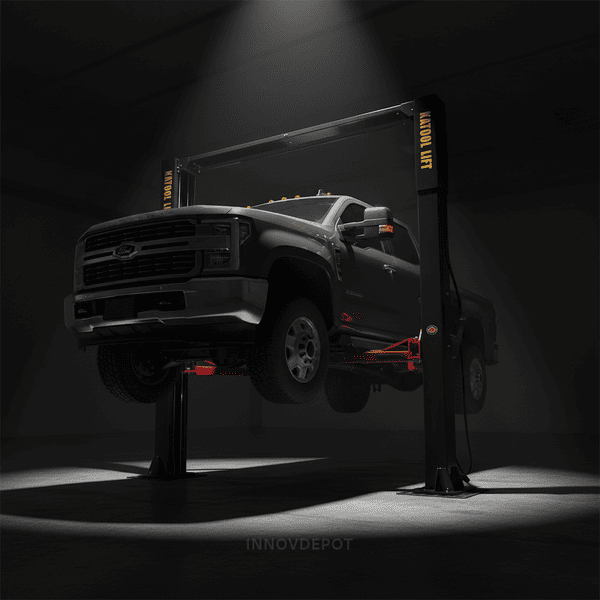

The Katool KT-M150D is a 15,000 lb two-post car lift designed for heavy-duty automotive shops, fleet service centers, and professional garages that demand maximum strength, safety, and reliability. As part of Katool’s professional automotive equipment lineup, this commercial car lift is built from industrial-grade Q235 and Q245 steel and features a direct-drive lifting system for smooth operation, reduced maintenance, and long-term durability.

With a 72.83-inch maximum lifting height, this symmetric two-post lift provides excellent under-vehicle access for repairs, inspections, and maintenance on cars, trucks, vans, and commercial vehicles. A single-point lock release system ensures safe and efficient operation, while the powerful 4HP / 3KW motor delivers consistent lift cycles in demanding shop environments. This makes the KT-M150D an ideal car lift for garage use or professional automotive service applications.

Key Features

• 15,000 lb lifting capacity for heavy-duty vehicles

• Two-post car lift with symmetric arm design for balanced lifting

• Direct-drive system for smooth performance and lower maintenance

• Single-point safety lock release for fast, secure operation

• High lift height (72.83”) for improved undercar access

• 220V / 60Hz power with 4HP motor for commercial use

• Built from Q235 & Q245 structural steel for long-term durability

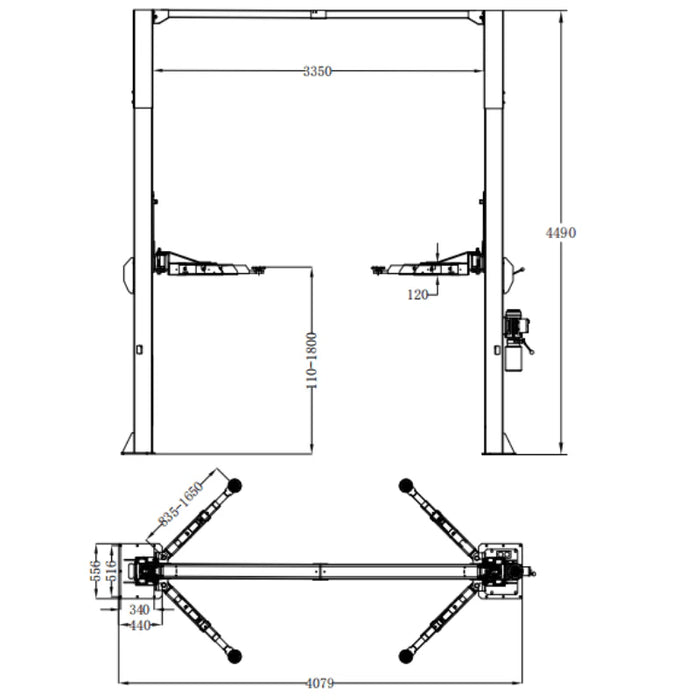

Specifications

• Lifting Capacity: 15,000 lbs

• Max Lifting Height: 72.83"

• Overall Height: 176.8"

• Drive-Thru Clearance: 116"

• Motor: 4HP / 3KW

• Voltage: 220V / 60Hz

• Design: Symmetric two-post

• Drive Type: Direct drive

Concrete & Installation Requirements (MANDATORY)

Concrete thickness must be at least 5.9 inches (150 mm) with a minimum 3,000 PSI rating.

Failure to install this two-post car lift on proper concrete may result in serious injury or death.
It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Understanding Two-Post Lift Weight Capacity

Two-post lifts are typically rated between 7,000 and 20,000 lbs, but selecting the correct car lift capacity depends on vehicle weight distribution—not just total vehicle weight.

For safety and equipment longevity:

• Always choose a two-post lift with capacity well above the vehicle’s actual weight

• Many manufacturers recommend operating at no more than 75% of rated capacity

• Proper vehicle positioning and routine maintenance are critical

The Katool KT-M150D 15,000 lb rating provides a wide safety margin for heavy vehicles, vehicle modifications, and uneven load distribution, making it a dependable heavy-duty car hoist for professional use.

Shipping Information

• Free freight shipping to commercial addresses or nearby carrier terminals

• Forklift required for all two-post lift deliveries

• Residential delivery: $90

• Liftgate service: Not available for lifts

Estimated Delivery

• Please allow up to 3 weeks due to seasonal demand

• Pickup orders require 6–10 business days for fulfillment

• Shipping available to Alaska & Hawaii (contact for quote)

Warehouse Pickup Locations (No Shipping Charge)

• Azusa, CA 91702

• City of Industry, CA 91744

• Brookshire, TX 77423

• Deer Park, TX 77536

• Kalamazoo, MI 49048

• Linden, NJ 07036

• Pooler, GA 31322

• Romeoville, IL 60446

Warranty

• 1-Year Warranty on All Parts

• 3-Year Warranty on Structural Components

Warranty includes free replacement parts with free shipping.
Labor is not included.
