Katool KT-M120 Two Post Clear-Floor Vehicle Lift 12K

Katool KT-M120 Two Post Clear Floor Vehicle Lift for Sale – 12,000lbs Capacity

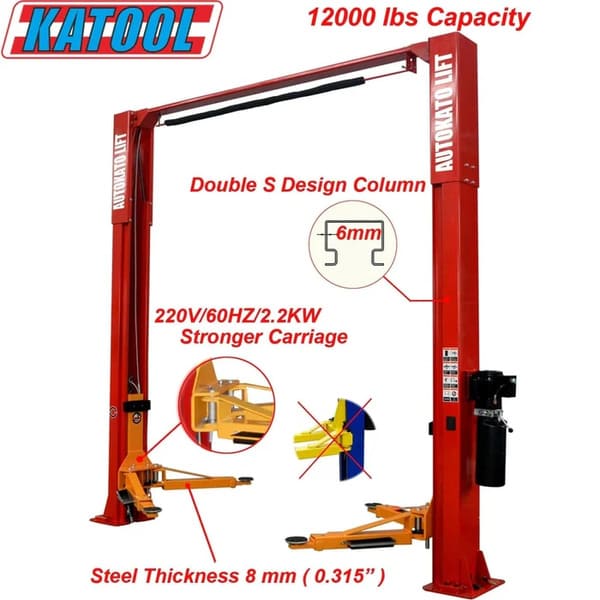

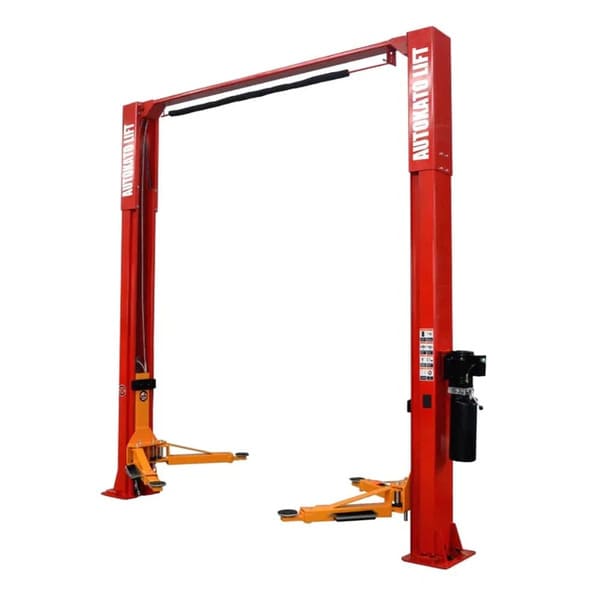

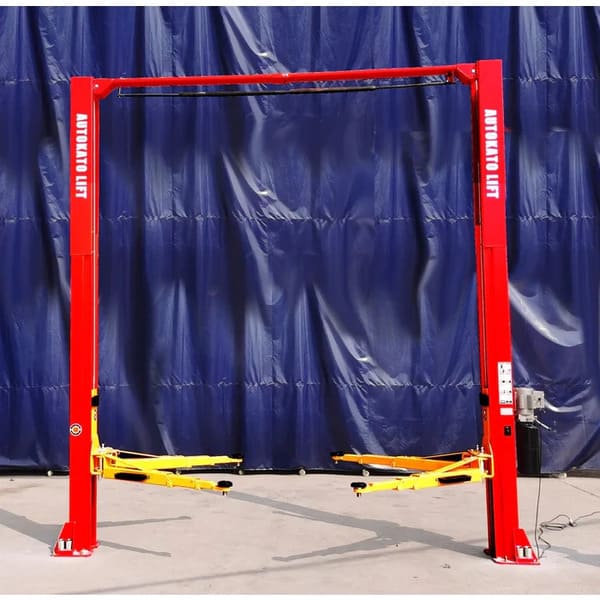

The Katool KT-M120 Two Post Clear-floor Vehicle Lift is a durable and high-performance lifting solution with an impressive 12,000lbs (5500KG) capacity. CE approved and certified, this lift surpasses safety standards, having undergone rigorous testing, including 115% dynamic loading and 150% static loading capacity assessments. Designed for both safety and efficiency, the lift features a manual safety release from both sides, symmetric arms, and dual hydraulic chain-drive cylinders, ensuring a secure and smooth lifting process.

Equipped with added safety features like rubber pad door opening protection, extended support adaptor sets (+30mm and +120mm), and an overhead safety shutoff bar, this lift maximizes user safety and versatility. Feet-protection safety guardrails with a tools box add convenience to the lift's design, making it a perfect solution for heavy-duty applications. The lift operates smoothly with a high-quality hydraulic system and offers flexible power configurations with 220V/60HZ/1PH or 110V/60HZ/1PH options.

Important Safety Note:

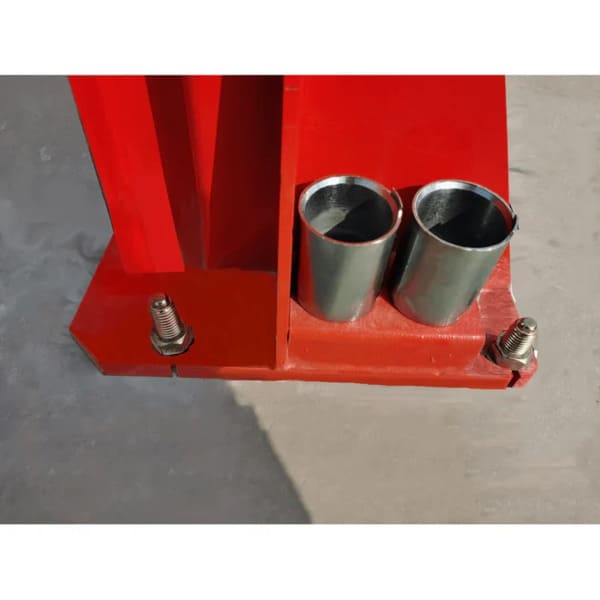

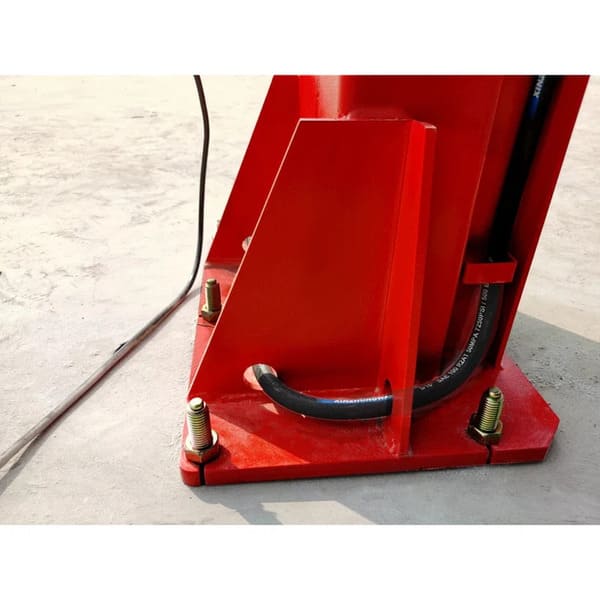

Ensure proper installation by verifying that the concrete thickness is at least 5.9" (150mm) with a 3000 PSI rating. Failing to do so may result in serious injury or death. It is the customer's responsibility to confirm the concrete thickness and strength before purchase and installation.

Two Post Clear-floor Vehicle Lift Features

• 12,000lbs (5500KG) Lifting Capacity: Perfect for heavy-duty lifting and a wide range of vehicles.
• CE Approved & Certified: Adheres to rigorous safety standards, passing dynamic and static loading tests.
• Manual Safety Release from Two Sides: Added convenience and safety during operation.

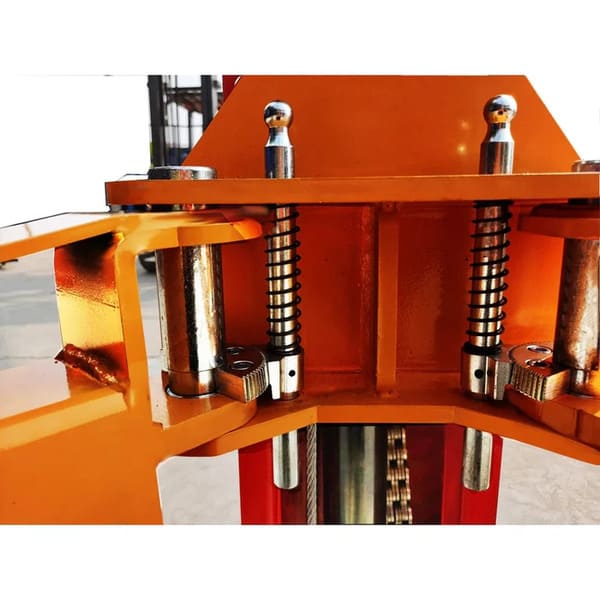

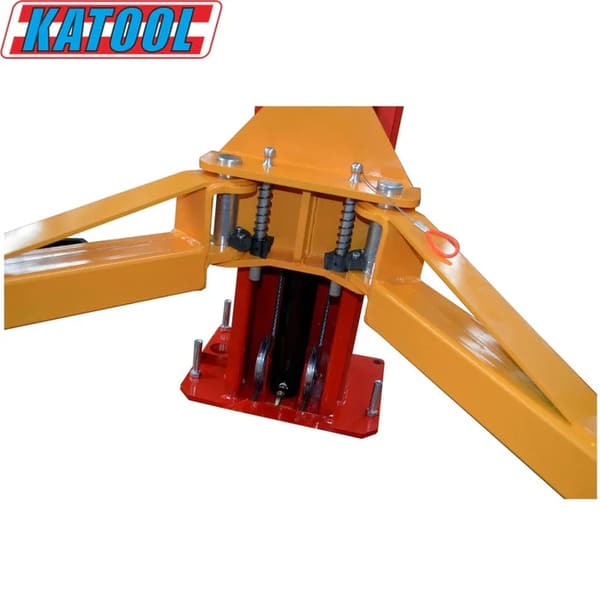

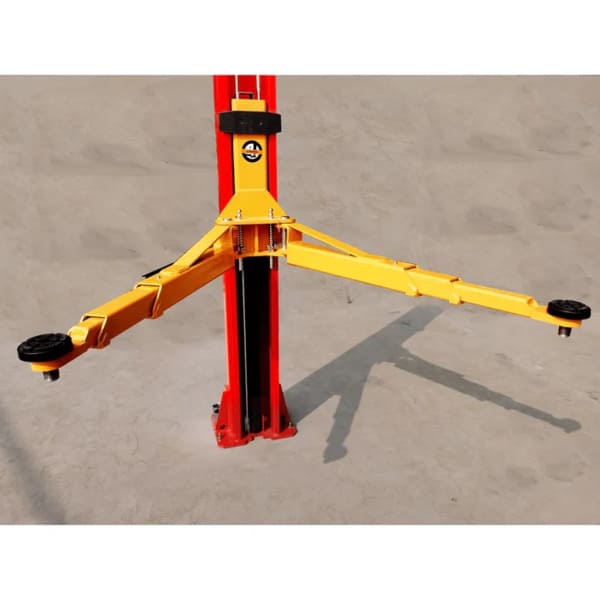

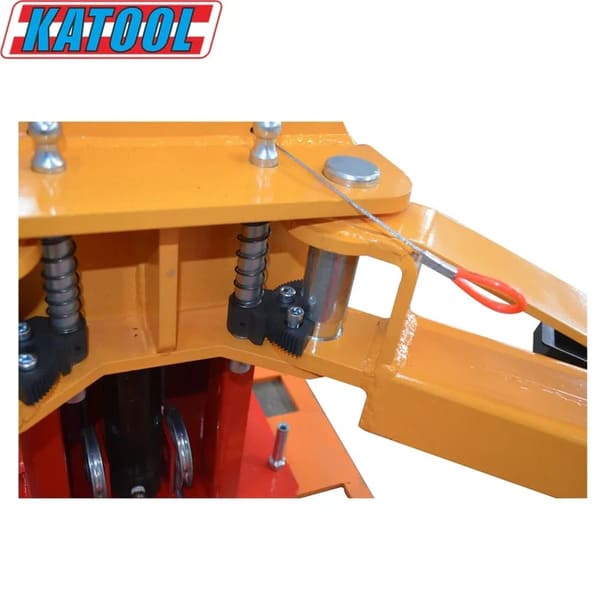

• Symmetric Arms: Ensures uniform weight distribution for secure lifting.

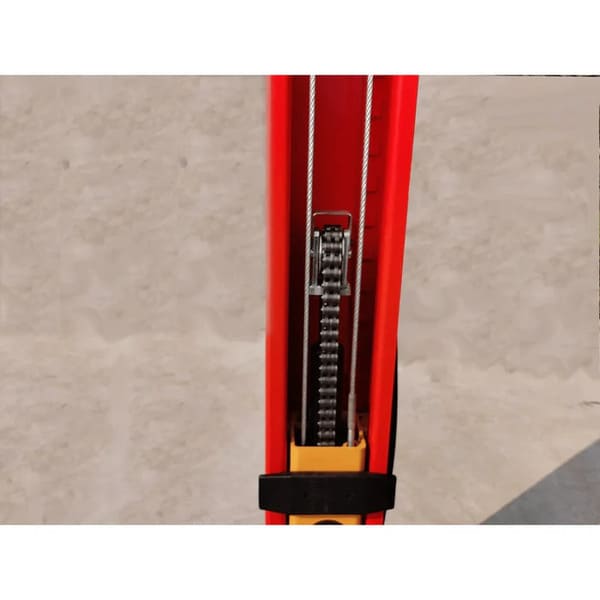

• Dual Hydraulic Chain-Drive Cylinders: Delivers smooth and reliable lifting performance.
• Rubber Pad Door Opening Protection: Protects vehicles from damage during lifting.

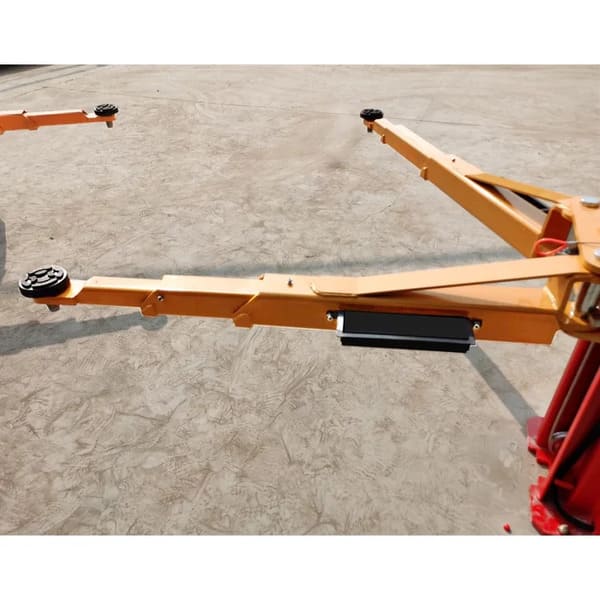

• Extended Support Adaptor Sets (+30mm and +120mm): Provides flexibility for various vehicle sizes.
• Overhead Safety Shutoff Bar: Enhances safety by automatically cutting power in emergencies.
• Feet-Protection Safety Guardrails with Tools Box: Combines safety with practical storage for tools.
• High-Quality Hydraulic System: Operates with 220V/60HZ/1PH or 110V/60HZ/1PH configurations, offering flexibility for your workshop.

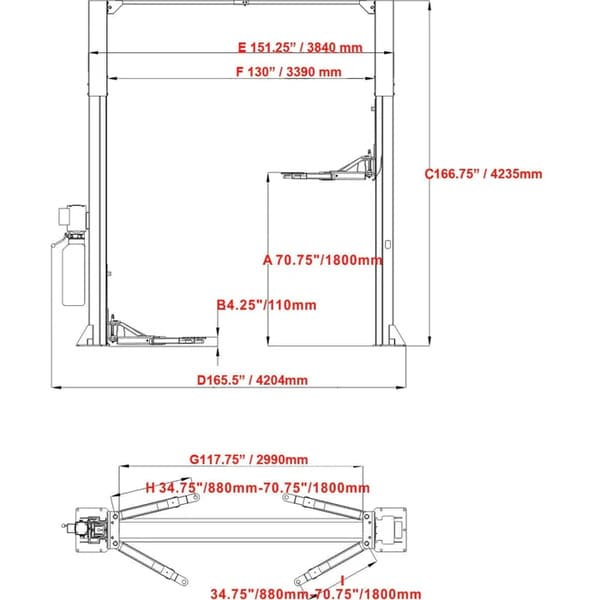

Two Post Clear-floor Vehicle Lift Specifications

• Lifting Capacity: 12,000 lbs / 5,500 kg
• Max. Lifting Height: 70.75" / 1,800 mm
• Min. Height: 4.25" / 110 mm
• Overall Height: 166.75" / 4,235 mm
• Overall Width: 165.5" / 4,204 mm
• Outside Columns: 151.25" / 3,840 mm
• Inside Columns: 130" / 3,390 mm
• Drive-Thru Clearance: 117.75" / 2,990 mm
• Motor: 220VAC / 60Hz / 1PH
• Net Weight: 1,653 lbs / 750 kg

Warranty:

Limited One-Year Warranty:
Katool offers a 12-month warranty on all parts and against defects, ensuring your lift functions as expected.

Extended Warranty Available:
A 2-year extended warranty is available for all Katool or M&E automotive equipment.

Warranty Includes:

• Coverage for cylinders, power units, motors, displays, electronics, and more.

• Vehicle lifts come with an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:

• Claims must be made within the warranty period.

• Warranty is non-transferable and requires the original order number and purchase from a registered vendor.

• Replacement parts will be provided at no cost, including free shipping.

• Labor is not included under the warranty.

Additional Resources:

For more detailed information, download the product manual:

• Download Manual (PDF)

The Katool KT-M120 Two Post Clear-floor Vehicle Lift is an ideal solution for high-capacity lifting, offering a safe, efficient, and flexible option for lifting vehicles up to 12,000lbs. With its advanced safety features and versatile power configurations, this lift is built to handle the demands of heavy-duty applications in your workshop.
