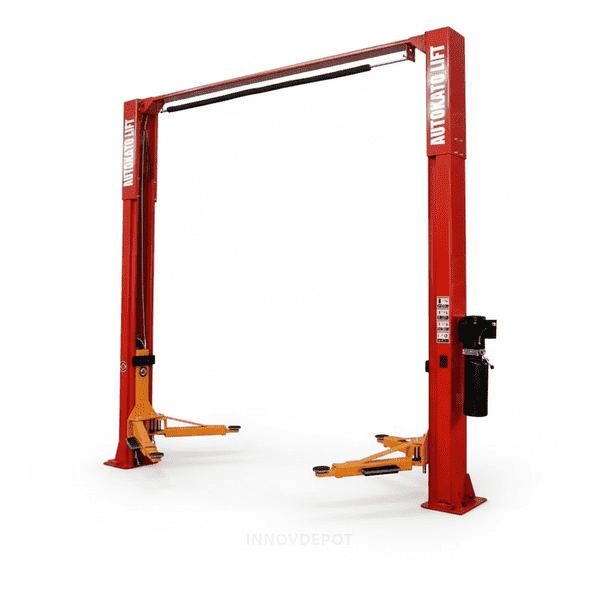

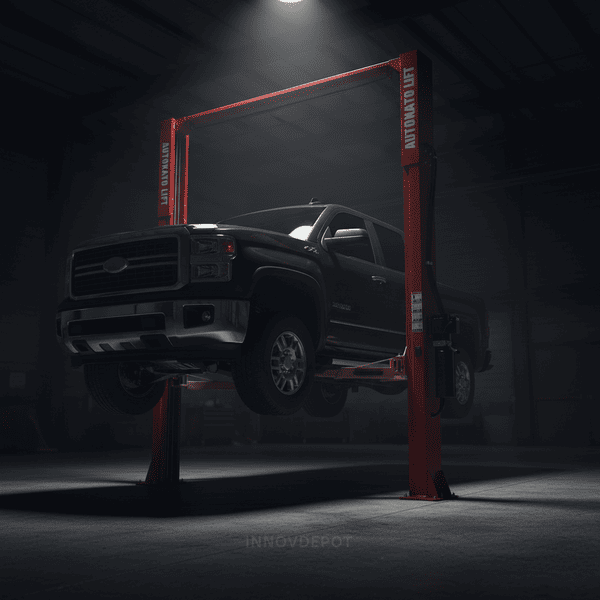

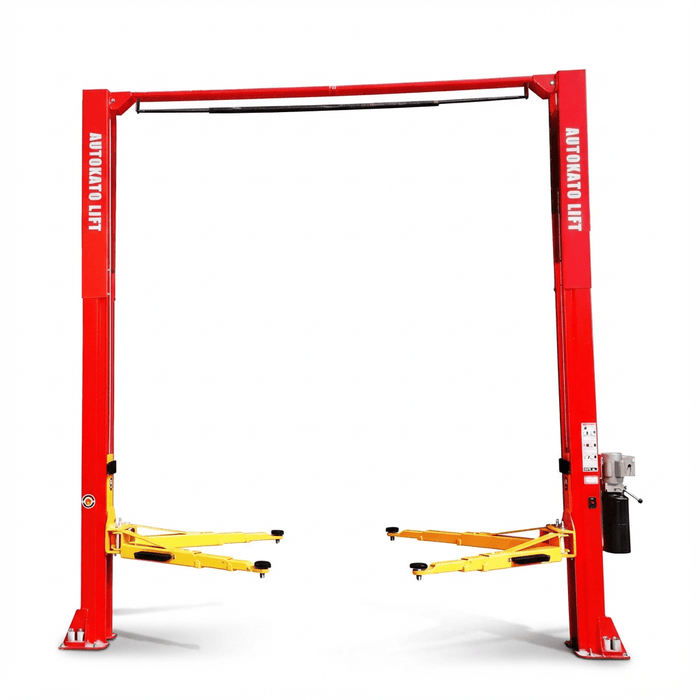

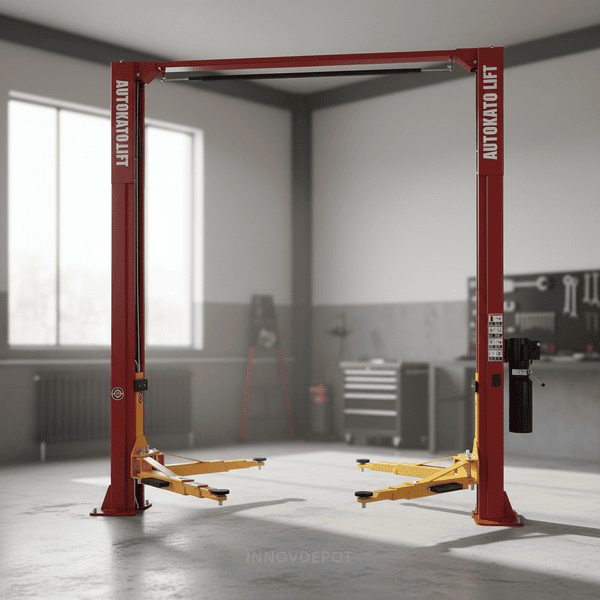

Katool KT-M120 12,000 LB Two Post Clear Floor Car Lift – Commercial Auto Lift

Katool KT-M120 12,000 LB Two Post Clear Floor Car Lift

The Katool KT-M120 is a 12,000 lb two post clear-floor car lift engineered for professional automotive shops and serious home garages that require high lifting capacity, advanced safety, and unrestricted undercar access. This Katool 2 post lift is CE-approved and certified, tested to 115% dynamic and 150% static load standards for dependable, commercial-grade performance.

Designed with symmetric arms for balanced vehicle positioning, the KT-M120 features dual hydraulic chain-drive cylinders that deliver smooth, stable lifting for cars, SUVs, and light trucks. A manual safety release from both sides allows controlled, convenient operation, while the clear-floor design provides full access beneath the vehicle for service and inspections.

Built-in safety features include rubber door-opening protection pads, extended support adaptor sets (+30 mm and +120 mm), and an overhead safety shutoff bar that automatically cuts power if interference is detected. Feet-protection safety guardrails with an integrated tool box add both protection and workflow efficiency.

Powered by a high-quality hydraulic system, the KT-M120 operates on 220V / 60Hz / 1PH, with an optional 110V configuration available for flexible shop installation. This makes it an ideal two post car lift for garage or commercial use where safety, strength, and reliability matter.

Concrete Requirements (MANDATORY)

Concrete must meet the following minimum standards:

• Thickness: At least 5.9 inches (150 mm)

• Strength: 3,000 PSI minimum

Failure to install this lift on proper concrete may result in serious injury or death. It is the customer’s responsibility to verify slab thickness and strength before purchase and installation.

Why Choose the Katool KT-M120 2 Post Lift

• 12,000 lb lifting capacity for automotive service

• Clear-floor two post car lift for unrestricted undercar access

• Symmetric arms for balanced lifting

• Dual hydraulic chain-drive cylinders for smooth operation

• Manual safety release from both sides

• Commercial-grade Katool automotive equipment

• Ideal car lift for garage or professional repair shops

Key Features

• 12,000 lb (5,500 kg) Lifting Capacity

• CE Approved & Certified (115% dynamic / 150% static tested)

• Clear-Floor Design for full access

• Symmetric Arm Configuration

• Dual Hydraulic Chain-Drive Cylinders

• Rubber Pad Door-Opening Protection

• Extended Support Adaptors (+30 mm & +120 mm)

• Overhead Safety Shutoff Bar

• Feet-Protection Guardrails with Tool Box

• 220V / 60Hz / 1PH Power (110V optional add-on)

Specifications

• Lifting Capacity: 12,000 lbs (5,500 kg)

• Max Lifting Height: 70.75" (1,800 mm)

• Min Height: 4.25" (110 mm)

• Overall Height: 166.75" (4,235 mm)

• Overall Width: 165.5" (4,204 mm)

• Outside Columns: 151.25" (3,840 mm)

• Inside Columns: 130" (3,390 mm)

• Drive-Thru Clearance: 117.75" (2,990 mm)

• Motor: 220V / 60Hz / 1PH

• Net Weight: 1,653 lbs (750 kg)

Warranty

• 1-Year Limited Warranty on all parts and manufacturing defects

• 3-Year Structural Warranty on lift columns and structural components

• Optional 2-Year Extended Warranty available

Replacement parts ship free.
Labor is not included.

Additional Resources

For installation instructions, safety guidelines, and operation details:
Download the Katool KT-M120 User Manual (PDF)

Have questions or need help choosing the right lift?

Start a live chat with our team or call us at (866) 412-1837.

Additional Resources:

For more detailed information, download the product manual:

• Download Manual (PDF)

The Katool KT-M120 Two Post Clear-floor Vehicle Lift is an ideal solution for high-capacity lifting, offering a safe, efficient, and flexible option for lifting vehicles up to 12,000lbs. With its advanced safety features and versatile power configurations, this lift is built to handle the demands of heavy-duty applications in your workshop.
