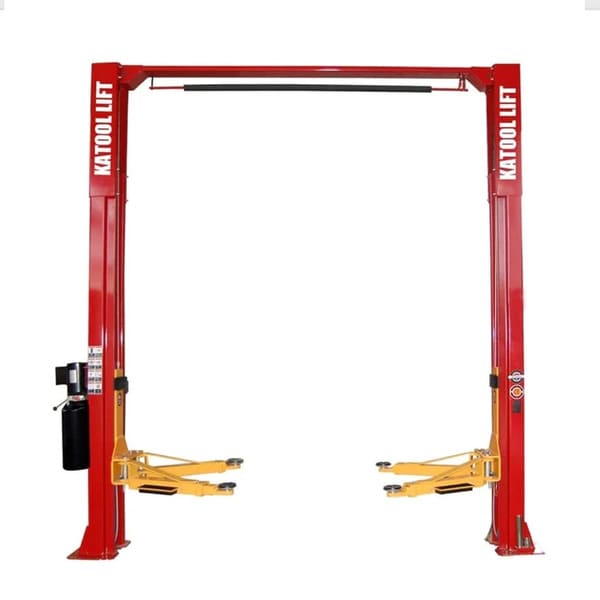

Katool KT-M110 11,000lb Two Post Clear Floor Lift

Katool KT-M110 Two Post Clear Floor Vehicle Lift for Sale – 11,000lbs Capacity Heavy-Duty Hoist

The Katool KT-M110 Two Post Clear-floor Vehicle Lift is a high-performance lifting solution designed for heavy-duty use, with an 11,000lbs capacity. CE approved and certified, this lift exceeds safety standards, passing rigorous 115% dynamic loading and 150% static loading capacity tests. Its symmetric clear-floor design ensures a smooth, unobstructed lifting experience, while dual hydraulic chain-drive cylinders provide secure and efficient lifting. The lift includes a manual safety release from both sides for added convenience and safety.

With additional features like rubber pad door opening protection, extension support adaptor sets (+30mm and +120mm), an overhead safety shutoff bar, and feet-protection safety guardrails with a tools box, this lift ensures superior safety and versatility. Powered by a top-level hydraulic system, it operates with optional 220V/60HZ/1PH or 110V/60HZ/1PH configurations, giving you flexibility based on your needs.

Important Safety Note:

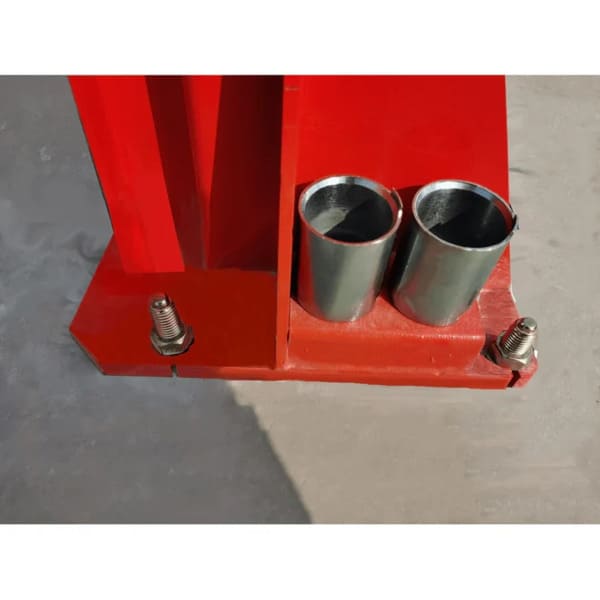

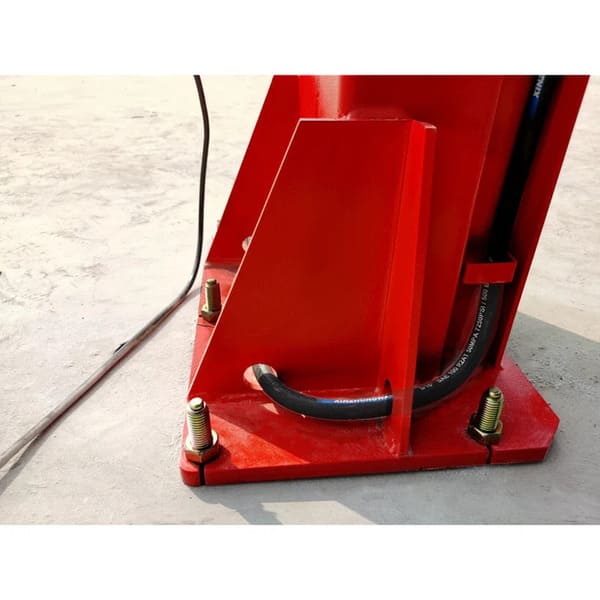

Ensure proper installation by verifying that the concrete thickness is at least 5.9" (150mm) with a 3000 PSI rating. Failing to do so may result in serious injury or death. It is the customer's responsibility to confirm the concrete thickness and strength before purchase and installation.

 Two Post Clear-floor Vehicle Lift Features

• 11,000lbs Lifting Capacity: Ideal for lifting a variety of vehicles and heavy-duty applications.
• CE Approved & Certified: Exceeds industry safety standards, undergoing extensive dynamic and static loading tests.
• Symmetric Clear-Floor Design: Offers a clean, unobstructed workspace for easy vehicle access.

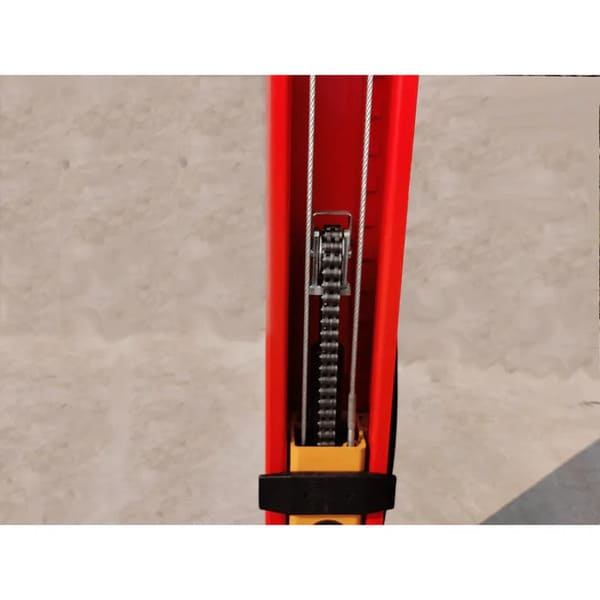

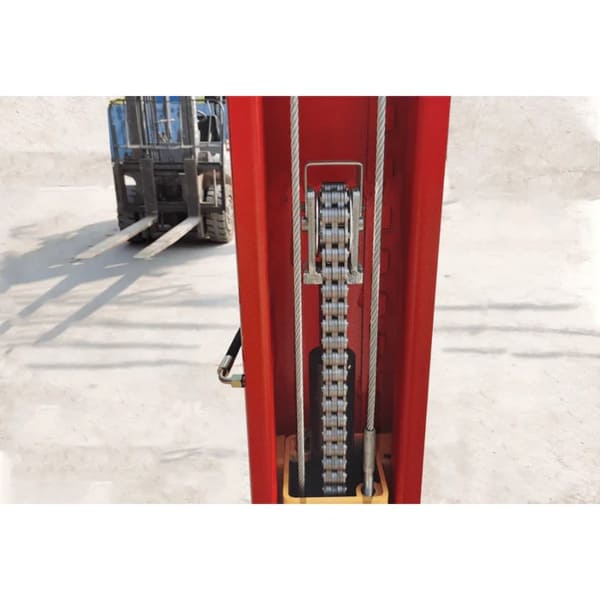

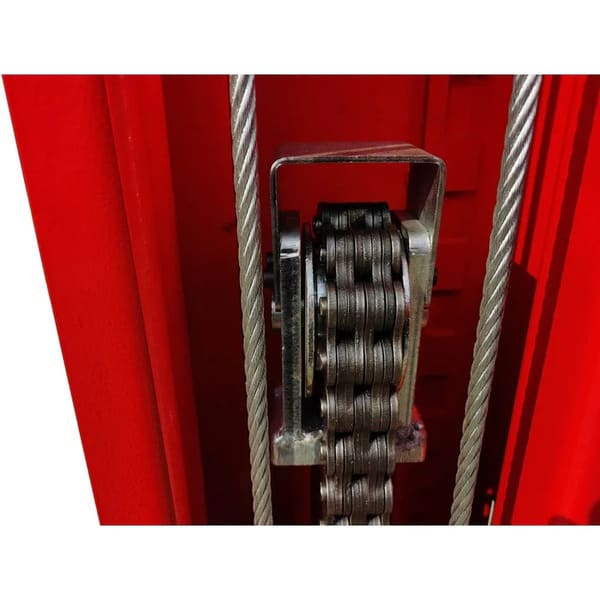

• Dual Hydraulic Chain-Drive Cylinders: Provides secure, efficient, and consistent lifting.
• Manual Safety Release from Two Sides: Enhances operator safety and convenience.

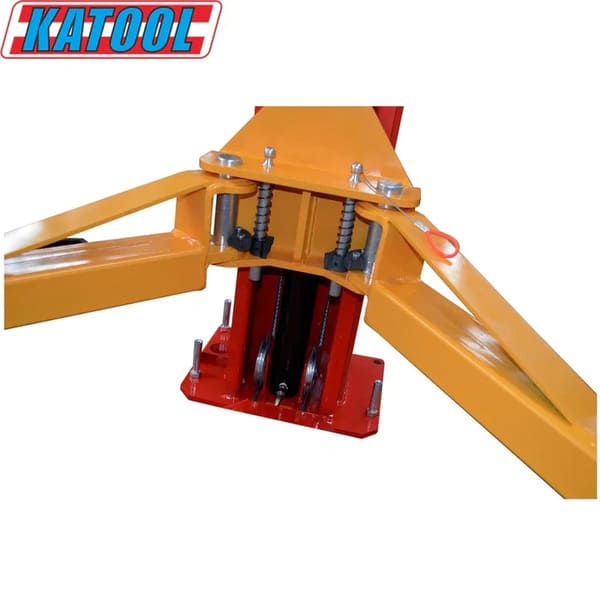

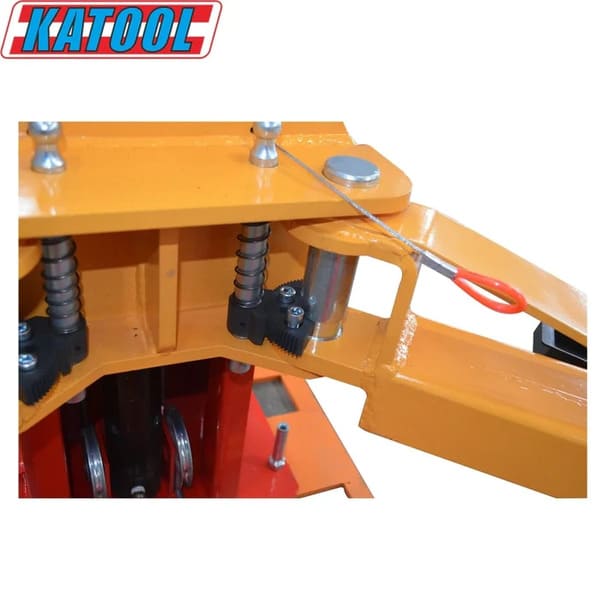

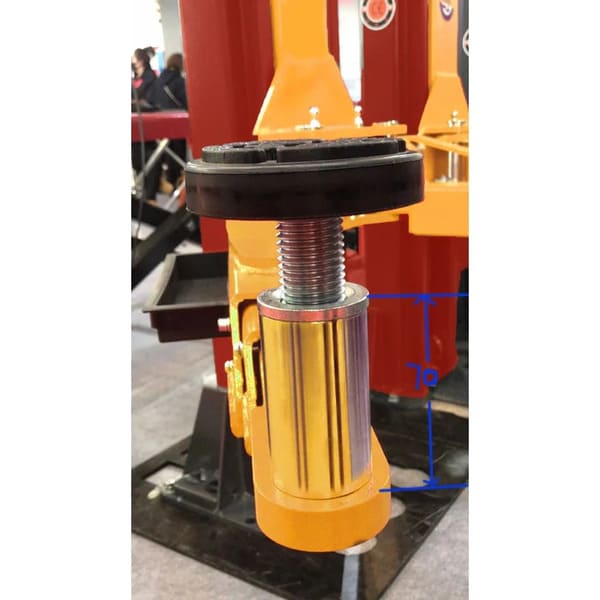

• Extension Support Adaptor Sets (+30mm and +120mm): Versatile design accommodates a wide range of vehicles.
• Overhead Safety Shutoff Bar: Extra protection for the user during operation.
• Feet-Protection Safety Guardrails with Tools Box: Combines safety with added convenience for storing tools.
• Top-Level Hydraulic System: Operates with 220V/60HZ/1PH or 110V/60HZ/1PH configurations, depending on your needs.

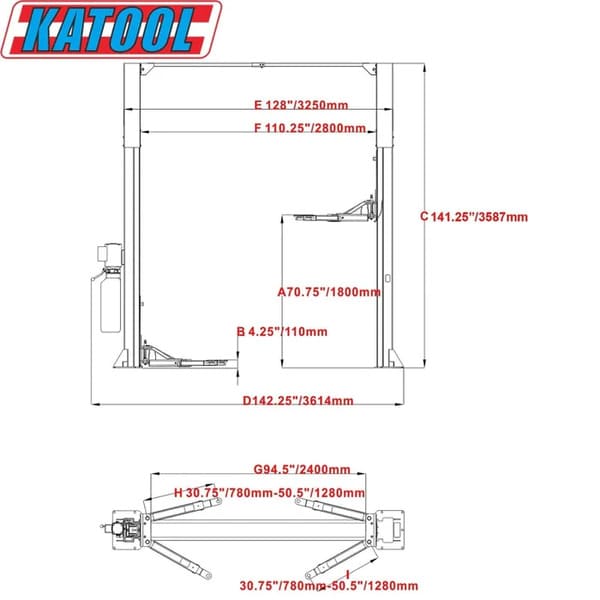

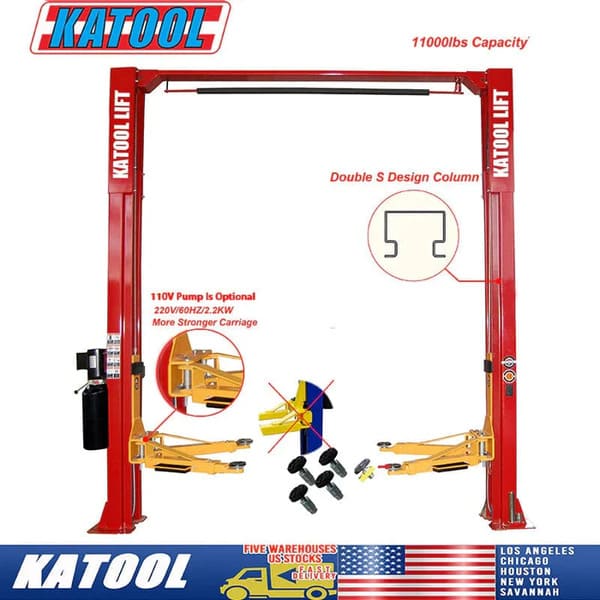

Two Post Clear-floor Vehicle Lift Specifications

• Lifting Capacity: 11,000 lbs / 5,000 kg
• Max. Lifting Height: 70.75" / 1,800 mm
• Min. Height: 4.25" / 110 mm
• Height Overall: 141.25" / 3,587 mm
• Width Overall: 142.25" / 3,614 mm
• Outside Column Width: 128" / 3,250 mm
• Inside Column Width: 110.25" / 2,800 mm
• Drive-Thru Clearance: 94.5" / 2,400 mm
• Front Arm Reach (Min): 30.75" / 780 mm (2 stages)
• Front Arm Reach (Max): 50.5" / 1,280 mm (2 stages)
• Rear Arm Reach (Min): 30.75" / 780 mm (2 stages)
• Rear Arm Reach (Max): 50.5" / 1,280 mm (2 stages)
• Motor: 220VAC / 60Hz / 1PH / 2.2KW
• Net Weight: 1,367 lbs / 620 kg

Warranty:

Limited One-Year Warranty:
Katool provides a 12-month warranty on all parts and against product defects, ensuring your lift remains in optimal working condition.

Extended Warranty Available:
A 2-year extended warranty is available for all Katool or M&E automotive equipment.

Warranty Includes:

• Coverage for cylinders, power units, motors, displays, electronics, and more.

• Vehicle lifts come with an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:

• Claims must be made within the warranty period.

• Warranty is non-transferable and requires the original order number and purchase from a registered vendor.

• Replacement parts will be provided at no cost, including free shipping.

• Labor is not included under the warranty.

Additional Resources:

For more detailed information, download the product manual:

• Download Manual (PDF)

The Katool KT-M110 Two Post Clear-floor Vehicle Lift provides the perfect combination of safety, versatility, and performance for lifting vehicles up to 11,000lbs. Maximize your workshop’s efficiency with this reliable and robust lifting solution.
