Katool KT-M110 11,000 lb Two Post Clear Floor Car Lift for Garage & Shop

Katool KT-M110 11,000 lb Two Post Clear Floor Vehicle Lift

The Katool KT-M110 Two Post Clear Floor Vehicle Lift is a heavy-duty, professional-grade automotive hoist engineered for safety, strength, and daily shop reliability. With an 11,000 lb lifting capacity, this two-post car lift is ideal for servicing cars, SUVs, and light-duty trucks in commercial shops or serious home garages.

CE approved and certified, the KT-M110 exceeds industry safety standards with 115% dynamic and 150% static load testing. Its clear-floor symmetric design provides unobstructed undercar access, while dual hydraulic chain-drive cylinders deliver smooth, synchronized lifting performance.

Operator safety is enhanced through a manual safety release accessible from both sides, an overhead safety shutoff bar, rubber pad door-opening protection, and feet-protection safety guardrails with an integrated tool box. Included +30mm and +120mm extension adaptors allow compatibility with a wide range of vehicle sizes. The lift operates on 220V single-phase power, with optional 110V configuration, offering flexibility for different garage setups.

Important Safety Note:
Ensure proper installation by verifying that the concrete thickness is at least 5.9" (150mm) with a 3000 PSI rating. Failing to do so may result in serious injury or death. It is the customer's responsibility to confirm the concrete thickness and strength before purchase and installation.

Why Choose the Katool KT-M110 Two Post Lift

• 11,000 lb two post car lift for garage or commercial use

• Clear-floor design for full undercar access

• CE certified Katool automotive equipment

• Stable, synchronized hydraulic lifting system

• Ideal car hoist for garage or professional shop

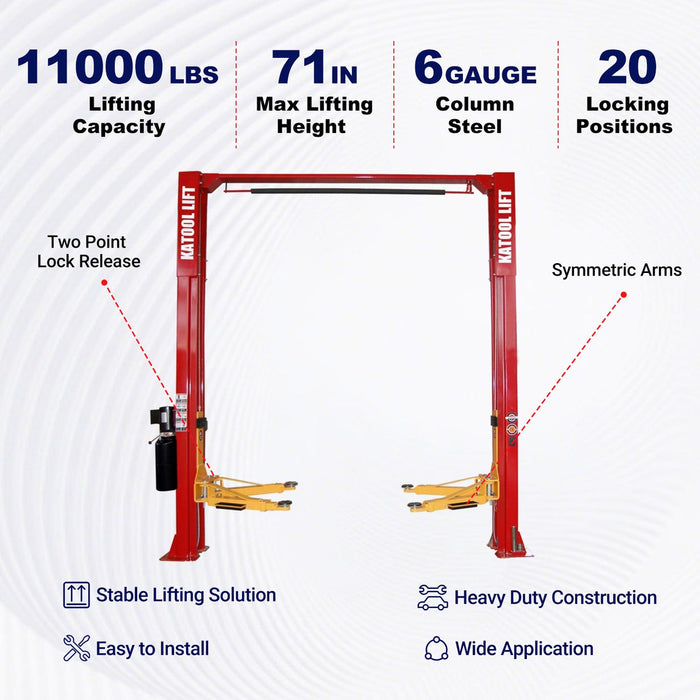

Key Features

• 11,000 lb Lifting Capacity (5,000 kg)
  Designed for heavier vehicles and demanding service environments

• CE Approved & Certified
  Tested to 115% dynamic and 150% static load standards

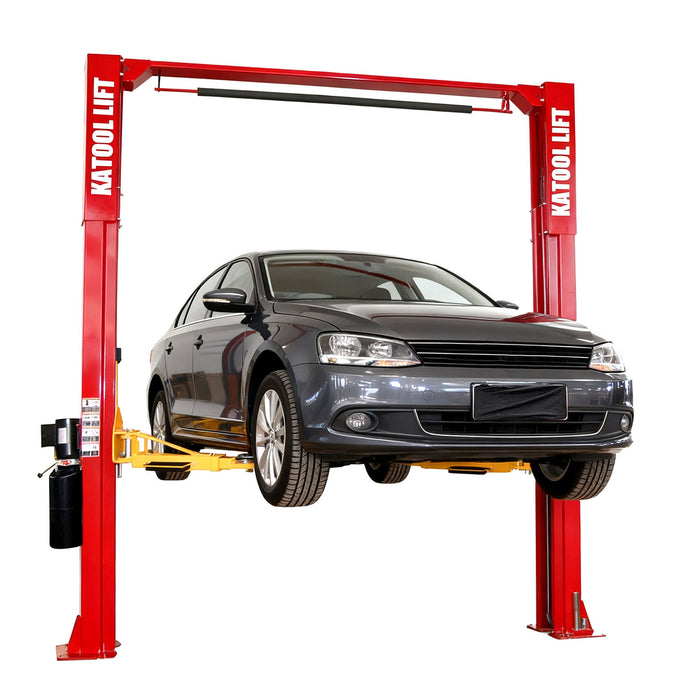

• Clear Floor Symmetric Design
  Provides unrestricted workspace beneath the vehicle

• Dual Hydraulic Chain-Drive Cylinders
  Ensures smooth, balanced, and reliable lifting

• Manual Safety Release (Dual-Side Access)
  Improves operator safety and convenience

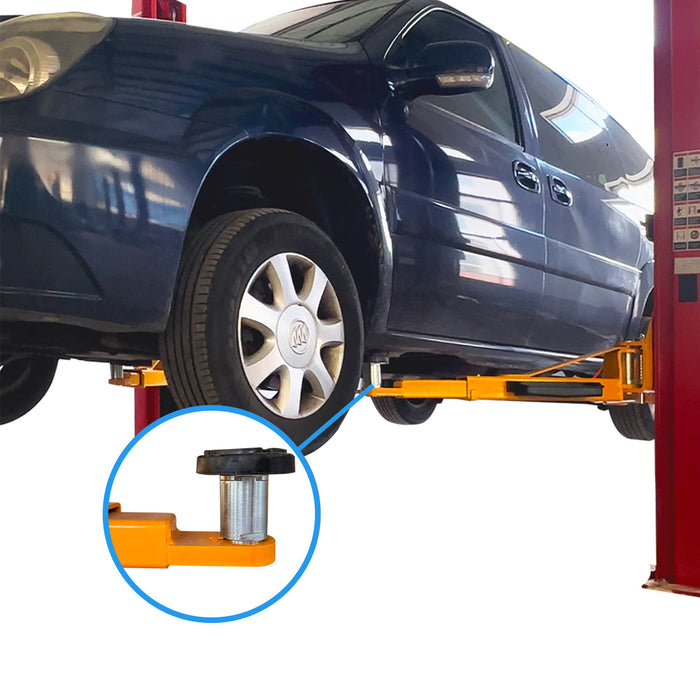

• Extension Support Adaptor Sets
  Includes +30mm and +120mm adaptors

• Overhead Safety Shutoff Bar
  Prevents accidental over-travel

• Rubber Pad Door Opening Protection
  Protects vehicles during lifting

• Feet-Protection Safety Guardrails with Tool Box
  Enhances safety and workflow efficiency

• Flexible Power Options
  220V / 60Hz / 1PH standard
  110V / 60Hz / 1PH optional

Technical Specifications

• Lifting Capacity: 11,000 lbs (5,000 kg)

• Max Lifting Height: 70.75" (1,800 mm)

• Min Height: 4.25" (110 mm)

• Overall Height: 141.25" (3,587 mm)

• Overall Width: 142.25" (3,614 mm)

• Outside Column Width: 128" (3,250 mm)

• Inside Column Width: 110.25" (2,800 mm)

• Drive-Thru Clearance: 94.5" (2,400 mm)

• Front Arm Reach: 30.75" – 50.5" (2-stage)

• Rear Arm Reach: 30.75" – 50.5" (2-stage)

• Motor: 220V / 60Hz / 1PH / 2.2 kW

• Net Weight: 1,367 lbs (620 kg)

Installation Requirement (MANDATORY)

Concrete must be at least 5.9 inches (150 mm) thick with a minimum 3,000 PSI rating.
Failure to meet these requirements may result in serious injury or death.
The buyer is responsible for verifying slab thickness and strength before installation.

The Katool KT-M110 Two Post Clear-floor Vehicle Lift provides the perfect combination of safety, versatility, and performance for lifting vehicles up to 11,000lbs. Maximize your workshop’s efficiency with this reliable and robust lifting solution.

Warranty

• 1-Year Limited Warranty on all parts and manufacturing defects

• 3-Year Structural Warranty on lift components

• Optional 2-Year Extended Warranty available

Warranty covers cylinders, motors, power units, electronics, and related components.
Labor is not included.
