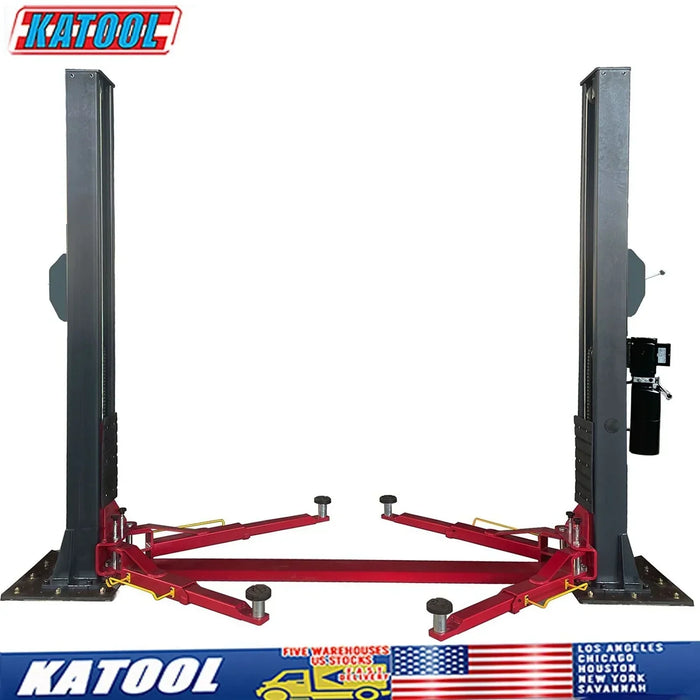

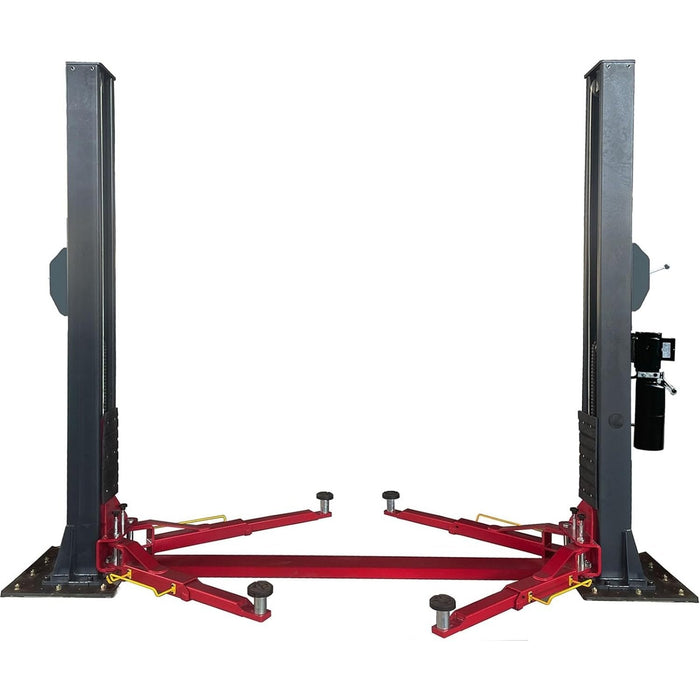

Katool KT-H120D 12,000lbs Two Post Lift Single Lock Release Auto Lift Car Lift

Katool KT-H120D 12,000lbs Two Post Lift – High-Performance Auto Lift

The Katool KT-H120D 12,000lbs Two Post Lift is a robust and powerful vehicle lifting solution, designed to handle heavy-duty lifting with ease. With a 12,000 lbs (5,500 kg) lifting capacity, this two-post lift ensures reliable, secure, and efficient operations. Whether you're working with light trucks or larger vehicles, this lift provides the stability and strength needed for demanding tasks.

Equipped with a manual safety release from a single side, the KT-H120D enhances convenience while ensuring the safety of the operator. Its symmetric arm design, base plate configuration, and dual hydraulic chain-drive cylinders work together to offer exceptional stability during lifting operations. To protect your vehicles, the lift features rubber pad door opening protection, screw-on pads, and extension support adaptor sets (+100mm), providing added versatility for various vehicle types and lifting needs.

Powered by a high-performance hydraulic system and operating on a 220V/60HZ/1PH configuration, this lift ensures smooth and consistent lifting action. It is built to withstand the rigors of a busy automotive environment, making it an ideal choice for professional garages and workshops.

Concrete Requirements:
For safe installation, ensure the concrete thickness is at least 5.9 inches (150 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or death. It is the customer’s responsibility to verify concrete specifications before purchasing or installing the lift.

Key Features:

• 12,000 lbs Lifting Capacity: Ideal for heavy-duty lifting tasks, including trucks and larger vehicles.

• Manual Safety Release from Single Side: Offers easy operation with added safety for the user.

• Symmetric Arm Design & Base Plate Configuration: Ensures stability and balance during lifting operations.

• Dual Hydraulic Chain-Drive Cylinders: Provides reliable, smooth, and efficient lifting.

• Rubber Pad Door Opening Protection: Protects vehicles during operation, preventing damage.

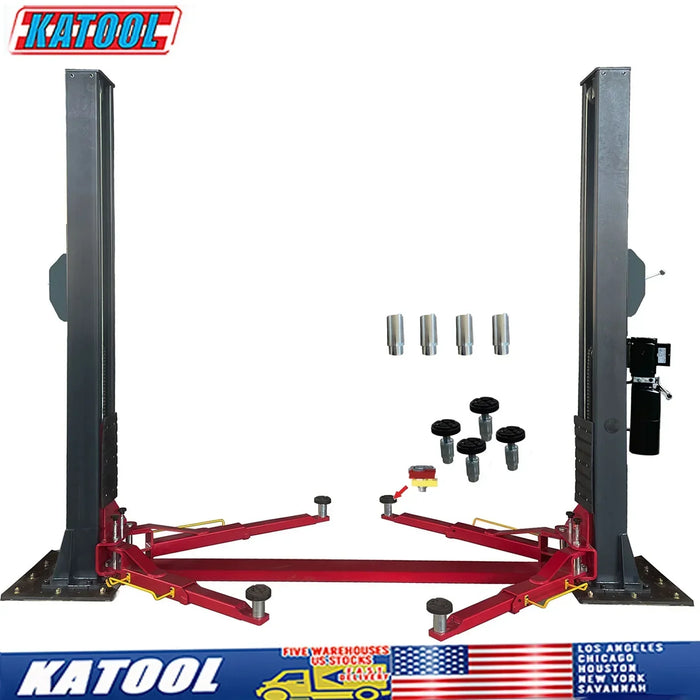

• Screw-On Pads & Extension Support Adaptor Sets (+100mm): Increases versatility for compatibility with a wide range of vehicles.

• Top-Level Hydraulic System: Operates seamlessly with 220V/60HZ/1PH for consistent performance.

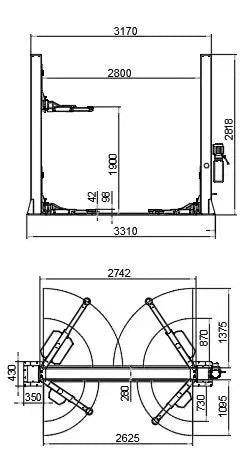

Specifications

Warranty:

1-Year Limited Warranty:
Katool offers a 12-month warranty on all parts and against product defects, ensuring peace of mind with your purchase.

3-Year Warranty on Structural Components:
Vehicle lifts include an additional three-year (36 months) warranty covering structural components, providing added durability for your investment.

Optional 2-Year Extended Warranty:
Extend your warranty coverage with a 2-year extended warranty plan, available for purchase.

Warranty Includes:

• Coverage for cylinders, power units, motors, electronics, and other parts.

• 3-year coverage for structural components.

Warranty Conditions:

• Claims must be filed within the warranty period.

• Warranty is non-transferable and requires the original order number from an authorized vendor.

• Replacement parts will be provided free of charge, including shipping.

• Labor costs are not included in the warranty.

• Do not disassemble the equipment before approval from the warranty/service department.

Additional Resources:

For more information, detailed installation instructions, and safety guidelines, download the Katool KT-H120D User Manual:

• Download User Manual (PDF)

The Katool KT-H120D 12,000lbs Two Post Lift is engineered for heavy-duty performance and safety, making it the perfect choice for busy automotive professionals. With its superior lifting capacity and robust design, this lift ensures efficient, secure operations for a wide range of vehicles.
