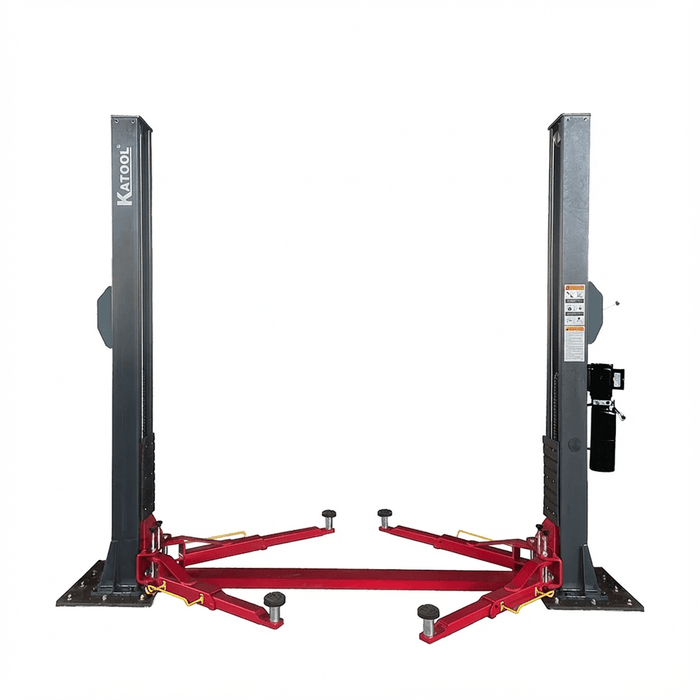

Katool KT-H120D 12,000 LB Two Post Car Lift for Garage & Commercial Use

Katool KT-H120D 12,000 LB Two Post Car Lift for Garage & Commercial Use

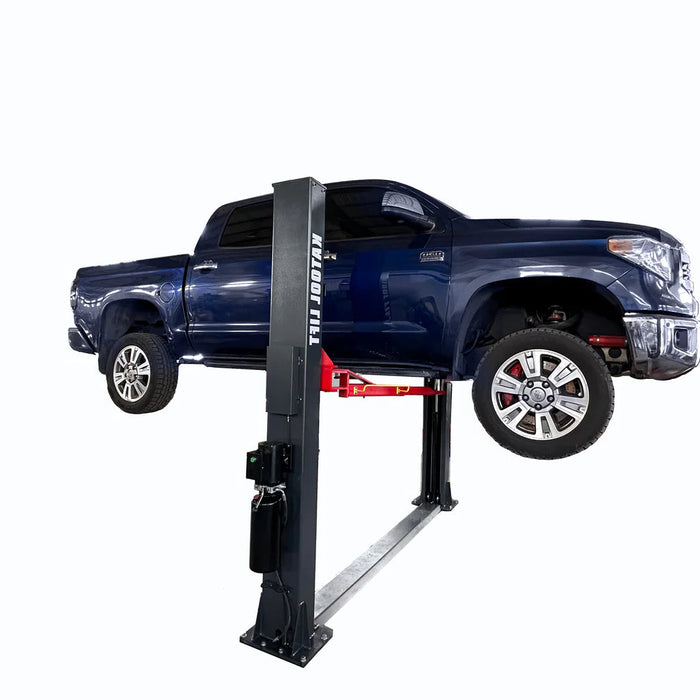

The Katool KT-H120D is a 12,000 lb two post car lift engineered for professional automotive shops and serious home garages that demand commercial-grade performance. Built as a reliable car hoist and car lift for garage use, the KT-H120D delivers stable, secure lifting for cars, trucks, and SUVs using a dual hydraulic chain-drive system and reinforced base-plate design.

This Katool 2 post lift features a symmetric arm configuration for balanced vehicle positioning and a manual single-side safety release for simple, dependable operation. Rubber door-opening protection pads, screw-on lifting pads, and +100 mm extension adaptors allow compatibility with a wide range of vehicle frames and wheelbases.

Powered by a high-performance hydraulic system operating on 220V / 60Hz / single-phase power, the KT-H120D is built for smooth, consistent lifting in demanding daily-use environments. This makes it an ideal two post car lift for both commercial repair shops and residential garages requiring professional reliability.

Concrete Requirements (MANDATORY)

For safe installation, concrete must meet the following minimum requirements:

• Thickness: At least 5.9 inches (150 mm)

• Strength: 3,000 PSI minimum

Failure to install this lift on proper concrete may result in serious injury or death. It is the customer’s responsibility to verify slab thickness and strength prior to purchase and installation.

Why Choose the Katool KT-H120D 2 Post Lift

• 12,000 lb lifting capacity for cars, SUVs, and light trucks

• Symmetric two post car lift design for balanced lifting

• Dual hydraulic cylinders for smooth, reliable operation

• Manual single-side safety release for controlled operation

• Commercial-grade Katool automotive equipment

• Ideal car lift for garage or professional repair facilities

Key Features

• 12,000 lb Lifting Capacity – Designed for heavy-duty automotive service

• Manual Safety Release (Single Side) – Simple and secure locking system

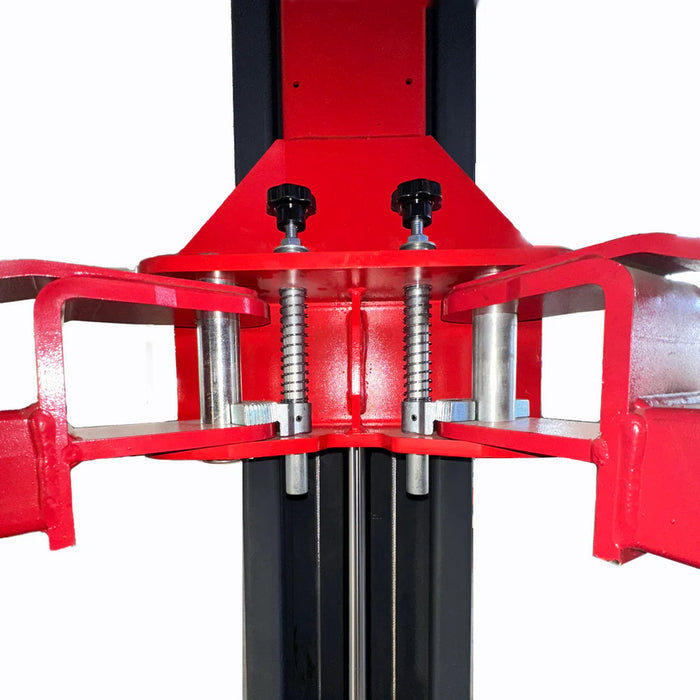

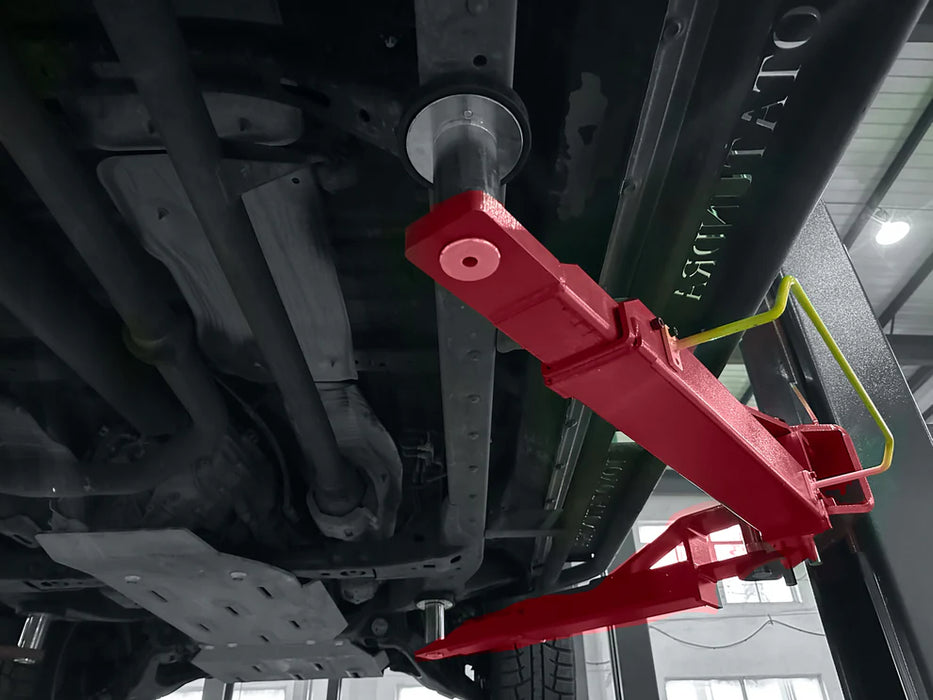

• Symmetric Arm & Base-Plate Design – Ensures stability during lifting

• Dual Hydraulic Chain-Drive Cylinders – Smooth, efficient lifting action

• Rubber Pad Door-Opening Protection – Prevents vehicle damage

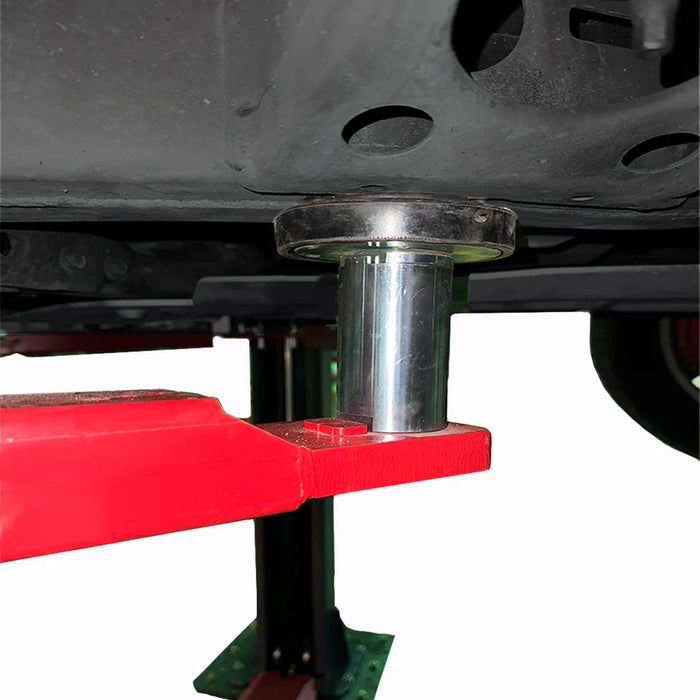

• Screw-On Pads & +100 mm Extension Adaptors – Increased vehicle compatibility

• Top-Level Hydraulic System – 220V / 60Hz / 1PH operation

Specifications

• Lifting Capacity: 12,000 lbs (5,500 kg)

• Max Lifting Height: 74.8" (1,900 mm)

• Overall Height: 110.94" (2,818 mm)

• Overall Width: 140" (3,555 mm)

• Drive-Thru Clearance: 98.43" (2,500 mm)

• Product Dimensions: 112" × 18" × 36"

Warranty

• 1-Year Limited Warranty on all parts and manufacturing defects

• 3-Year Structural Warranty on lift columns and structural components

• Optional 2-Year Extended Warranty available

Warranty includes replacement parts with free shipping.
Labor is not included.

Additional Resources:

For more information, detailed installation instructions, and safety guidelines, download the Katool KT-H120D User Manual:

• Download User Manual (PDF)

Have questions or need help choosing the right lift?

Start a live chat with our team or call us at (866) 412-1837.
