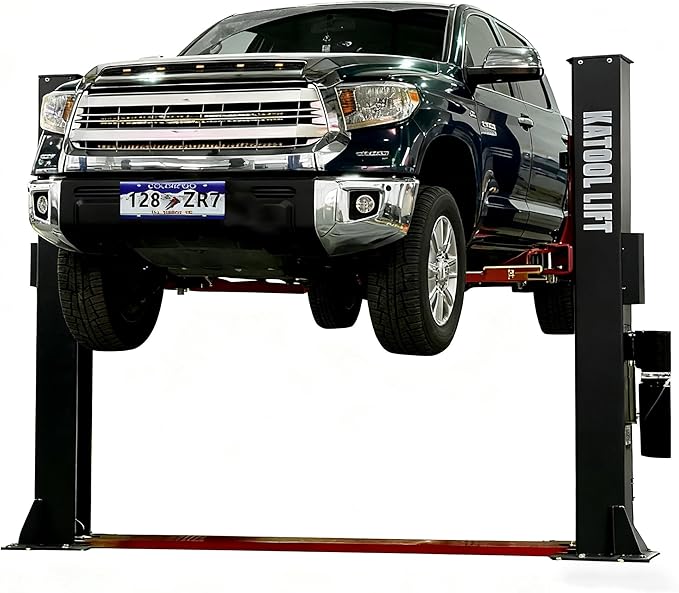

Katool KT-H120D Two Post Lift – 12,000 lb Capacity
The Katool KT-H120D is a heavy-duty 2 post car lift engineered for professional automotive shops and serious home garages that require higher lifting capacity. With a 12,000 lb rating, this car hoist for garage and commercial use is built to handle cars, full-size SUVs, and light-duty trucks with stability and control.
Designed with a symmetric arm configuration and single-side manual lock release, the KT-H120D provides balanced vehicle positioning and dependable safety operation. Its dual hydraulic chain-drive cylinders deliver smooth lifting performance, while the reinforced base-plate design simplifies installation and ensures structural stability.
Constructed from Q235 and Q245 structural steel and powered by a 220V single-phase hydraulic system, this Katool lift is built for consistent, long-term performance in demanding environments.
Why Choose the Katool KT-H120D
-
12,000 lb 2 post car lift for trucks and SUVs
-
Symmetric arm design for balanced vehicle lifting
-
Single lock release system for controlled lowering
-
Dual hydraulic chain-drive cylinders
-
Heavy-duty base plate design
-
Built for professional automotive shop and heavy-duty use
-
Suitable as a commercial car hoist or high-capacity garage lift
Key Features
-
12,000 lb Lifting Capacity – Supports heavier vehicles including SUVs and light trucks
-
Single-Side Manual Lock Release – Simple and dependable safety operation
-
Symmetric Arm Configuration – Balanced weight distribution during lifting
-

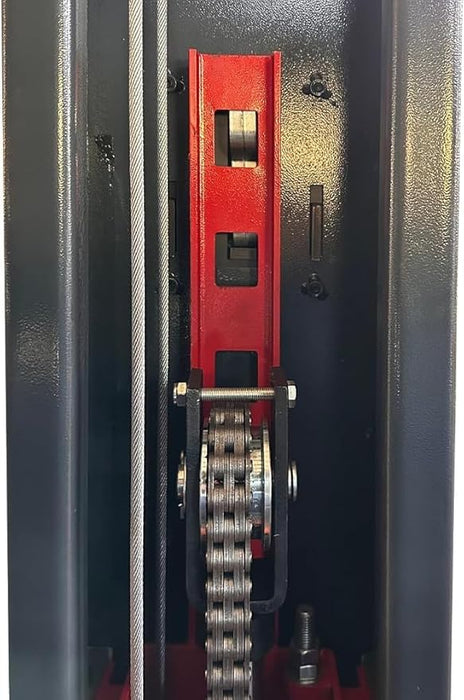

Dual Hydraulic Cylinders – Smooth lifting with reliable chain-drive design
-
Rubber Door Protection Pads – Helps prevent door edge damage
-
Screw-On Pads with +100 mm Extensions – Increased vehicle compatibility
-
220V / 60Hz / 1PH Hydraulic System – Commercial-grade power setup
Specifications
| Specification |
Details |
| Lifting Capacity |
12,000 lbs (5,500 kg) |

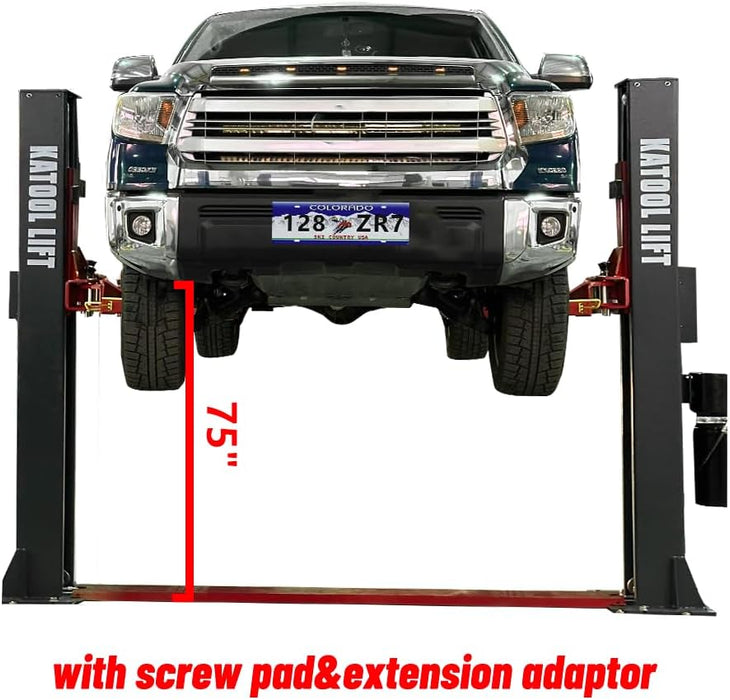

| Max Lifting Height |
74.8" (1,900 mm) |
| Overall Height |
110.94" (2,818 mm) |
| Overall Width |
140" (3,555 mm) |
| Drive-Thru Clearance |
98.43" (2,500 mm) |
| Motor |
220V / 60Hz / 1PH |
| Construction Material |
Q235 / Q245 Steel |
Installation Requirements (Important)
-
Minimum concrete thickness: 5.9 inches (150 mm)
-
Minimum concrete strength: 3,000 PSI
-
Buyer is responsible for verifying slab thickness and PSI before installation
-
Professional installation recommended
-
Forklift required for unloading
Freight shipping available within the lower 48 states. Free delivery to commercial addresses or carrier terminal. Residential and liftgate services may incur additional fees.
Warranty
-
1-Year Limited Warranty on parts and manufacturing defects
-
3-Year Structural Warranty on columns and main structure
-
Optional 2-Year Extended Warranty available
-
Free shipping on approved replacement parts
-
Labor not included
Bottom Line
The Katool KT-H120D 12,000 lb two post lift is designed for shops that require higher capacity, stable symmetric lifting, and reliable hydraulic performance. It is well suited for commercial service bays and serious garage installations handling larger vehicles.
