Katool KT-H105 Two Post Vehicle Lift 10,000lbs

Katool KT-H105 Two Post Lift for Sale – 10,000lbs Capacity Vehicle Hoist

The Katool KT-H105 Two Post Vehicle Lift provides a dependable and robust solution for automotive lifting needs, supporting up to 10,000lbs. This lift is CE Approved and Certified, having undergone stringent tests with 115% dynamic loading and 150% static loading capacity to meet safety standards. Its dual hydraulic chain-drive cylinders ensure efficient and secure lifting, while the manual safety release, sturdy baseplate design, and rubber pad door opening protection provide added safety for the vehicle and operator. With screw-on pads and extension support adaptor sets (+100mm), the KT-H105 is versatile enough to handle a wide range of vehicles. This lift operates seamlessly with a 220V/60HZ/1PH configuration and a high-performance hydraulic system for consistent and reliable results.

Important Safety Note:
To ensure proper installation, the concrete thickness must be at least 5.9" (150mm) with a 3000 PSI rating. Installing the lift on insufficient concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

Two Post Lift Features

• 10,000lbs Lifting Capacity: Capable of lifting heavy-duty vehicles with ease.
• CE Approved & Certified: Meets and exceeds industry safety standards, with dynamic and static loading capacity tests conducted.
• Dual Hydraulic Chain-Drive Cylinders: Provides smooth and secure lifting action.
• Manual Safety Release from Two Sides: Adds convenience and safety during use.
• Base Plate Design: Ensures a stable foundation for secure vehicle lifting.
• Rubber Pad Door Opening Protection: Protects vehicle doors and improves safety.

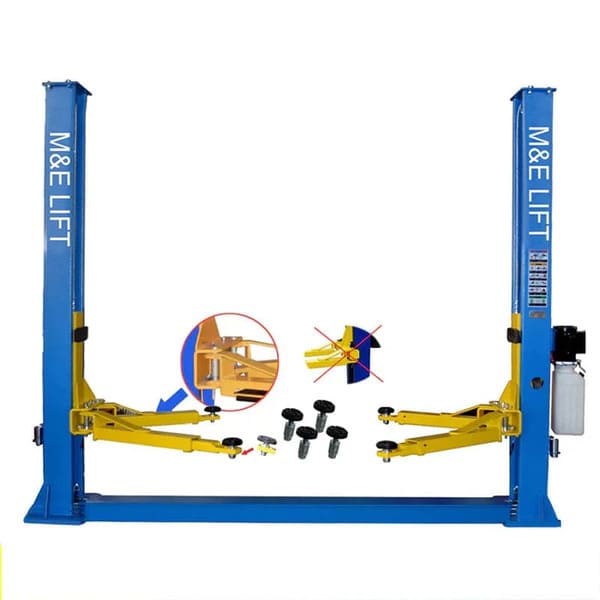

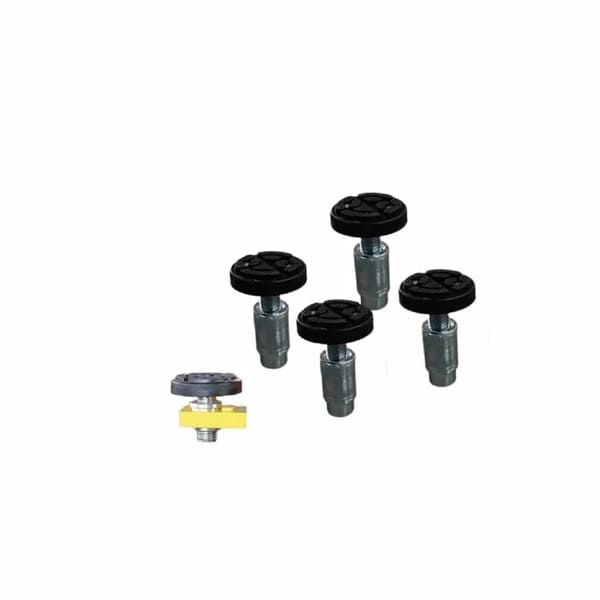

• Screw-on Pads & Extension Support Adaptor Sets (+100mm): Versatile design to accommodate a range of vehicle sizes.
• 220V/60HZ/1PH Hydraulic System: High-performance system for efficient lifting.

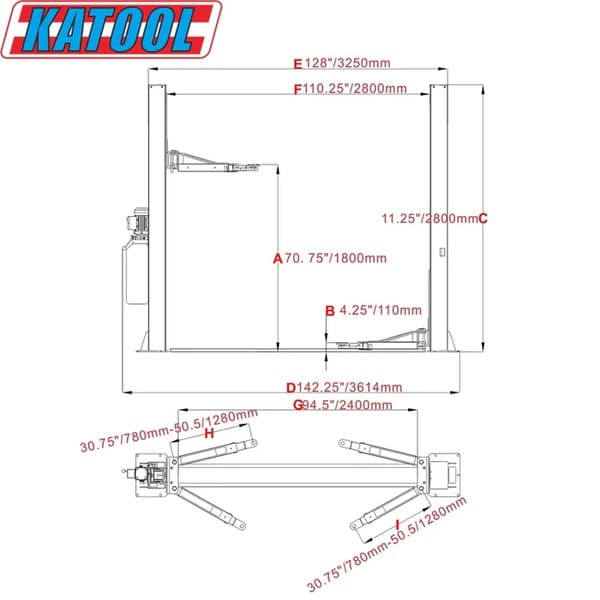

Two Post Lift Specifications

• Lifting Capacity: 10,000 lbs / 4,500 kg
• Max. Lifting Height: 70.8" / 1,800 mm
• Min. Height: 3.9" / 100 mm
• Height Overall: 110.9" / 2,818 mm
• Width Overall: 140.4" / 3,565 mm
• Outside Column Width: 124.8" / 3,170 mm
• Inside Column Width: 110.2" / 2,800 mm
• Drive-Thru Clearance: 98.4" / 2,500 mm
• Front Arm Reach (Min): 29.5" / 750 mm (2 stages)
• Front Arm Reach (Max): 46" / 1,170 mm (2 stages)
• Rear Arm Reach (Min): 35.4" / 900 mm (2 stages)
• Rear Arm Reach (Max): 58.2" / 1,480 mm (2 stages)
• Motor: 220VAC / 60Hz / 1PH / 2.2KW
• Net Weight: 570 kg

Warranty:

Limited One-Year Warranty:
Katool offers a 12-month warranty on all parts and against product defects, ensuring the longevity of your lift.

Extended Warranty Available:
A 2-year extended warranty is available for all Katool or M&E automotive equipment.

Warranty Includes:

• Covers cylinders, power units, motors, displays, electronics, and more.

• Vehicle lifts also come with an additional three-year warranty on structural components.

Warranty Conditions:

• Claims must be made within the warranty period.

• Warranty is non-transferable and requires the original order number and purchase from a registered vendor.

• Replacement parts are provided at no cost, including free shipping.

• Labor costs are not covered under the warranty.

Additional Resources:

For more information, download the product manual:

• Download Manual (PDF)

Maximize efficiency and safety with the Katool KT-H105 Two Post Vehicle Lift, the ideal solution for lifting vehicles up to 10,000lbs with ease and reliability.
