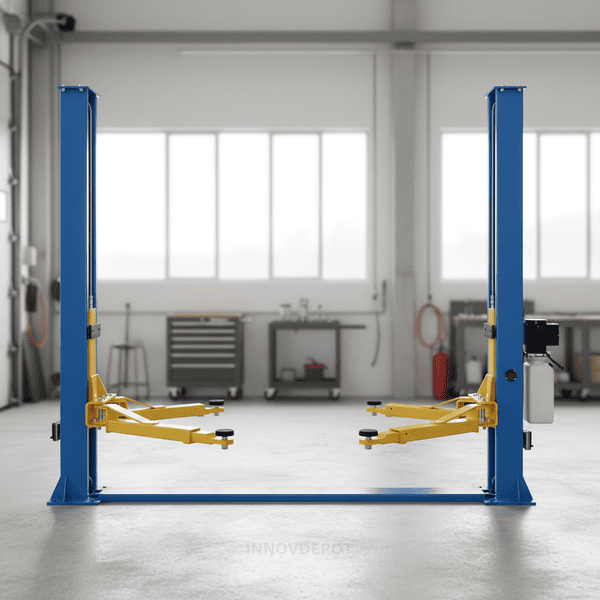

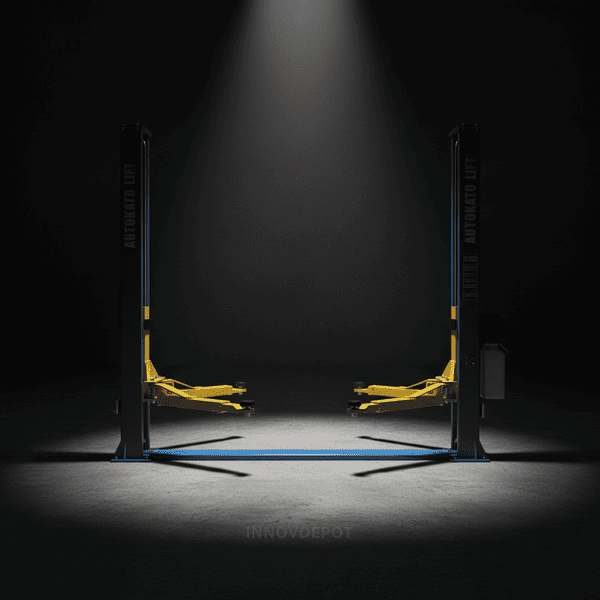

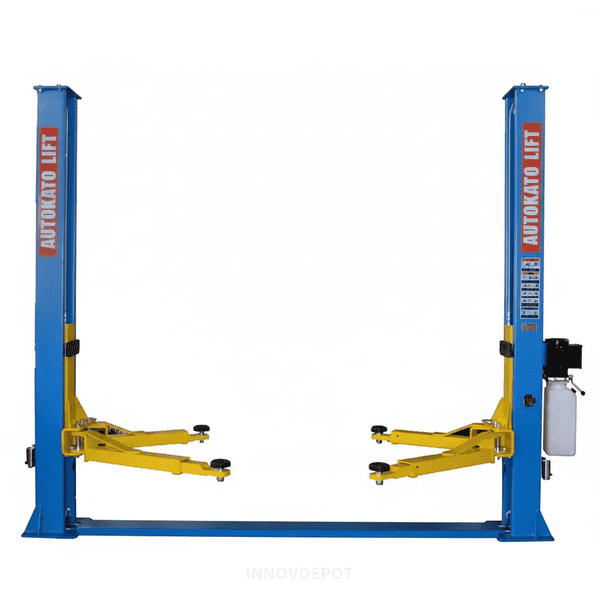

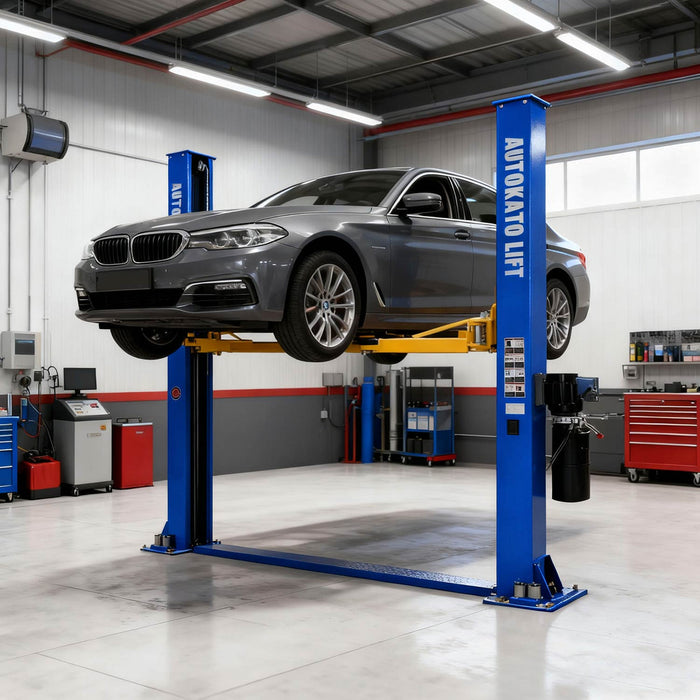

Katool KT-H105 Two Post Car Lift – 10,000 lb Capacity
The Katool KT-H105 Two Post Car Lift is a professional-grade 2 post car lift engineered for automotive repair shops and serious home garages that require dependable lifting power and long-term durability. With a 10,000 lb lifting capacity and CE certification, this car hoist for garage use is built for safe, daily operation on cars, SUVs, and light-duty trucks.
Tested to 115% dynamic load and 150% static load capacity, the KT-H105 meets rigorous safety standards. Its dual hydraulic chain-drive cylinders provide smooth, controlled lifting, while the base plate design allows installation in facilities with lower ceiling heights compared to overhead models.

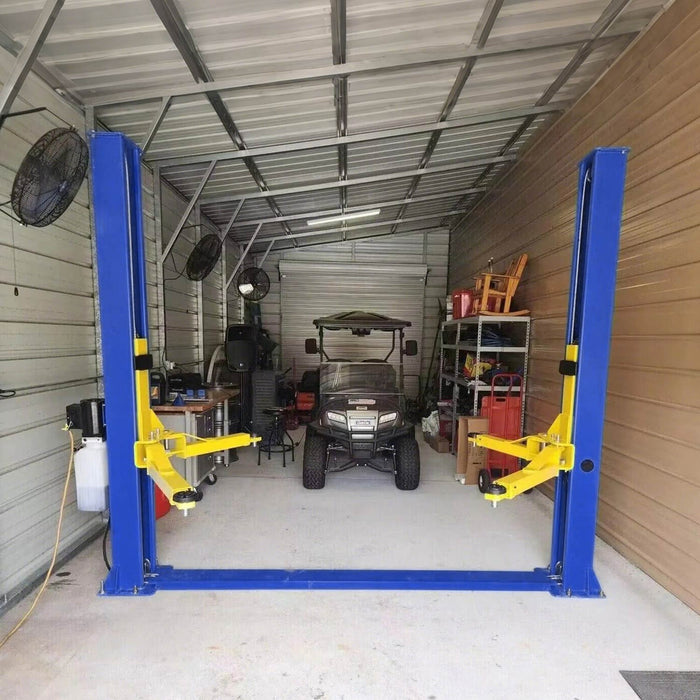

If you need a reliable vehicle lift for professional automotive shop environments or a properly prepared residential garage, the KT-H105 delivers consistent performance and structural integrity.

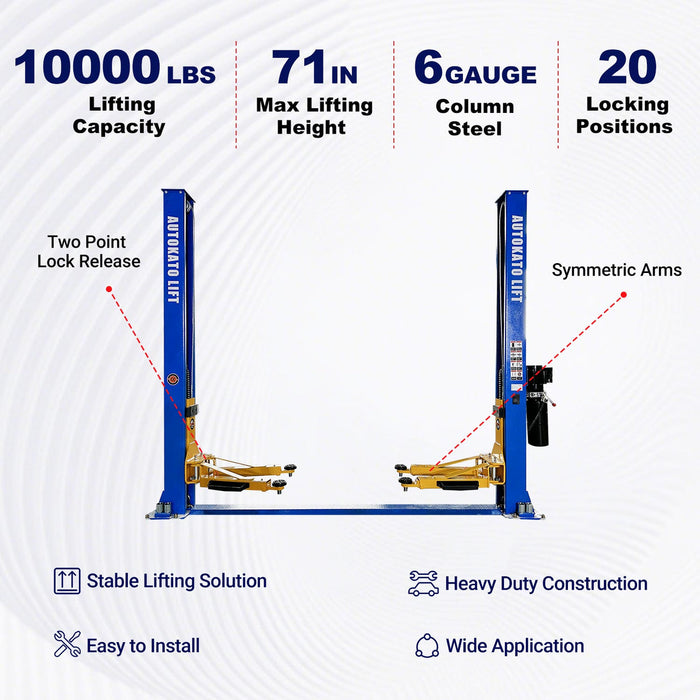

Why Choose the Katool KT-H105 Two Post Lift
-
10,000 lb capacity 2 post car lift for cars, SUVs, and light trucks
-
CE Approved and certified with overload testing
-

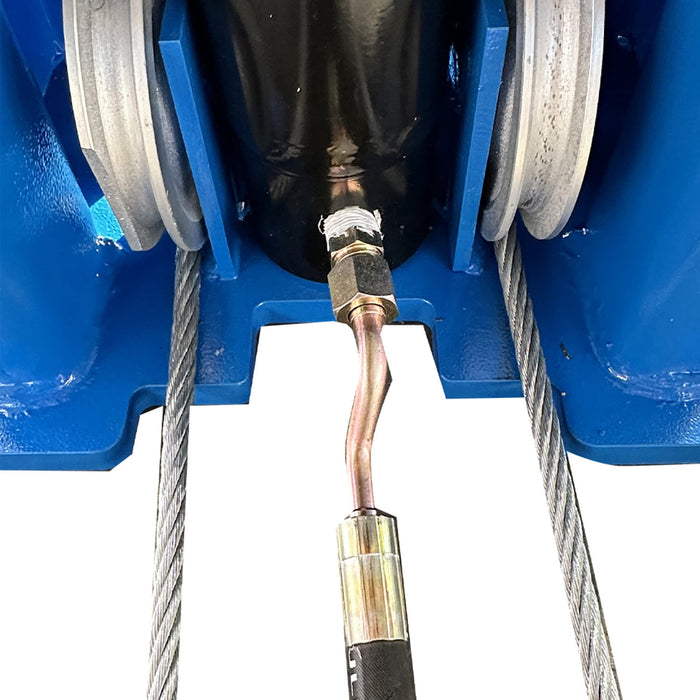

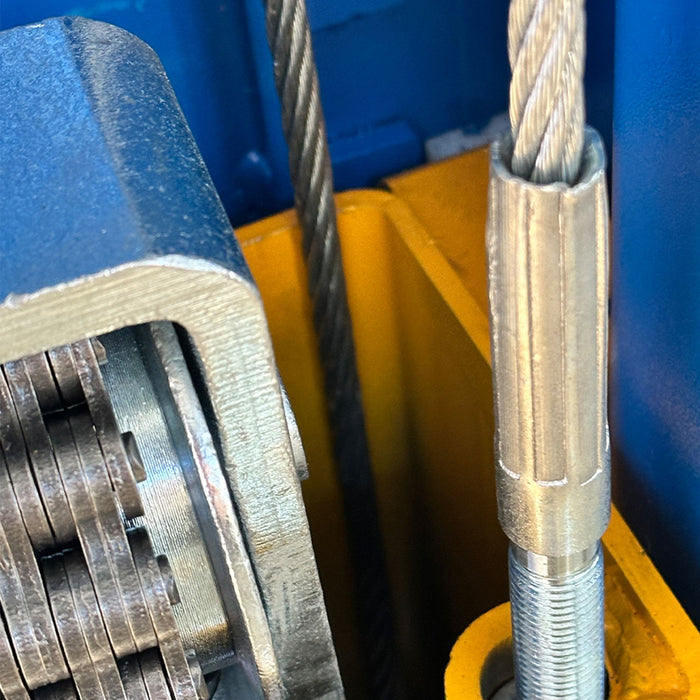

Dual hydraulic chain-drive cylinders for balanced lifting
-
Base plate design ideal for standard-height garages
-
Manual safety release from both sides
-
Rubber pad door opening protection to reduce vehicle damage
-

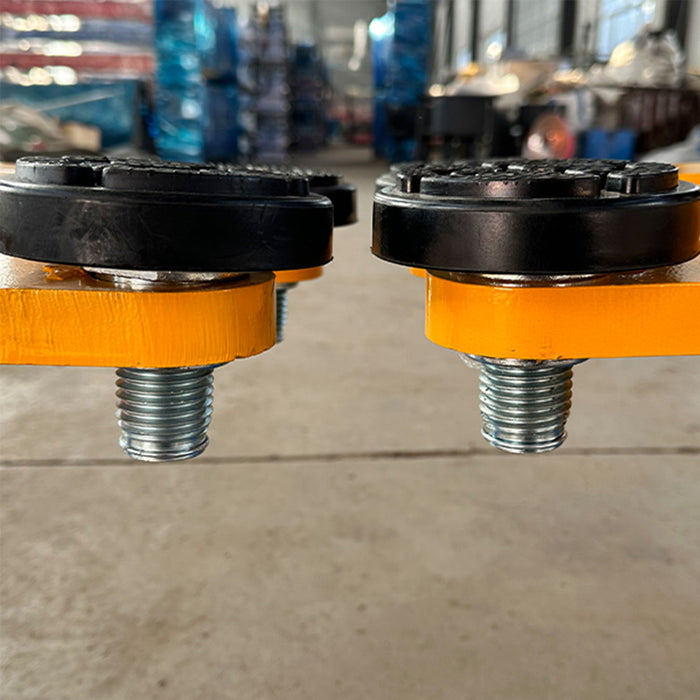

Adjustable screw-on pads with +100mm extension adaptors
-
Designed for heavy-duty use in professional automotive shops
Key Features
-
Dual Hydraulic Cylinders – Provides synchronized, stable lifting performance
-
Manual Dual-Side Safety Release – Easy and controlled lowering
-
Base Plate Configuration – Suitable for garages with limited overhead clearance
-

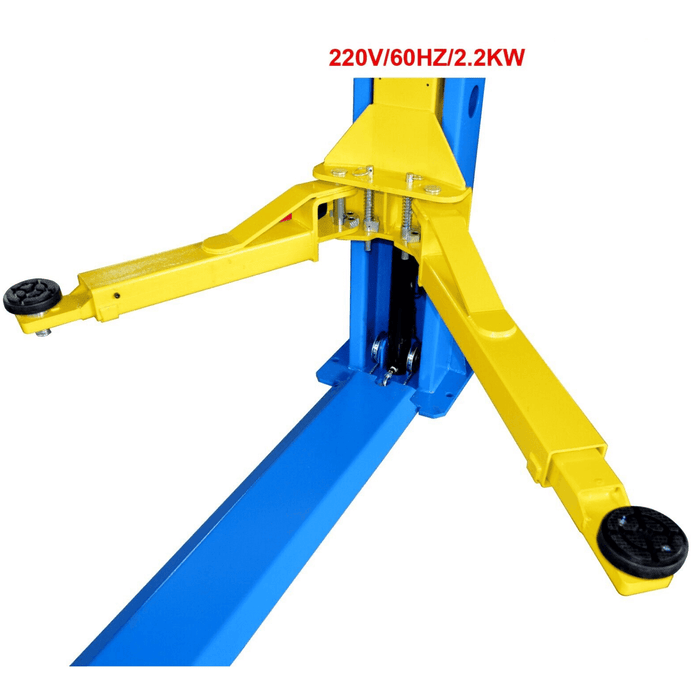

Adjustable Two-Stage Arms – Flexible positioning for various wheelbases
-
Rubber Door Protection Pads – Helps protect vehicle finishes
-

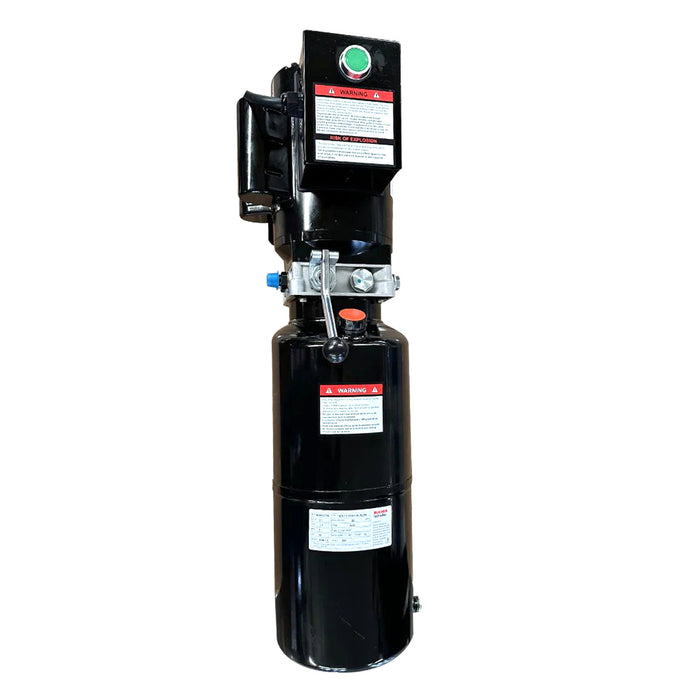

220V Single-Phase Motor – Reliable 2.2kW hydraulic power system
-
110V Option Available – Optional add-on configuration
Specifications
| Specification |
Details |
| Lifting Capacity |
10,000 lbs (4,500 kg) |
| Max Lifting Height |
70.8" (1800 mm) |
| Minimum Height |
3.9" (100 mm) |
| Overall Height |
110.9" (2818 mm) |
| Overall Width |
140.4" (3565 mm) |
| Drive-Thru Clearance |
98.4" (2500 mm) |
| Outside Column Width |
124.8" (3170 mm) |
| Inside Column Width |
110.2" (2800 mm) |
| Front Arm Reach |
29.5"–46" (2 stage) |
| Rear Arm Reach |
35.4"–58.2" (2 stage) |
| Motor |
220V / 60Hz / 1PH / 2.2kW |
| Net Weight |
570 kg |
Installation Requirements (Important)
-
Concrete thickness must be at least 5.9 inches (150mm)
-
Concrete strength must be minimum 3,000 PSI
-
Improper installation can result in serious injury or equipment failure
-
Customer is responsible for verifying concrete thickness and PSI before purchase
-
Professional installation is strongly recommended
Freight shipping available within the lower 48 states. Buyer is responsible for unloading.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on lift structure
-
Free shipping on approved warranty replacement parts
-
Labor not included
-
Warranty requires proof of purchase and is non-transferable
Bottom Line
The Katool KT-H105 is a dependable 10,000 lb two post vehicle lift built for shops that need safe lifting performance without unnecessary complexity. With certified load testing, hydraulic reliability, and adjustable arm flexibility, it’s a strong fit for professional automotive environments and properly prepared garage installations.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
