Katool KT-AV9 Full-Auto Wheel Alignment Machine Lift

Upgrade Your Shop with the Katool KT-AV9 Full-Auto 3D Wheel Alignment Machine – Compatible with 2-Post & Scissor Lifts

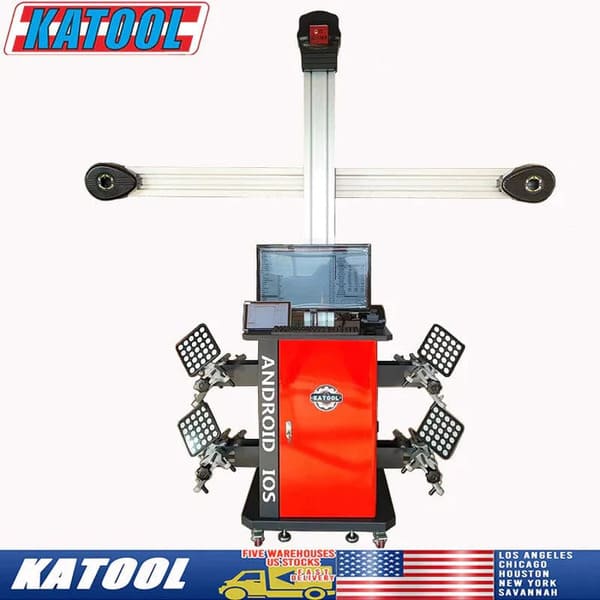

The Katool KT-AV9 Full-Automatic 3D Wheel Alignment Machine is engineered to provide a seamless and highly efficient experience for 2-Post and Scissor Lifts.
Offering unlimited memory for vehicle specifications and no calibration required during installation, the KT-AV9 significantly streamlines your alignment operations.

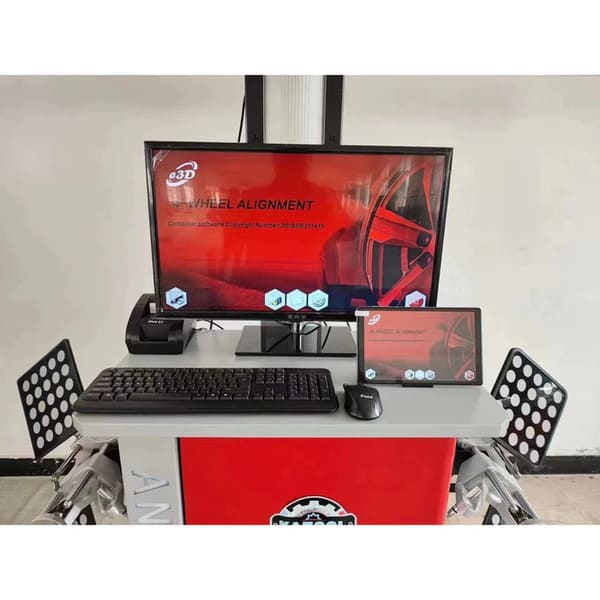

This all-inclusive system comes equipped with a tablet, 30-inch display screen, mouse, keypad, printer, and complementary WiFi device and USB drive for easy connectivity.

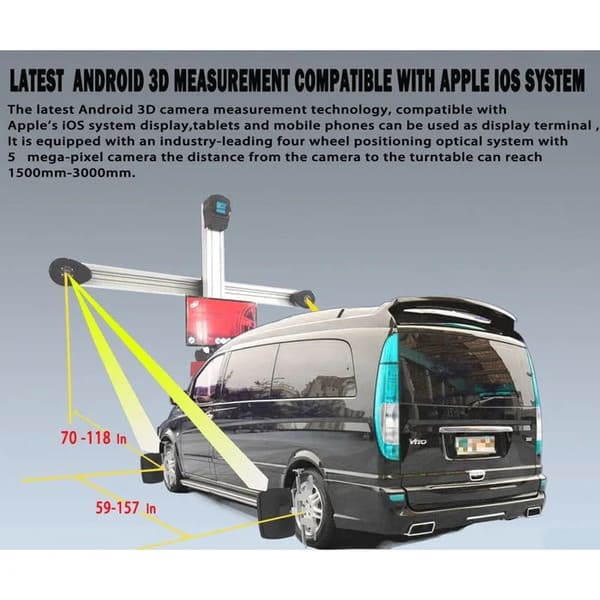

With software operating on both Android and iOS platforms, maintenance requirements are minimized while enhancing flexibility.

Through synchronous display on smartphones and tablets, customers can monitor their alignment service in real-time, and technicians can conveniently view rear wheel adjustments directly from a smart device.
The KT-AV9 features remote-controlled post movement, simplifying the process of tracking vehicle height adjustments.

Benefit from free yearly database upgrades, ensuring your system stays updated with the latest US, European, and Asian car models.

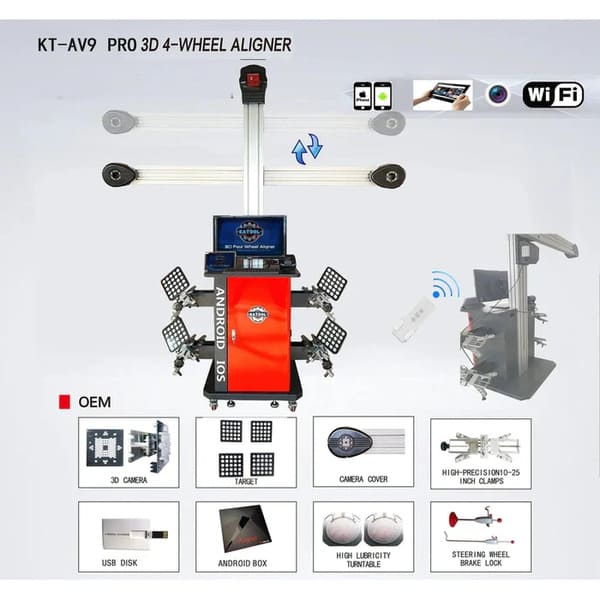

Full-auto Wheel Alignment Machine Features

• Mobile 3D Wheel Aligner for lift applications
• Unlimited memory for vehicle specifications
• No calibration needed during installation

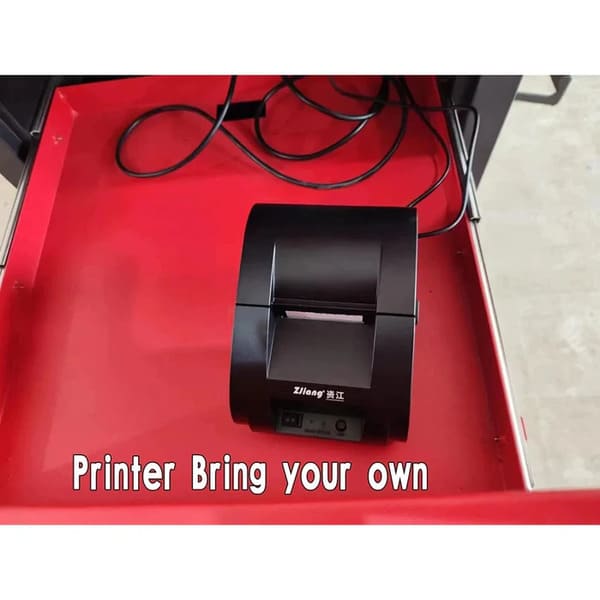

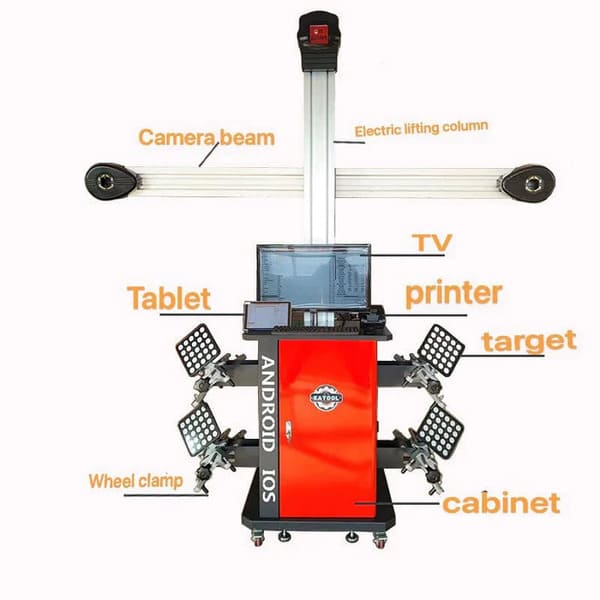

• Complete kit: Tablet, 30" display screen, mouse, keypad, and printer

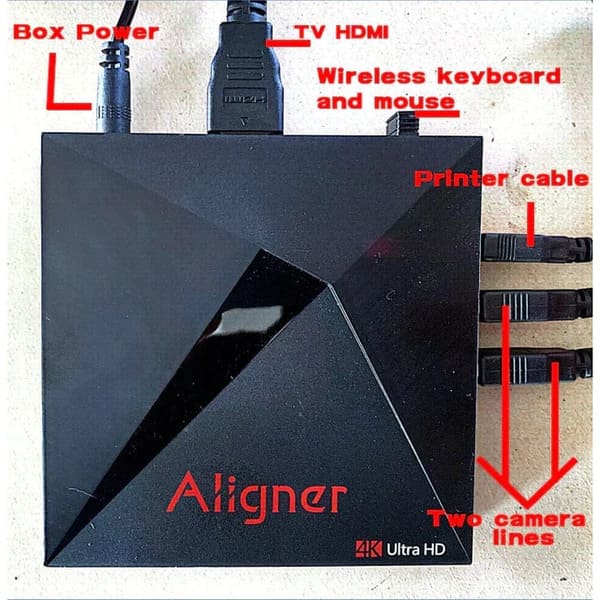

• WiFi device and USB drive included
• Android and iOS compatible software for reduced maintenance

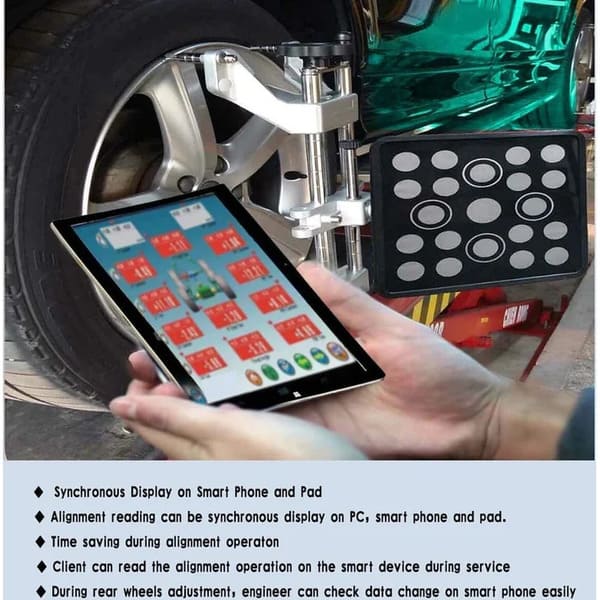

• Synchronous display on smartphones and tablets:
  • Clients can view alignment in real time
  • Engineers can easily track rear wheel adjustments on smart devices
• Remote-controlled post movement to easily track vehicle height changes
• Free yearly database updates with new vehicle models from around the world

Full-auto Wheel Alignment Machine Specifications

• Power Supply: 100–240V, 50/60 Hz, 1-Phase
• Working Temperature: 41°F–104°F (5°C–40°C)

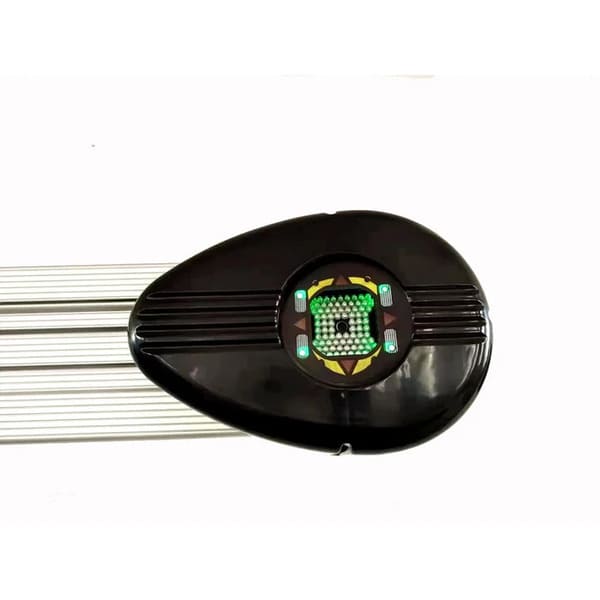

• Cameras: 2
• Tire Diameter: 9 27/32" – 31 1/2" (250–800 mm)
• Wheelbase Range: 62 63/64" – 82 43/64" (1.6–2.1 m)
• Track Width Range: 70 55/64" – 177 11/64" (1.8–4.5 m)
• Product Weight: 440.92 lbs (200 kg)
• Shipping Weight: 529.11 lbs (240 kg)
• Shipping Dimensions:
  • 39.76" × 36.61" × 48.47" (1010 × 930 × 1230 mm)
  • 110.24" × 15.75" × 15.75" (2800 × 400 × 400 mm)

Warranty

• Katool provides a limited one-year (12 months) warranty covering parts and defects at no additional cost.
• An optional 2-year extended warranty is also available for Katool and M&E automotive equipment.

Warranty Coverage:

• Cylinders, power units, motors, displays, electronics, etc.
• Vehicle lifts include an extra three-year (36 months) warranty on structural components

Conditions:

• Warranty is non-transferable and requires proof of purchase
• Free replacement parts and free shipping for approved claims
• Labor is not covered under warranty
• Claims require approval, and photos/videos of defects may be requested
• Do not disassemble equipment before a warranty evaluation

Resources

For additional setup and operation details:
👉 [Download Manual (PDF)]
