Katool KT-AV651 Wheel Alignment Machine Works on 2 Post & Scissor Lift

Katool KT-AV651 Mobile 3D Wheel Alignment Machine for 2-Post & Scissor Lifts

Description

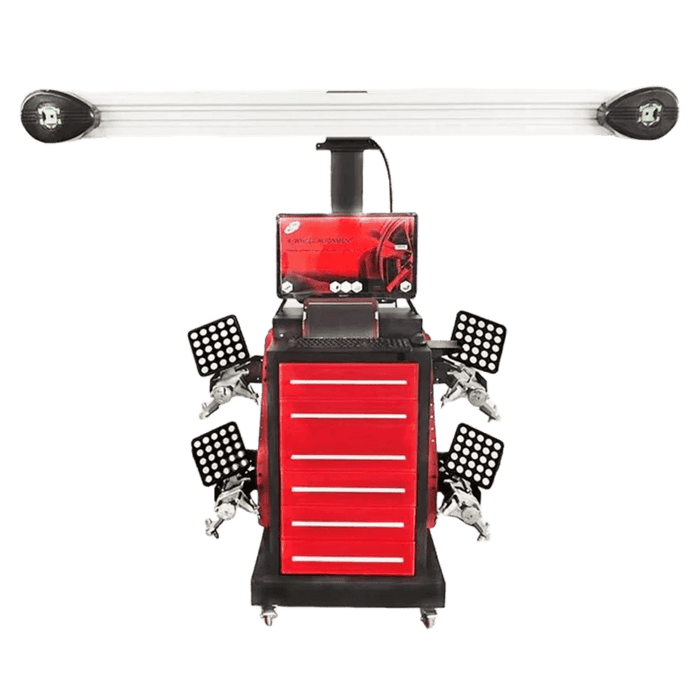

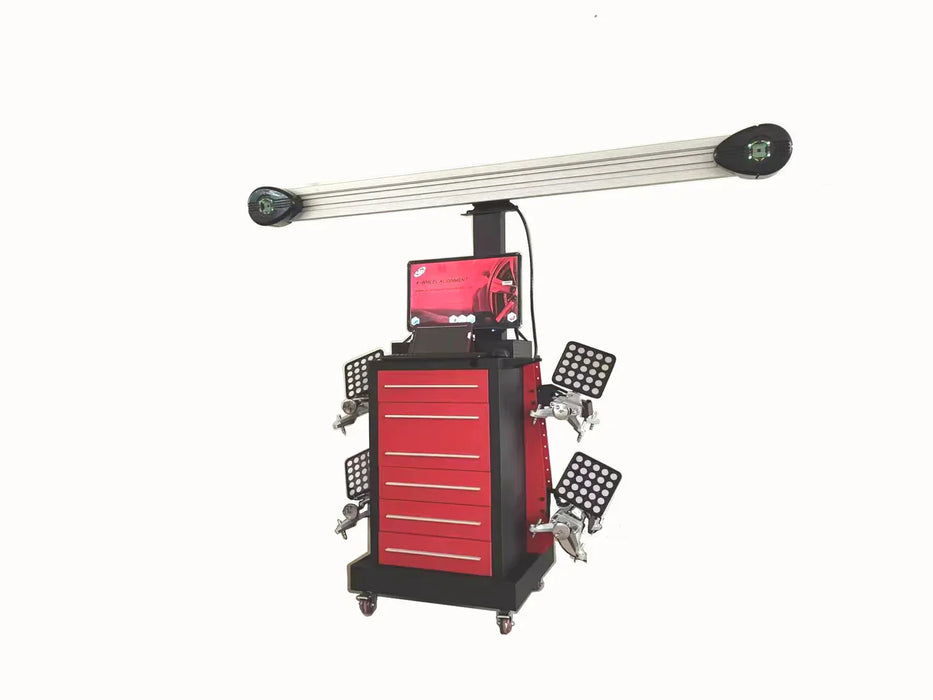

The Katool KT-AV651 Mobile 3D Wheel Alignment Machine delivers advanced, user-friendly technology specifically for use with 2-Post and Scissor Lifts.
Designed to maximize convenience and productivity, the KT-AV651 features unlimited vehicle specification memory and requires no calibration during setup, speeding up installation and use.

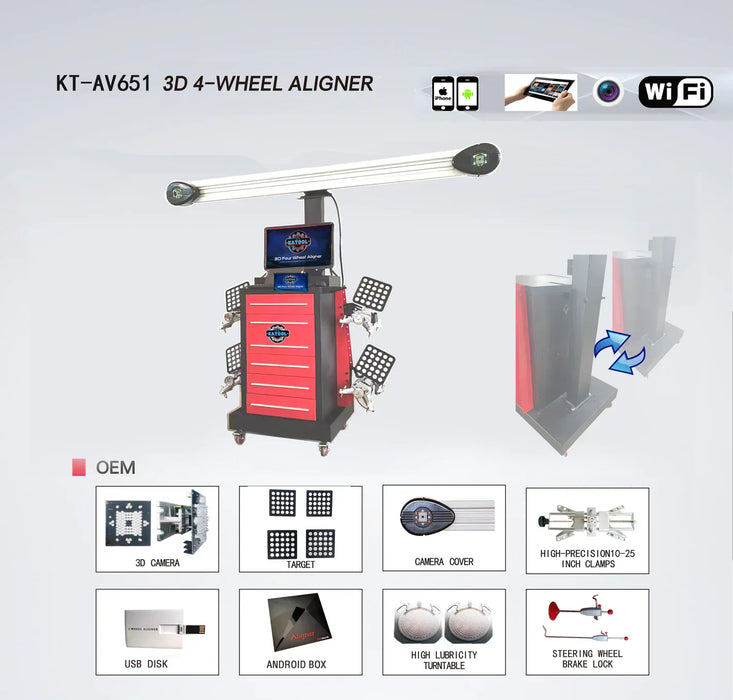

Included in the package are a tablet, 30-inch display screen, mouse, keypad, printer, plus a WiFi device and USB drive for complete connectivity.
Operating seamlessly on Android and iOS systems, it minimizes maintenance needs and ensures your shop stays current.

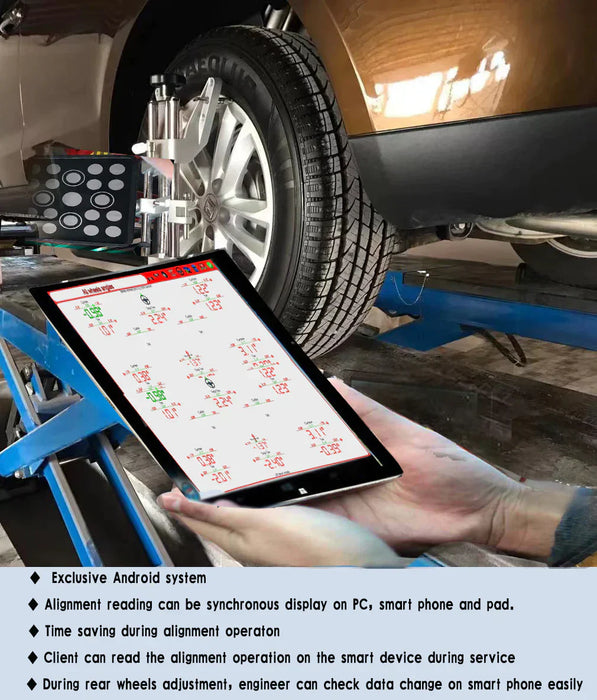

Enjoy synchronous display on smartphones and tablets:
Clients can monitor live alignment results during service, and technicians can quickly track rear wheel adjustments directly from a smartphone.
The manual post movement provides flexibility during operation.
Additionally, receive free yearly database upgrades that keep you updated with the latest US, European, and Asian vehicle models.

Features

• Mobile 3D Wheel Aligner for lift applications

• Unlimited memory for storing vehicle specifications

• No calibration required for installation

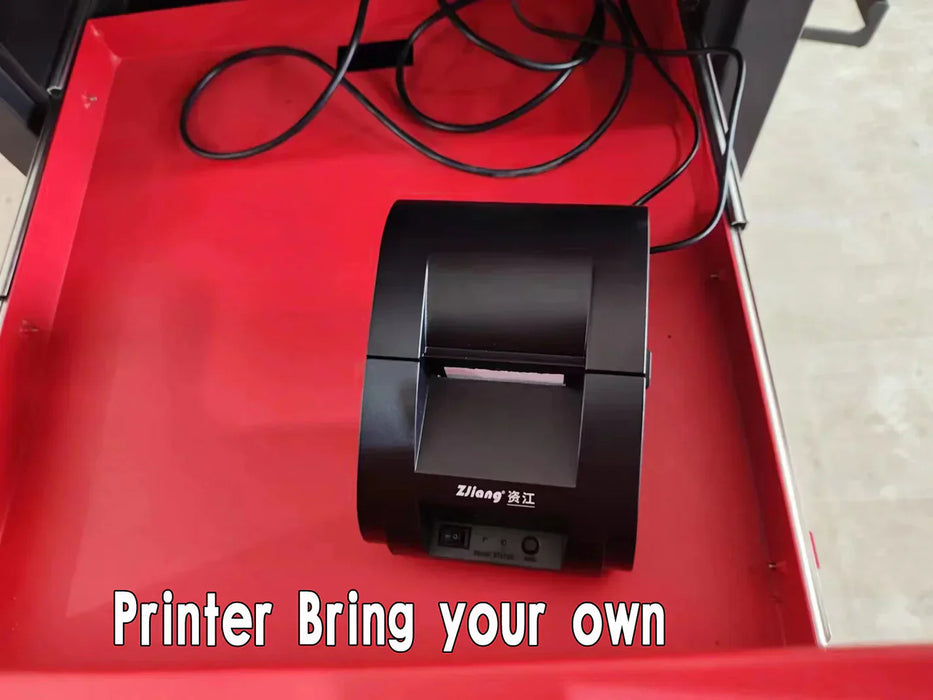

• Complete package: Tablet, 30" display, mouse, keypad, and printer

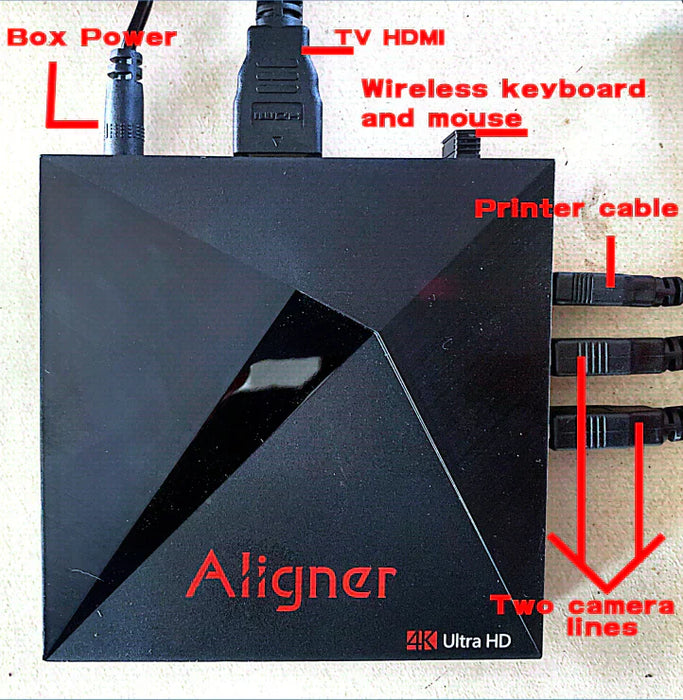

• Includes WiFi device and USB drive for enhanced connectivity

• Software compatible with Android and iOS devices

• Synchronous display on smartphones and tablets:

  • Clients can monitor alignment in real time

  • Engineers can view rear wheel adjustments directly on a smart device

• Manual post movement for additional flexibility

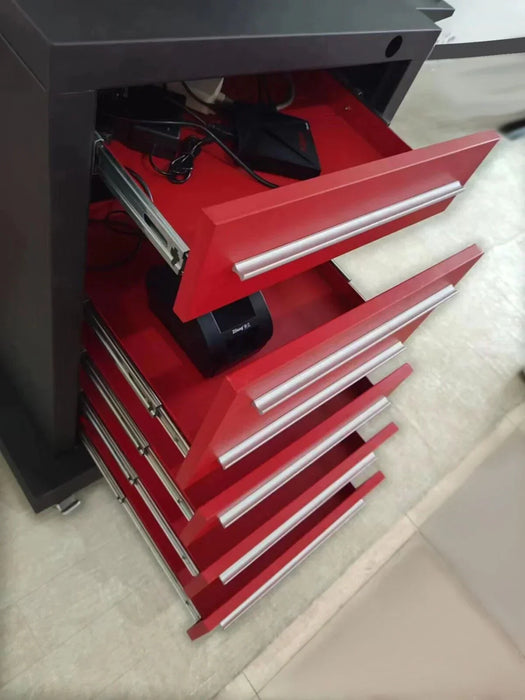

• Compact and organized design

• Free yearly database updates with the latest vehicle models

Specifications

• Power Supply: 100–240V, 50/60 Hz, 1-Phase

• Working Temperature: 41°F–104°F (5°C–40°C)

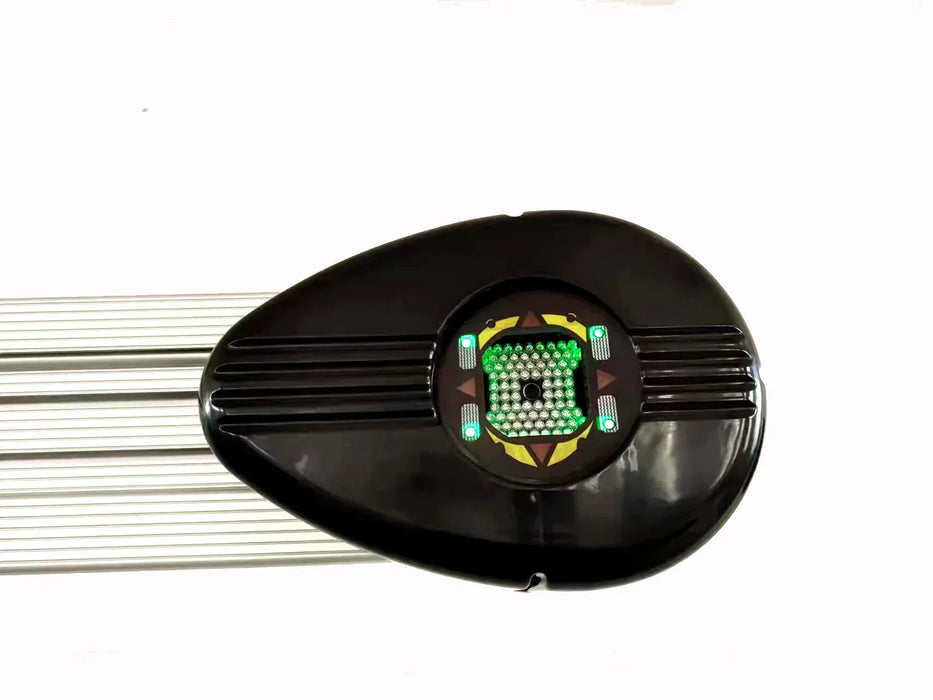

• Cameras: 2

• Tire Diameter: 9 27/32" – 31 1/2" (250–800 mm)

• Wheelbase Range: 62 63/64" – 82 43/64" (1.6–2.1 m)

• Track Width Range: 70 55/64" – 177 11/64" (1.8–4.5 m)

• Product Weight: 440.92 lbs (200 kg)

• Shipping Weight: 529.11 lbs (240 kg)

• Shipping Dimensions:

  • 29.92" × 48.03" × 47.24" (760 × 1220 × 1200 mm)

  • 110.24" × 12.6" × 15.75" (2800 × 320 × 400 mm)

Warranty

Katool provides a limited one-year (12 months) warranty covering all parts and defects free of charge.
A 2-year extended warranty option is available for Katool and M&E automotive equipment.

Warranty Coverage:

• Cylinders, power units, motors, displays, electronics

• Vehicle lifts include an extra three-year (36 months) warranty on structural components

Conditions:

• Warranty is non-transferable and requires proof of purchase

• Replacement parts and shipping are free within the warranty period

• Labor costs are not included

• Warranty claims require prior approval and may request photos/videos for verification
