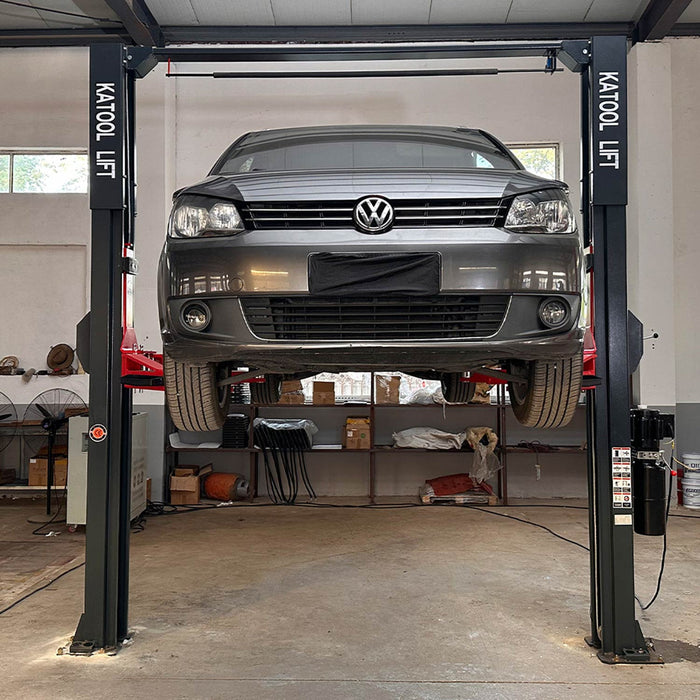

Katool KT-AS110D Two Post Asymmetrical Lift – 11,000 lb Capacity
The Katool KT-AS110D is a professional-grade 2 post car lift designed for automotive repair shops and serious home garages that require greater lifting flexibility and improved door clearance. With an 11,000 lb lifting capacity, this asymmetrical car hoist for garage and commercial use is built to safely lift passenger vehicles, SUVs, and light trucks.

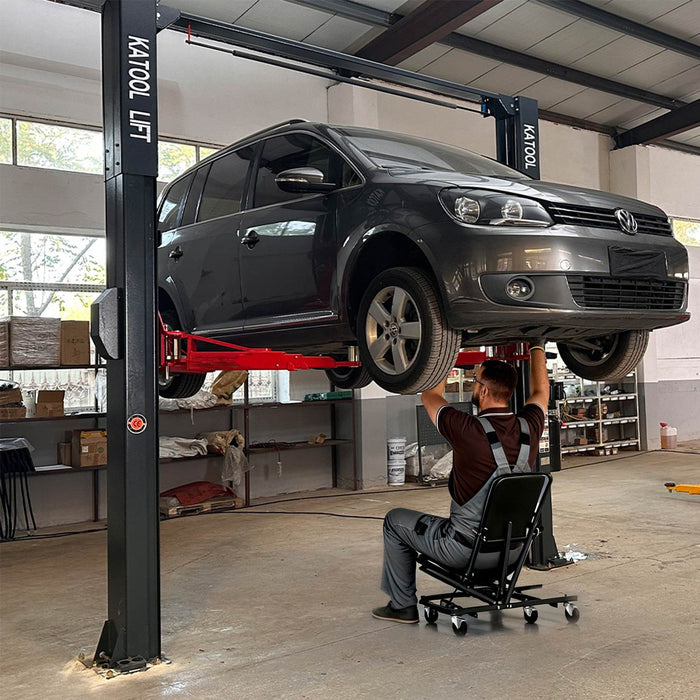

CE approved and tested to 115% dynamic and 150% static load standards, the KT-AS110D is engineered for daily heavy-duty use. Its asymmetrical arm configuration allows vehicles to be positioned further back, improving door swing clearance and technician access—especially valuable in high-volume service bays.
Built with direct-drive hydraulic cylinders, a single-point lock release, and an overhead safety shutoff bar, this lift combines safety, strength, and workflow efficiency.
Why Choose the Katool KT-AS110D Two Post Lift
-
11,000 lb 2 post car lift for trucks and SUVs
-
Asymmetrical arms for improved door and cabin access
-
Single-point lock release for simplified operation
-
Direct-drive hydraulic cylinders for smoother lifting
-
CE approved with 115% dynamic & 150% static load testing
-
Overhead shutoff bar for added operator safety
-
Adjustable extension adaptors included (3.94"–6")
-
Ideal for professional automotive shop and heavy-duty use

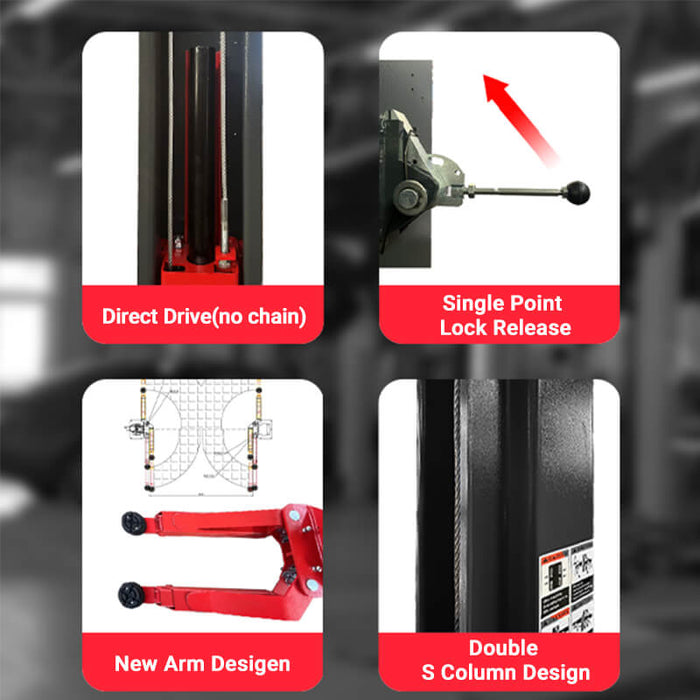

Key Features
-

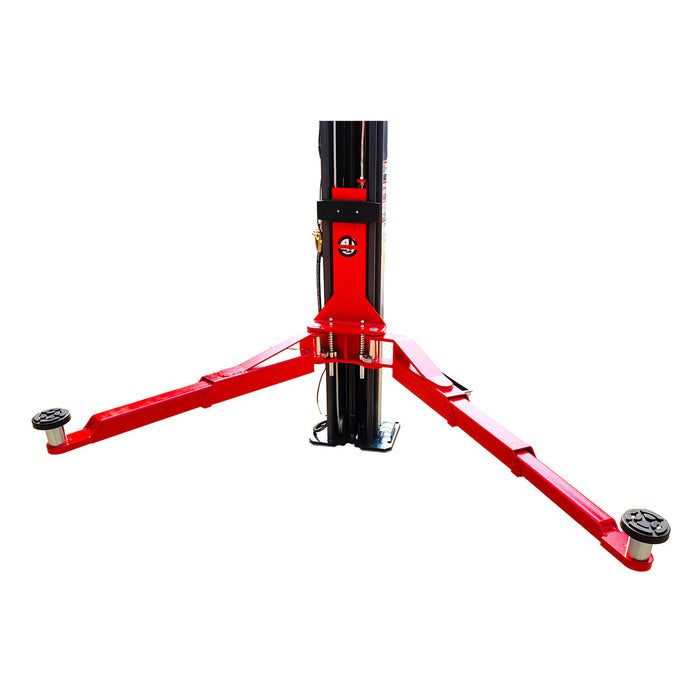

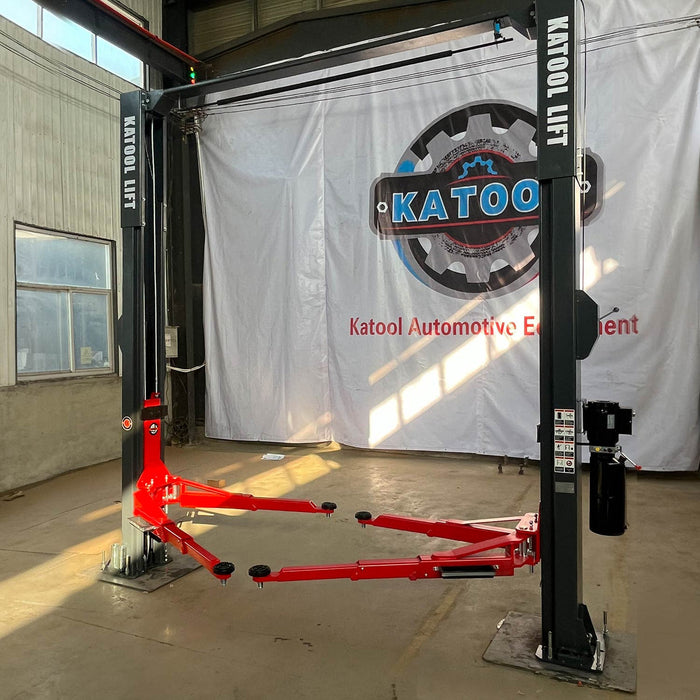

Asymmetrical Arm Design – Allows better door opening clearance and interior access
-

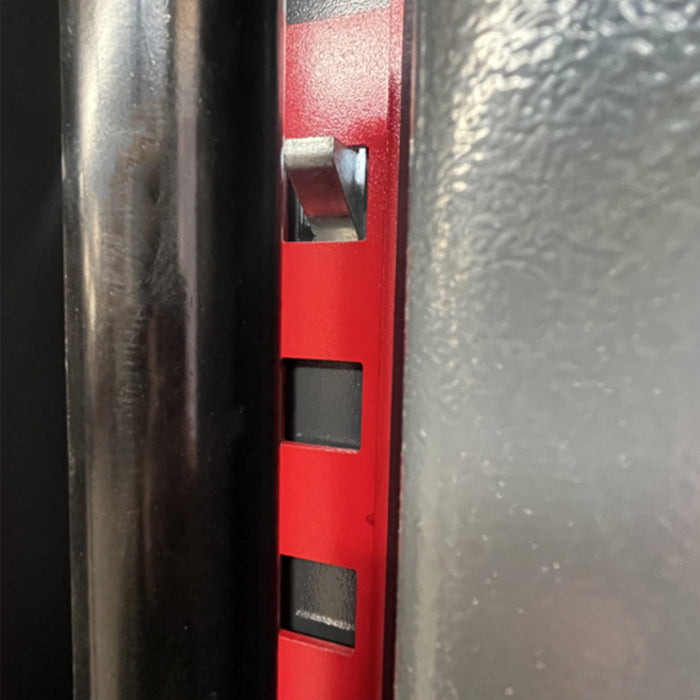

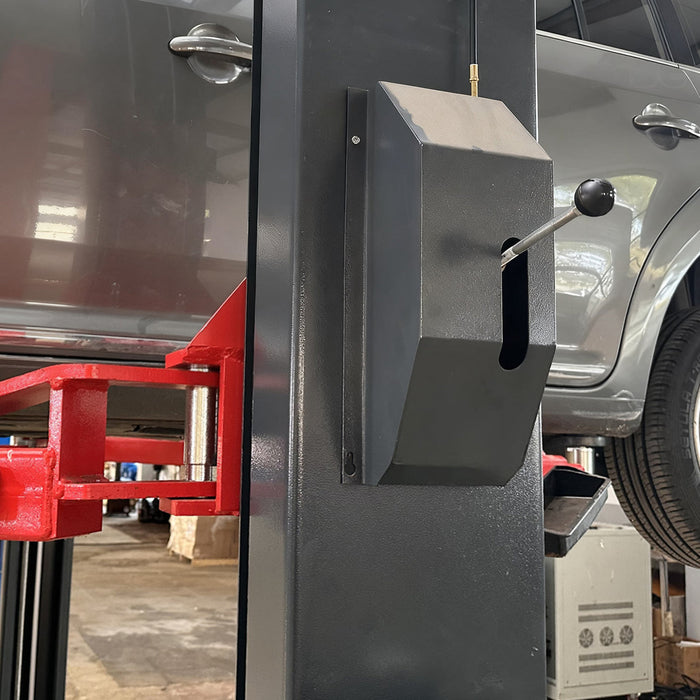

Single-Point Safety Lock Release – Controlled lowering from one centralized position
-

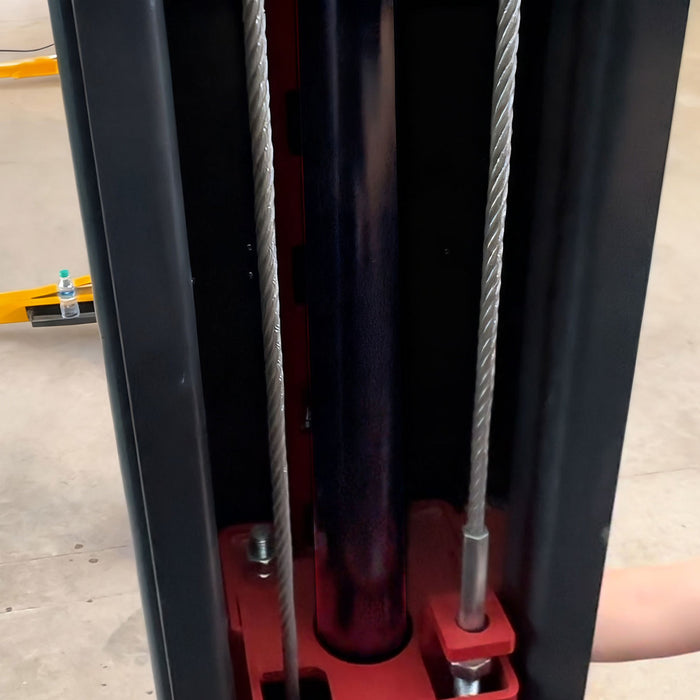

Direct-Drive Cylinders – Fewer moving parts for consistent hydraulic performance
-
Overhead Safety Shutoff Bar – Automatically stops lift if obstruction is detected
-
Rubber Door Protection Pads – Helps prevent vehicle door damage during service
-

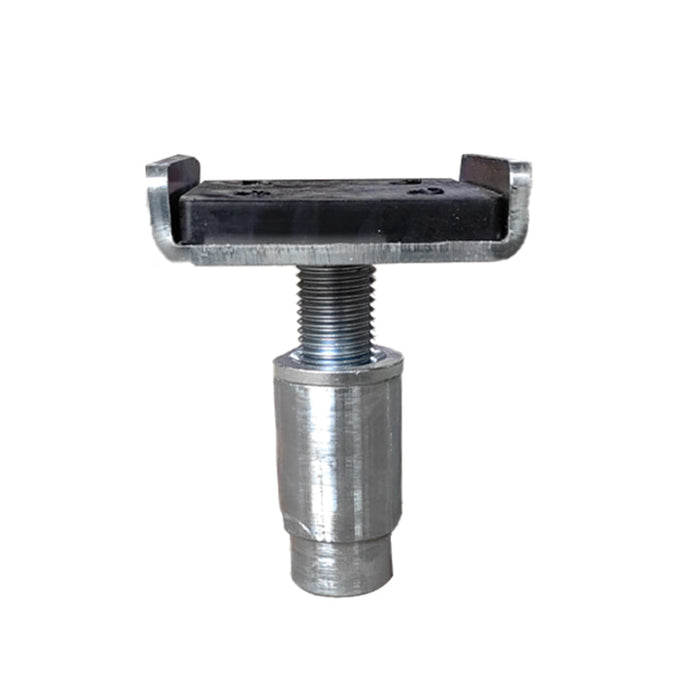

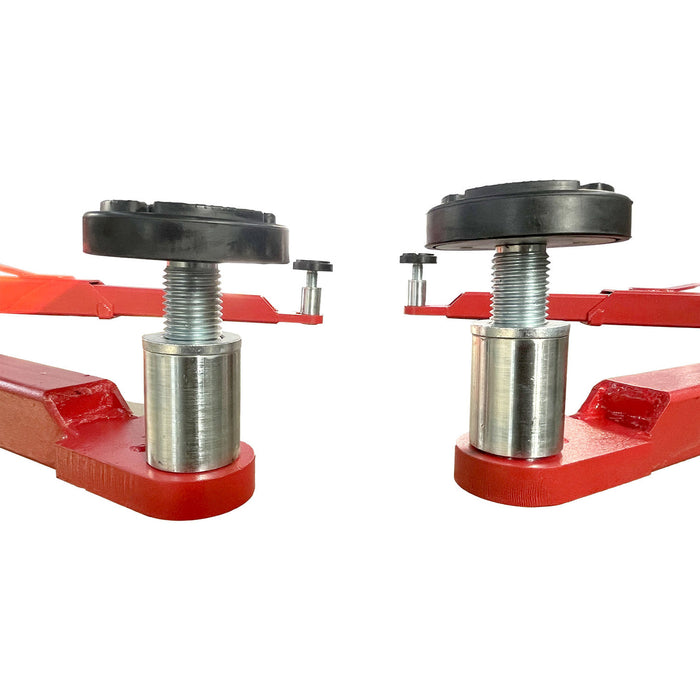

Adjustable Extension Adapters – Accommodates various frame heights and lift points
-

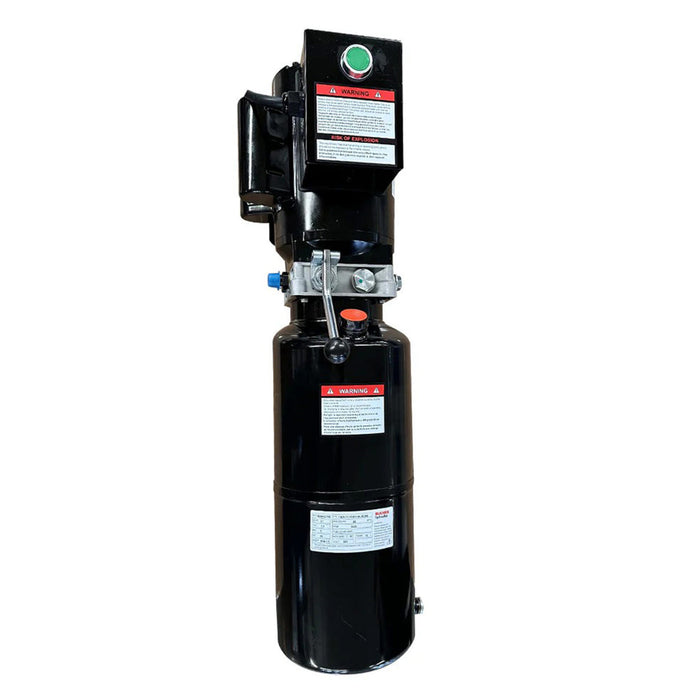

High-Quality Hydraulic System – 220V / 60Hz / 1PH (110V optional)
Specifications
| Specification |
Details |
| Lifting Capacity |
11,000 lbs (4,990 kg) |
| Max Lifting Height |
70.75" (1800 mm) |
| Minimum Height |
3.74" (95 mm) |
| Overall Height |
141.25" (3587 mm) |
| Overall Width |
134.65" (3420 mm) |
| Outside Column Width |
120.4" (3058 mm) |
| Inside Column Width |
109.37" (2778 mm) |
| Drive-Thru Clearance |
99.61" (2530 mm) |
| Motor |
220VAC / 60Hz / 1PH |
| Net Weight |
1323 lbs (600 kg) |
| Certification |
CE Approved |
Installation Requirements (Important)
-
Concrete thickness must be minimum 5.9 inches (150 mm)
-
Concrete strength must be at least 3,000 PSI
-
Improper installation can result in serious injury or equipment failure
-
Buyer is responsible for verifying slab thickness and PSI prior to installation
-
Professional installation is strongly recommended
Freight shipping available within the lower 48 states. Forklift required for unloading unless terminal pickup is arranged.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on lift structure
-
Optional 2-Year Extended Warranty available
-
Free shipping on approved replacement parts
-
Labor not included
-
Warranty claims require proof of purchase and approval
Bottom Line
The Katool KT-AS110D 11,000 lb asymmetrical two post lift is built for shops that need improved door clearance, single-point safety operation, and dependable hydraulic performance. It delivers the strength of a commercial vehicle hoist with the flexibility modern service bays demand.
