✓ Includes caster kit, two drip trays and a jack tray—no extra purchase required. ✓ No Sales Tax Outside NY ✓ Free Pickup from US Warehouse ✓ Talk to a Lift Specialist - (866) 412-1837 ✓ Military Discount for Veterans ✓ Want a Better Price? Pay by Wire - Click here to Request a Discount
Want today's Katool prices but not ready for delivery?
No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

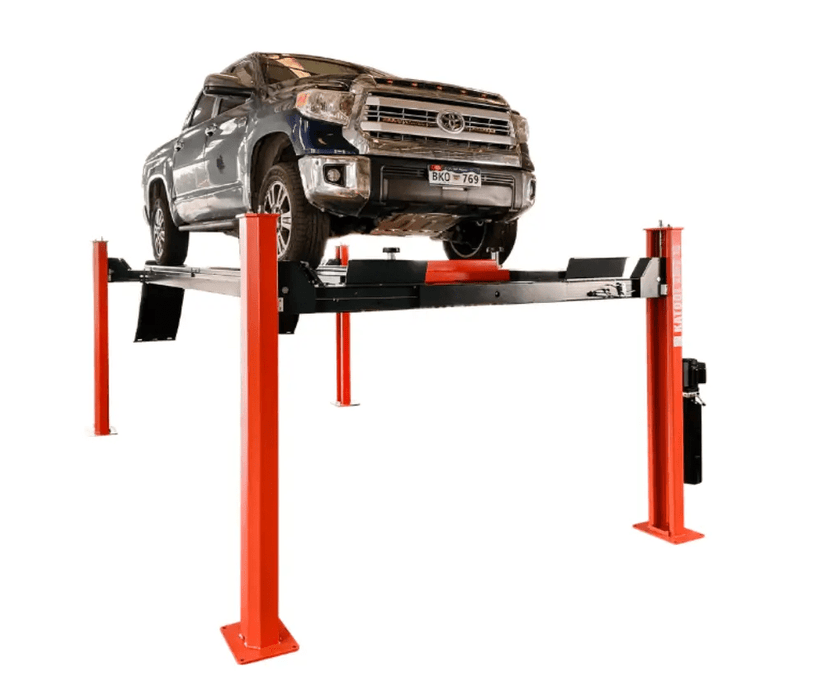

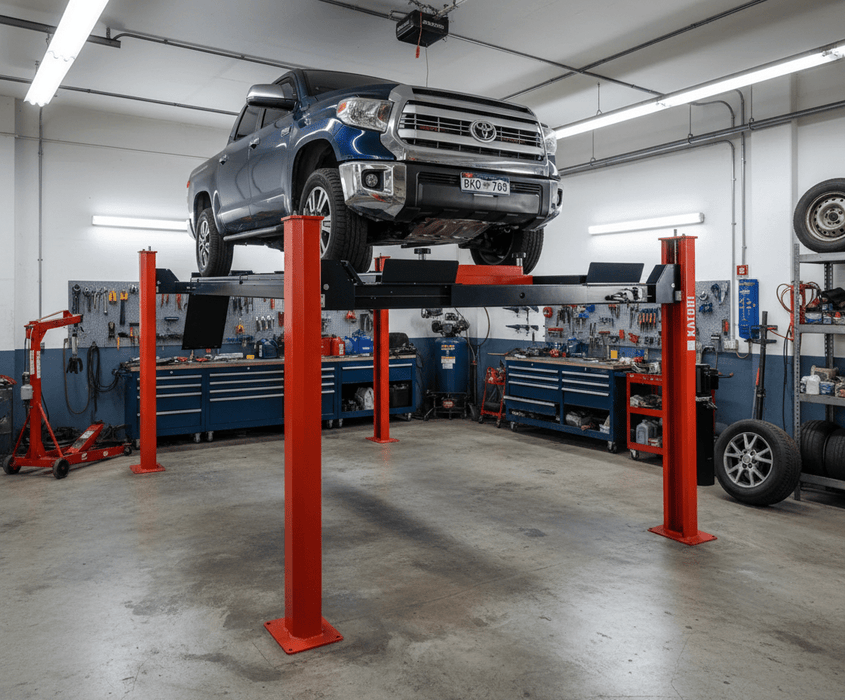

The Best Heavy-Duty 4-Post Lift… Meet the Katool KT-4H150 (15,000 lbs of Pure Strength)
Overview
If you service large trucks, vans, duallys, or commercial vehicles, you already know the frustration: most lifts aren’t built to handle real weight safely or efficiently. The Katool KT-4H150 solves that problem with 15,000 lbs of certified lifting capacity, advanced safety engineering, and a design built for serious garages and professional shops.
Tested to 115% dynamic and 150% static load standards, the KT-4H150 delivers industrial-grade stability you can trust. Multiple mechanical locks, a single-point manual safety release, and redundant column lockouts ensure maximum protection during repairs, storage, or inspections.
The included Rolling Jack opens the door to full wheel service, and the lift’s non-skid diamond-plate runways provide secure traction—even in wet conditions. With flexible power-column placement, the KT-4H150 adapts to your workspace instead of forcing you to redesign it.
⚠️ Important: The KT-4H150 requires concrete that is at least 3.93" thick and rated at 3000 PSI or higher. Failure to meet these requirements may lead to equipment failure or serious injury. Always confirm slab conditions before installation.

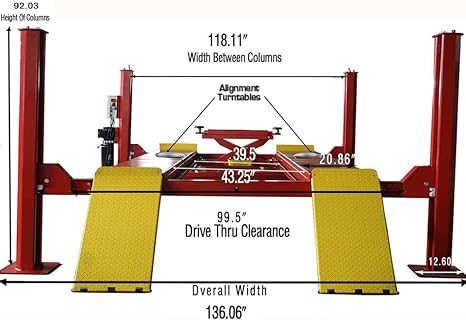

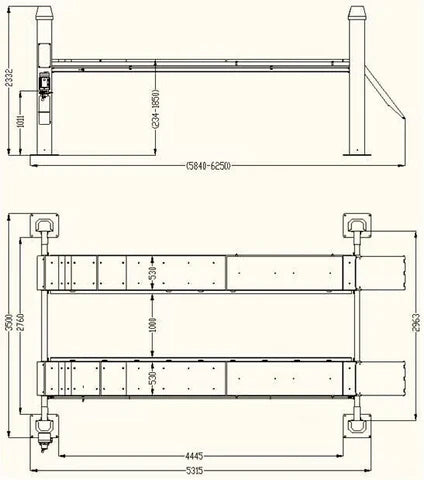

Specifications
Feature
Details
Lifting Capacity
15,000 lbs
Max Lifting Height
75"
Post Height
86"
Overall Width
136"
Length With Ramps
245"
Length Without Ramps
208"
Inside Columns
118"
Inside Runways
43"
Min. Runway Height
9"
Pad Size
14.56" × 17.12"
Lock Positions
Every 4.7" (12 total)
Power
220V / 60Hz / 1PH
Hydraulic Oil
AW-46 (or AW-32 for cold climates)
Shipping Dimensions
• Lift: 4057 lbs — 200×27×33 in • Pump: 441 lbs — 40×24×15 in • Ramps (x2): 66 lbs — 47×20×12 in • Rolling Jack: 330 lbs — 46×25×13 in
Key Features
15,000 lbs Lifting Capacity: Perfect for heavy-duty vehicles.
CE Approved and Certified: Exceeds industry-standard load testing.
Single-Point Manual Safety Lock Release: Simplified and secure operations.

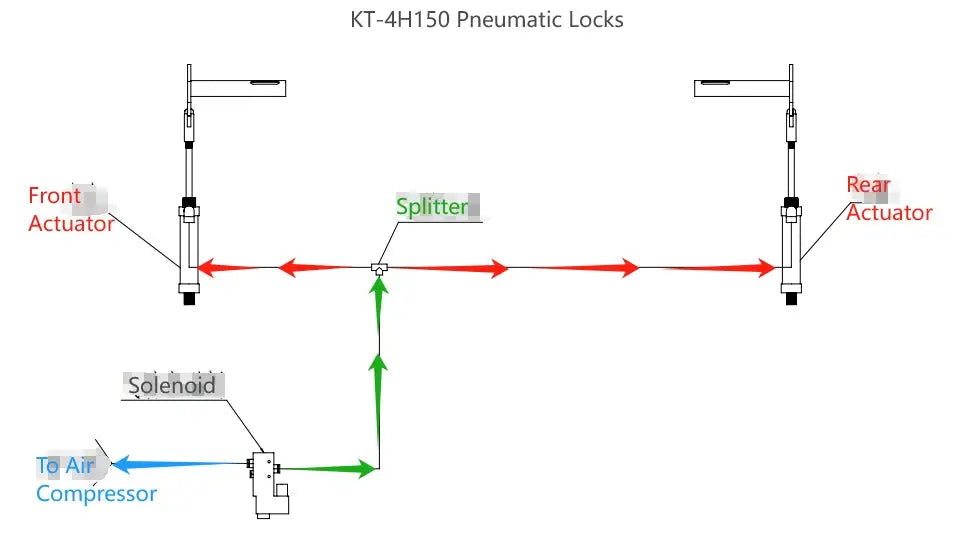

Four Mechanical Locking Devices: Each with primary and secondary safety locks for extra protection.
Powerside Column: Allows flexible installation on either side, front, or rear.
Non-Skid Diamond Platforms: Ensures vehicle stability during lifts.
Included 6,000 lbs Rolling Jack: Expands functionality for additional lifting needs.
Failure to meet these standards may result in equipment damage or safety hazards.
Pickup Locations (U.S. Warehouses)
• Azuza, CA 91702 • Brookshire, TX 77423 • City of Industry, CA 91744 • Deer Park, TX 77536 • Kalamazoo, MI 49048 • Linden, NJ 07036 • Pooler, GA 31322 • Romeoville, IL 60446
User Manual
For full installation instructions, safety guidelines, and operation procedures, please refer to the [Katool KT-4H150 User Manual]
