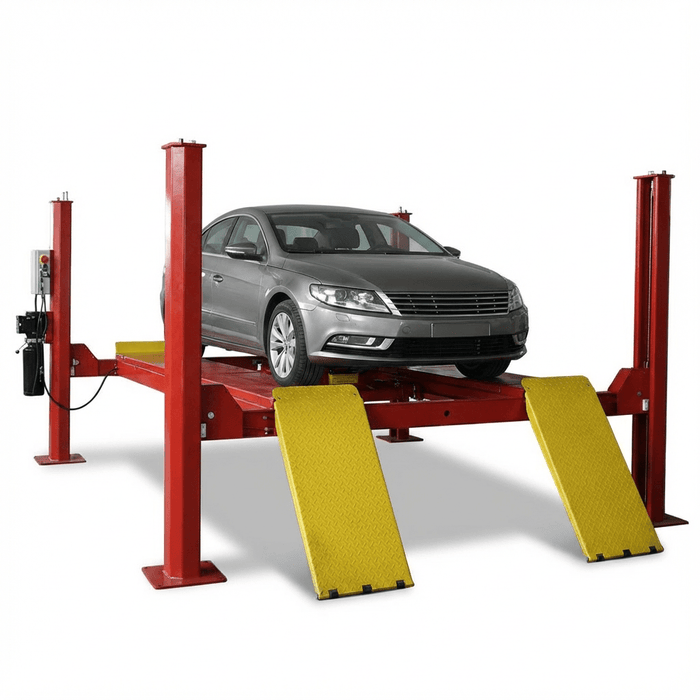

Katool KT-4H150 15,000 LB Four Post Car Lift – Heavy Duty Commercial Vehicle Lift

Katool KT-4H150 15,000 LB Four Post Car Lift

The Katool KT-4H150 Four Post Car Lift is a heavy-duty commercial vehicle lift engineered for large trucks, vans, duallys, and commercial vehicles. Designed for professional shops and serious garages, this Katool four post lift delivers exceptional strength, certified safety, and long-term reliability for demanding workloads.

With a 15,000 lb lifting capacity, the KT-4H150 is tested to 115% dynamic and 150% static load standards, ensuring industrial-grade stability you can trust. Multiple mechanical locking systems, a single-point manual safety release, and redundant column lockouts provide maximum protection during vehicle service, inspections, or storage.

The lift features non-skid diamond-plate runways for secure traction and includes a 6,000 lb rolling jack, enabling full wheel service without additional equipment. Flexible power-column placement allows installation on either side, front, or rear—making this four post car lift adaptable to a wide range of shop layouts.

⚠️ Important: Installation requires concrete at least 3.93 inches (100 mm) thick with a minimum 3,000 PSI rating. Failure to meet these requirements may result in serious injury or equipment failure. Always verify slab conditions before installation.

Key Features of the Katool KT-4H150

• 15,000 lb lifting capacity for heavy-duty vehicles

• CE-approved and certified, exceeding industry load standards

• Single-point manual safety lock release

• Four mechanical locking devices, each with primary and secondary locks

• Non-skid diamond-plate platforms for maximum vehicle stability

• Flexible power-side column placement (front, rear, left, or right)

• Included 6,000 lb rolling jack for wheel and suspension service

• Turn tables for wheel alignment capability

• High-quality hydraulic system powered by a 3KW motor

Four Post Car Lift Specifications

• Lifting Capacity: 15,000 lbs (~6,803 kg)

• Max Lifting Height: 92.52" (2,350 mm)

• Lifting Time: 95 sec up / 55 sec down

• Post Height: 85.63" (2,175 mm)

• Overall Width: 136.06" (3,456 mm)

• Overall Length (with ramps): 245.31" (6,231 mm)

• Inside Columns Width: 118.11" (3,000 mm)

• Min Runway Height: 9.3" (236 mm)

• Lock Positions: Every 4.7" (12 positions)

• Motor: 220V / 60Hz / 1PH

• Net Weight: 4,850 lbs (2,200 kg)

Specifications

Shipping Dimensions

• Lift: 4057 lbs — 200×27×33 in
• Pump: 441 lbs — 40×24×15 in
• Ramps (x2): 66 lbs — 47×20×12 in
• Rolling Jack: 330 lbs — 46×25×13 in

Installation Requirements

Concrete must meet the following minimum standards:

• Thickness: 3.93 inches (100 mm)

• Strength: 3,000 PSI rated

Failure to meet these requirements may result in equipment damage or serious injury.

Shipping & Pickup Information

This lift ships via freight and is available for pickup at U.S. warehouse locations:

• Azusa, CA 91702

• Brookshire, TX 77423

• City of Industry, CA 91744

• Deer Park, TX 77536

• Kalamazoo, MI 49048

• Linden, NJ 07036

• Pooler, GA 31322

• Romeoville, IL 60446

Proper unloading equipment (forklift) is required.

Warranty

• 1-Year Limited Warranty on all parts and manufacturing defects

• 3-Year Structural Warranty on vehicle lift components

• Optional extended warranty available

Warranty includes replacement parts with free shipping.
Labor is not included.

User Manual

For full installation instructions, safety guidelines, and operation procedures, please refer to the
[Katool KT-4H150 User Manual]
