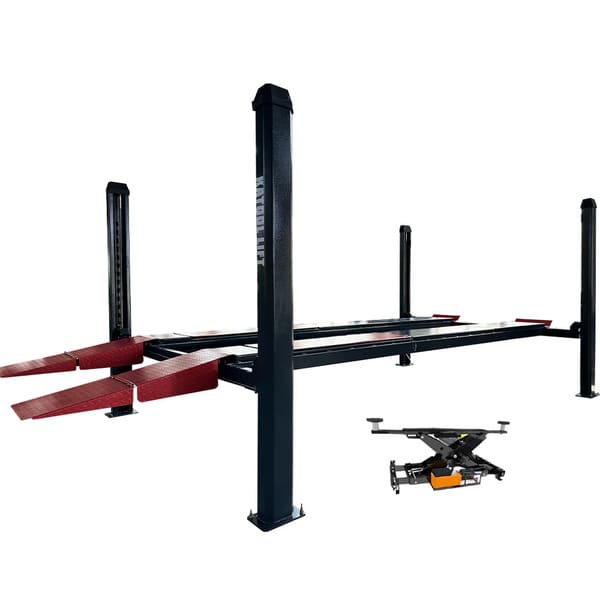

Katool KT-4H120X Four Post Vehicle Lift – 12,000 lb Capacity
The Katool KT-4H120X Four Post Lift is a heavy-duty vehicle lifting solution engineered for professional automotive shops, fleet service facilities, restoration garages, and serious home garages that require strength, stability, and consistent performance. With a 12,000 lb rated capacity, this four-post lift is built to safely support cars, trucks, and SUVs during service, inspection, or storage.
Designed for daily shop use, the KT-4H120X provides excellent under-vehicle access with an 86.9-inch lifting height while maintaining smooth, controlled hydraulic operation. Its wide stance and robust steel construction deliver exceptional stability under load, reducing flex and improving operator confidence during lifting and lowering cycles.
Whether used for routine maintenance, long-term vehicle storage, or heavy-duty service work, the KT-4H120X four-post lift offers professional-grade reliability with a straightforward, proven design.
Note: Forklift required for unloading. For Warehouse Pickup, please contact our LIVE CHAT so we can assist you in locating the nearest warehouse to your ZIP code.
Why Choose the Katool KT-4H120X
-
12,000 lb lifting capacity for cars, trucks, and SUVs
-
Heavy-duty four post car lift design for maximum stability
-
Ideal for professional automotive shops and serious home garages
-
Wide column spacing for improved vehicle compatibility
-
Smooth hydraulic lifting and controlled lowering
-
Suitable for service, inspection, restoration, and vehicle storage
-
Built from high-strength structural steel for long-term durability
Key Features
-
12,000 lb Rated Capacity
Safely supports a wide range of passenger vehicles, trucks, and SUVs.
-
Four-Post Lift Design
Provides superior stability and load distribution compared to two-post lifts.
-
86.9-Inch Lifting Height
Allows comfortable under-vehicle access for maintenance and inspections.
-

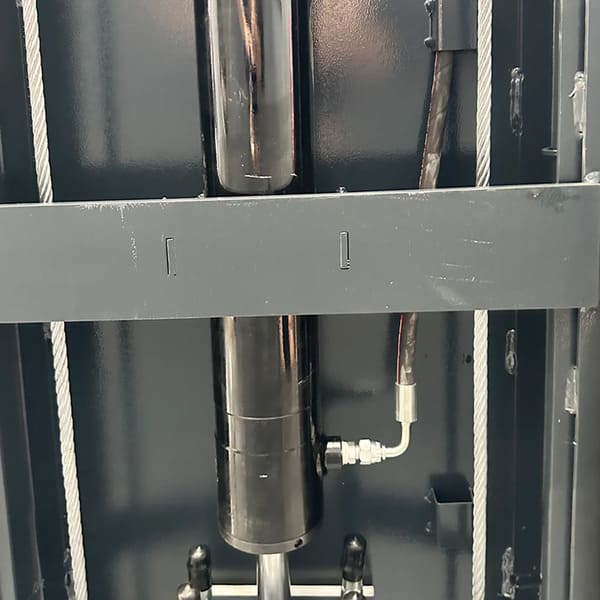

Hydraulic Power System
Ensures smooth, consistent lifting with controlled lowering speeds.
-
Wide Stance & Column Spacing
Improves vehicle positioning and overall lift stability.
-
Heavy-Duty Steel Construction
Manufactured from Q235 and Q245 steel for structural strength and longevity.

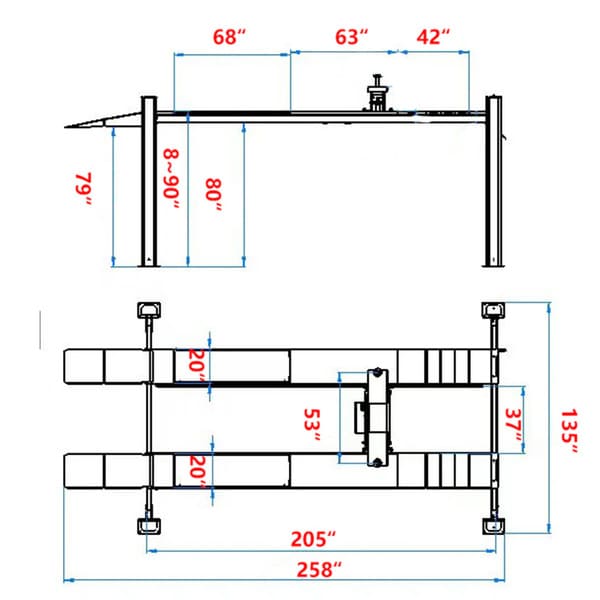

Specifications
| Specification |
Details |
| Model |
KT-4H120X |
| Lift Type |
Four Post Vehicle Lift |
| Rated Capacity |
12,000 lbs |
| Lifting Height |
86.9 in (2208 mm) |
| Raising Time |
≤ 83 seconds |
| Lowering Time |
≥ 40 seconds |
| Width Between Columns |
112.81 in (2865 mm) |
| Machine Width |
135.2 in (3435 mm) |
| Machine Height |
94.88 in (2410 mm) |
| Net Weight |
3,373 lbs (1,530 kg) |
| Power |
220V |
| Materials |
Q235 & Q245 Structural Steel |
Installation Requirements (Important)
-
Forklift required for unloading
-
Lift must be installed on a level, reinforced concrete surface
-
Professional installation is strongly recommended
-
Electrical supply must meet specified voltage requirements
-
Buyer is responsible for unloading, site preparation, and installation
Warranty
-
1-Year Parts Warranty covering manufacturing defects
-
3-Year Structural Warranty on lift columns and frame
-
Free shipping on warranty replacement parts
-
Labor is not included
Bottom Line
If you need a dependable four post car lift that delivers real shop durability, strong lifting capacity, and long-term reliability, the Katool KT-4H120X is a proven solution for professional garages, fleet service operations, and high-end residential setups.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details before ordering.
