The Best Tire Balance Machine.. Katool KT-4H110 Supports 11,000 lbs with Ease

Stop looking for the best tire balancer machine in the market because look no further. This Katool tire balance machine will show you a design that's powerful and secure for heavy vehicles like trucks and SUV's also known as the KT-4H110.

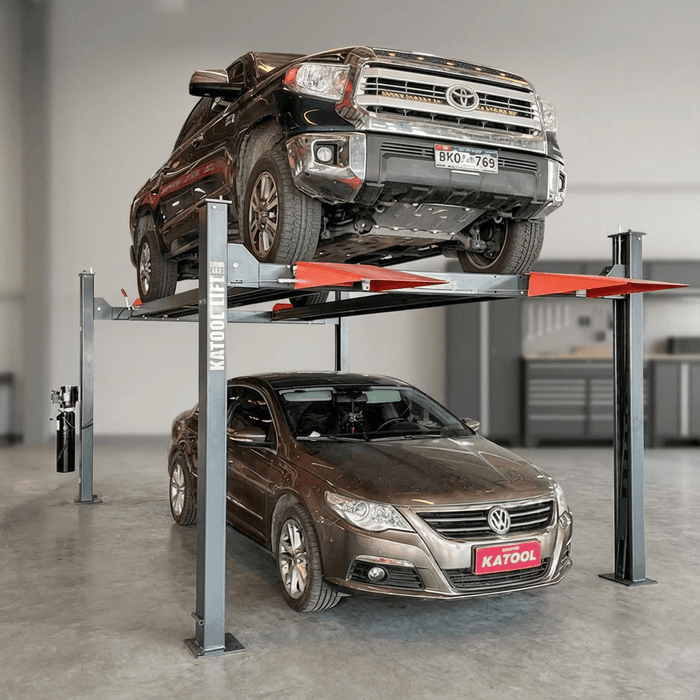

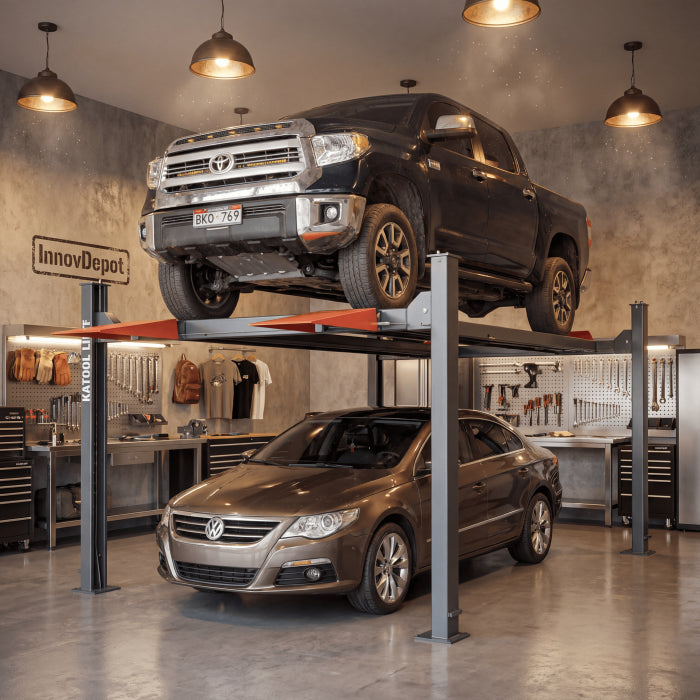

If you work on heavy-duty vehicles like trucks or SUVs, you know how challenging it can be to find a lift that combines real power with dependable safety. Many conventional car lifts simply aren’t built for larger loads, leading to stability issues and reduced efficiency. The Katool KT-4H110 Four-Post Lift solves those problems with robust construction, advanced safety mechanisms, and a design that adapts to a variety of garage setups.

With an impressive 11,000-lb lifting capacity, this model is built for professionals who take performance seriously. It’s CE-certified and tested to handle up to 115% dynamic and 150% static loads, so you can rely on consistent, secure operation. The system includes a single-point manual safety release, four independent mechanical locks, and dual-layer safety mechanisms on every post. The Katool Tire Machine four post lift provides a non-slip surface, while adjustable lock ladders let you fine-tune height for perfect balance and stability.

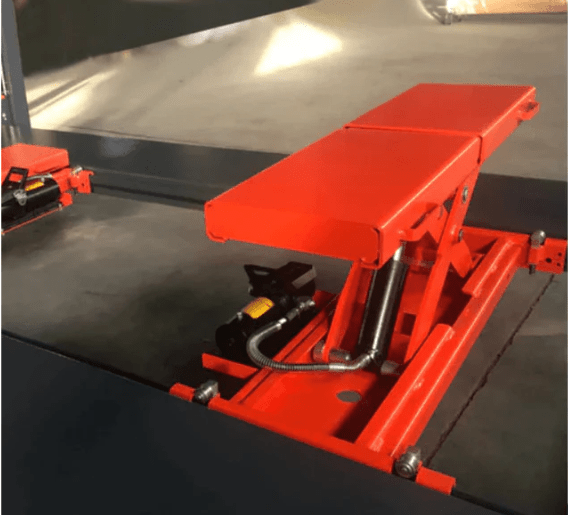

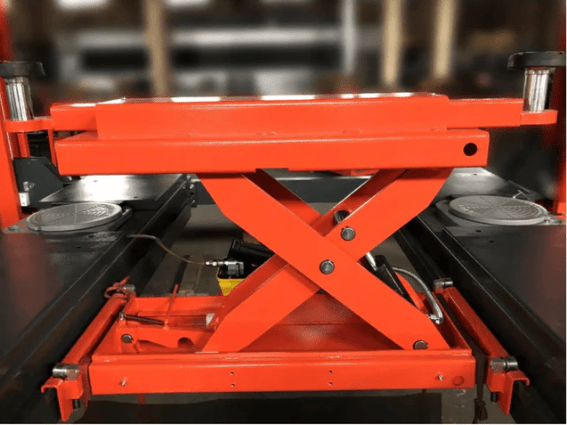

Installation is flexible—you can mount the power column on either side, front, or rear to fit your garage layout. The lift runs smoothly with an 83-second rise time and 40-second descent, allowing efficient workflow. Add-on options such as rolling jacks and caster kits make it even more versatile for multi-purpose use—whether for storage, inspection, or full-scale repairs.

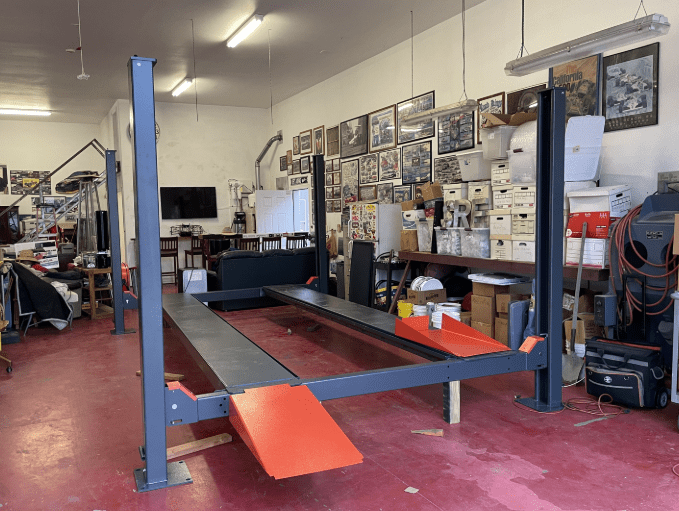

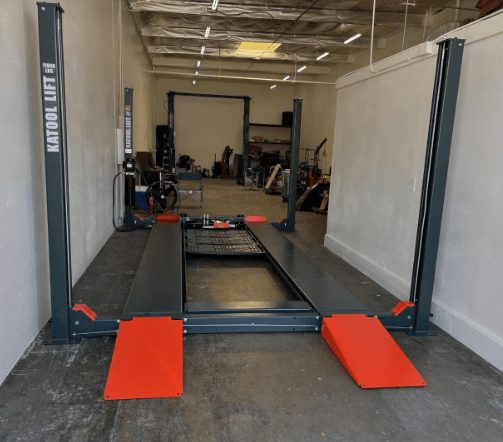

The KT-4H110 can be installed free-standing without anchors, though bolting is optional for additional stability. If anchoring is preferred, ensure your concrete is at least 4 inches thick and rated 3000 PSI or higher. Improper installation can result in injury or equipment damage, so verify conditions before setup.

Top Features of the Katool 4H110 11,000 lb Four-Post Lift

Heavy-Duty Lifting Power | Engineered to raise vehicles up to 11,000 lbs (4,990 kg), this model easily accommodates large SUVs, trucks, and other heavy-duty vehicles.

Certified Performance & Safety | CE-approved and rigorously tested, the lift exceeds expectations with 115% dynamic and 150% static load ratings, guaranteeing dependable performance under demanding conditions.

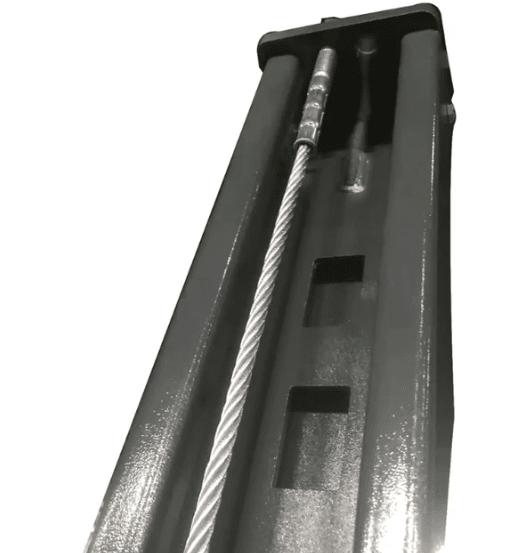

Comprehensive Safety System | Designed with a single-point manual safety release and four mechanical locking posts, each with both primary and secondary locks, delivering maximum protection for users and vehicles alike.

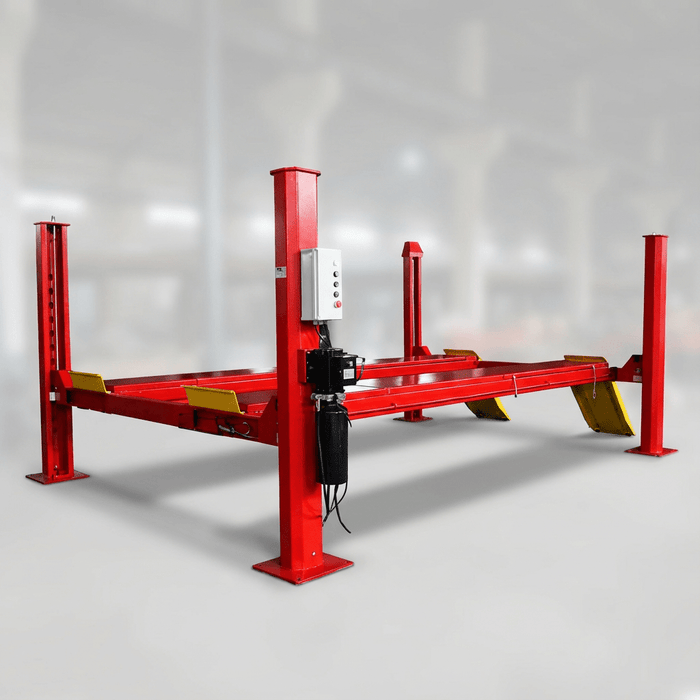

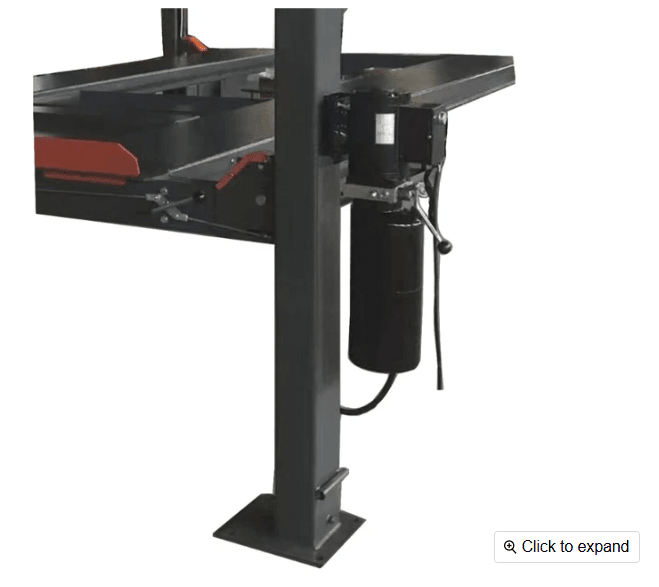

Adaptable Installation Design | The power column can be positioned on either side—or even at the front or rear—allowing seamless integration into different garage or workshop layouts.

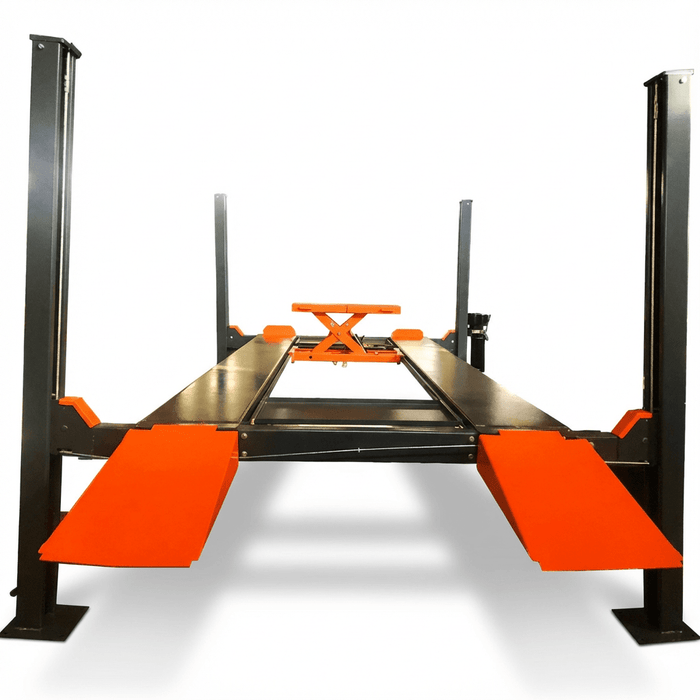

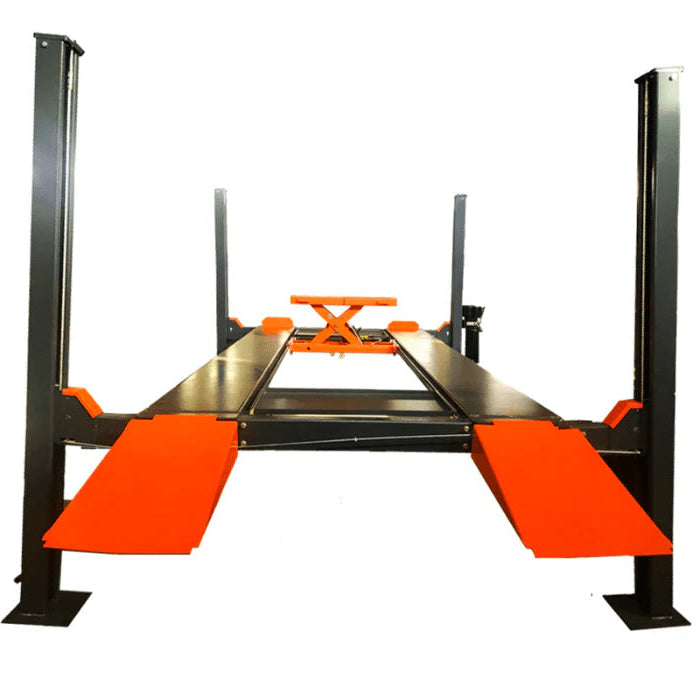

Enhanced Stability Surface | The diamond-plate, non-slip runways and adjustable lock ladders provide a secure grip and versatile height settings, ensuring steady, safe operation during all maintenance tasks.

Bottom line: if you need a dependable lift that combines heavy-duty capacity with top-tier safety and design flexibility, the Katool KT-4H110 stands out as a proven solution for both professional shops and serious home mechanics.

Installing this lift on inadequate concrete may lead to serious injury or death. It is the customer’s responsibility to confirm the concrete’s thickness and strength before purchasing and installing the lift.

• Advantages of the Katool 4H110 Vehicle Lift

  Boosted Productivity | Simplifies maintenance operations and minimizes downtime to keep work moving efficiently.

  Optimized Space Usage | Frees up valuable floor area by enabling safe, vertical parking or vehicle storage.

  Superior Safety Standards | Equipped with multiple built-in protections to safeguard both the technician and the vehicle.

  Broad Compatibility | Designed to handle everything from everyday sedans to larger trucks and commercial vehicles.

  Long-Term Reliability | Built from premium-grade components to ensure consistent performance and longevity.

  Adaptable Installation | Can be configured to fit a variety of garage layouts and workspace dimensions.

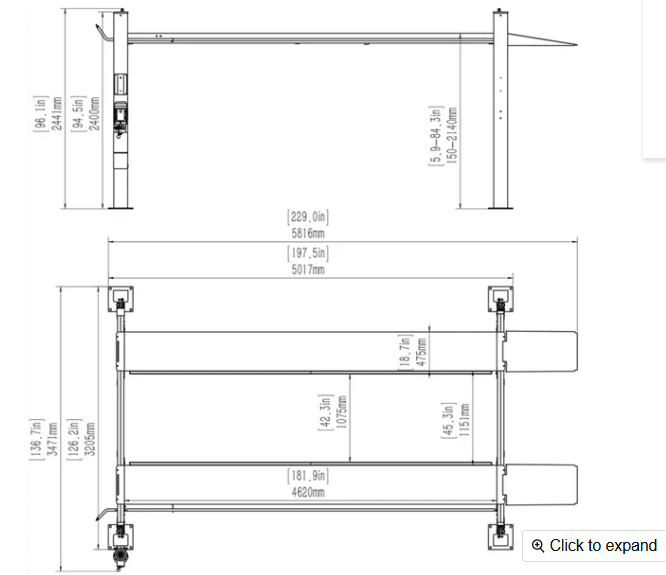

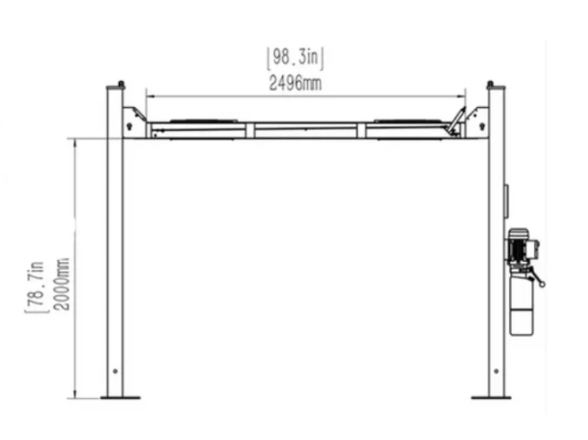

Four Post Lift Specifications

• Lifting Capacity: 11,000 lbs (4,990 kg)
• Max. Lifting Height: 84.25" (2,140 mm)
• Lifting Time: 83s Up / 40s Down
• Height of Posts: 94.88" (2,410 mm)
• Width Overall: 126" (3,200 mm)
• Length Overall: 229.73" (5,835 mm, with ramps)
• Inside Columns: 112.81" (2,865 mm)
• Min. Runway Height: 6.2" (157 mm)
• Motor: 110VAC / 60Hz / 1PH
• Net Weight: 2,116 lbs (960 kg)

User Manual

For full installation instructions, safety guidelines, and operation procedures, please refer to the
[Katool KT-4H110 User Manual]

Installation Requirements

• Concrete Thickness: At least 3.93 inches (100 mm).
• Concrete Strength: Minimum 3,000 PSI rating.

⚠️ Important: Failure to meet these requirements could result in equipment failure or serious injury.

Warranty

• 1-Year Limited Warranty: Covers all parts and product defects.
• 3-Year Structural Warranty: For vehicle lift structural components.
• Optional 2-Year Extended Warranty: Available for additional purchase.

Warranty Conditions:

• Claims must be made within the warranty period.
• Warranties are non-transferable.

Frequently Asked Questions:

1. How do I schedule pickup?

How to Order:
Choose your preferred warehouse location directly on the product page, then complete your purchase. Once your order is placed, our team will verify availability and issue a pickup invoice when your lift is ready for collection.

Operating Hours:
Warehouses are open Monday through Friday, generally between 9 AM–4 PM or 10 AM–4 PM, depending on the location.

Scheduling:
Appointments aren’t required, but if you’d like to reserve a specific pickup day or time, simply reply to your order confirmation email and we’ll accommodate your request.

2. Is this lift suitable for both residential and commercial use?
Absolutely. The 4H110 is built for light commercial environments and serious home garages alike. Just confirm that your workspace has the necessary electrical supply and enough ceiling clearance to support safe and efficient operation.

3. Will I need a forklift to unload the lift?
Yes. If you’re planning to pick up the lift from one of our U.S. warehouses, you’ll need suitable equipment, such as a forklift, to load it safely. If that’s not available, we can ship your lift to a local freight terminal, where the staff will handle unloading and store it for your pickup.

4. Are the ramps removable?
Yes. The ramps on the Katool 4H110 are bolted in during installation but can be manually detached whenever necessary for relocation or maintenance.

5. How long has Katool been in business?
Katool has been serving the U.S. automotive equipment market for several years, earning a strong reputation among buyers who value dependable, high-performance lifts without the inflated price tag.
