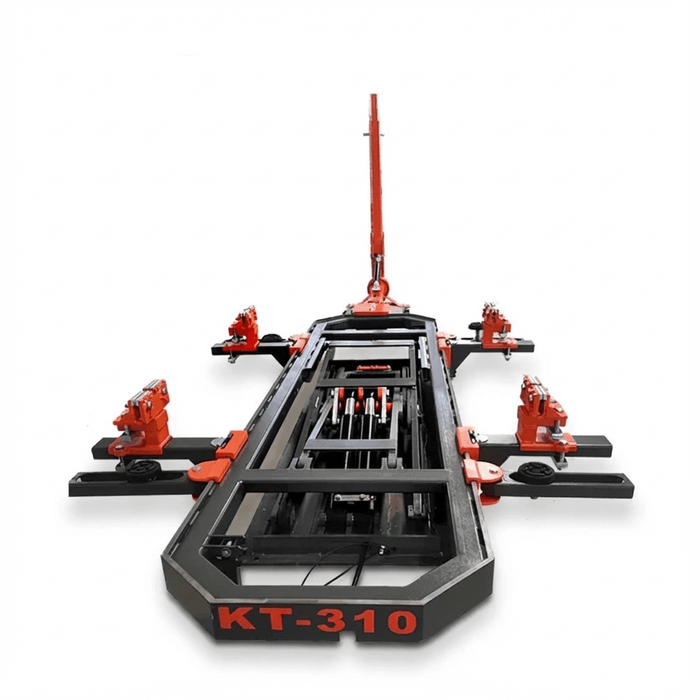

Katool KT-310 Auto Body Frame Repair Bench – CE Certified Collision Frame Machine

Katool KT-310 Auto Body Frame Repair Bench

The Katool KT-310 Auto Body Frame Repair Bench is a compact, CE-certified collision repair solution engineered for precision frame straightening, body alignment, and structural repairs on small to mid-size vehicles. Built with high-strength cold-formed alloy steel and a reinforced welded rectangular tube structure, the KT-310 delivers stability, durability, and accurate pulling performance in professional body shops and collision repair centers.

Designed for efficiency in limited spaces, this auto body frame machine features a 360° rotating pulling tower with 60KN pulling force, allowing technicians to perform precise multi-directional pulls without repositioning the vehicle. The 9-level locking system enables adjustable working heights to accommodate different repair scenarios, while four adjustable lifting arms with 180° rotation provide versatile vehicle support across a wide range of car types.

Fast-clamping jaws secure vehicles quickly using just two screws, reducing setup time and increasing shop productivity. With a compact footprint and CE-certified 7,000 lb load capacity, the KT-310 is ideal for collision repair shops that demand accuracy, speed, and space efficiency.

Why Choose the Katool KT-310 Frame Repair Bench

• Compact auto body frame repair bench for collision repair

• CE certified for professional shop safety standards

• 360° pulling tower for precise frame alignment

• Space-saving design for smaller body shops

• Fast clamp system for reduced setup time

• Built from heavy-duty alloy steel for long-term durability

Key Features

• CE Certified Construction
  Meets strict European safety and performance standards

• 360° Rotating Pulling Tower
  Delivers 60KN pulling force for accurate collision repair

• 9-Level Adjustable Locking System
  Supports multiple working heights for different repair needs

• Four Adjustable Lifting Arms
  180° rotation for broad vehicle compatibility

• Fast Clamp Design
  Secure vehicle mounting using only two screws

• Compact, Space-Saving Footprint
  Ideal for high-efficiency body shops

• Bench Supporter System
  Helps position pulling towers accurately for proper alignment

Specifications:

• Frame Length: 130.8 in

• Frame Width: 34.5 in

• Frame Height: 4.3 to 67 in

• Max Load Bearing: 7,000 lbs (CE Certified)

• Pulling Tower Force: 60KN

• Working Range: 360° tower rotation

• Voltage: 220V

Warranty

• 1-Year Limited Warranty on parts and manufacturing defects

• Optional 2-Year Extended Warranty available

• Vehicle lifts include a 3-Year Structural Warranty

Warranty covers motors, power units, hydraulic components, and electronics.
Labor is not included. Visual documentation may be required for claims.

Resources:

[Download Manual (PDF)]
