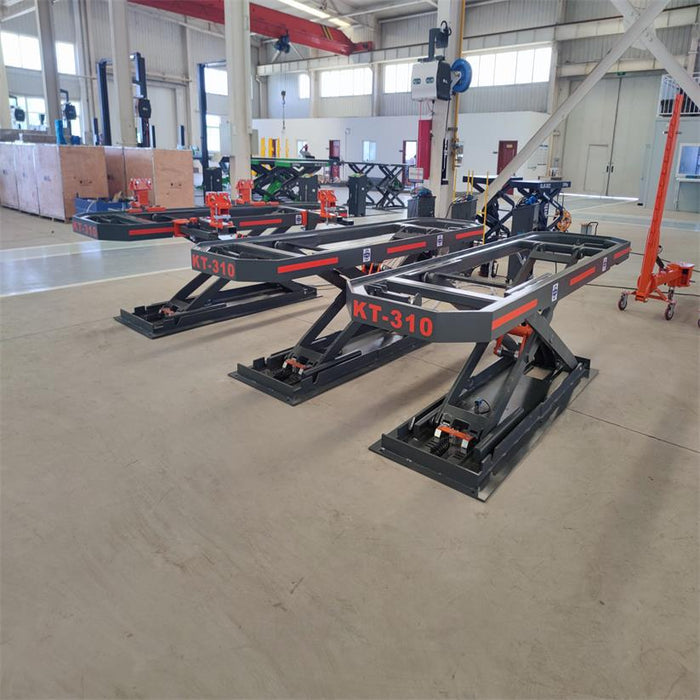

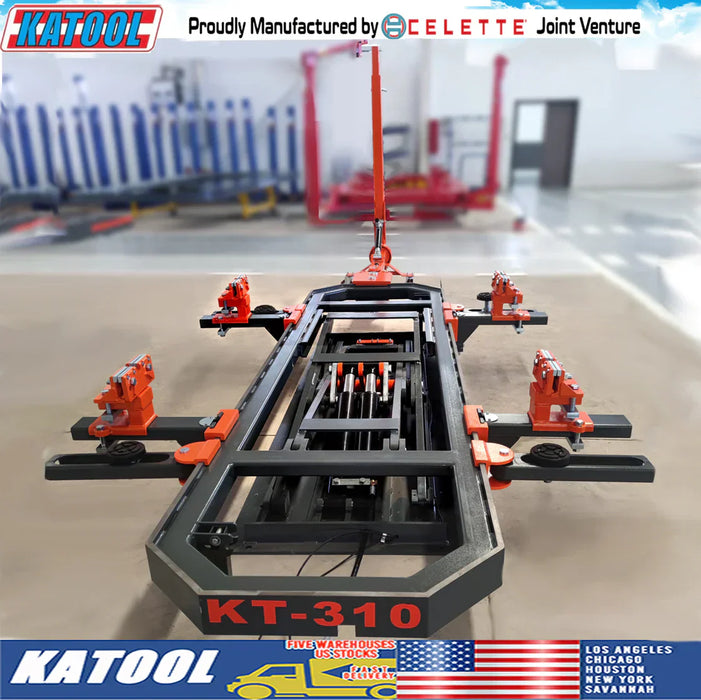

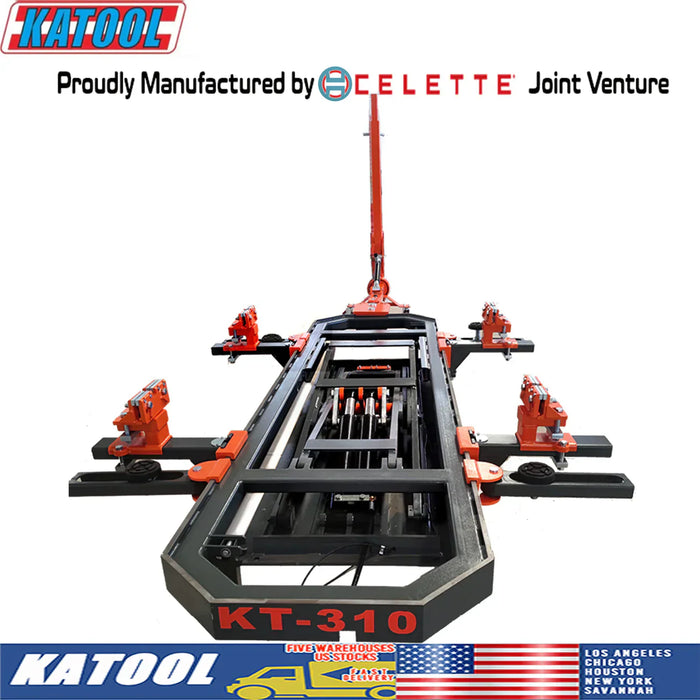

Katool KT-310 Auto Body Frame Machine

Katool KT-310 Auto Body Frame Repair Bench | CE Certified Compact Frame Machine for Quick Collision Repair

Engineered with European-inspired technology, the Katool KT-310 is a compact, precision-focused frame repair bench made from high-strength cold-formed alloy steel. Designed for fast and accurate bodywork on small to medium vehicles, it features a welded rectangular tube structure that maximizes durability, stability, and efficiency in collision repair.

Key Features:

• CE Certified for safety and reliability

• Quick Setup: Flexible pulling tower with 360° working range and 60KN pulling power

• 9-Level Locking System: Adjusts to multiple working heights for maximum flexibility

• Versatile Vehicle Support: Four adjustable lifting arms rotate 180°—ideal for nearly all car types

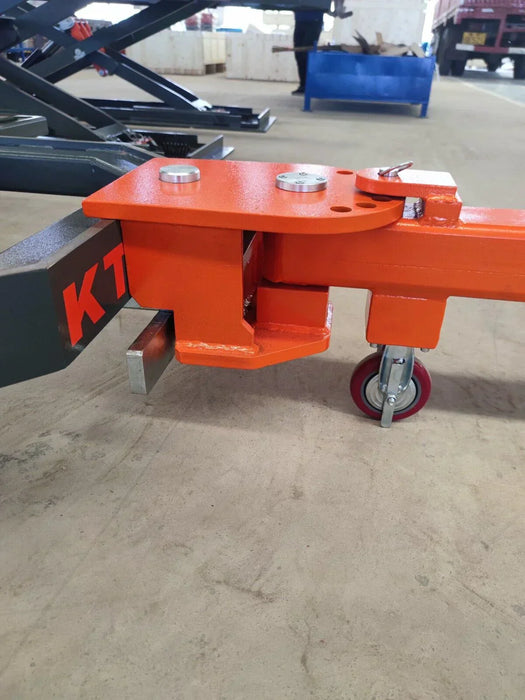

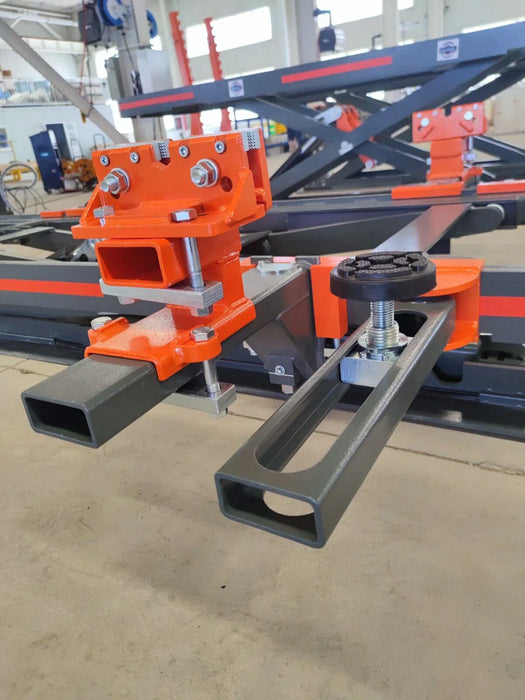

• Fast Clamp Design: Specially designed jaws allow fast and secure clamping with just two screws

• Compact & Space-Saving: Ideal for body shops where space and speed are essential

• Bench Supporter: Helps position towers accurately for efficient repair alignment

Specifications:

• Frame Length: 130.8 in

• Frame Width: 34.5 in

• Frame Height: 4.3 to 67 in

• Max Load Bearing: 7,000 lbs (CE Certified)

• Pulling Tower Force: 60KN

• Working Range: 360° tower rotation

• Voltage: 220V

Warranty:

Katool provides a 1-year limited warranty on all parts and product defects. A 2-year extended warranty is available for Katool and M&E automotive equipment.

Warranty Coverage Includes:

• Power units, motors, hydraulic components, electronics, and more

• Vehicle lifts include a 3-year structural warranty

Conditions:

• Original purchase from Katool or an authorized vendor required

• Warranty is non-transferable

• Visual documentation may be requested

• Labor is not included

Resources:

[Download Manual (PDF)]
