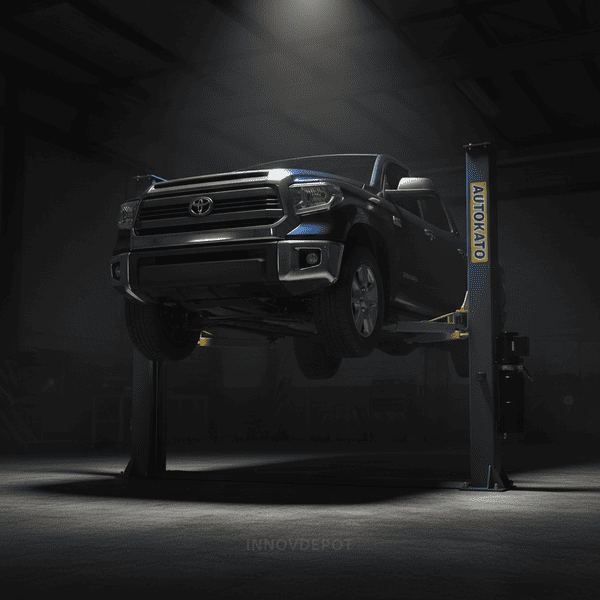

Katool H115Z 11,000 lb 2 Post Car Lift Auto Hoist

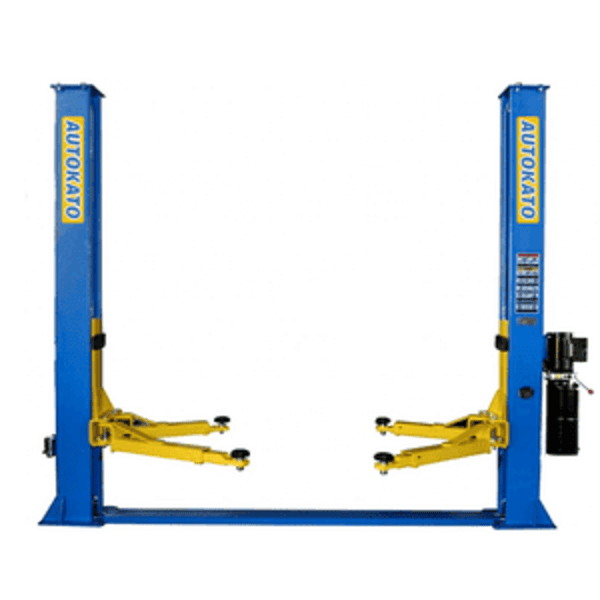

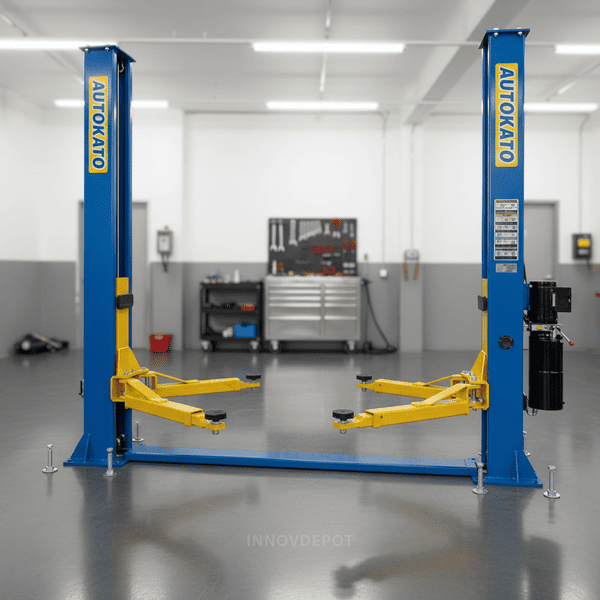

Katool H115Z 11,000 lb Two Post Lift

The Katool H115Z 11,000 lb Two Post Lift is a heavy-duty automotive hoist engineered for safety, strength, and performance. Designed with dual hydraulic chain-drive cylinders and CE-certified quality, this car lift is ideal for professional garages and auto shops requiring reliable lifting power.

Its base plate design, screw-on pad adaptors, and rubber door guards provide protection for vehicles during service. With a maximum lifting height of 70.8″, drive-thru clearance of 98.4″, and versatile arm reach, the H115Z ensures smooth operation for a wide range of vehicles. Backed by Katool’s advanced hydraulic system, this lift guarantees both efficiency and durability.

Katool H115Z Car Lift Features

• 11,000 lb (5,000 kg) lifting capacity

• CE approved with 115% dynamic & 150% static load test

• Dual hydraulic chain-drive cylinders for reliability

• Base plate design for stable support

• Two-side manual safety release system

• Rubber pad door protection for vehicle safety

• Screw-on pad & extension adaptors (+100mm) included

• Heavy-duty hydraulic system (220V / 60Hz / 1PH)

Katool H115Z Auto Hoist Specifications

• Lifting Capacity: 11,000 lbs (5,000 kg)

• Max Lifting Height: 70.8″ / 1800 mm

• Min Height: 3.9″ / 100 mm

• Overall Height: 110.9″ / 2818 mm

• Overall Width: 140.4″ / 3565 mm

• Outside Column: 124.8″ / 3170 mm

• Inside Column: 110.2″ / 2800 mm

• Drive-Thru Clearance: 98.4″ / 2500 mm

• Front Arm Reach: 29.5″–46″ (750–1170 mm, 2 stages)

• Rear Arm Reach: 35.4″–58.2″ (900–1480 mm, 2 stages)

• Motor: 220V AC / 60Hz / 1PH / 2.2KW

• Net Weight: 570 KG
