Katool H115Z Two Post Car Lift – 11,000 lb Capacity
The Katool H115Z Two Post Car Lift is a heavy-duty 2 post car lift engineered for professional automotive shops and serious home garages that demand higher lifting capacity and dependable performance. With an 11,000 lb lifting capacity and CE certification, this car hoist for garage and commercial use is built to safely lift light trucks, SUVs, vans, and passenger vehicles.
Designed in a base plate configuration, the H115Z simplifies installation while maintaining structural rigidity. Dual hydraulic chain-drive cylinders provide smooth, synchronized lifting, and the 220V single-phase hydraulic system ensures consistent daily operation in high-volume environments.
Tested to 115% dynamic load and 150% static load capacity, the H115Z is built for long-term reliability under heavy-duty use.
Why Choose the Katool H115Z Two Post Lift
-
11,000 lb capacity 2 post car lift for trucks and SUVs
-
CE Approved and certified with overload testing
-
Dual hydraulic chain-drive cylinders for balanced lifting
-
Base plate design ideal for standard ceiling heights
-

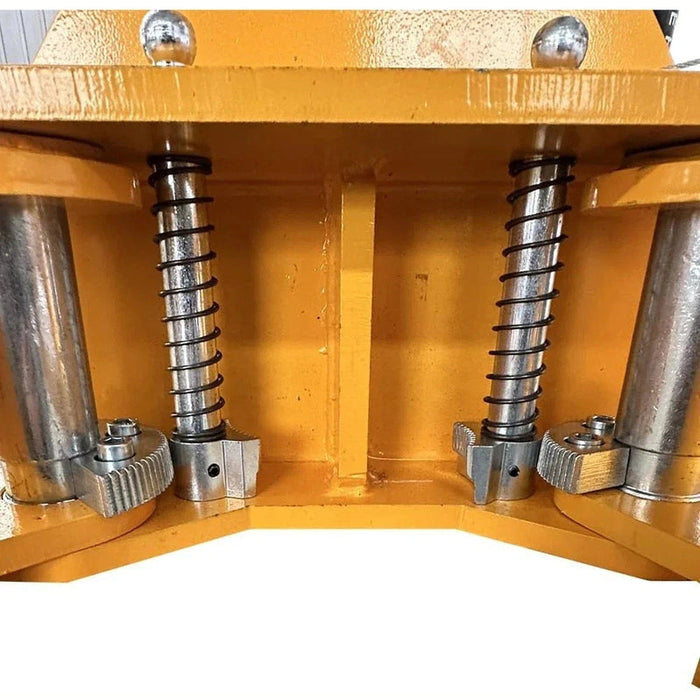

Manual dual-side safety lock release system
-
Rubber door guards to protect vehicle finishes
-

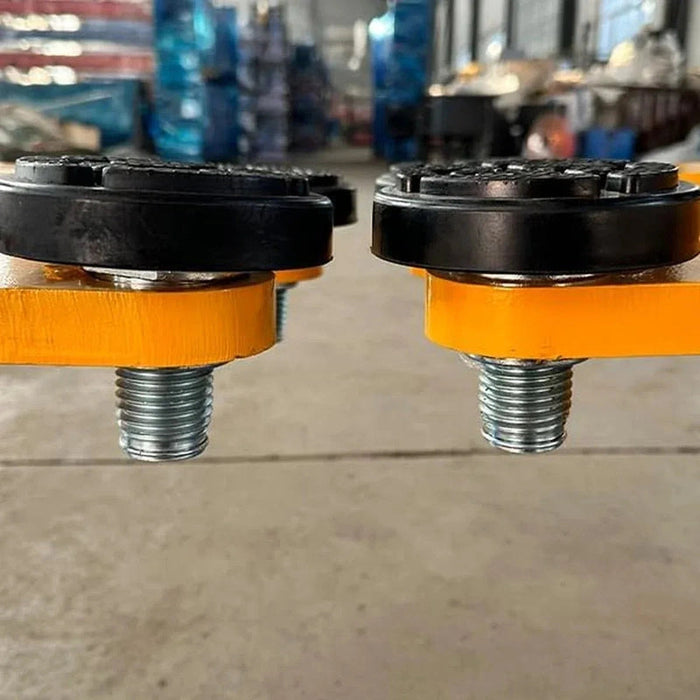

Screw-on pads with +100mm extension adaptors included
-
Built for professional automotive shop and heavy-duty use
Key Features
-

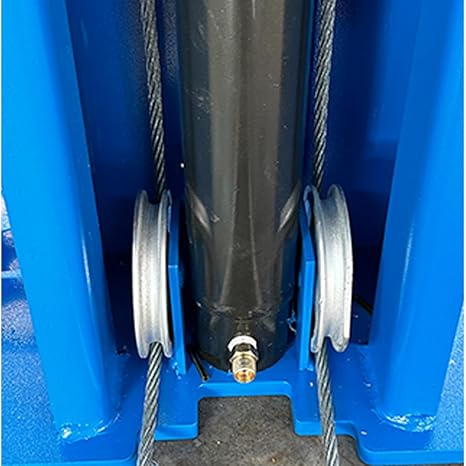

Dual Hydraulic Cylinders – Provides stable, synchronized lifting performance
-
Manual Dual-Side Safety Release – Controlled and safe lowering from either column
-
Base Plate Configuration – Suitable for garages with lower overhead clearance
-
Two-Stage Adjustable Arms – Flexible reach for various wheelbases and vehicle types
-
CE Certified Design – 115% dynamic and 150% static load tested
-
Heavy-Duty 2.2kW Motor – Reliable 220V / 60Hz / 1PH hydraulic system
-
Rubber Door Protection Pads – Reduces risk of door damage during service

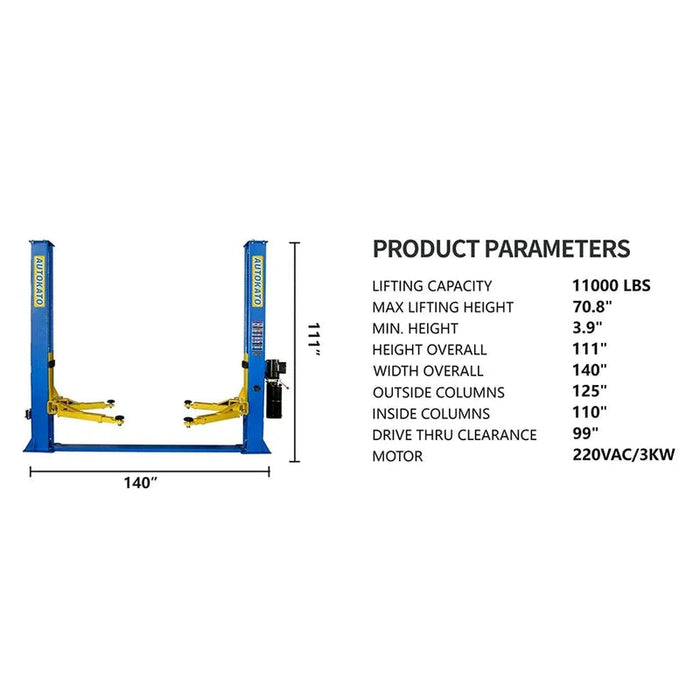

Specifications
| Specification |
Details |
| Lifting Capacity |
11,000 lbs (5,000 kg) |
| Max Lifting Height |
70.8" (1800 mm) |
| Minimum Height |
3.9" (100 mm) |
| Overall Height |
110.9" (2818 mm) |
| Overall Width |
140.4" (3565 mm) |
| Outside Column Width |
124.8" (3170 mm) |
| Inside Column Width |
110.2" (2800 mm) |
| Drive-Thru Clearance |
98.4" (2500 mm) |
| Front Arm Reach |
29.5"–46" (2 stages) |
| Rear Arm Reach |
35.4"–58.2" (2 stages) |
| Motor |
220VAC / 60Hz / 1PH / 2.2kW |
| Net Weight |
570 kg |
| Design |
Base Plate |
| Safety Lock Release |
Manual (Dual Side) |
Installation Requirements (Important)
-
Concrete thickness must be minimum 5.9 inches (150 mm)
-
Concrete strength must be at least 3,000 PSI
-
Improper installation may result in serious injury or equipment failure
-
Customer is responsible for verifying slab thickness and PSI before installation
-
Professional installation is strongly recommended
Freight shipping within the lower 48 states. Forklift required for unloading unless terminal pickup is arranged.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty on lift structure
-
Optional 2-Year Extended Warranty available
-
Free shipping on approved replacement parts
-
Labor not included
-
Warranty claims require proof of purchase and approval
Bottom Line
The Katool H115Z 11,000 lb two post lift is a dependable, CE-certified car hoist built for shops that need higher lifting capacity without moving into commercial 12K+ systems. With hydraulic reliability, dual safety release, and base plate installation flexibility, it’s a strong choice for professional automotive service environments.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
