KATOOL C9372 Combination Brake Lathe – Disc & Drum 110V/220V
The KATOOL C9372 Combination Disc/Drum Brake Lathe is a professional-grade brake resurfacing machine designed for automotive repair shops, tire centers, and fleet service facilities. Built to machine rotors, drums, and flywheels with precision, this heavy-duty brake lathe delivers consistent results across a wide range of vehicle applications.
With compatibility for 4”–20” brake rotors, 6”–19.5” drums, and flywheels up to 24”, the C9372 is engineered for versatility. Adjustable spindle speeds (70–320 RPM) and infinitely adjustable feed rates allow technicians to optimize finish quality while maintaining efficient workflow.
Designed for daily professional use, this disc and drum brake lathe provides the durability, stability, and cutting accuracy required in high-volume automotive environments.
Why Choose the KATOOL C9372 Brake Lathe
-
Combination disc and drum brake lathe for complete in-house resurfacing capability
-
Wide machining range supports domestic, European, and Asian vehicles
-
Variable spindle speed (70–320 RPM) for controlled cutting performance
-
Adjustable feed rates improve surface finish quality and precision
-
Heavy-duty spindle design supports up to 150 lb workpieces
-
Ideal for professional automotive shops, brake specialists, and fleet maintenance
-
110V or 220V configuration options for flexible shop integration
-
Built for high-volume brake service and heavy-duty use
Key Features
-
4”–20” Rotor Capacity – Covers most passenger vehicle brake rotors
-
6”–19.5” Drum Capacity – Machines standard automotive brake drums
-
Flywheel Capability up to 24” – Expands service offerings beyond brake work
-
Infinitely Adjustable Feed Rate (0–0.026”) – Allows fine finish control
-
70–320 RPM Spindle Speed – Select appropriate speed for rotor or drum cutting
-
150 lb Spindle Weight Capacity – Supports heavier components safely
-
Heavy Steel Construction (Q235/Q245) – Designed for durability and vibration stability
-

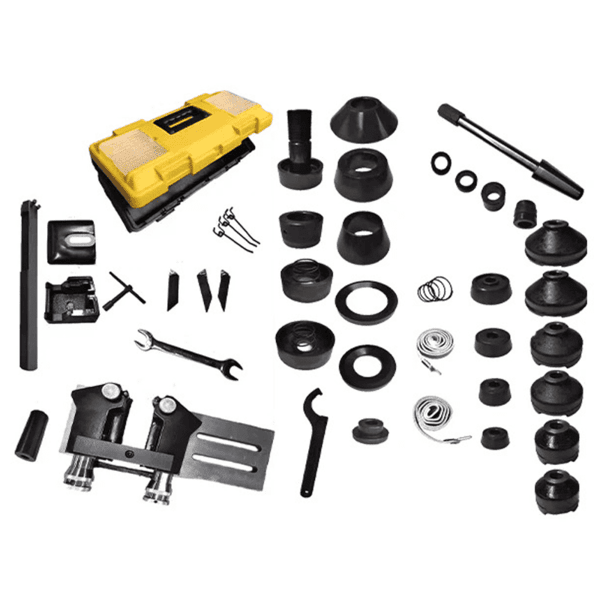

Full Accessories Included – Ready for professional brake service operation
Specifications
| Specification |
Details |
| Model |
C9372 |
| Machine Type |
Combination Disc / Drum Brake Lathe |
| Rotor Diameter |
4”–20” (102–508 mm) |
| Max Rotor Thickness |
2.85” (73 mm) |
| Drum Diameter |
6”–19.5” (152–500 mm) |
| Drum Depth |
6.5” (165 mm) |
| Flywheel Diameter |
6”–24” (152–610 mm) |
| Spindle Weight Capacity |
150 lbs (68 kg) |
| Spindle Speed |
70–320 RPM |
| Feed Range |
0”–0.026” (0–0.66 mm) |
| Feed Rate Per Minute |
2.54” (64.5 mm) |
| Power Options |
110V / 220V |
| Shipping Weight |
661.3 lbs (300 kg) |
| Dimensions (L×W×H) |
43.3” × 28.7” × 28.3” |
Installation Requirements (Important)
This machine ships via freight and requires proper unloading equipment.
-
Buyer is responsible for unloading from the truck
-
Forklift or loading dock service is strongly recommended
-
Inspect shipment before signing the Bill of Lading
-
Note any visible damage at time of delivery
Proper electrical connection (110V or 220V configuration) must comply with local electrical codes. Professional installation is recommended.
Warranty
-
1-Year Limited Warranty on parts and manufacturer defects
-
3-Year Structural Warranty (where applicable under manufacturer policy)
-
Free shipping on approved replacement parts
-
Labor is not included
-
Optional extended warranty plans may be available
Warranty is non-transferable and requires proof of purchase. Claims may require photo/video documentation.
Bottom Line
The KATOOL C9372 Combination Brake Lathe is built for automotive professionals who need reliable, precise disc and drum resurfacing in one heavy-duty machine. With wide machining capacity, adjustable speeds, and solid steel construction, it’s a dependable investment for shops focused on long-term brake service capability.
