Katool AM120SD 12,000 LB Two Post Car Lift

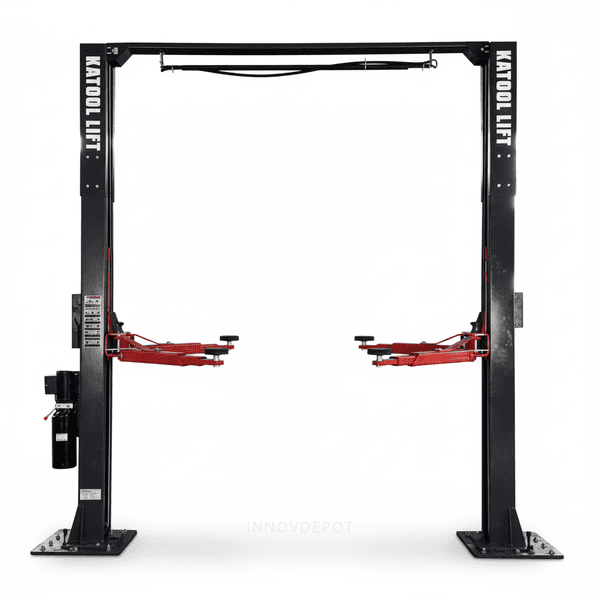

The Katool AM120SD is a 12,000 lb two post car lift engineered for professional automotive shops and serious home garages that demand reliability, safety, and unrestricted access. Featuring a clear-floor design, this Katool 2 post lift provides full undercarriage access for maintenance, inspections, and repair work.

Built with asymmetric arms for improved door clearance and vehicle positioning, the AM120SD delivers stable, balanced lifting across a wide range of cars, SUVs, and light trucks. A single-point safety lock release combined with bilateral unlocking ensures smooth, synchronized operation during raising and lowering cycles.

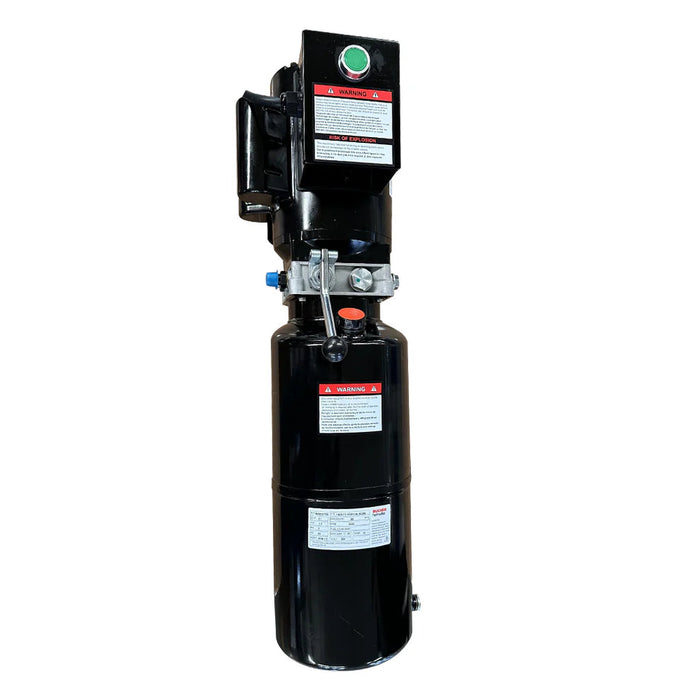

Powered by a 4.0HP hydraulic system operating on 220V / 60Hz / single-phase power, the AM120SD offers consistent lifting performance for daily shop use. An optional 110V configuration is available as an add-on for flexibility in different garage environments.

Constructed from heavy-duty steel and designed with multiple locking positions, this two post car lift is built for long-term durability in demanding automotive settings.

Concrete Requirements (MANDATORY)

Concrete must meet the following minimum requirements:

• Thickness: At least 5.9 inches (150 mm)

• Strength: 3,000 PSI minimum

Failure to install this lift on proper concrete may result in serious injury or death. It is the customer’s responsibility to verify slab thickness and strength prior to purchase and installation.

Why Choose the Katool AM120SD 2 Post Lift

• 12,000 lb lifting capacity for automotive service

• Clear-floor two post car lift for full undercar access

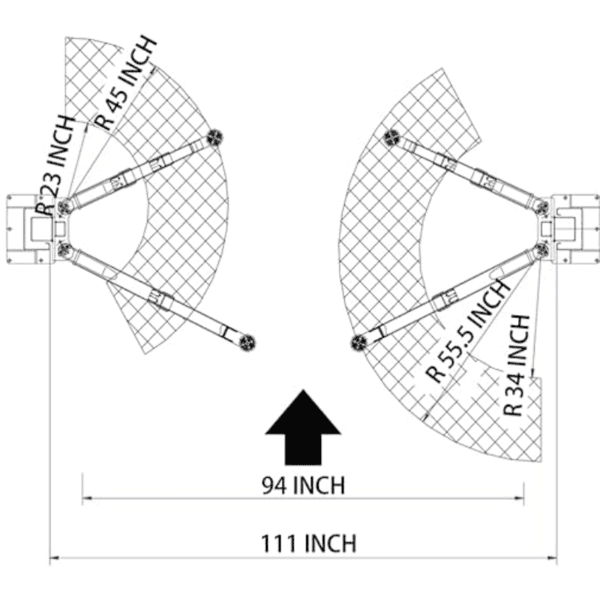

• Asymmetric arms for improved door clearance

• Single-point lock release with bilateral unlocking

• 4.0HP hydraulic system for smooth, reliable lifting

• Commercial-grade Katool automotive equipment

• Ideal car lift for garage or professional repair shop

Key Features

• 12,000 lb Lifting Capacity – Supports cars, SUVs, and light trucks

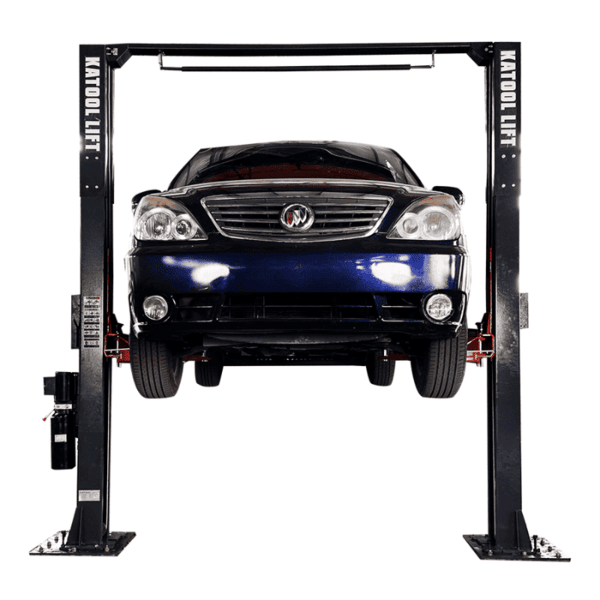

• Clear-Floor Design – No base obstruction under the vehicle

• Asymmetric Arm Configuration – Easier vehicle entry and positioning

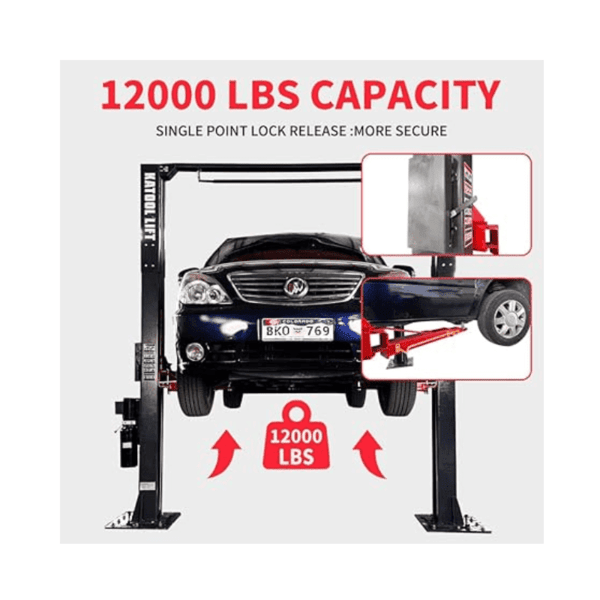

• Single-Point Safety Lock Release – Simple, secure operation

• Bilateral Unlocking System – Balanced, synchronized lift control

• Heavy-Duty Steel Construction – Built for daily professional use

• Includes anchor bolts and hydraulic pump

Specifications

• Lifting Capacity: 12,000 lbs

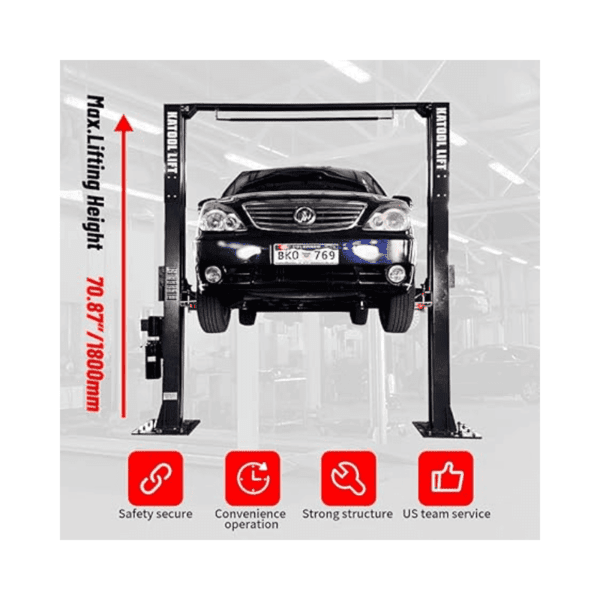

• Max Lifting Height: 70.87" (1,800 mm)

• Min Lifting Height: 4.25" (110 mm)

• Motor Power: 4.0 HP

• Power Supply: 220V / 60Hz / 1PH

• Locking Positions: 12

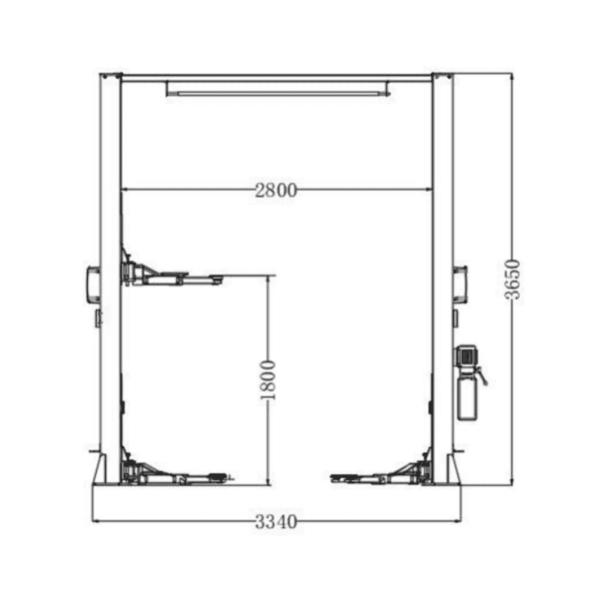

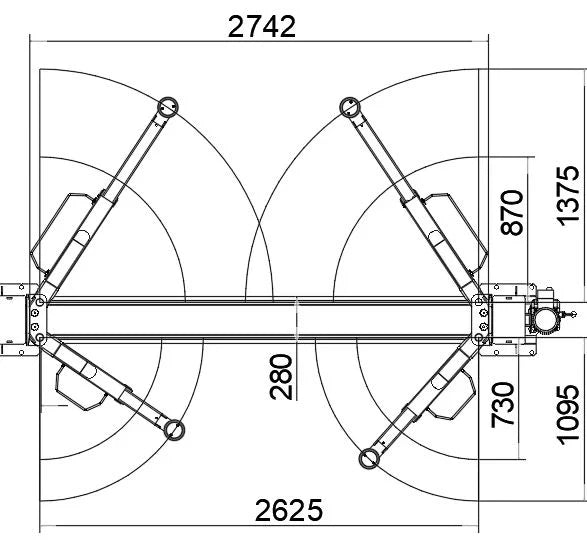

• Overall Dimensions (L × W × H): 18.0" × 131.5" × 144.0"

• Net Weight: 1,369 lbs

Warranty

• 1-Year Limited Warranty on parts and manufacturing defects

• 3-Year Structural Warranty on lift components

• Optional extended warranty available

Warranty includes replacement parts with free shipping.
Labor is not included.
