Katool AC2100 Dual Refrigerant Recovery Machine – R-1234YF or R-134A Fully Automatic AC Service Unit
The Katool AC2100 Dual Refrigerant Recovery, Recycle, and Recharge Machine is a fully automatic automotive AC service unit engineered for professional repair shops, dealerships, fleet service centers, and EV technicians. Designed to handle either R-1234YF or R-134A refrigerant systems, this machine delivers precise recovery, recycling, vacuuming, and recharging in one integrated platform.
Built for speed and accuracy, the AC2100 achieves a minimum 95% refrigerant recovery rate in under 30 minutes and provides charging accuracy within ±0.5 oz (15 g). Its 7-inch high-resolution touchscreen interface, integrated printer, and SD vehicle database support streamline workflow while maintaining professional-grade service standards.
This system is designed for daily commercial use and supports domestic, European, Asian, hybrid, and electric vehicles equipped with compatible refrigerant systems.
Why Choose the Katool AC2100
-
Compatible with R-1234YF or R-134A refrigerant systems
-
Fully automatic recovery, recycle, vacuum, and recharge process
-
95% refrigerant recovery efficiency
-
±0.5 oz charging precision
-
Built-in printer and SD vehicle database
-
SAE J2788 compliant hose configuration
-
Designed for professional automotive HVAC service
-
Suitable for gas, hybrid, and electric vehicles
Key Features
-
Dual Refrigerant Compatibility
Designed to service either R-1234YF or R-134A automotive AC systems (model-specific configuration required).
-
High Recovery Performance
Recovers up to 95% of refrigerant in less than 30 minutes at standard operating temperatures.
-
Precision Charging System
Advanced gas loadcell ensures ±0.5 oz (15 g) charging accuracy.
-
7” Touchscreen Display
High-quality interface simplifies diagnostics, service procedures, and data management.
-
Integrated Printer & SD Database
Provides service documentation and updatable vehicle specifications.
-
Dual-Stage Vacuum Pump
3.6 CFM (120 L/min) vacuum pump ensures deep evacuation performance.
-
Hermetically Sealed Compressor
1/3 HP thermal-protected compressor for reliable daily operation.
-
Vacuum Test & Optional Heating Belt
Additional service functionality for complete AC system diagnostics.

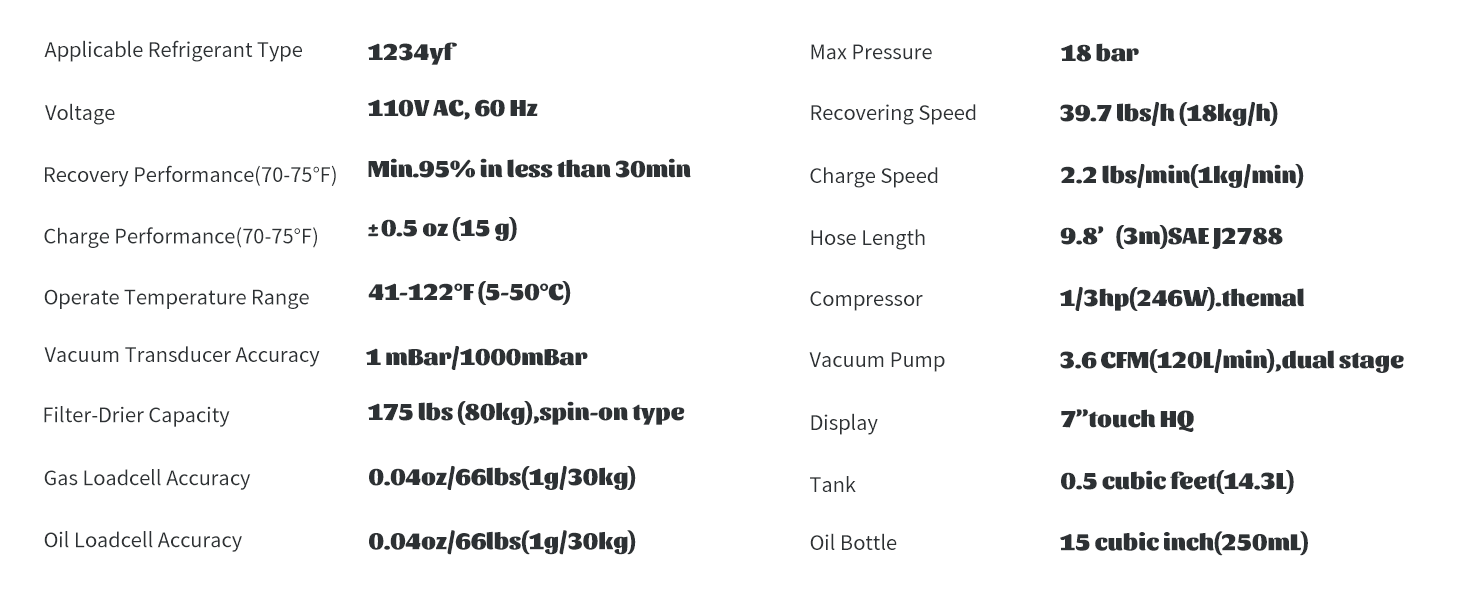

Specifications
| Specification |
Details |
| Model |
AC2100 Dual |
| Refrigerant Type |
R-1234YF or R-134A |
| Voltage |
110V AC, 60 Hz |
| Recovery Performance |
≥95% in <30 minutes (70–75°F) |
| Charge Accuracy |
±0.5 oz (15 g) |
| Operating Temperature |
41–122°F (5–50°C) |
| Max Pressure |
18 bar |
| Recovery Speed |
39.7 lbs/h (18 kg/h) |
| Charge Speed |
2.2 lbs/min (1 kg/min) |
| Vacuum Pump |
Dual-stage, 3.6 CFM (120 L/min) |
| Compressor |
1/3 HP (246W), hermetically sealed |
| Display |
7” HQ Touchscreen |
| Tank Capacity |
0.5 cu ft (14.3 L) |
| Oil Bottle Capacity |
250 mL |
| Hose Length |
9.8 ft (3m), SAE J2788 |
| Gross Weight |
240 lbs (110 kg) |
| Packing Size |
22” × 28” × 41” |
Installation Requirements (Important)
-
Designed for professional automotive shop environments
-
Requires stable 110V AC power supply
-
Use only with compatible refrigerant type per machine configuration
-
Proper refrigerant handling certification required per local regulations
Verify refrigerant type before ordering.
Warranty
-
1-Year Limited Warranty covering parts and manufacturer defects
-
Free replacement parts and shipping for approved warranty claims
-
Labor is not included
-
Optional 2-Year Extended Warranty available
-
Warranty is non-transferable and requires proof of purchase
All claims require approval and may require photos or documentation.
Bottom Line
The Katool AC2100 Dual Refrigerant Recovery Machine is a professional-grade, fully automatic AC service solution designed for shops servicing R-1234YF or R-134A systems. With high recovery efficiency, precise charging accuracy, and integrated smart controls, it delivers dependable performance for modern automotive HVAC service operations.
Live Chat with us or call (866) 412-1837 to confirm fitment, installation requirements, or shipping details.
