AMGO PRO-12ASX Alignment Lift | 12K lb 4 Post Car Lift

AMGO PRO-12ASX 4 Post Alignment Car Lift – 12,000 lbs Capacity

The AMGO PRO-12ASX is engineered for precision and performance, offering all the robust features of the PRO-12SX with enhanced alignment capabilities. Designed for professional shops and demanding garages, this 4-post lift supports up to 12,000 lbs and includes integrated slip plates and adjustable turnplate pockets to handle a wide range of vehicles. The stepless adjustable width between platforms allows for effortless customization to suit different track widths, making it an ideal solution for alignment service needs.

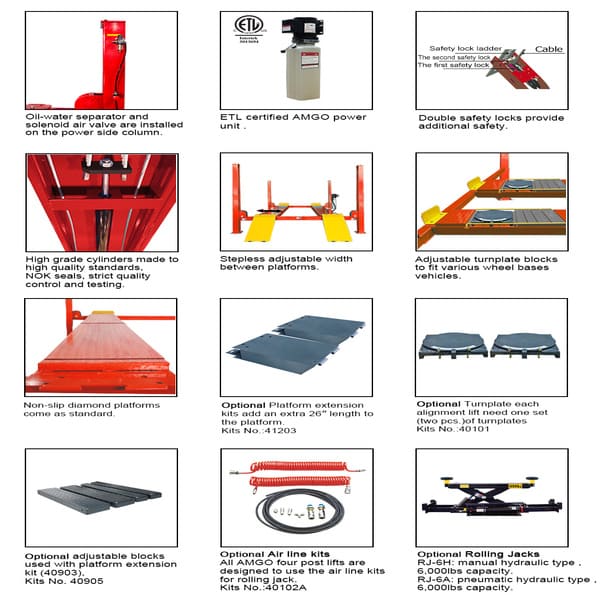

PRO-12ASX 4-Post Alignment Lift Features

• 12,000 lbs lifting capacity

• AMGO ETL-certified power unit (standard)

• Mechanical self-locking system with air-driven lock release

• Multiple safety locks & cable-slack protection system

• Aircraft-grade high-quality cables

• Industrial-grade hydraulic cylinder with top-tier oil seals

• Non-skid diamond platforms for added safety

• Stepless width adjustment for platform spacing

• Integrated slip plates & adjustable turnplate pockets for alignment

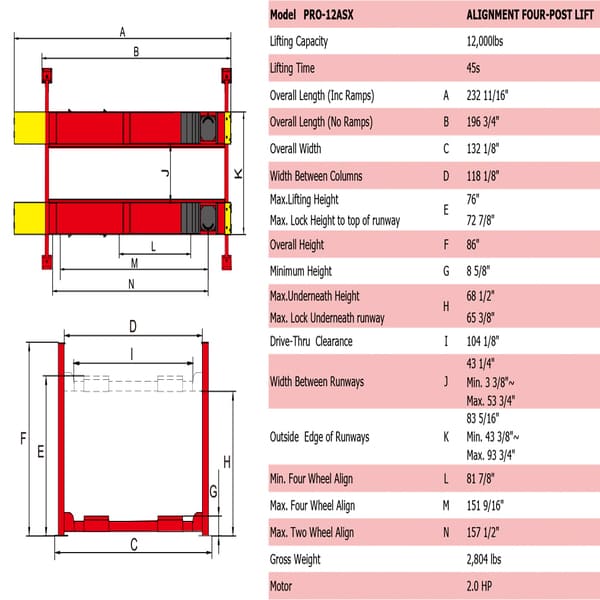

AMGO PRO-12ASX Lift Specifications

• Lift Capacity: 12,000 lbs

• Drive-through Width: Over 100″

• Platform Surface: Non-skid diamond

• Width Adjustment: Stepless technology

• Alignment Features: Slip plates + adjustable turnplate pockets

• Safety Systems: Cable-slack protection, self-locking mechanical locks

AMGO PRO-12ASX Car Lift Manual

Download the PRO-12ASX Installation Manual (PDF)
