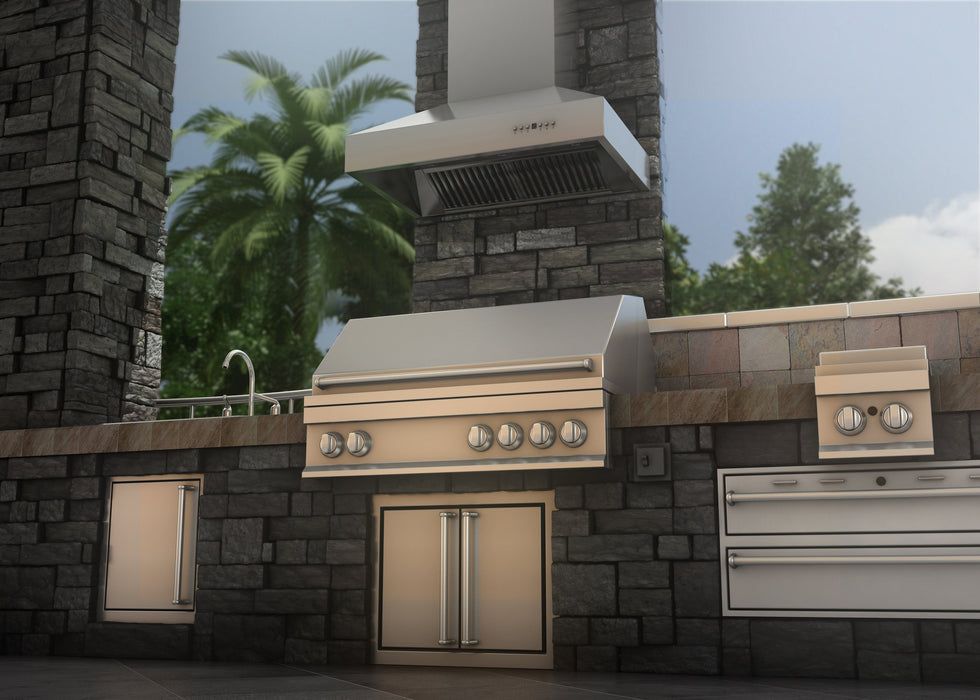

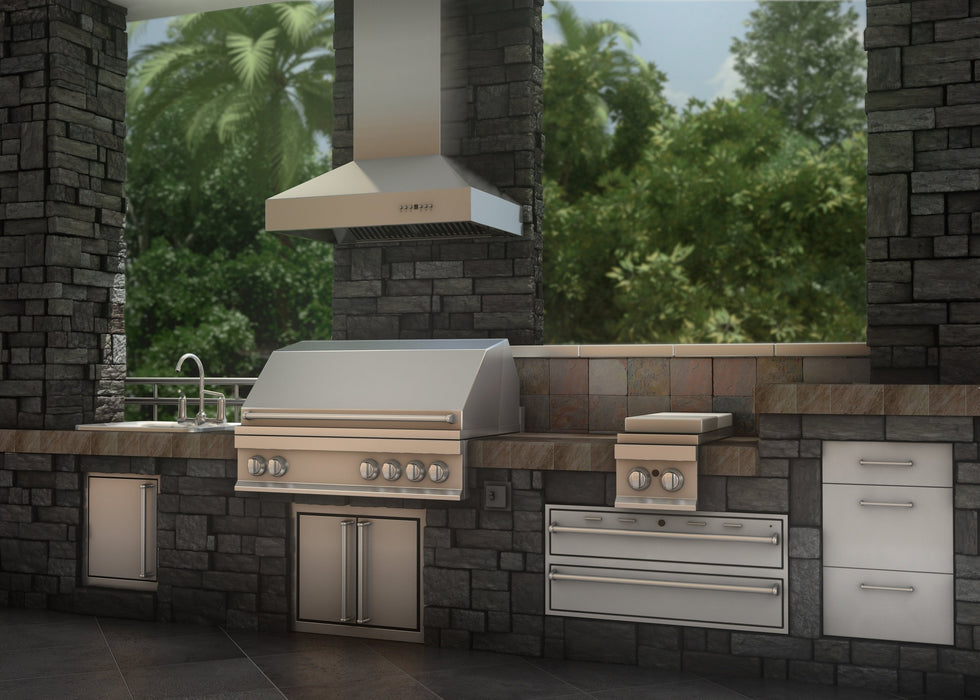

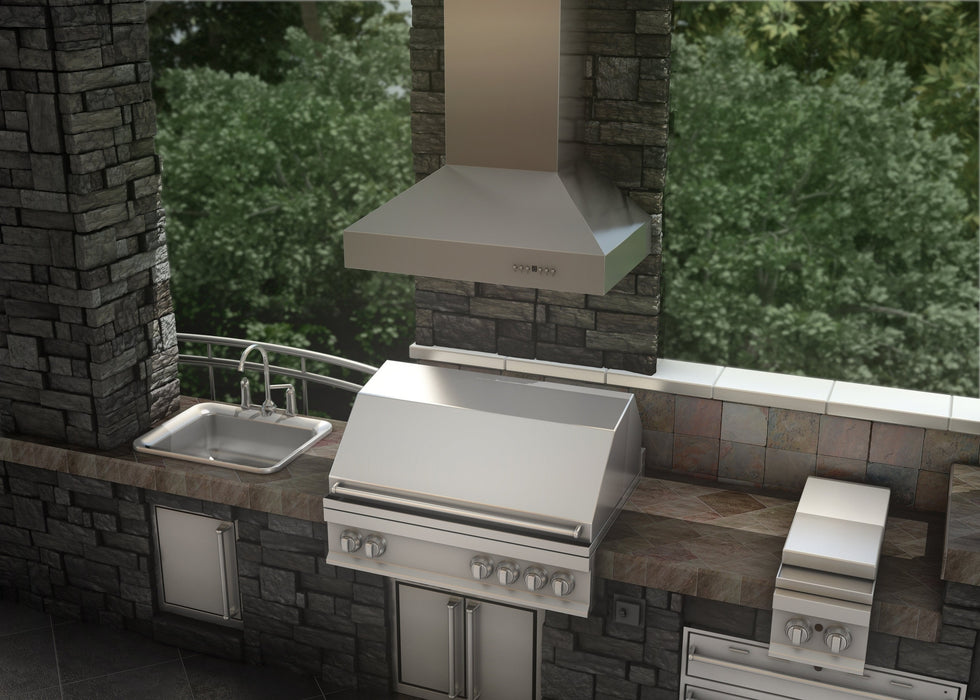

ZLINE Outdoor Wall Mount Range Hood in Stainless Steel - 697-304

ZLINE Outdoor Wall Mount Range Hood in Stainless Steel - 697-304

The ZLINE 697-304 professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 304 grade stainless steel, making it approved for outdoor use. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. ZLINE Range Hoods are supposed to be seen, not heard. That’s why at most speeds, our range hoods are quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.

Features

• This hood contains many unique features, such as:
• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor
• Includes chimney

Specifications

• Brand: ZLINE Kitchen and Bath
• Dimensions:
• 697-304-30: 30" W x 27.5" D x 16.375" H
• 697-304-36: 36" W x 27.5" D x 16.375" H
• 697-304-42: 42" W x 27.5" D x 16.375" H
• 697-304-48: 48" W x 27.5" D x 16.375" H
• 697-304-60: 60" W x 27.5" D x 16.375" H

• Chimney:
• 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
• Chimney Short Kit and Extension(s) Available:
• Short Kit (2-12") ~7-8 ft. Ceilings
• 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
• 2 PC Extension (2-36") ~10-12 ft. Ceilings

• Venting Size:
• 6" Outlet (Transition piece with backdraft damper to round ducting included)
• Charcoal Filters (not included) available for ductless/recirculating option.

• Airflow (Q/L/M/H):
• 697-304-30: 120/240/320/400
• 697-304-36: 280/420/560/700
• 697-304-42: 280/420/560/700
• 697-304-48: 280/420/560/700
• 697-304-60: 280/420/560/700

Additional Information

• Lighting: LED Lights
• Noise Level: 20/29/34/41 (Decibels)
• Voltage: 110V/60HZ
• Motor: High Performance 400 CFM/4-Speed Motor
• Mount Type: Wall Mounted
• Speeds: 4 Speeds
• Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
• Material: 19g #304 Stainless Steel
• Warranty: 3 Year Parts Warranty
