Zephyr Brisas BVE Wall Range Hood, 30" & 36" Sizes

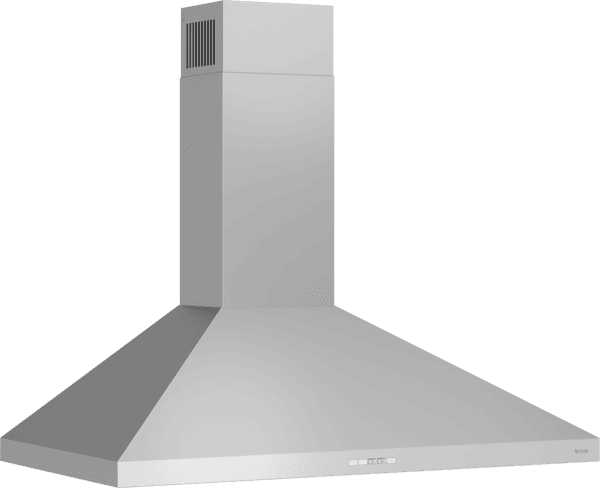

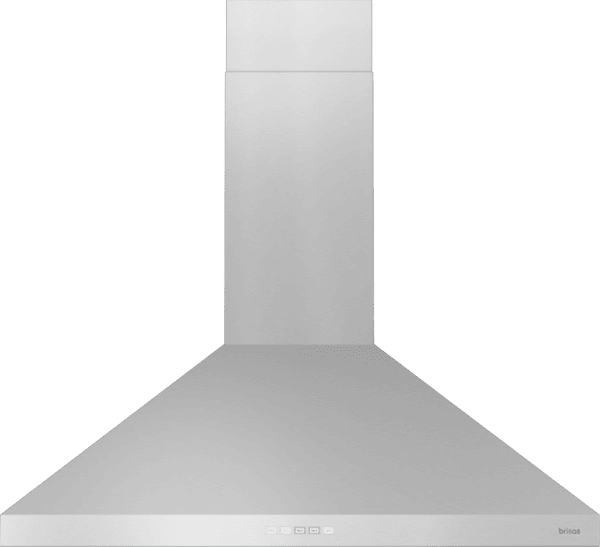

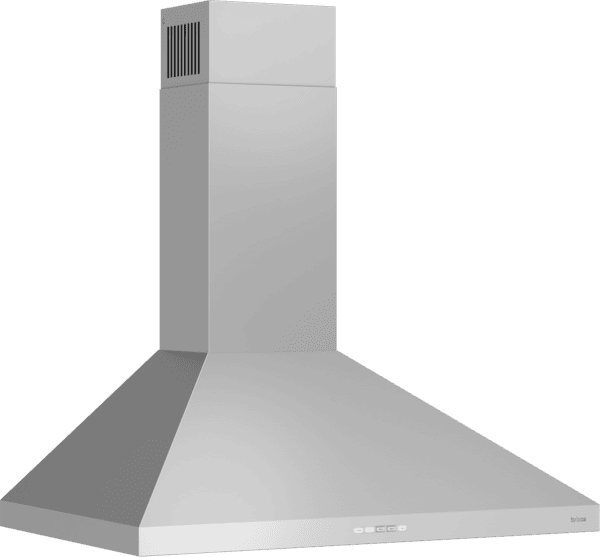

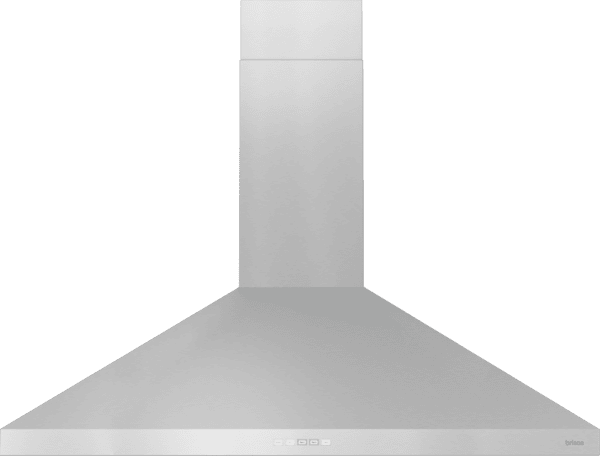

Zephyr BVE Wall Mount Range Hood – Pyramid Style Ventilation in 30" or 36"

Transform your kitchen with the professional-grade performance and elegant design of the Zephyr Brisas BVE Wall Mount Range Hood. Available in 30-inch (BVE-E30CS) and 36-inch (BVE-E36CS) widths, this wall-mounted stainless steel hood features a striking pyramid shape, 600 CFM blower power, and user-friendly electronic touch controls. With Zephyr’s proprietary Airflow Control Technology™ (ACT™), you can tailor CFM output to meet local code requirements. LumiLight LED lighting provides long-lasting brightness, while dishwasher-safe mesh filters ensure easy maintenance. Whether upgrading or remodeling, the BVE hood offers style, function, and flexibility right out of the box.

Pyramid Wall Range Hood Features – Zephyr BVE Ventilation System

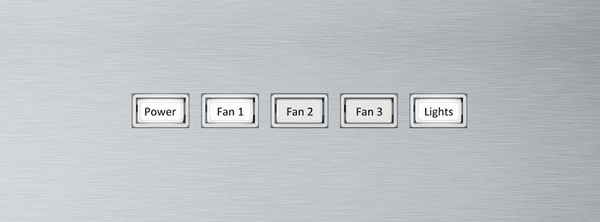

• Electronic Touch Controls: Sleek digital interface allows quick access to fan speeds, lighting levels, and auto shutoff.

• Airflow Control Technology™ (ACT™): Limit maximum CFM (390 or 290) to meet regional regulations without sacrificing performance.

• LumiLight Dual-Level LED Lighting: High-efficiency LEDs last over 25,000 hours and are dimmable for ambient or task use.

• Dishwasher-Safe Mesh Filters: Easy to remove and clean, these aluminum filters offer high grease-capture efficiency.

• Optional Recirculating Kit (BRC-0108): Ideal for kitchens without external venting; uses charcoal filters to clean and return air.

• Optional 12-Foot Duct Cover Kit (B1C-00VE): Designed for tall ceilings for both 30" and 36" models.

Brisas BVE Wall-Mount Hood Specifications – Zephyr Range Hood Series

Model BVE-E30CS (30")

• Dimensions: 29.9375" W x 19.75" D x 27.5–42" H

• CFM: 600 Max (ACT settings: 390, 290)

• Lighting: 1 LumiLight LED, Dual Level

• Blower Speeds: 3 | Max Sones: 6

• Voltage: 120V | Amps: 2.6

• Ducting: 6" Vertical

• Finish: Stainless Steel

• Weight: 31 lbs

• Country of Origin: Taiwan

Model BVE-E36CS (36")

• Dimensions: 35.875" W x 19.75" D x 27.5–42" H

• CFM: 600 Max (ACT settings: 390, 290)

• Lighting: 1 LumiLight LED, Dual Level

• Blower Speeds: 3 | Max Sones: 6

• Voltage: 120V | Amps: 2.6

• Ducting: 6" Vertical

• Finish: Stainless Steel

• Weight: 42 lbs

• Country of Origin: Taiwan

Optional Accessories – Zephyr BVE Range Hood Upgrades

🌀 BRC-0108 – Recirculating Kit for BVE Series
Ideal for ductless installations, this kit includes charcoal filters to effectively capture odors and impurities. Designed for use with Zephyr BVE models when external venting is not possible.

📏 B1C-00VE – 12-Foot Duct Cover Extension Kit
Extend your range hood's chimney height for ceilings up to 12 feet. Compatible with both the 30-inch (BVE-E30CS) and 36-inch (BVE-E36CS) Brisas BVE models.

📥 Downloads

• 📄 Spec Sheet PDF
• 📘 Installation Manual PDF
• 🛠 BRC-0108 Recirculating Kit Manual PDF
