Zephyr Brisas BML Island Hood 30"/36" Glass 600 CFM

Brisas BML Curved Glass Island Range Hood (30" & 36")

Upgrade your kitchen with the sleek and efficient Brisas BML Curved Glass Island Range Hood by Zephyr. Available in 30-inch (BML-E30CG) and 36-inch (BML-E36CG) models, this contemporary island hood is designed for quick installation, with Zephyr’s exclusive Quick-Lock system allowing setup in as little as 20 minutes. The stunning curved glass canopy brings a modern European flair, while advanced electronic touch controls and LumiLight LED lighting enhance both functionality and style.

Whether you're renovating or building new, this high-performance island range hood offers 600 CFM of ventilation power, Airflow Control Technology™ (ACT™) to meet local codes, and dishwasher-safe aluminum mesh filters for easy maintenance.

Zephyr Curved Island Hood Features (BML-E30CG / BML-E36CG)

• Electronic Touch Controls – Effortlessly manage fan speeds, lighting levels, and delay-off with sleek digital touch.

• Airflow Control Technology™ (ACT™) – Customize airflow (390 or 290 CFM) to comply with local building codes.

• LumiLight LED Lighting – Dual-level LED lights with a 25,000+ hour lifespan offer bright, energy-efficient illumination.

• Dishwasher-Safe Aluminum Mesh Filters – Capture grease effectively and clean up easily.

• Quick-Lock Installation System – Install in just 3 steps with minimal manpower or tools.

• Optional Ductless Recirculating Kit – For kitchens without external venting.

• Optional 12-Foot Duct Cover Kit – Perfect for homes with tall ceilings.

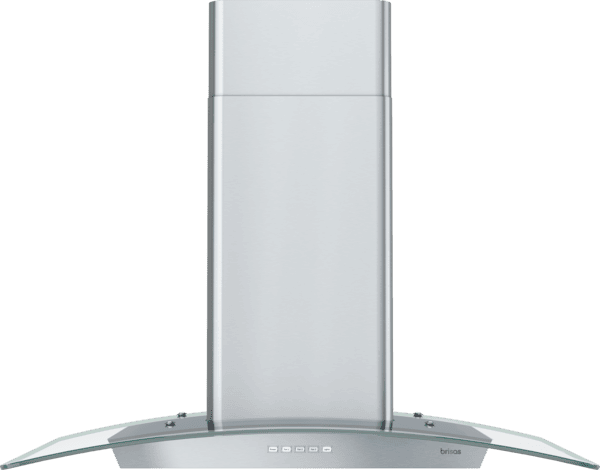

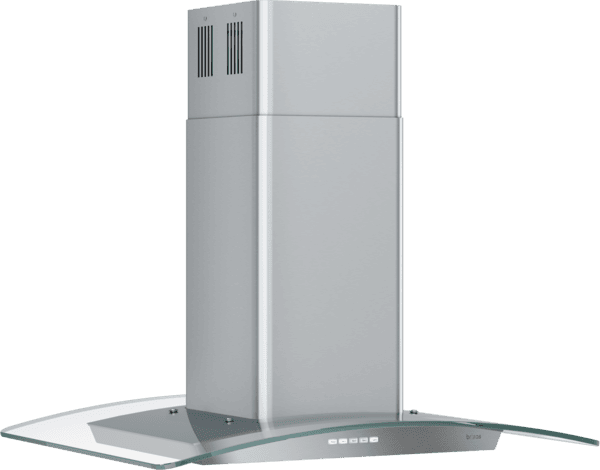

Zephyr BML-E30CG 30-Inch Island Range Hood Specifications

• Installation Type: Island Mount

• Finish: Stainless Steel + Curved Glass

• CFM: Up to 600 (ACT settings: 390, 290)

• Blower Speeds: 3

• Sones (Noise): Max 6

• Lighting: 2x LumiLight LED, Dual Level

• Controls: Electronic Touch

• Ducting: 6” Vertical

• Mounting Height: 24"–34" above cooktop

• Dimensions: 29.875" W x 25.5625" D x 28–37" H

• Weight: 71 lbs

• Voltage/Amps: 120V / 2.7A

• Warranty: 1 Year Parts / 1 Year Labor

• Country of Origin: Taiwan

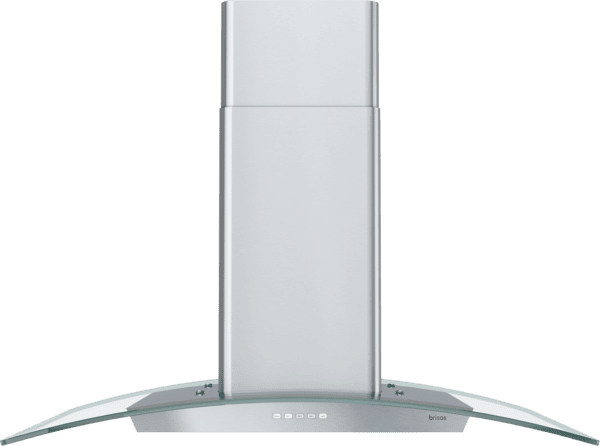

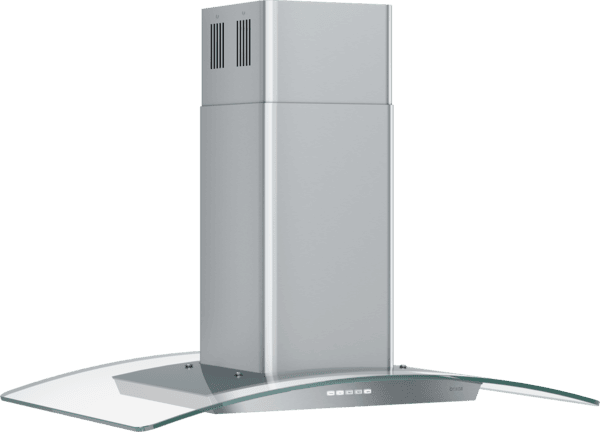

Zephyr BML-E36CG 36-Inch Glass Island Hood Specifications

• Installation Type: Island Mount

• Finish: Stainless Steel + Curved Glass

• CFM: Up to 600 (ACT settings: 390, 290)

• Blower Speeds: 3

• Sones (Noise): Max 6

• Lighting: 2x LumiLight LED, Dual Level

• Controls: Electronic Touch

• Ducting: 6” Vertical

• Mounting Height: 24"–34" above cooktop

• Dimensions: 35.1875" W x 25.5625" D x 28–37" H

• Weight: 73 lbs

• Voltage/Amps: 120V / 2.7A

• Warranty: 1 Year Parts / 1 Year Labor

• Country of Origin: Taiwan

Zephyr BML Island Hood Compatible Accessories

• BRC-0107 – Recirculating Kit
  Ideal for ductless installations. This kit includes charcoal filters that purify air and recirculate it back into the kitchen, eliminating the need for external ducting.

• B1C-00ML – Duct Cover Extension Kit (Up to 12 ft ceilings)
  Designed to accommodate taller kitchen ceilings, this optional extension extends the chimney height for ceilings up to 12 feet. Compatible with both 30" and 36" Brisas BML models.

Downloads

• 📄 Spec Sheet PDF
• 📘 Installation Manual PDF
• 🛠️ BRC-0107 Recirculating Kit Manual
